Toyota Century
1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe
Discontinued model
Data version 2017-07

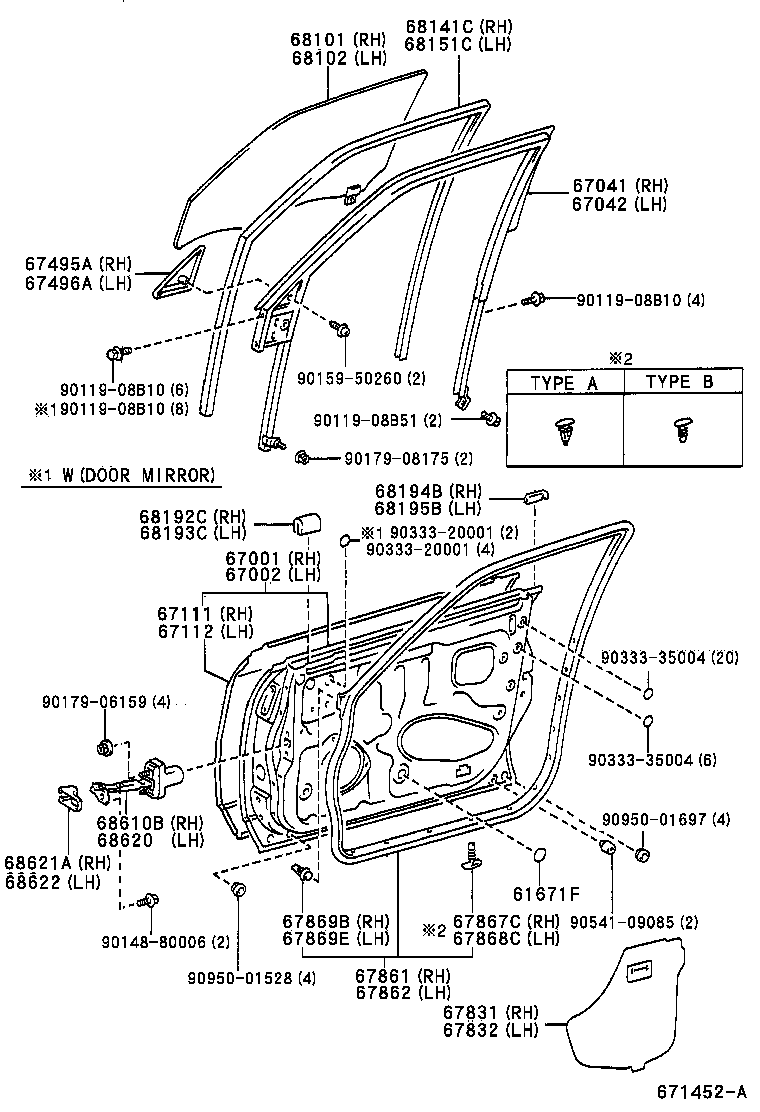

Front Door Panel & Glass
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61671F | Plate, Quarter Panel, Upper NO.1 |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67041 | Frame Sub-assy, Front Door Window, RH |
| 67042 | Frame Sub-assy, Front Door Window, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67495A | Cover, Front Door Front Lower Frame, Upper RH |
| 67496A | Cover, Front Door Front Lower Frame, Upper LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67651H | Grille, Speaker Door, RH |
| 67652C | Grille, Speaker Door, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67675 | Cover, Side Trim Board, Front RH |
| 67676 | Cover, Side Trim Board, Front LH |
| 67685A | Cover, Side Trim Board, Front RH |
| 67686B | Cover, Side Trim Board, Front LH |
| 67705 | Ornament Sub-assy, Front Door Trim, RH |
| 67706 | Ornament Sub-assy, Front Door Trim, LH |
| 67785A | Holder, Door Locking Button Collar(FOR FRONT DOOR) |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869E | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68192C | Seal, Front Door Belt, Front RH |
| 68193C | Seal, Front Door Belt, Front LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68220A | Weatherstrip Assy, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 68621A | Cover, Front Door Check, RH |
| 68622 | Cover, Front Door Check, LH |
| 74205 | Panel Sub-assy, Front Armrest Base, Lower RH |
| 74206 | Panel Sub-assy, Front Armrest Base, Lower LH |
| 74293 | Plate, Front Door Armrest, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
