Toyota Century

1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 2 illustrations

Illustrations

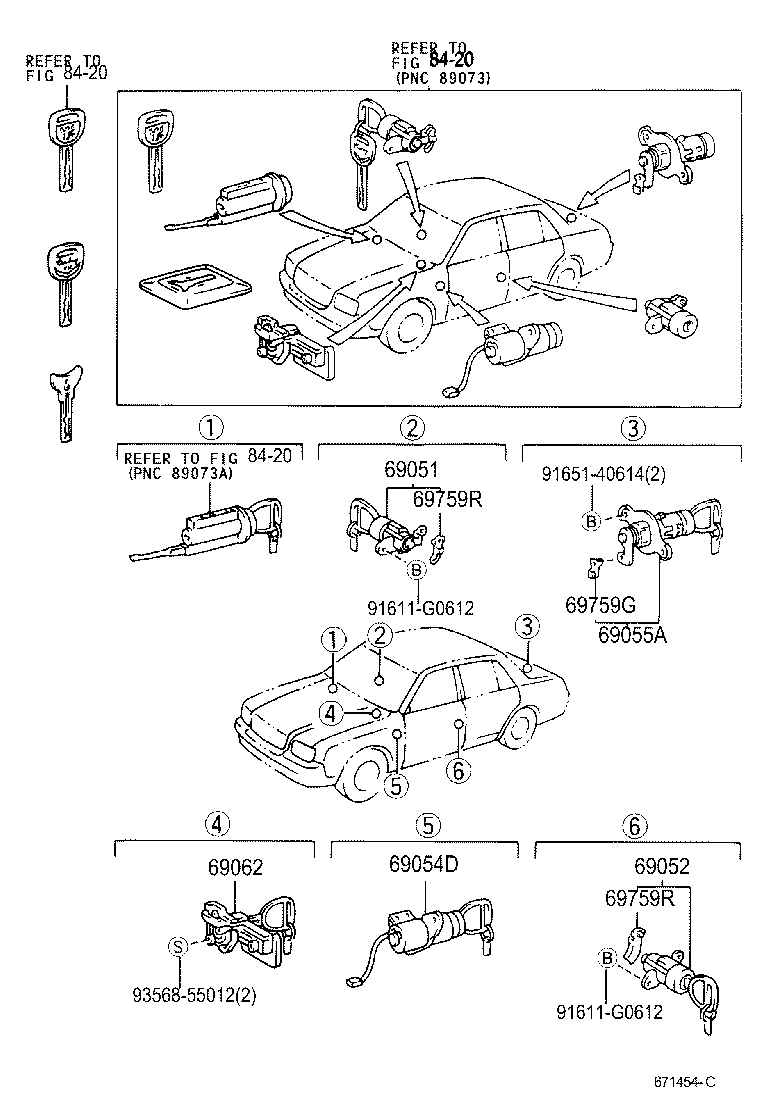

Figure 671455C 671455C 1998-10 → — Figure 671454C 671454C 1998-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69054D Cylinder & Key Set, Luggage Opener Cancel
69055A Cylinder & Key Set, Luggage Compartment Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
