Toyota Century
1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe
Discontinued model
Data version 2017-07

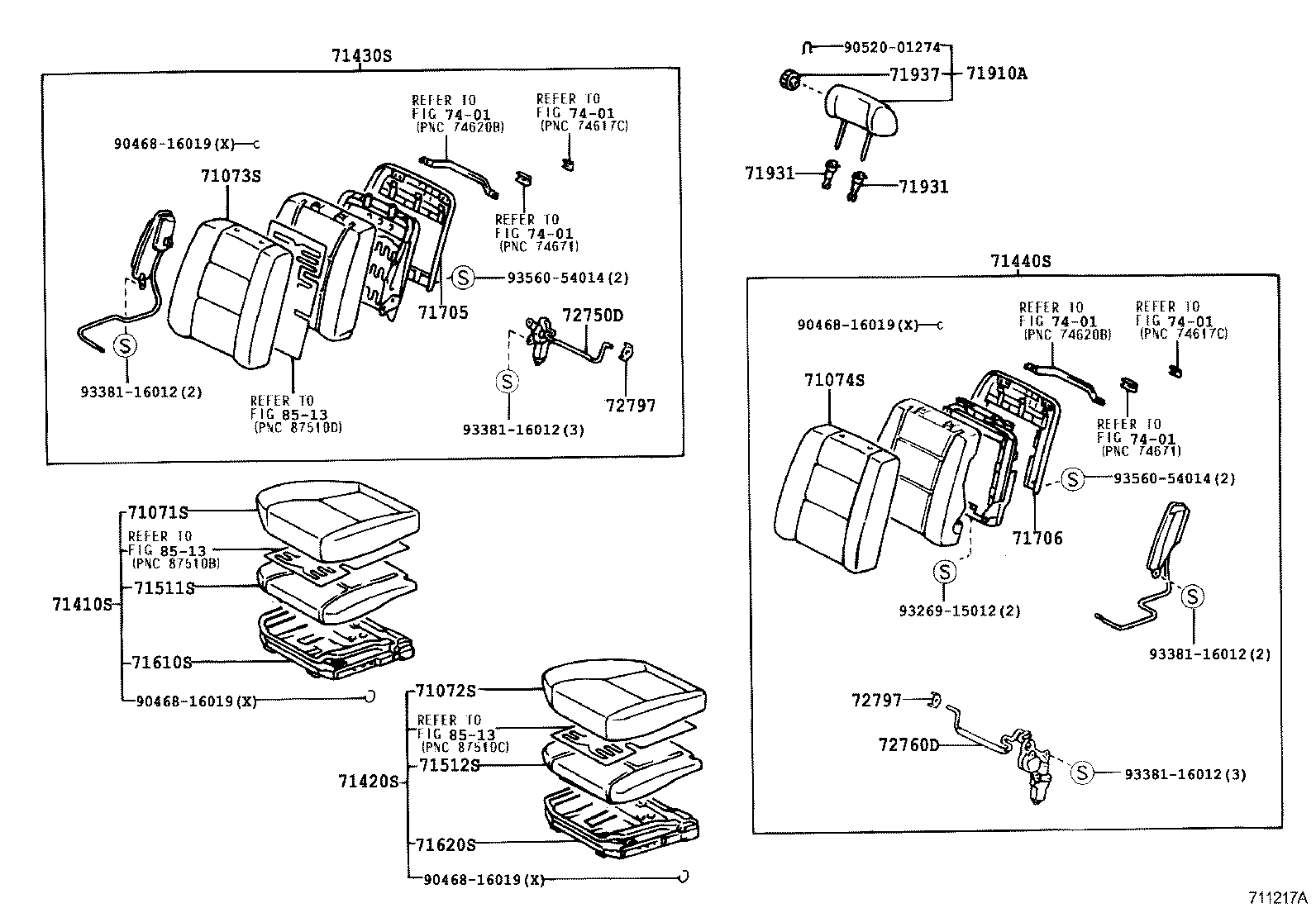

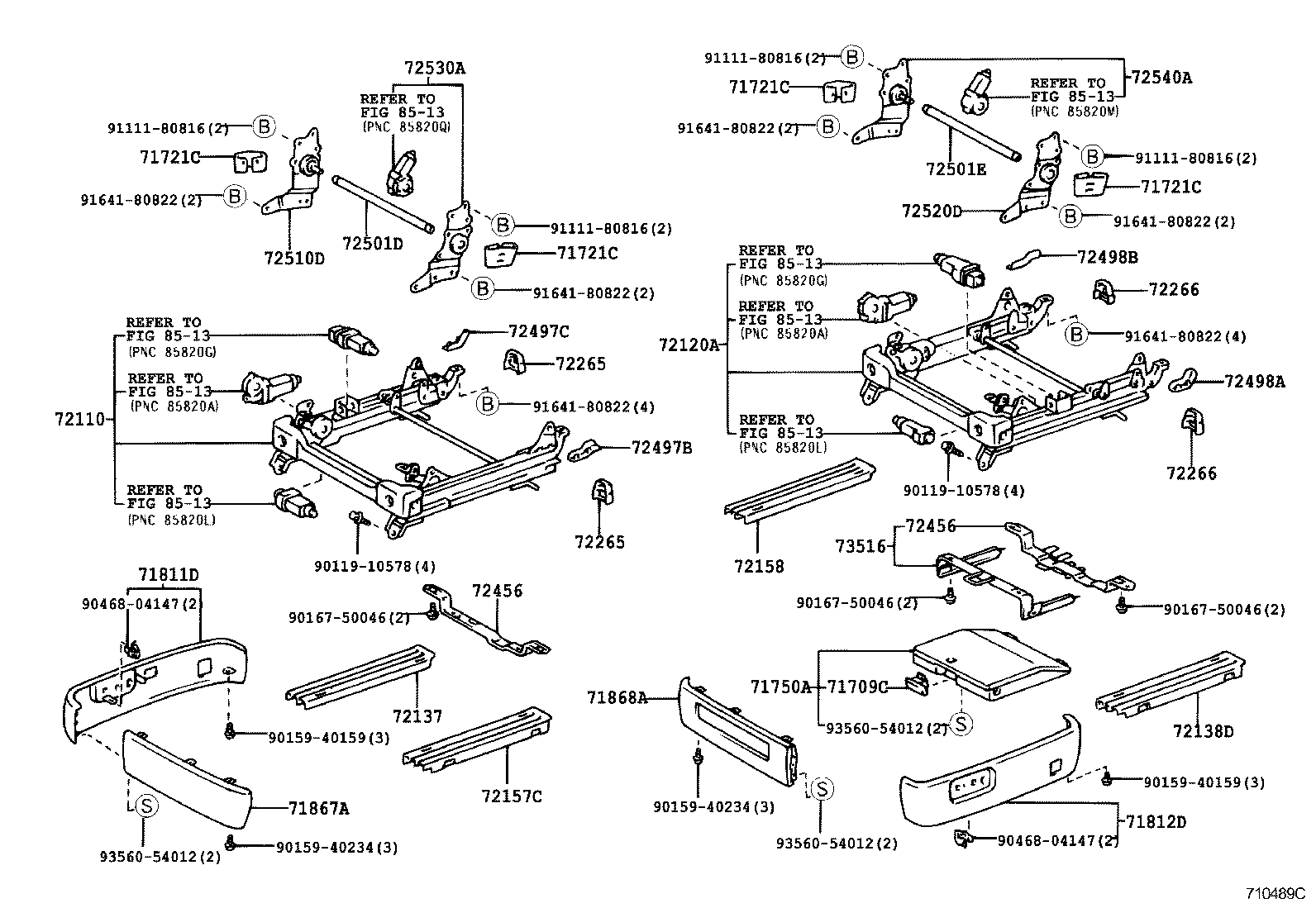

Front Seat & Seat Track
53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58329C | Spacer, Footrest |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71709C | Lock Sub-assy, Seat Under Tray |
| 71721C | Fabric, For Seat |
| 71750A | Tray Assy, Front Seat Under |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71937 | Handle, Front Seat Headrest Regulator |
| 71980 | Footrest Assy, Front Seat, NO.1 |
| 72110 | Regulator Assy, Power Seat, RH |
| 72120A | Regulator Assy, Power Seat, LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138D | Cover, Seat Track, Outer, LH |
| 72157C | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72456 | Bracket, Seat Frame Set, NO.2 |
| 72497B | Cover, Vertical Adjuster Bracket, RH |
| 72497C | Cover, Vertical Adjuster Bracket, Outer |
| 72498A | Cover, Vertical Adjuster Bracket, LH |
| 72498B | Cover, Vertical Adjuster Bracket, Outer |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72510D | Adjuster Assy, Reclining Seat, Outer RH |
| 72520D | Adjuster Assy, Reclining Seat, Outer LH |
| 72530A | Adjuster Assy, Reclining Seat, Inner RH |
| 72540A | Adjuster Assy, Reclining Seat, Inner LH |
| 72613A | Striker, Front Seat Lock |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 72797 | Spacer, Lumbar Support |
| 72805A | Link Sub-assy, Front Seat Footrest, RH |
| 72806A | Link Sub-assy, Front Seat Footrest, LH |
| 72868A | Cover, Center Armrest Hinge |
| 73516 | Rail, Front Seat Under Tray, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
