Toyota Century

1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe

Discontinued model Data version 2017-07

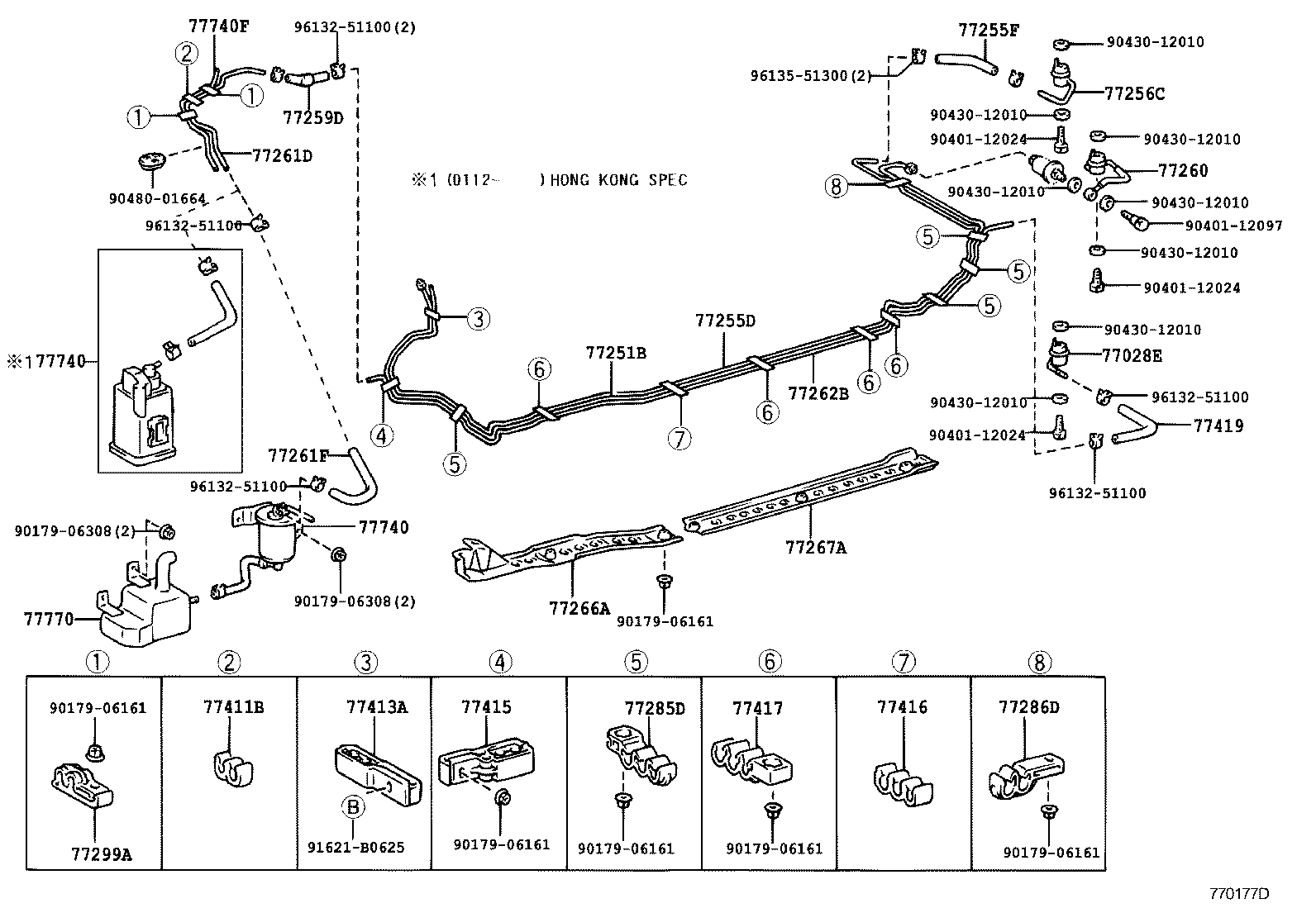

Fuel Tank & Tube

42 part groups · 2 illustrations

PNC	Description
23239A	Hose
77028E	Tube Sub-assy, Fuel Tank TO Canister, Rear
77100	Tank Assy, Fuel
77169A	Gasket, Fuel Suction Tube Set
77178	Gasket, Fuel Tank Filler Pipe, Lower
77179B	Gasket, Fuel Tank Evaporation Vent Tube
77201E	Pipe Sub-assy, Fuel Tank Filler
77203A	Tube Sub-assy, Fuel Suction
77240	Tube Assy, Fuel Suction
77251B	Tube, Fuel Main
77255D	Tube, Fuel Return
77255F	Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256C	Tube, Fuel Return, NO.2
77259D	Hose, Fuel, NO.1
77260	Hose Assy, Fuel Main
77261D	Tube, Fuel Tank TO Canister
77261F	Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77262B	Tube, Fuel Tank TO Canister, NO.2
77266A	Protector, Fuel Tube, NO.1
77267A	Protector, Fuel Tube, NO.2
77285D	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77290	Shield Assy, Fuel Tank Filler Pipe
77299A	Clamp, Fuel Tube, NO.5
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77377	Retainer, Fuel Filler Opening Lid Lock
77391	Ring, Fuel Inlet Box
77411B	Support, Fuel Tube Grommet, NO.1
77413A	Support, Fuel Tube Grommet, NO.3
77415	Support, Fuel Tube Grommet, NO.5
77416	Support, Fuel Tube Grommet, NO.6
77417	Support, Fuel Tube Grommet, NO.7
77419	Hose, Fuel, NO.3
77606F	Case Sub-assy, Fuel Tank Cover Vent
77607	Case Sub-assy, Fuel Tank Cover Vent, LH
77658	Moulding, Fuel Tank Edge
77740	Canister Assy, Charcoal
77740F	Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77770	Tank Assy, Charcoal Canister

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
