Toyota Century

1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 11 illustrations

Illustrations

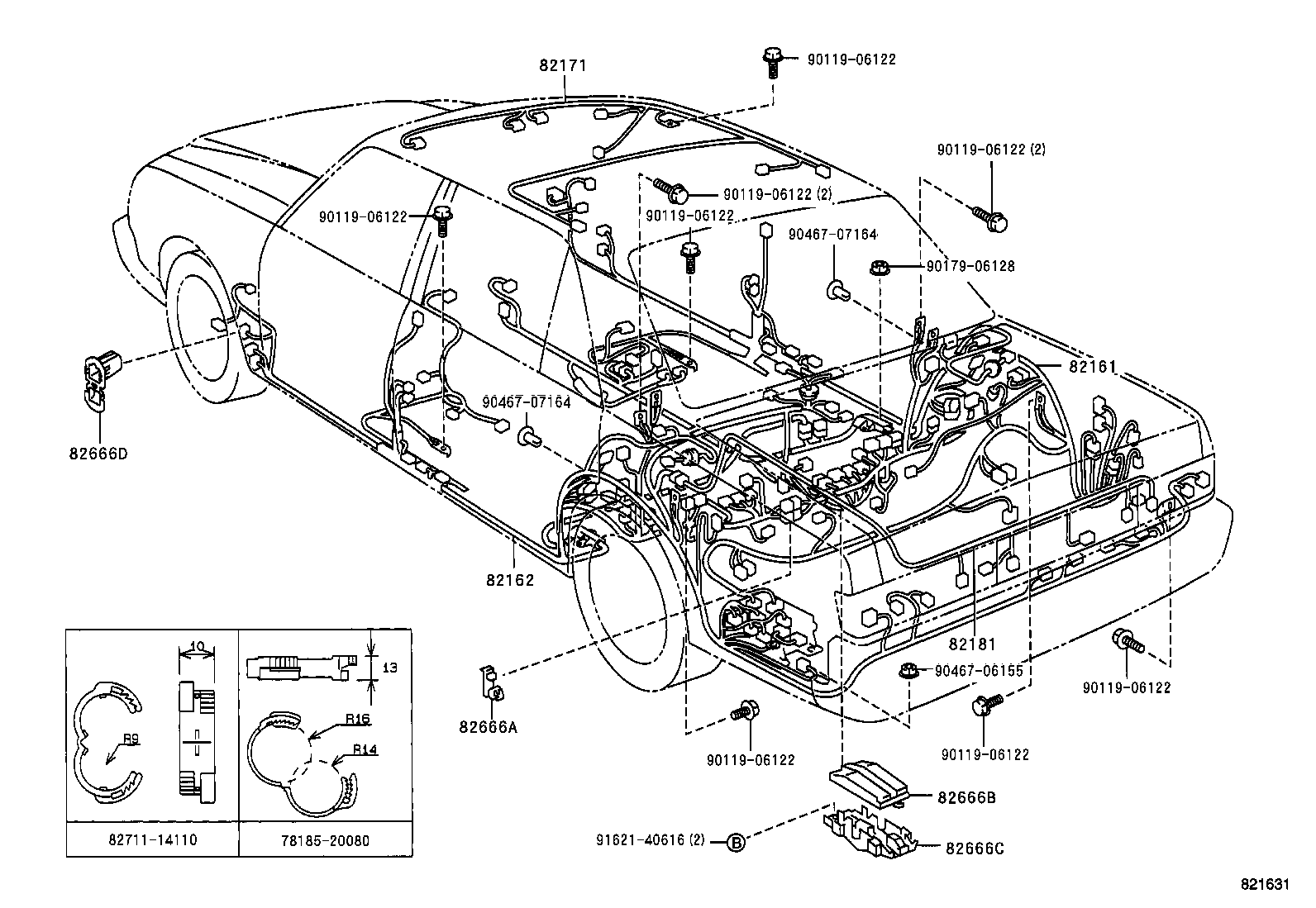

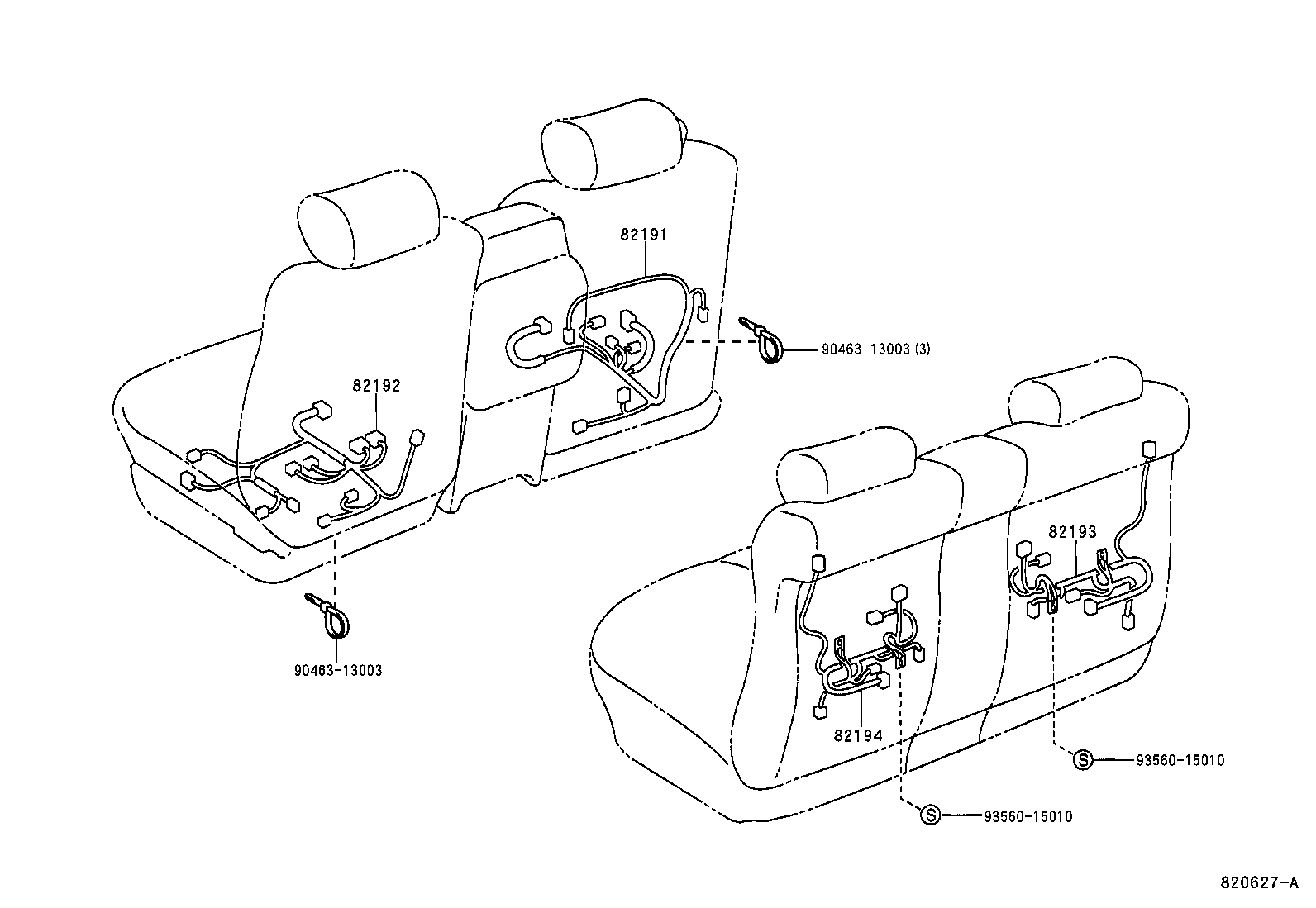

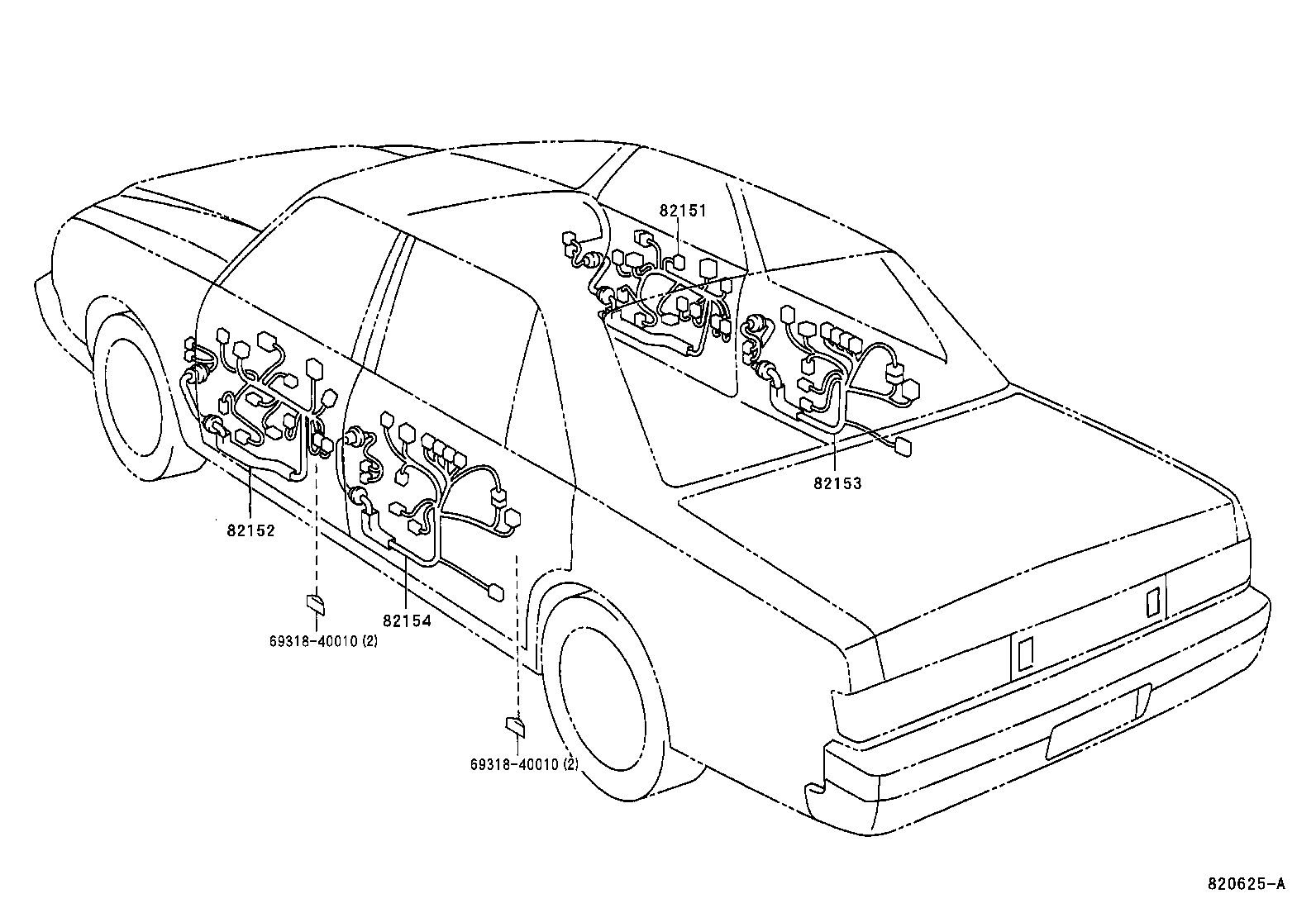

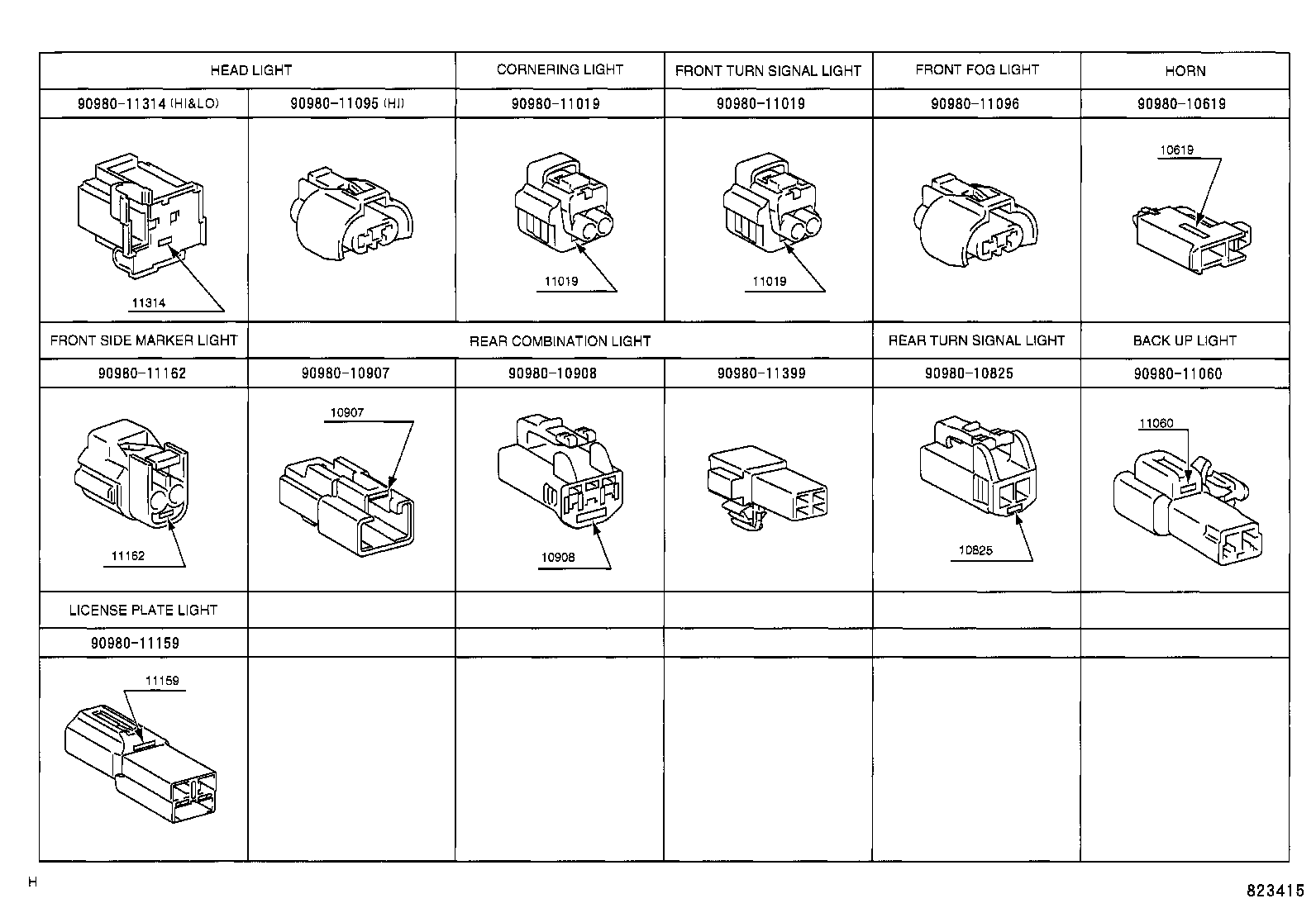

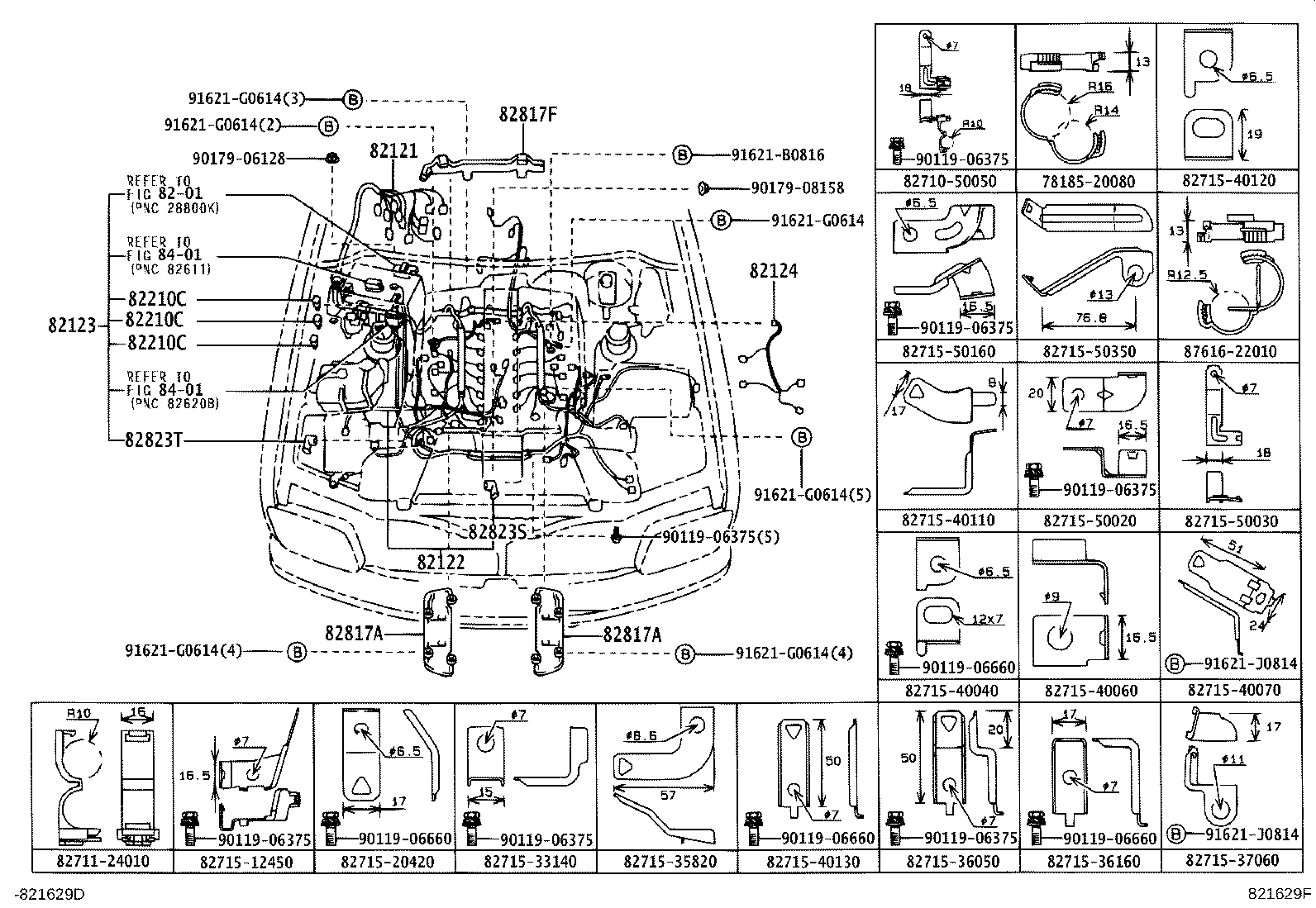

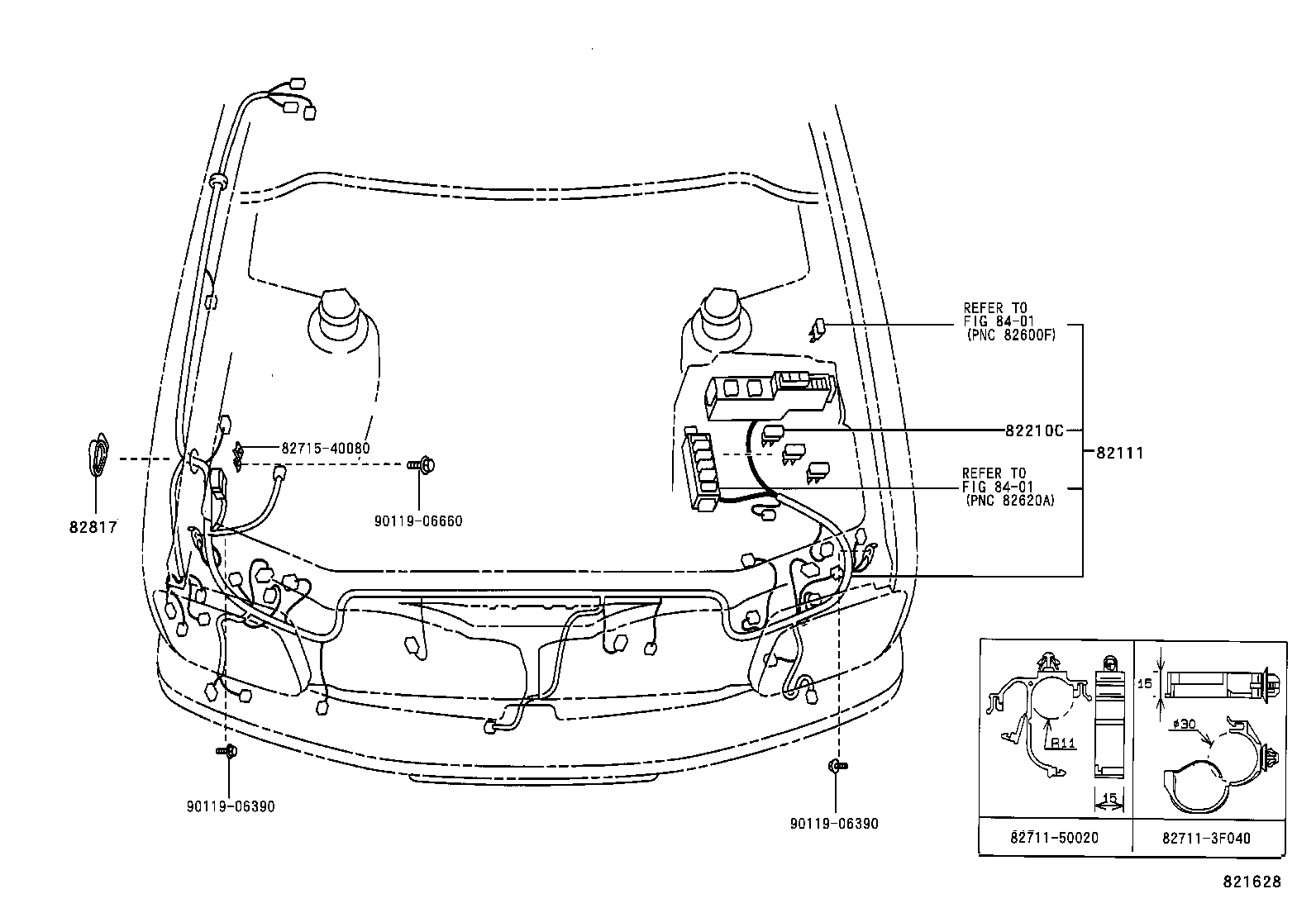

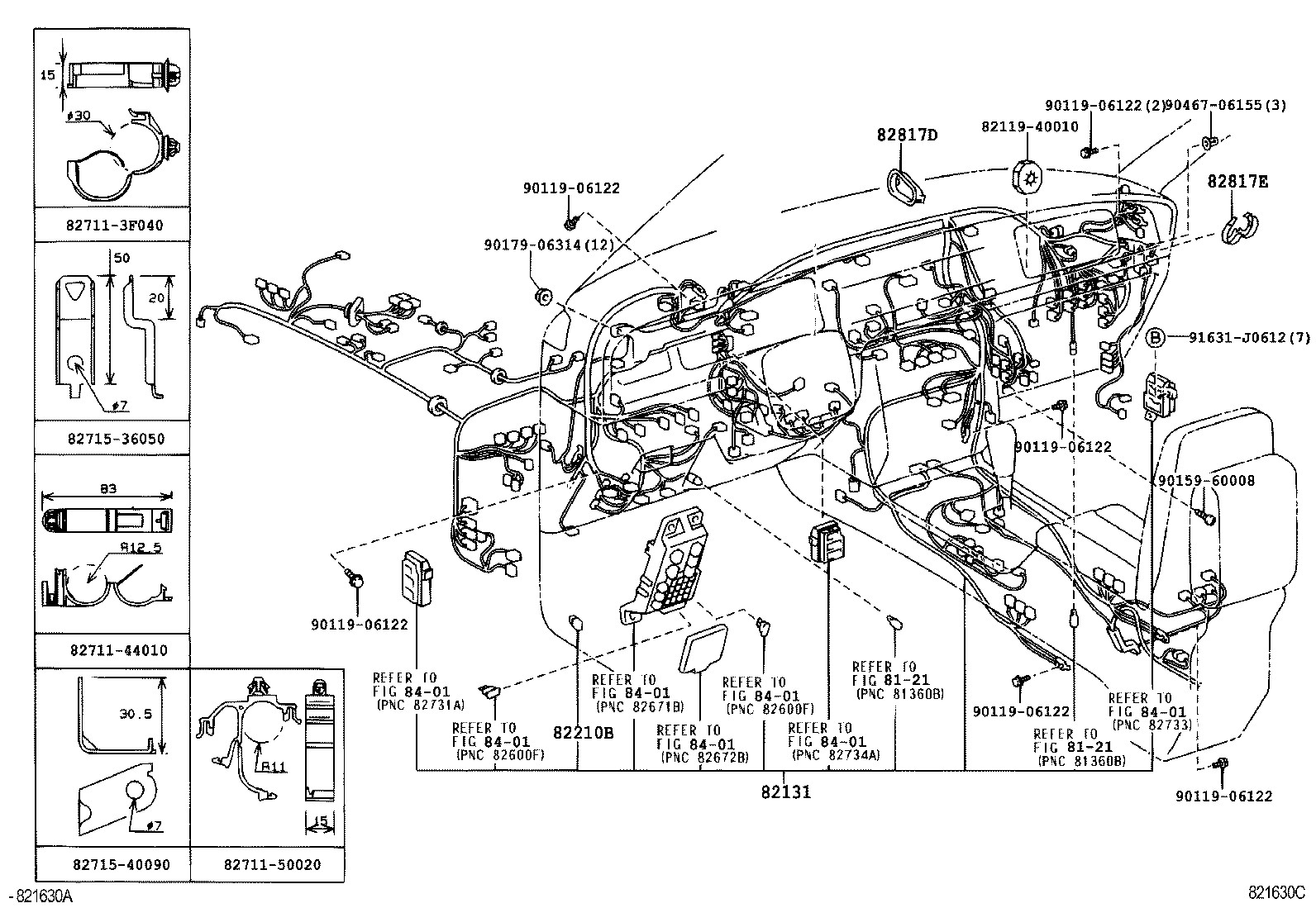

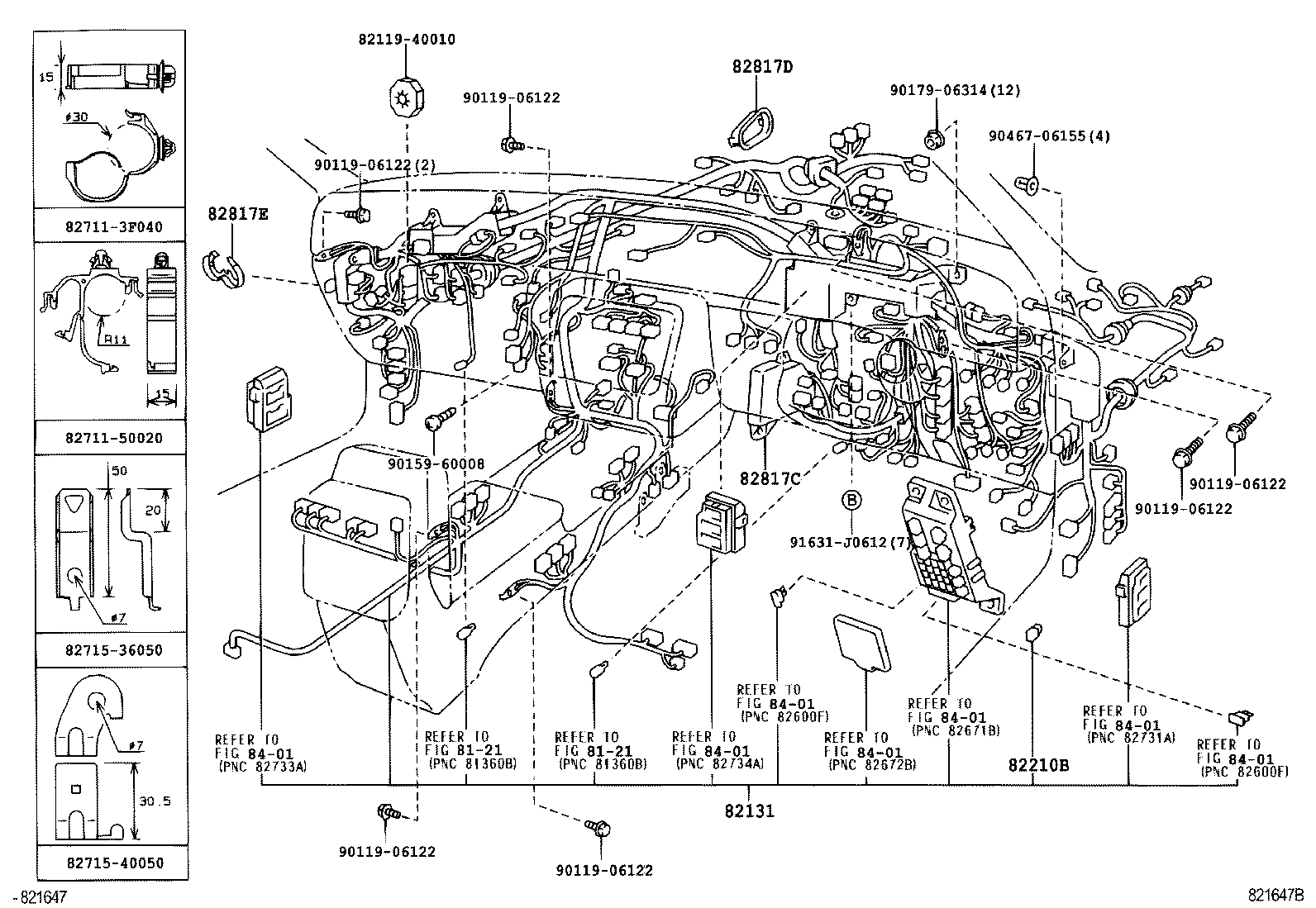

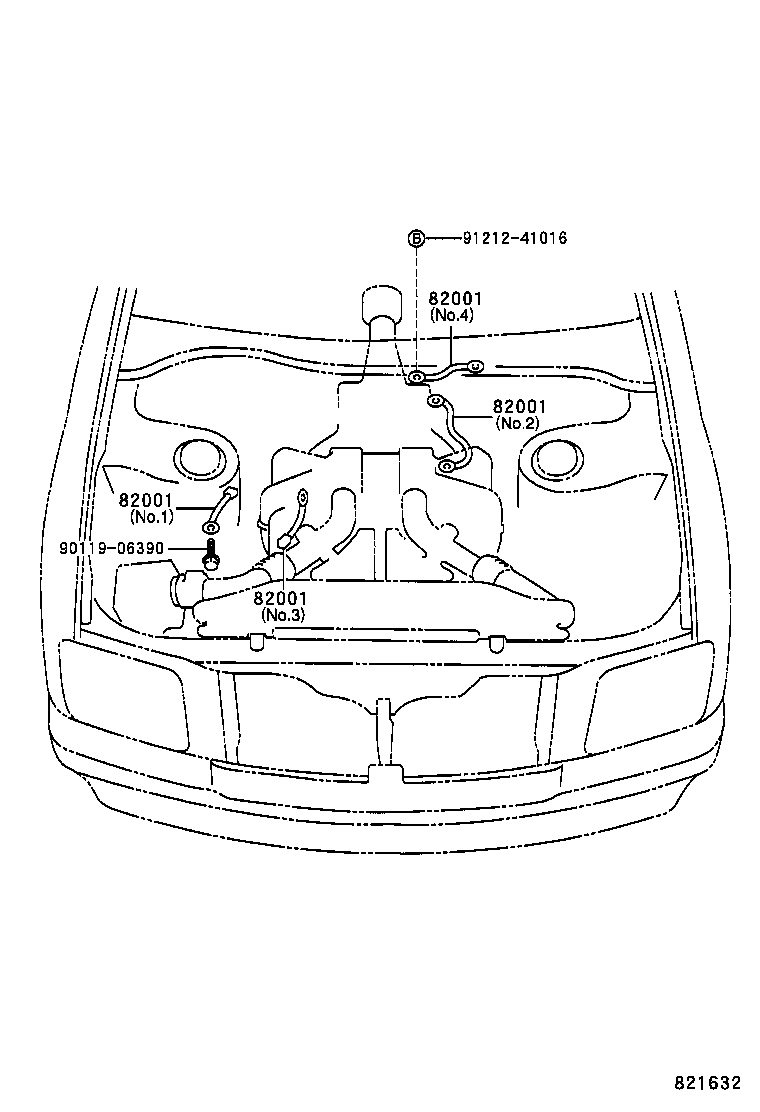

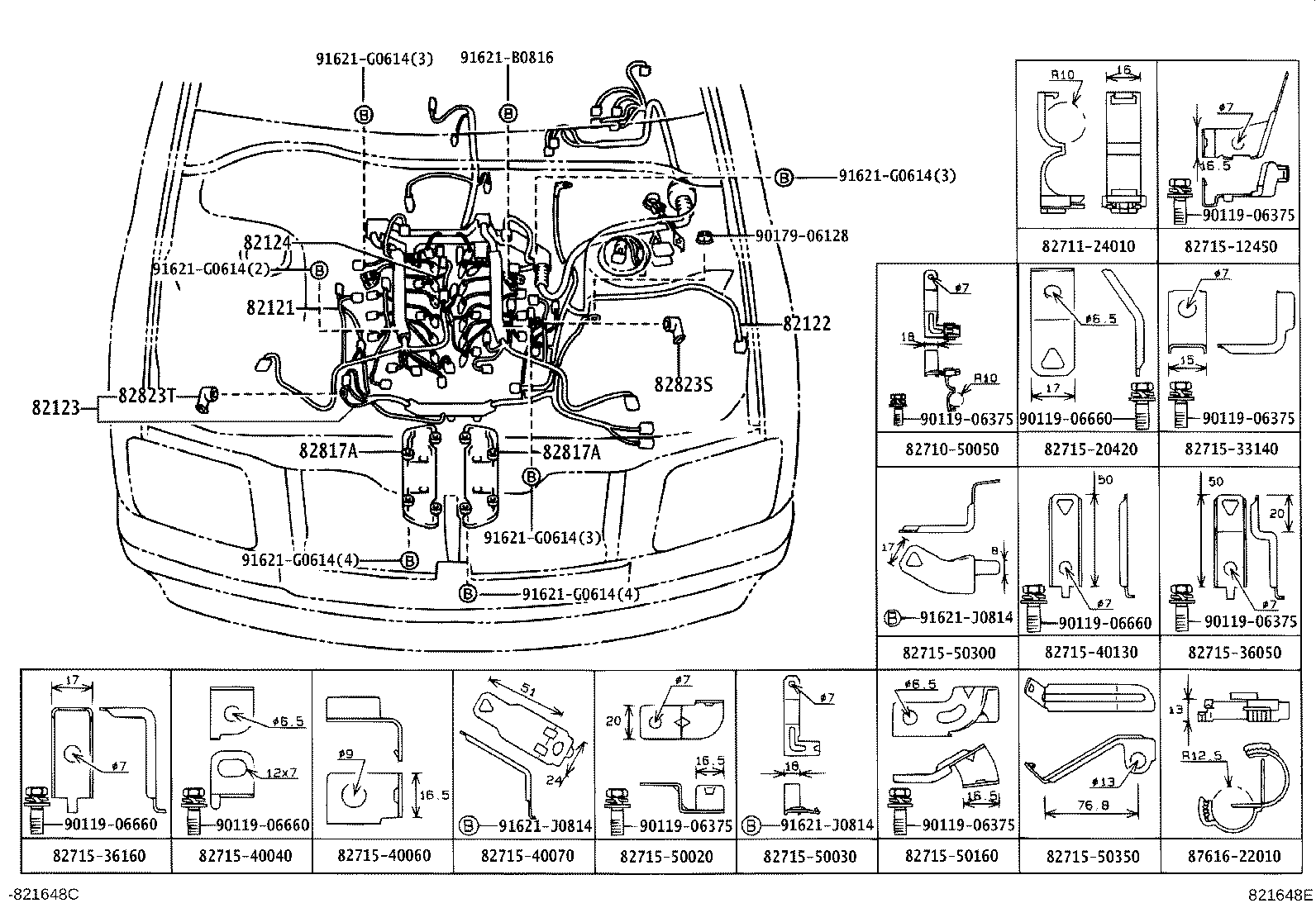

Figure 821646 821646 1998-10 → — Figure 821628 821628 1998-10 → — Figure 821648E 821648E 1998-10 → — Figure 821629F 821629F 1998-10 → — Figure 821647B 821647B 1998-10 → — Figure 821630C 821630C 1998-10 → — Figure 820625A 820625A 1998-10 → — Figure 821631 821631 1998-10 → — Figure 820627A 820627A 1998-10 → — Figure 821632 821632 1998-10 → — Figure 823415 823415 1998-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82210B Fusible Link
82210C Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
