Toyota Century
1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe
Discontinued model
Data version 2017-07
Meter
21 part groups · 3 illustrations

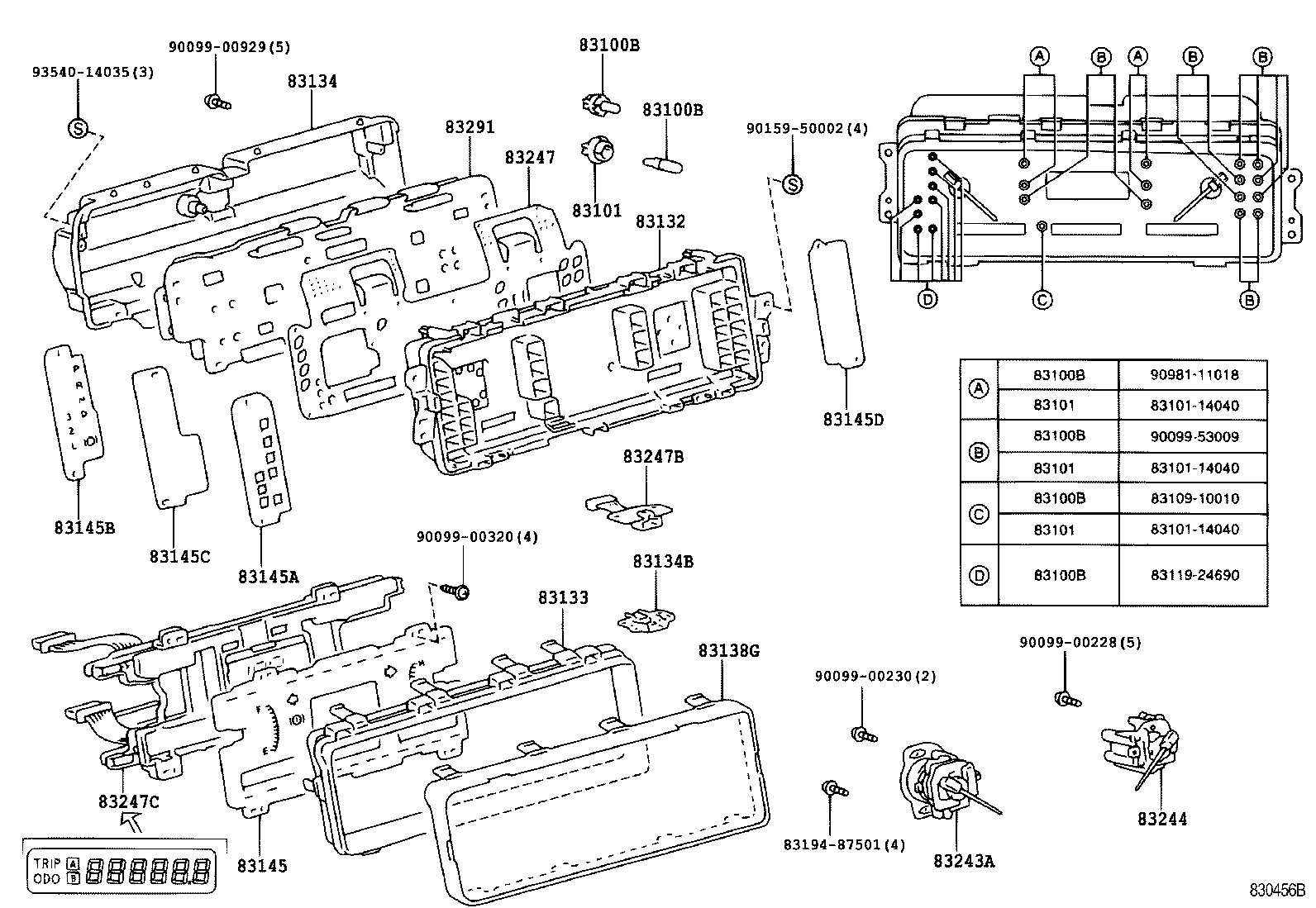

Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83134B | Cover, Combination Meter, NO.2 |
| 83138G | Glass, Combination Meter |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83291 | Computer, Combination Meter |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83910E | Clock Assy, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
