Toyota Century

1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

147 part groups · 12 illustrations

Illustrations

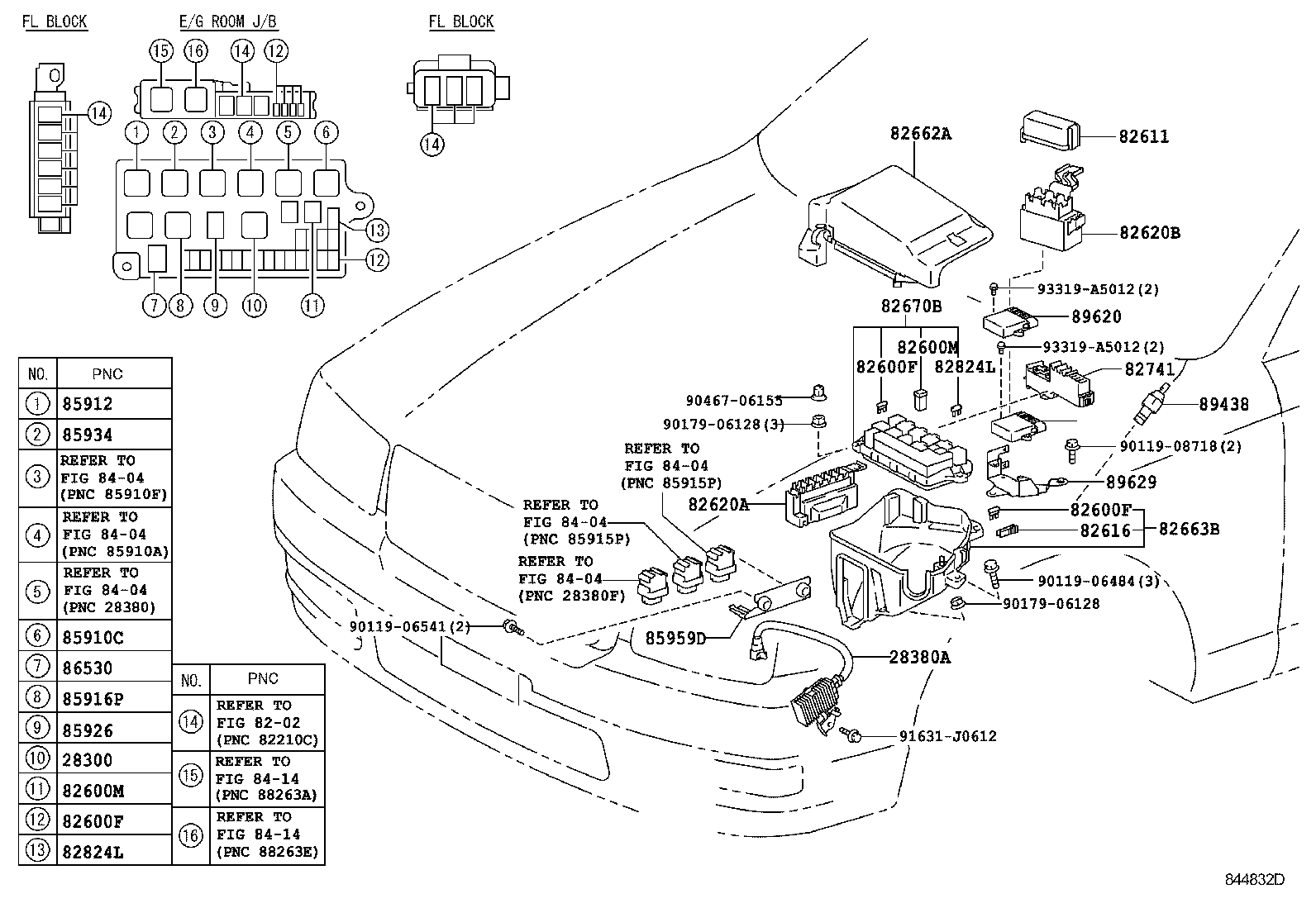

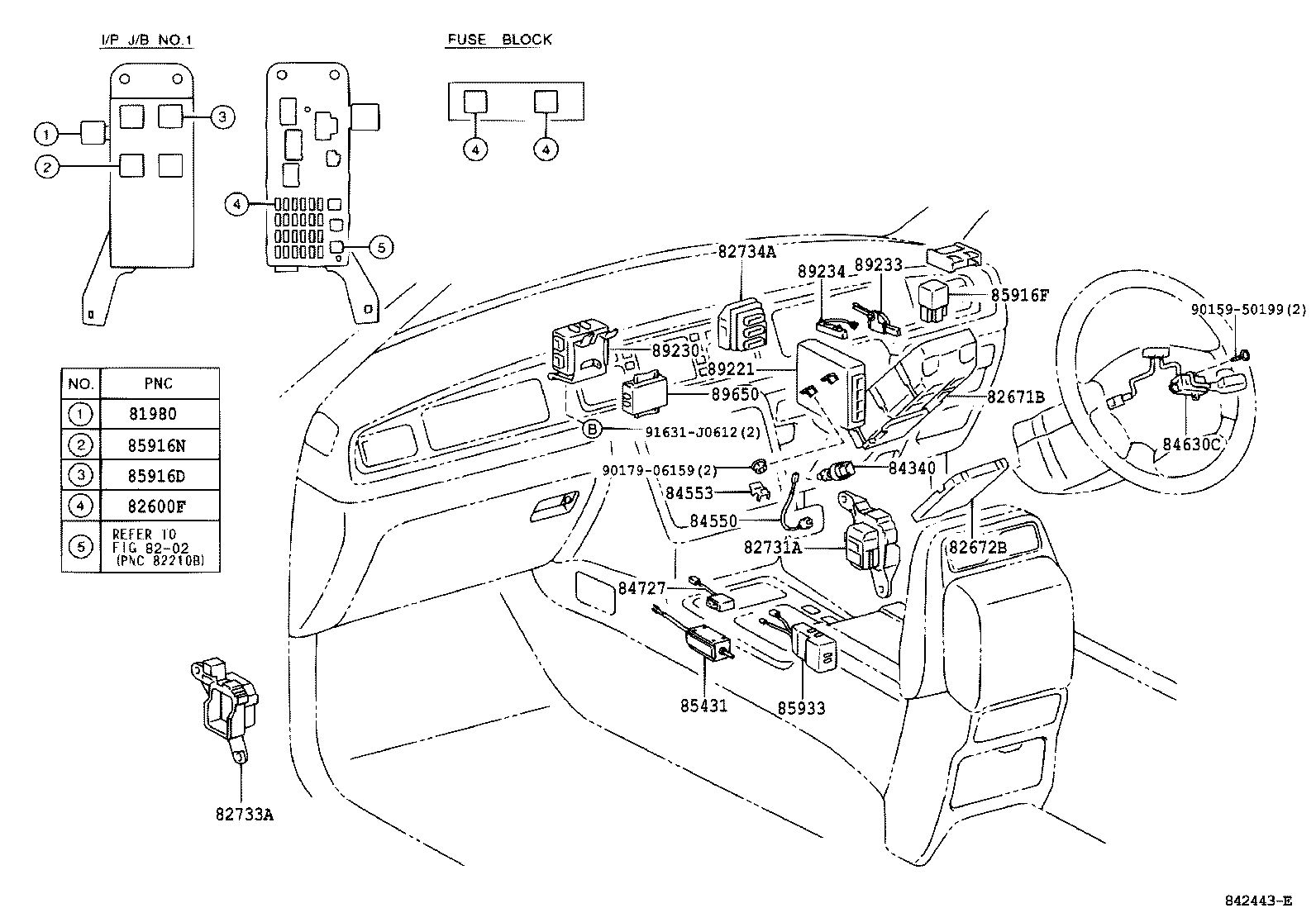

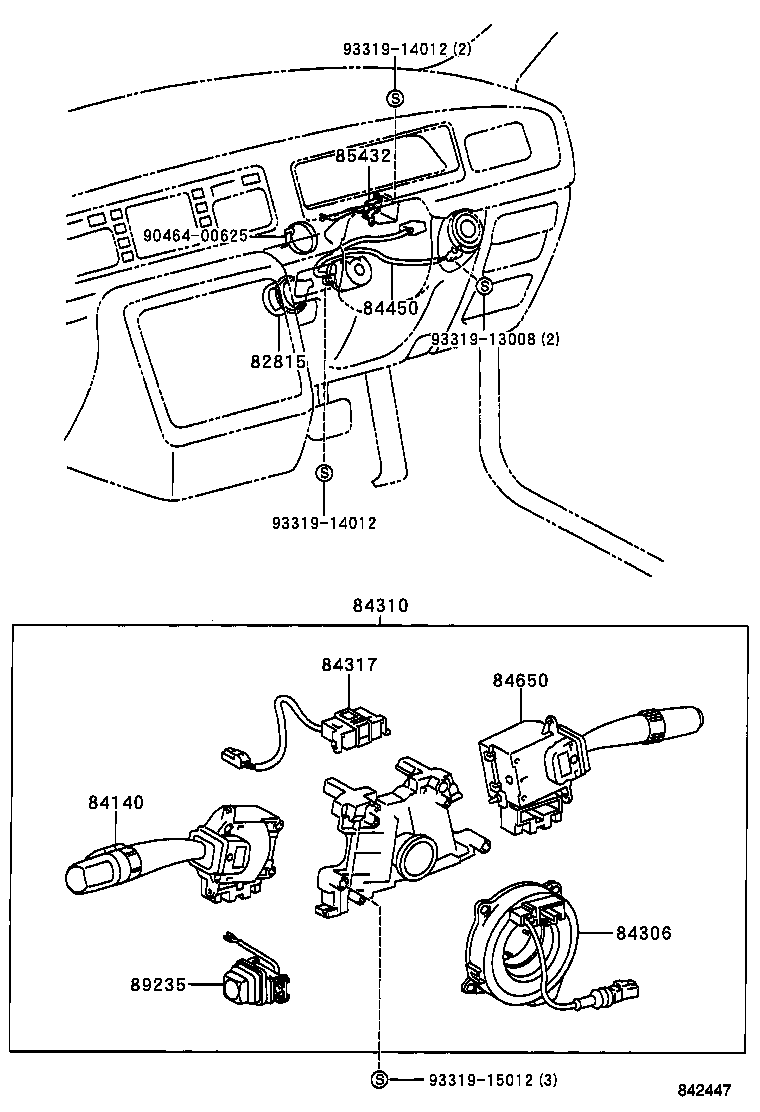

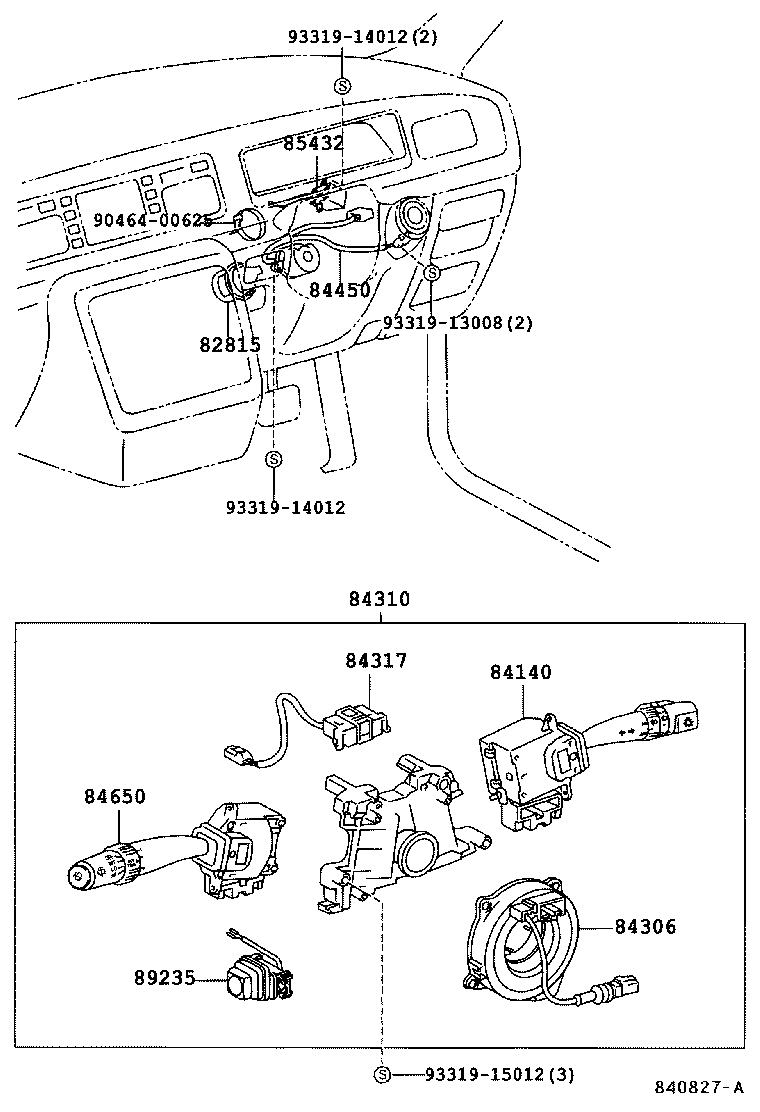

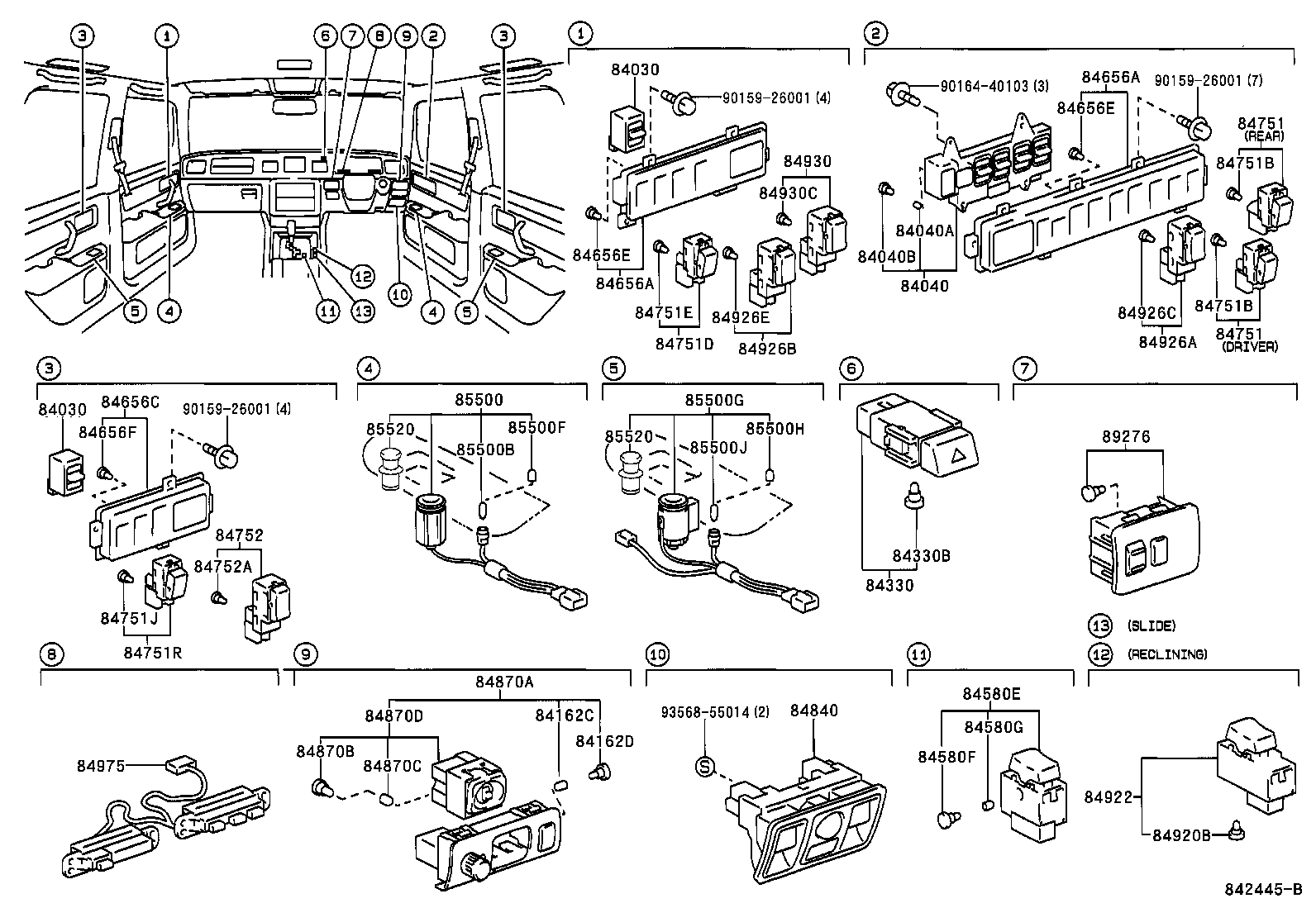

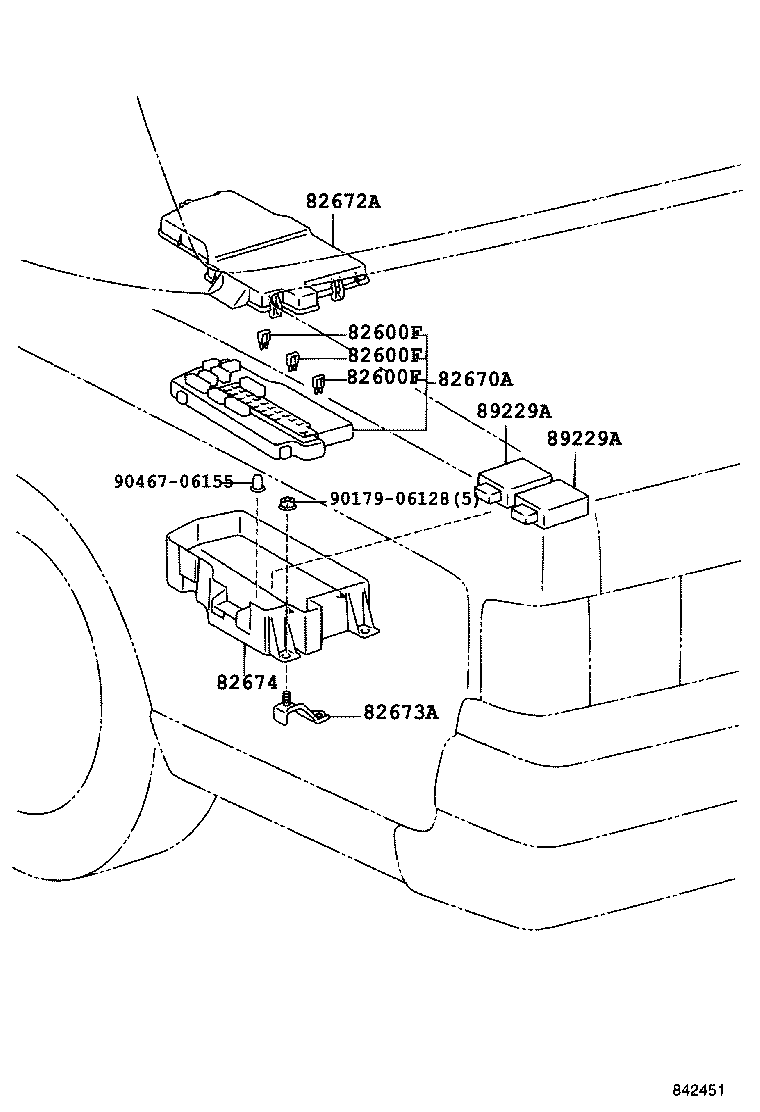

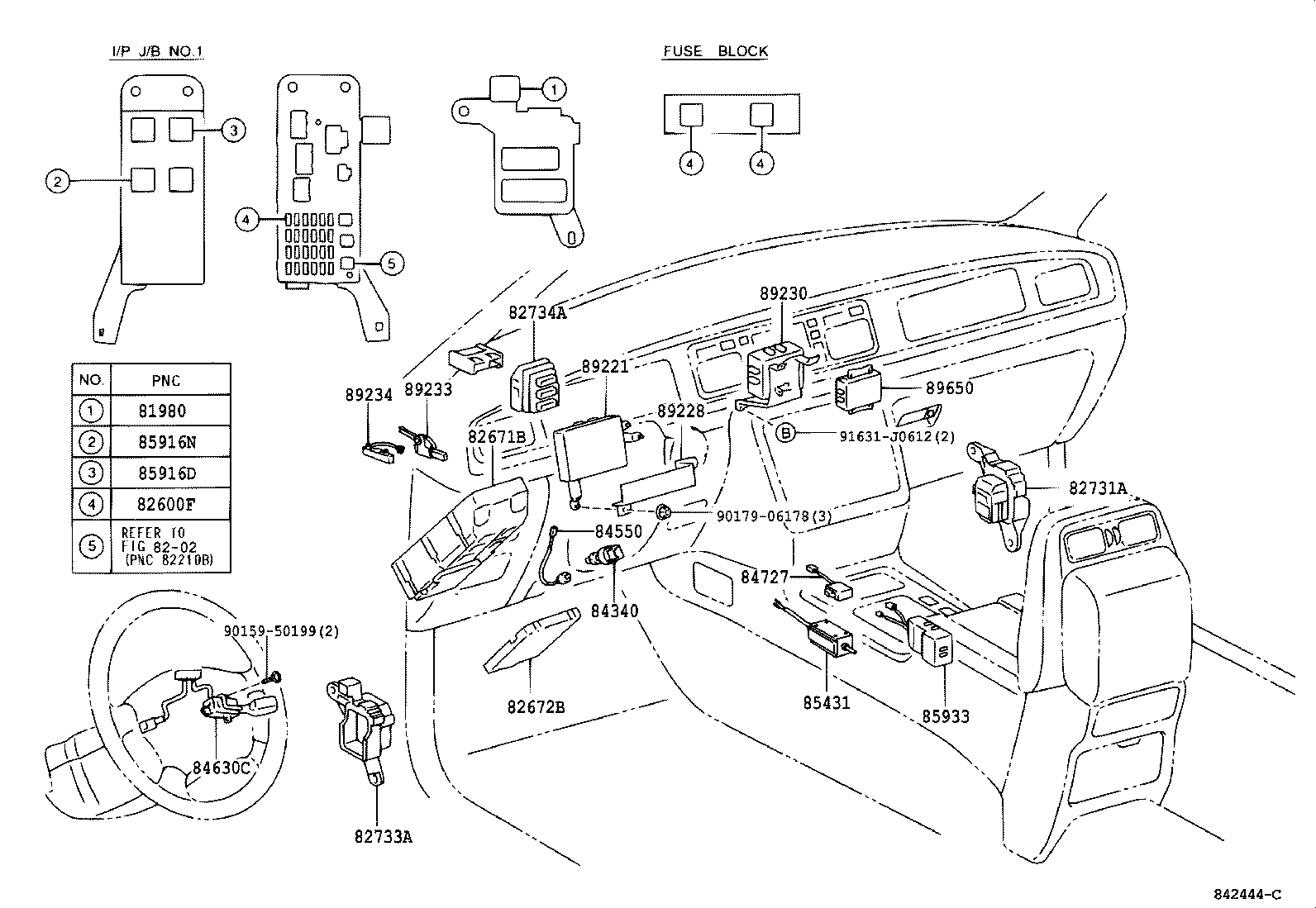

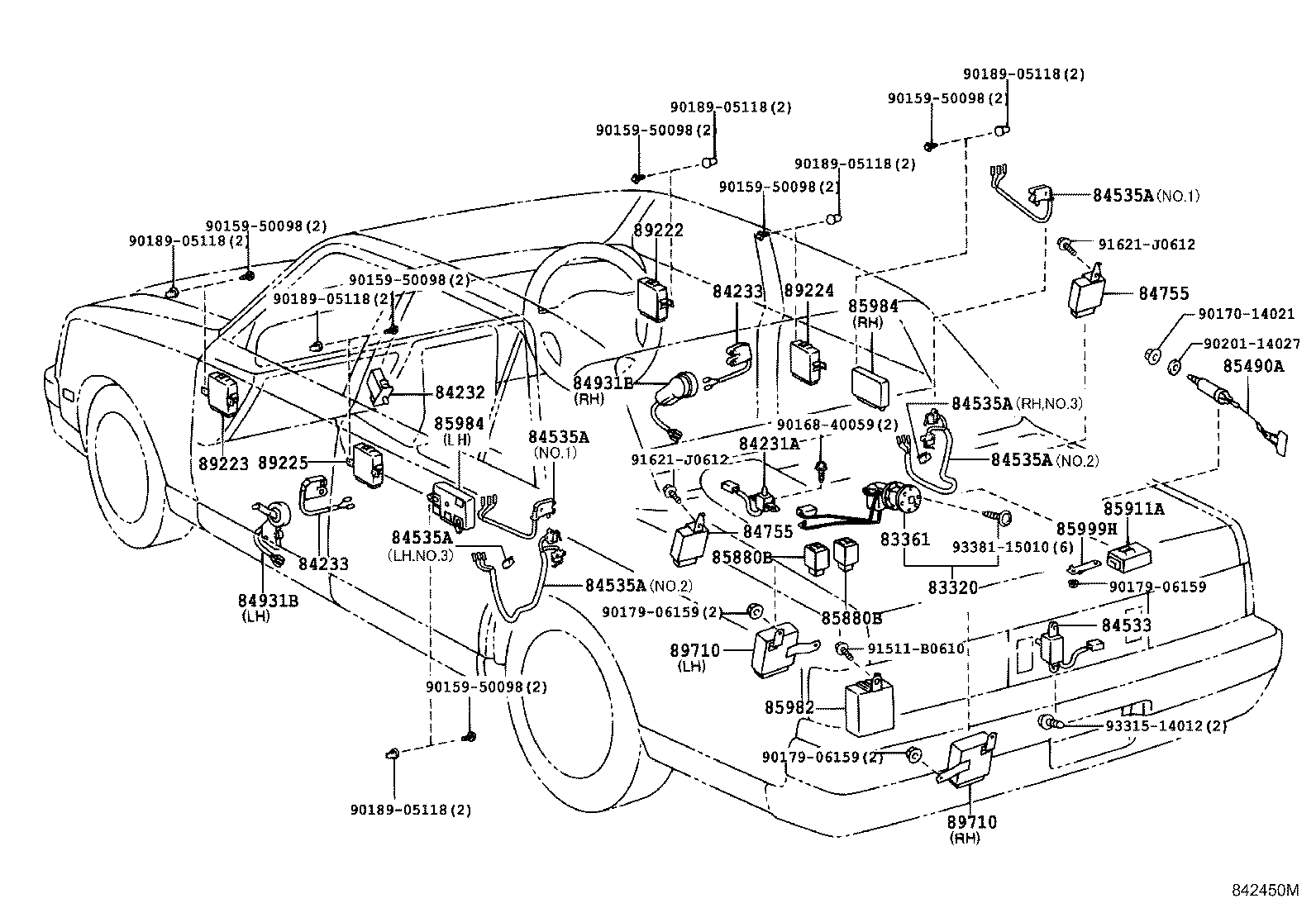

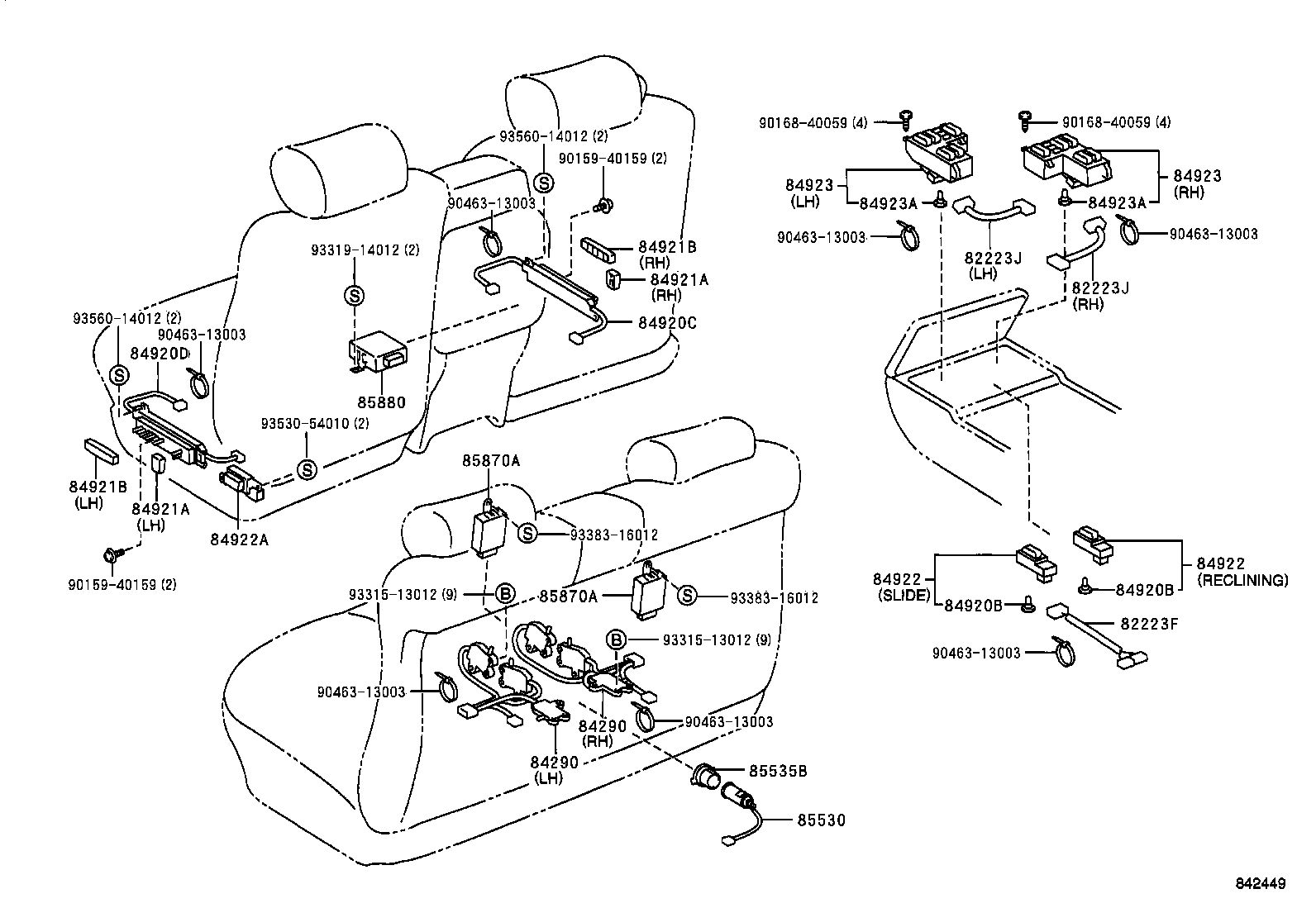

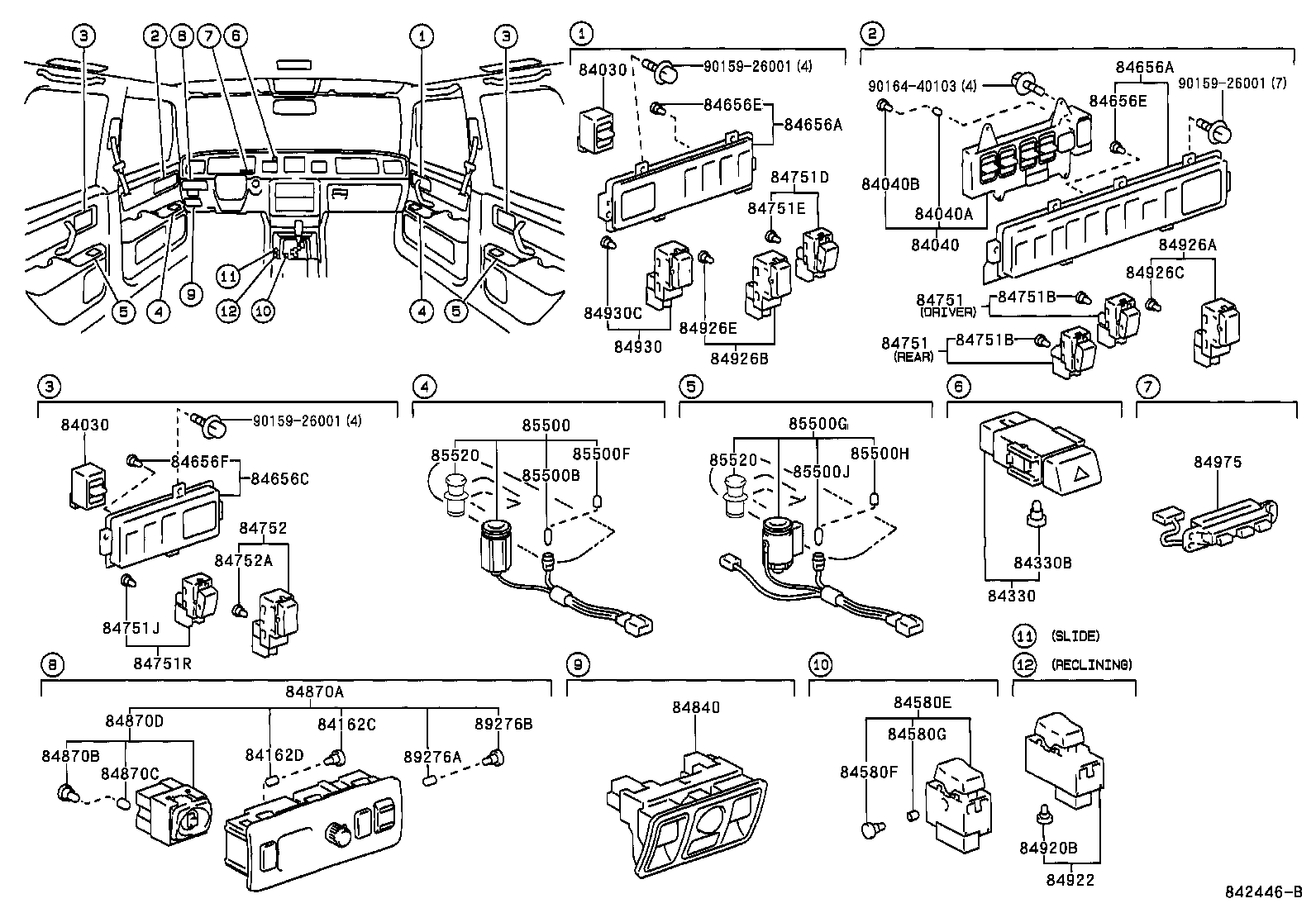

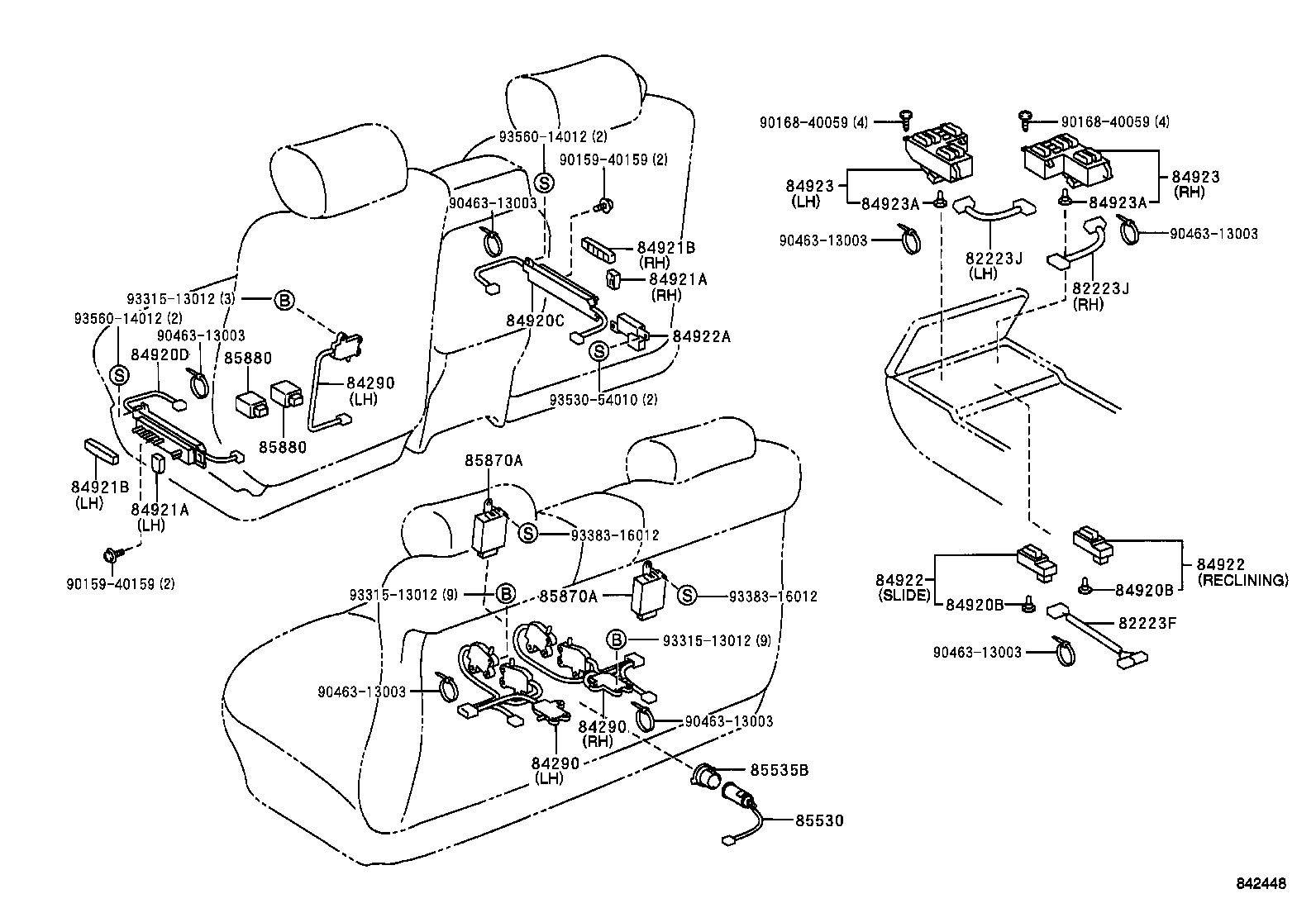

Figure 842441 842441 1998-10 → — Figure 844832D 844832D 1998-10 → — Figure 842443E 842443E 1998-10 → — Figure 842444C 842444C 1998-10 → — Figure 842445B 842445B 1998-10 → — Figure 842446B 842446B 1998-10 → — Figure 840827A 840827A 1998-10 → — Figure 842447 842447 1998-10 → — Figure 842448 842448 1998-10 → — Figure 842449 842449 1998-10 → — Figure 842450M 842450M 1998-10 → — Figure 842451 842451 1998-10 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28380A Resister, Fuel Pump
81980 Flasher Assy, Turn Signal
82223F Wire, Switch
82223J Wire, Switch
82600F Fuse, Fuse Block
82600M Fuse, Medium Current
82611 Cover, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82662A Cover, Relay Block, Upper, NO.1
82663B Cover, Relay Block, Lower, NO.3
82670A Block Assy, Junction, NO.1
82670B Block Assy, Junction, NO.2
82671B Block, Junction
82672A Cover, Junction Block
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82674 Cover, Junction Block Lower
82731A Block, Cowl Side Junction, RH
82733A Block, Cowl Side Junction, LH
82734A Block, Center Junction
82741 Block, Engine Room Relay
82815 Cover, Wiring Harness Protector
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84030 Switch Assy,Multiplex Network
84040 Master Switch Assy,Multiplex Network
84040A Cap, Multiplex Network Master Switch Bulb
84040B Bulb, Multiplex Network Master Switch
84140 Switch Assy, Headlamp Dimmer
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84162D Cap, Rear Fog Lamp Bulb
84231A Switch, Courtesy Lamp
84232 Switch Assy, Courtesy Lamp (FOR GLOVE BOX)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84290 Switch Assy, Limit
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84317 Sensor, Steering Position
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84533 Switch, Luggage Closer Limit
84535A Switch, Door Lock
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84553 Cover, Parking Brake Switch
84580E Switch Assy, Throttle Position
84580F Bulb, Throttle Position Switch
84580G Cap, Throttle Position Switch Bulb
84630C Switch Assy, Speed Control Main
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84656C Bezel, Switch NO.2
84656E Bulb, Bezel Switch
84656F Bulb, Bezel Switch NO.2
84727 Switch, Shift Lock Control
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84751D Switch, Seat Heater(FRONT)
84751E Bulb, Seat Heater Switch(FRONT)
84751J Bulb, Seat Heater Switch(REAR)
84751R Switch, Seat Heater(REAR)
84752 Switch, Refreshing Seat
84752A Bulb, Refreshing Seat Switch
84755 Relay, Seat Switch
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84870B Bulb, Outer Mirror Switch
84870C Cap, Outer Mirror Switch Bulb
84870D Switch Assy, Outer Mirror, NO.2
84920B Bulb (FOR POWER SEAT SWITCH)
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922 Switch, Front Power Seat
84922A Switch, Front Power Seat(FOR LUMBAR)
84923 Switch, Rear Power Seat
84923A Bulb, Rear Power Seat Switch
84926A Switch, Height Adjustable Anchor
84926B Switch, Height Adjustable Anchor
84926C Bulb, Height Adjustable Anchor Switch
84926E Bulb, Height Adjustable Anchor Switch
84930 Switch Assy, Door Control
84930C Bulb(FOR DOOR CONTROL SWITCH)
84931B Switch, Door Control
84975 Switch, Trip
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85490A Solenoid Assy, Fuel Lid Opener
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85500G Lighter Assy, Cigarette, Rear
85500H Cap, Cigarette Lighter Bulb, Rear
85500J Bulb, Cigarette Lighter, Rear
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85870A Computer Assy, Vibration Seat
85880 Relay Assy, Power Seat
85880B Relay Assy, Power Seat
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85911A Relay, Auto Curtain
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916F Relay, Cornering Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85926 Relay, Headlamp Dimmer
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85959D Holder, Relay
85982 Relay, Luggage Closer
85984 Relay, Door Closer
85999H Bracket, Relay
86530 Relay Assy, Horn
89221 Computer, Multiplex Network Body
89222 Computer, Multiplex Network Door, Front RH
89223 Computer, Multiplex Network Door, Front LH
89224 Computer, Multiplex Network Door, Rear RH
89225 Computer, Multiplex Network Door, Rear LH
89228 Cover, Multiplex Network
89229A Computer, Multiplex Network Rear Lamp
89230 Computer Assy, Tilt Steering
89233 Sensor, Tilt Position
89234 Sensor, Telescopic Position
89235 Switch, Tilt Steering
89276 Switch, Height Control
89276A Color Cap (FOR HEIGHT CONTROL SWITCH BULB)
89276B Bulb (FOR HEIGHT CONTROL SWITCH)
89429 Sensor, Oil Temperature
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89650 Computer Assy, Power Steering
89710 Computer Assy, Position Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
