Toyota Century
1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe
Discontinued model
Data version 2017-07
Electronic Fuel Injection System

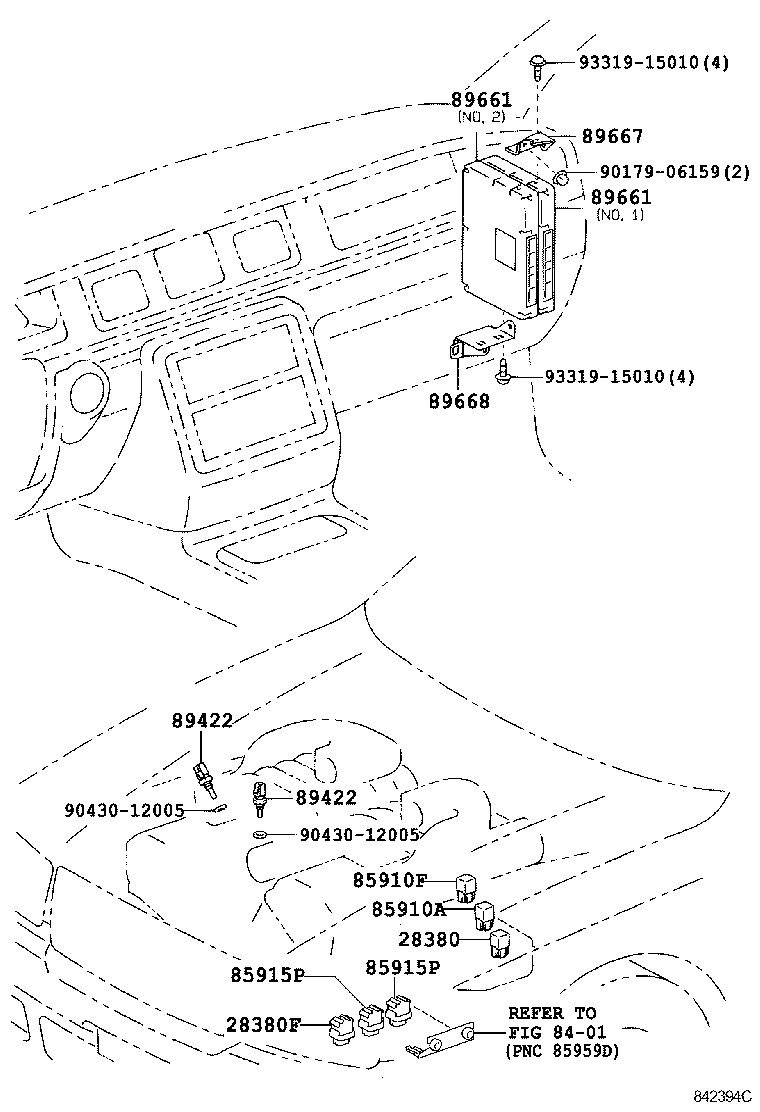

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 28380F | Relay Assy, Fuel Pump Select |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 85915P | Relay, Throttle |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
