Toyota Century

1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 2 illustrations

Illustrations

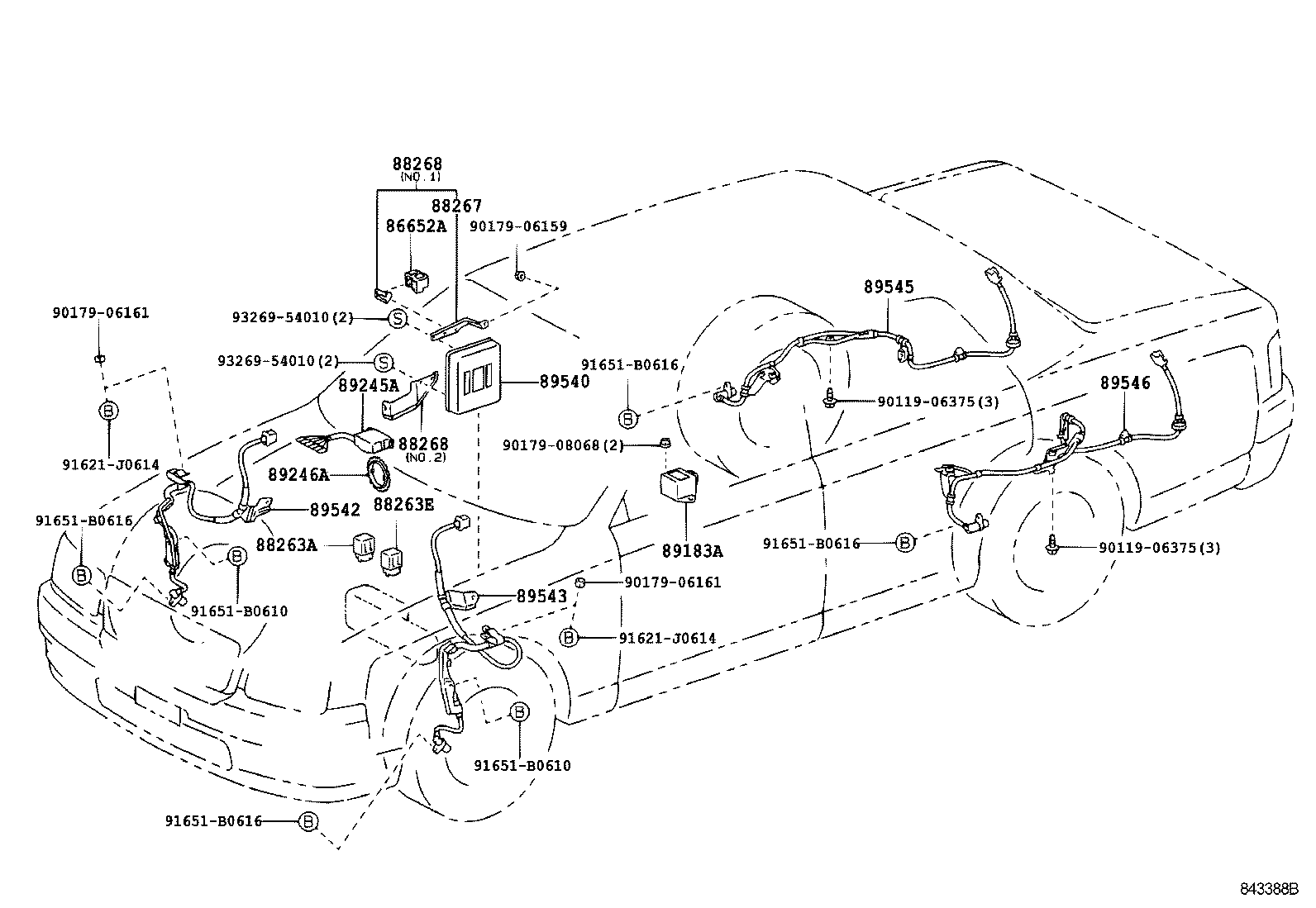

Figure 840783C 840783C 1998-10 → — Figure 843388B 843388B 2001-12 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
88267 Bracket, Skid Control Computer, NO.1
88268 Bracket, Skid Control Computer, NO.2
89183A Sensor, Yawrate
89245A Sensor, Steering
89246A Disc, Sensor Steering
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
