Toyota Century

1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

16 part groups · 2 illustrations

Illustrations

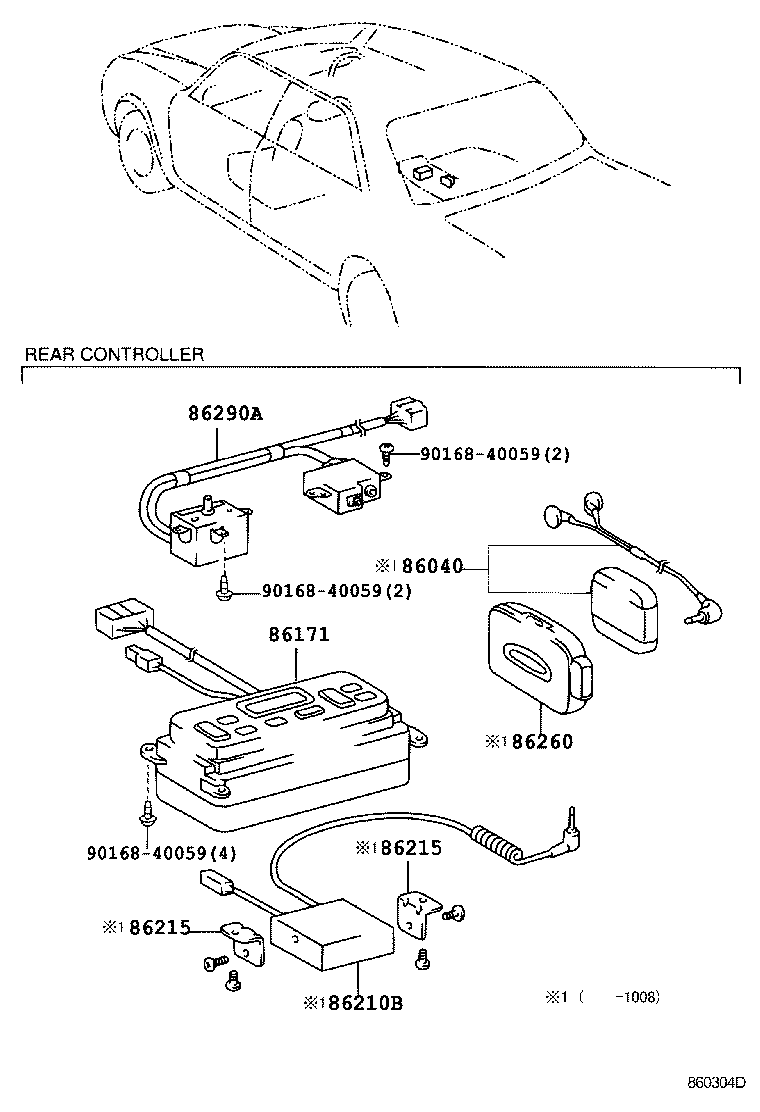

Figure 860827A 860827A 1998-10 → — Figure 860304D 860304D 1998-10 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86040 Headphone Assy, Stereo
86120 Receiver Assy, Radio
86171 Base, Radio Remote Control
86210B Converter Assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86215 Bracket, Radio, NO.5
86260 Tape Player Assy
86270A Disc Player Assy
86273 Magazine, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
