Toyota Century
1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe
Discontinued model
Data version 2017-07

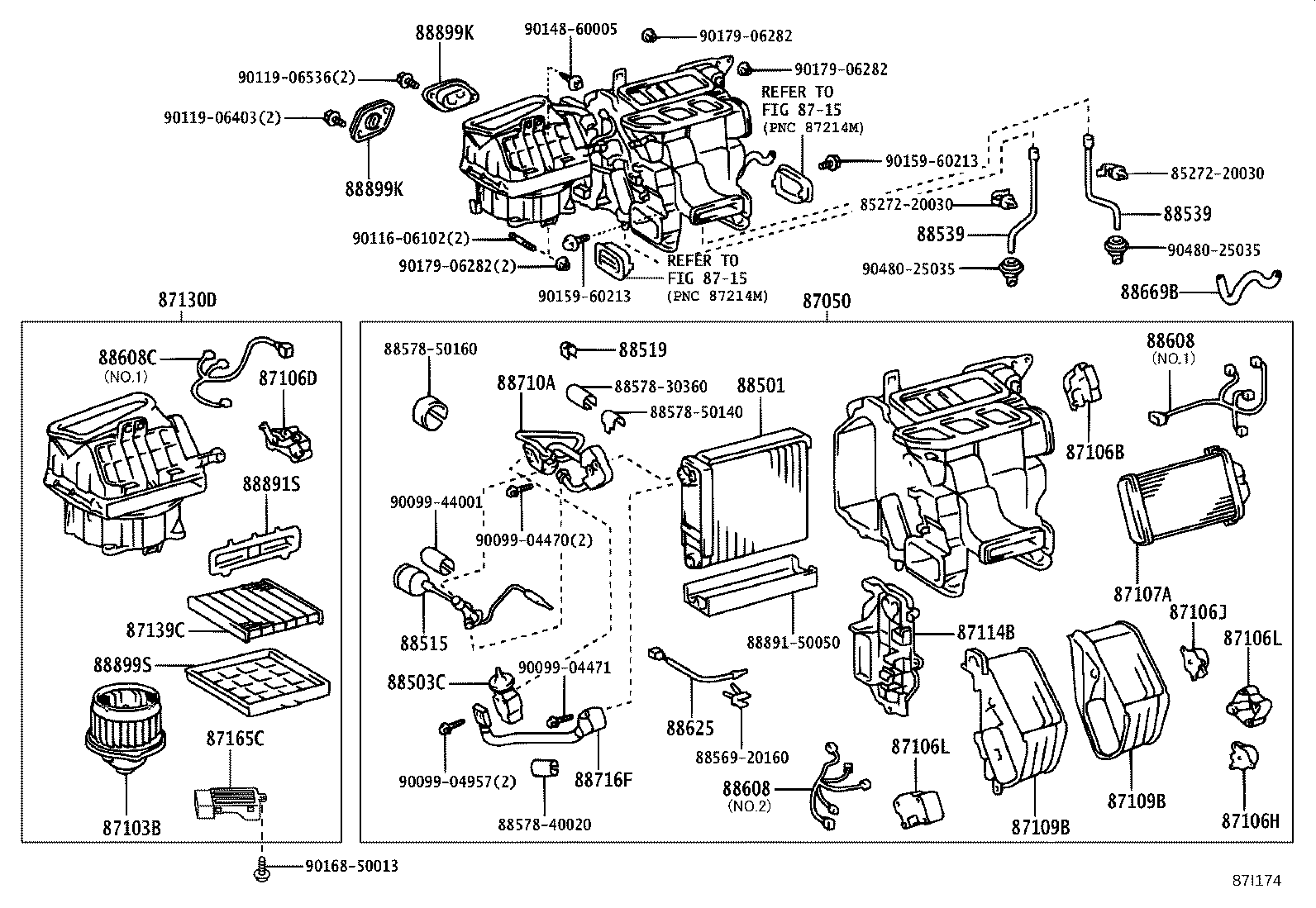

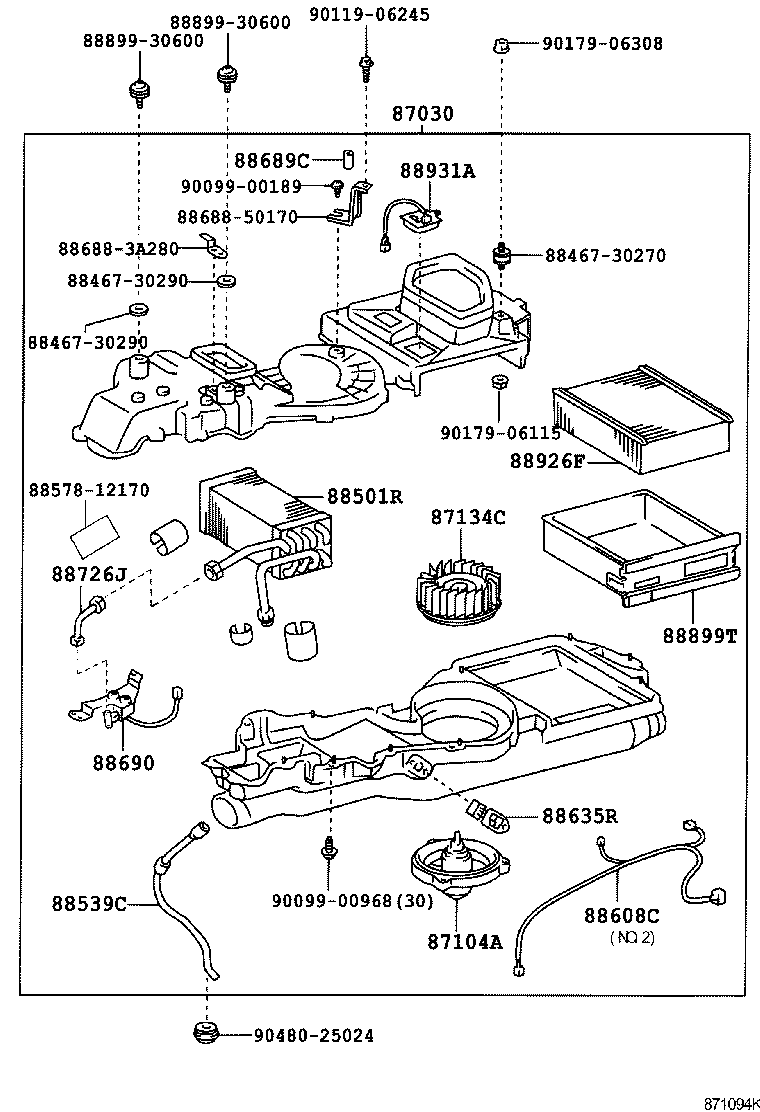

Heating & Air Conditioning - Cooler Unit
39 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87030 | Blower Assy, Air Conditioner |
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87104A | Motor Sub-assy, Blower |
| 87106B | Servo Sub-assy, Damper(FOR COOLING UNIT) |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106L | Servo Sub-assy, Damper |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87109B | Film Sub-assy, Air Conditioner |
| 87114B | Cover, Heater |
| 87130D | Blower Assy |
| 87134C | Fan, Blower(FOR COOLING UNIT) |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88503C | Regulator Sub-assy, Pressure |
| 88515 | Valve, Cooler Expansion |
| 88519 | Holder, Remote Bulb |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88608 | Harness Sub-assy, Wiring Air Conditioner |
| 88608C | Harness Sub-assy, Wiring Air Indicator, NO.2 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88635R | Resistor, Blower |
| 88669B | Hose, Cooler Air |
| 88689C | Hose, Vacuum |
| 88690 | Valve Assy, Cooler Magnet |
| 88710A | Tube Assy, Air Conditioner |
| 88716F | Pipe, Cooler Refrigerant Liquid, F |
| 88726J | Pipe, Cooler Refrigerant Liquid, J |
| 88891S | Cover, Cooler, NO.1 |
| 88899K | Plate, Cover |
| 88899S | Frame, Front Cooler |
| 88899T | Frame, Rear Cooler |
| 88926F | Filter, Rear Cooler |
| 88931A | Sensor, Smoke |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
