Toyota Cressida Wagon
1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe
Discontinued model
Data version 1995-03

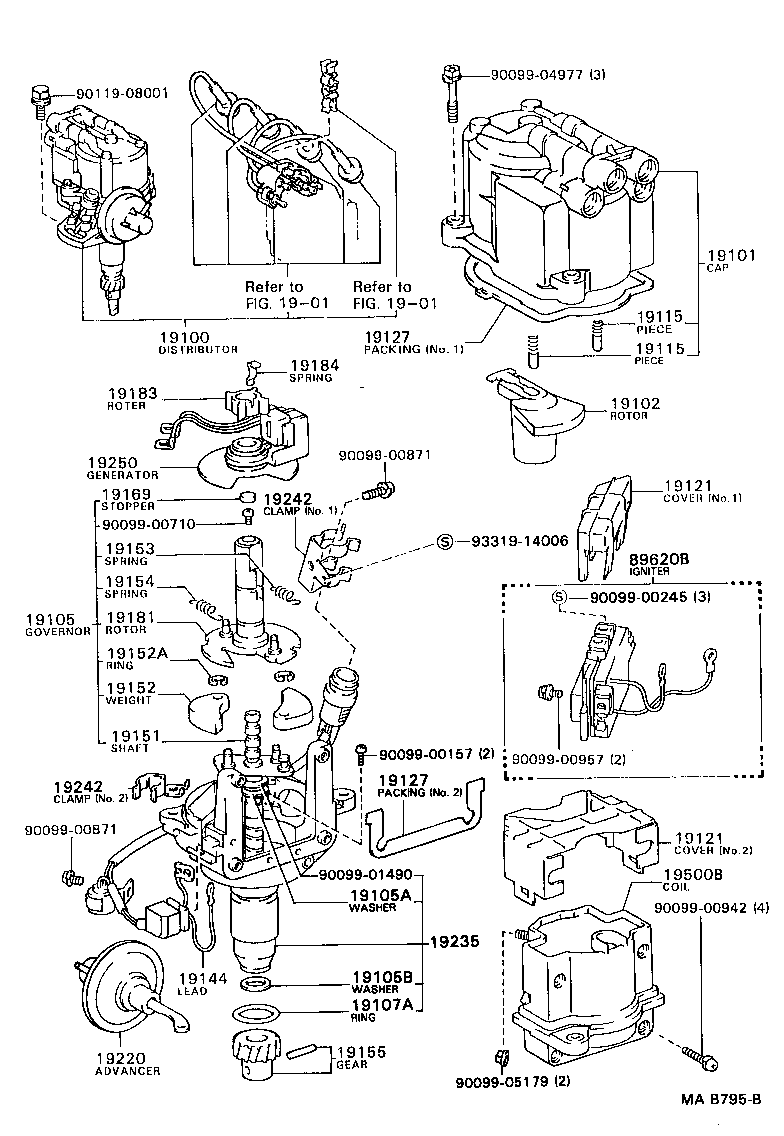

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100 — Distributor Assy | ||||
| 19030-71060 |
Distributor Assy
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19030-73130 |
Distributor Assy
1991-03 → 1992-05
ended
|
3Y YX72 | — | |
| 19100-35160 |
Distributor Assy
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19100-42050 |
Distributor Assy
1988-12 → 1992-05
ended
|
7MGE MX75 | — | |
| 19100-70170 |
Distributor Assy
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19101 — Cap Sub-assy, Distributor | ||||
| 19101-35120 |
Cap Sub-assy, Distributor
1990-08 → 1993-02
ended
|
22R RX72 GEN,V | — | |
| 19101-35140 |
Cap Sub-assy, Distributor
1988-10 → 1990-08
ended
|
22R RX7# | — | |
| 19101-35140 |
Cap Sub-assy, Distributor
1990-08 → 1992-05
ended
|
22R RX7# SA | — | |
| 19101-70160 |
Cap Sub-assy, Distributor
1988-12 → 1992-05
ended
|
7MGE MX75 | — | |
| 19101-70160 |
Cap Sub-assy, Distributor
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19101-71010 |
Cap Sub-assy, Distributor
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19102 — Rotor Sub-assy, Distributor | ||||
| 19102-16040 |
Rotor Sub-assy, Distributor
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19102-16060 |
Rotor Sub-assy, Distributor
1988-10 → 1991-03
ended
|
22R RX7# | — | |
| 19102-16060 |
Rotor Sub-assy, Distributor
1991-03 → 1993-02
ended
|
22R RX7# | — | |
| 19102-16060 |
Rotor Sub-assy, Distributor
1991-03 → 1993-02
ended
|
3Y YX72 | — | |
| 19102-70010 |
Rotor Sub-assy, Distributor
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19102-70160 |
Rotor Sub-assy, Distributor
1988-12 → 1992-05
ended
|
7MGE MX75 | — | |
| 19105 — Governor Sub-assy | ||||
| 19105-71060 |
Governor Sub-assy
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19105A — Washer(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01486 note |
Washer(FOR GOVERNOR SHAFT THRUST)
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 90099-01487 note |
Washer(FOR GOVERNOR SHAFT THRUST)
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 90099-01488 note |
Washer(FOR GOVERNOR SHAFT THRUST)
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 90099-01489 note |
Washer(FOR GOVERNOR SHAFT THRUST)
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19105B — Washer, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01429 |
Washer, NO.2(FOR GOVERNOR SHAFT THRUST)
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19107A — Ring, O, Distributor Housing | ||||
| 90099-14020 |
Ring, O, Distributor Housing
1988-10 → 1991-03
ended
|
22R RX7# | — | |
| 90099-14020 |
Ring, O, Distributor Housing
1988-10 → 1991-03
ended
|
3Y YX72 | — | |
| 90099-14088 |
Ring, O, Distributor Housing
1988-12 → 1992-05
ended
|
7MGE MX75 | — | |
| 90099-14090 |
Ring, O, Distributor Housing
1991-03 → 1993-02
ended
|
22R RX7# | — | |
| 90099-14090 |
Ring, O, Distributor Housing
1991-03 → 1993-02
ended
|
3Y YX72 | — | |
| 90099-14095 |
Ring, O, Distributor Housing
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19115 — Piece, Distributor Cap, Center | ||||
| 19115-50010 |
Piece, Distributor Cap, Center
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19115-63010 |
Piece, Distributor Cap, Center
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19115-88280 |
Piece, Distributor Cap, Center
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19115-88280 |
Piece, Distributor Cap, Center
1988-12 → 1992-05
ended
|
7MGE MX75 | — | |
| 19121 — Cover, Dust Proof | ||||
| 19121-27020 |
Cover, Dust Proof
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19121-38210 |
Cover, Dust Proof
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19121-63010 note |
Cover, Dust Proof
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19121-63040 note |
Cover, Dust Proof
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19127 — Packing, Dust Proof | ||||
| 19127-15021 |
Packing, Dust Proof
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19127-61240 |
Packing, Dust Proof
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19127-61240 |
Packing, Dust Proof
1988-12 → 1992-05
ended
|
7MGE MX75 | — | |
| 19127-63010 note |
Packing, Dust Proof
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19127-63020 note |
Packing, Dust Proof
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19144 — Lead, Distributor Breaker | ||||
| 19144-71061 |
Lead, Distributor Breaker
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19144-73050 |
Lead, Distributor Breaker
1991-03 → 1992-05
ended
|
3Y YX72 | — | |
| 19151 — Shaft, Governor | ||||
| 19151-71010 |
Shaft, Governor
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19152 — Weight, Governor | ||||
| 19152-63010 |
Weight, Governor
1988-10 → 1993-02
ended
|
3Y YX72 | — | |
| 19152-63010 |
Weight, Governor
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19152-63010 |
Weight, Governor
1988-10 → 1993-02
ended
|
1GFE GX71 | — | |
| 19152A — Ring, Snap(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
Ring, Snap(FOR GOVERNOR WEIGHT)
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 90099-07122 |
Ring, Snap(FOR GOVERNOR WEIGHT)
1988-10 → 1993-02
ended
|
3Y YX72 | — | |
| 19153 — Spring, Governor, A | ||||
| 19153-35160 |
Spring, Governor, A
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19153-70170 |
Spring, Governor, A
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19153-71060 |
Spring, Governor, A
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19153-72060 |
Spring, Governor, A
1991-03 → 1992-05
ended
|
3Y YX72 | — | |
| 19154 — Spring, Governor, B | ||||
| 19153-71060 |
Spring, Governor, B
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19153-72060 |
Spring, Governor, B
1991-03 → 1992-05
ended
|
3Y YX72 | — | |
| 19154-35160 |
Spring, Governor, B
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19154-70171 |
Spring, Governor, B
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19155 — Gear, Spiral, Distributor | ||||
| 19195-71010 |
Gear, Spiral, Distributor
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19169 — Stopper, Cam Grease | ||||
| 19169-63011 |
Stopper, Cam Grease
1988-10 → 1991-03
ended
|
1GFE GX71 | — | |
| 19169-63011 |
Stopper, Cam Grease
1988-10 → 1991-03
ended
|
22R RX7# | — | |
| 19169-63011 |
Stopper, Cam Grease
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19169-63011 |
Stopper, Cam Grease
1991-03 → 1993-02
ended
|
1GFE GX71 | — | |
| 19169-63011 |
Stopper, Cam Grease
1991-03 → 1993-02
ended
|
22R RX7# | — | |
| 19169-63011 |
Stopper, Cam Grease
1991-03 → 1993-02
ended
|
3Y YX72 | — | |
| 19181 — Rotor, Distributor, Signal | ||||
| 19181-31170 |
Rotor, Distributor, Signal
1988-10 → 1991-03
ended
|
22R RX7# | — | |
| 19181-35020 |
Rotor, Distributor, Signal
1991-03 → 1993-02
ended
|
22R RX7# | — | |
| 19181-70020 |
Rotor, Distributor, Signal
1991-10 → 1992-05
ended
|
1GFE GX71 | — | |
| 19181-70040 |
Rotor, Distributor, Signal
1988-12 → 1991-10
ended
|
1GFE GX71 | — | |
| 19181-71060 |
Rotor, Distributor, Signal
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19181-72011 |
Rotor, Distributor, Signal
1991-03 → 1992-05
ended
|
3Y YX72 | — | |
| 19183 — Rotor, Signal | ||||
| 19183-63030 |
Rotor, Signal
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19184 — Spring, Rotor Set | ||||
| 19184-63010 |
Spring, Rotor Set
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19220 — Advancer Assy, Vacuum, Distributor | ||||
| 19220-35160 |
Advancer Assy, Vacuum, Distributor
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19220-70170 |
Advancer Assy, Vacuum, Distributor
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19220-71060 |
Advancer Assy, Vacuum, Distributor
1988-12 → 1991-03
ended
|
3Y YX72 | — | |
| 19220-73130 |
Advancer Assy, Vacuum, Distributor
1991-03 → 1992-05
ended
|
3Y YX72 | — | |
| 19235 — Housing, Distributor | ||||
| 19235-35160 |
Housing, Distributor
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19235-42050 |
Housing, Distributor
1988-12 → 1992-05
ended
|
7MGE MX75 | — | |
| 19235-70170 |
Housing, Distributor
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19235-71010 |
Housing, Distributor
1990-02 → 1991-03
ended
|
3Y YX72 | — | |
| 19235-72011 |
Housing, Distributor
1991-03 → 1992-05
ended
|
3Y YX72 | — | |
| 19242 — Clamp, Cord | ||||
| 19242-37080 |
Clamp, Cord
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19242-70170 note |
Clamp, Cord
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19242-70180 note |
Clamp, Cord
1988-12 → 1992-05
ended
|
1GFE GX71 | — | |
| 19242-71010 note |
Clamp, Cord
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19242-71061 note |
Clamp, Cord
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19250 — Generator Assy, Signal | ||||
| 19250-37080 |
Generator Assy, Signal
1988-10 → 1993-02
ended
|
22R RX7# | — | |
| 19250-70050 |
Generator Assy, Signal
1991-10 → 1992-05
ended
|
1GFE GX71 | — | |
| 19250-70170 |
Generator Assy, Signal
1988-12 → 1991-10
ended
|
1GFE GX71 | — | |
| 19251-63011 |
Generator Assy, Signal
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 19500B — Coil Assy, Ignition | ||||
| 90919-02139 |
Coil Assy, Ignition
1988-12 → 1992-05
ended
|
3Y YX72 | — | |
| 89620B — Igniter Assy | ||||
| 89620-32020 |
Igniter Assy
1988-12 → 1992-05
ended
|
YX72 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
