Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

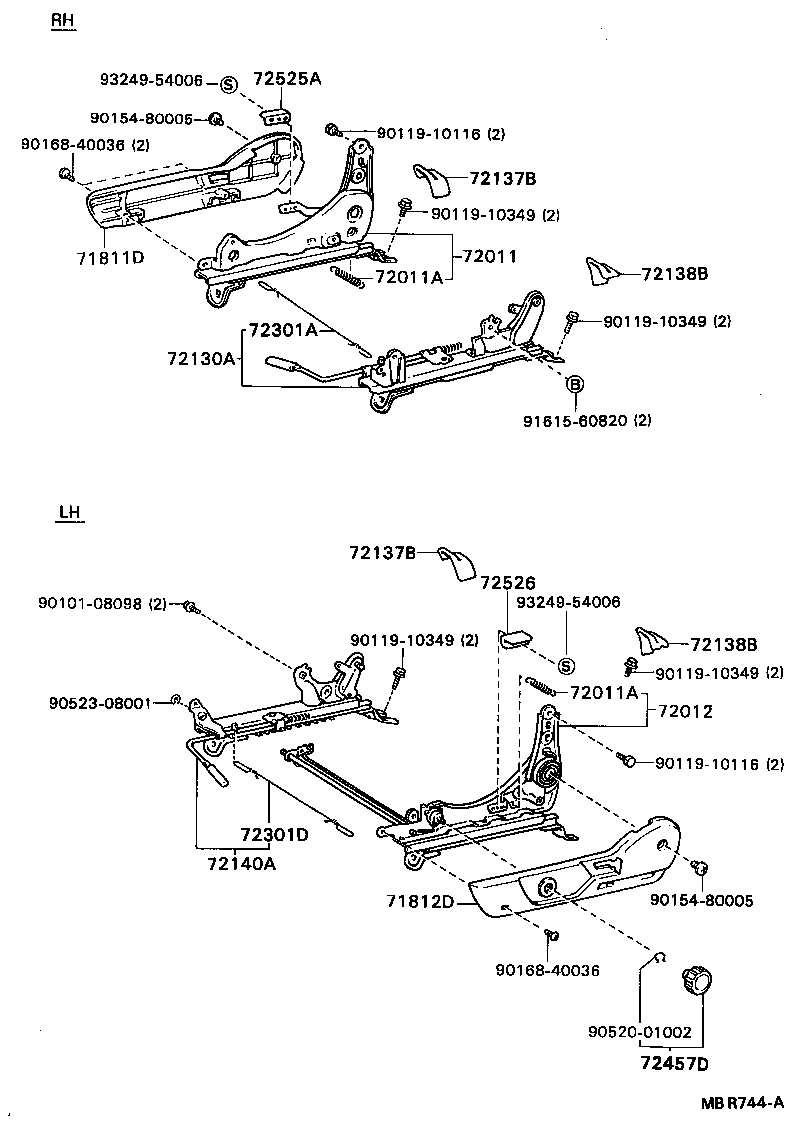

Exploded illustration MBR744A 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (6 parts) 9324954006 — not listed in this catalogue 9015480005 — not listed in this catalogue 9011910116 — not listed in this catalogue 9016840036 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (8 parts) 9011910349 — not listed in this catalogue 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (2 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (23 parts) 72138B — COVER, SEAT TRACK, LH (8 parts) 72011A — SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) (1 parts) 9011910349 — not listed in this catalogue 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (1 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (2 parts) 9161560820 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (8 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (6 parts) 9324954006 — not listed in this catalogue 9010108098 — not listed in this catalogue 9011910349 — not listed in this catalogue 72138B — COVER, SEAT TRACK, LH (8 parts) 9011910349 — not listed in this catalogue 72011A — SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) (1 parts) 9052308001 — not listed in this catalogue 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (2 parts) 9011910116 — not listed in this catalogue 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (1 parts) 72140A — TRACK ASSY, FRONT SEAT,INNER LH (2 parts) 9015480005 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (10 parts) 9016840036 — not listed in this catalogue 9052001002 — not listed in this catalogue 72457D — KNOB, VERTICAL SEAT ADJUSTER, LH (4 parts)
MBR744A · 17 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-22120-03 note Shield, Front Seat Cushion, RH
1988-12 → 1990-09 ended
YX72 —
71811-22120-06 note Shield, Front Seat Cushion, RH
1988-10 → 1990-08 ended
YX72;RX72 LHD —
71811-22120-06 note Shield, Front Seat Cushion, RH
1990-08 → 1993-02 ended
RX72 LHD 5F —
71811-22120-06 note Shield, Front Seat Cushion, RH
1990-08 → 1993-02 ended
RX72 4FC —
71811-22120-06 note Shield, Front Seat Cushion, RH
1990-08 → 1993-02 ended
YX72 —
71811-22120-12 note Shield, Front Seat Cushion, RH
1988-10 → 1990-08 ended
RX72 LHD —
71811-22120-12 note Shield, Front Seat Cushion, RH
1990-08 → 1993-02 ended
RX72 LHD 5F —
71811-22120-12 note Shield, Front Seat Cushion, RH
1990-08 → 1993-02 ended
RX72 4FC —
71811-22120-13 note Shield, Front Seat Cushion, RH
1990-09 → 1993-02 ended
RX72 5F GL —
71811-22120-13 note Shield, Front Seat Cushion, RH
1990-09 → 1993-02 ended
RX72 LHD 5F —
71811-22120-13 note Shield, Front Seat Cushion, RH
1990-09 → 1993-02 ended
RX72 4FC —
71811-22120-13 note Shield, Front Seat Cushion, RH
1990-09 → 1993-02 ended
YX72 —
71811-22120-13 note Shield, Front Seat Cushion, RH
1990-08 → 1990-09 ended
RX72 GL;RX72 LHD GEN —
71811-22120-14 note Shield, Front Seat Cushion, RH
1988-10 → 1990-08 ended
RX72 LHD —
71811-22130-03 note Shield, Front Seat Cushion, RH
1988-12 → 1990-09 ended
MX75 GLX —
71811-22130-06 note Shield, Front Seat Cushion, RH
1988-12 → 1992-05 ended
MX75 GLX —
71811-22130-13 note Shield, Front Seat Cushion, RH
1990-09 → 1992-05 ended
MX75 GLX —
71811-22140-03 note Shield, Front Seat Cushion, RH
1988-12 → 1990-09 ended
MX75 GL;GX71,RX7# SA —
71811-22140-06 note Shield, Front Seat Cushion, RH
1988-10 → 1993-02 ended
MX75 GL;GX71,RX7# RHD —
71811-22140-12 note Shield, Front Seat Cushion, RH
1988-10 → 1993-02 ended
RX72 RHD GEN —
71811-22140-13 note Shield, Front Seat Cushion, RH
1990-09 → 1993-02 ended
MX75 GL;GX71,RX7# RHD —
71811-22140-13 note Shield, Front Seat Cushion, RH
1990-08 → 1990-09 ended
RX72 RHD GEN —
71811-22140-14 note Shield, Front Seat Cushion, RH
1988-10 → 1990-08 ended
RX72 RHD GEN —
71812D — Shield, Front Seat Cushion, LH
71812-22090-03 note Shield, Front Seat Cushion, LH
1988-12 → 1990-09 ended
GX71,MX75,RX7#,YX72 SA —
71812-22090-06 note Shield, Front Seat Cushion, LH
1988-10 → 1993-02 ended
GX71,MX75,RX7#,YX72 RHD —
71812-22090-12 note Shield, Front Seat Cushion, LH
1988-10 → 1993-02 ended
RX72 RHD GEN —
71812-22090-13 note Shield, Front Seat Cushion, LH
1990-09 → 1993-02 ended
GX71,MX75,RX7#,YX72 RHD —
71812-22090-13 note Shield, Front Seat Cushion, LH
1990-08 → 1990-09 ended
RX72 RHD GEN —
71812-22090-14 note Shield, Front Seat Cushion, LH
1988-10 → 1990-08 ended
RX72 RHD GEN —
71812-22100-06 note Shield, Front Seat Cushion, LH
1988-10 → 1993-02 ended
RX72 LHD —
71812-22100-12 note Shield, Front Seat Cushion, LH
1988-10 → 1993-02 ended
RX72 LHD —
71812-22100-13 note Shield, Front Seat Cushion, LH
1990-08 → 1993-02 ended
RX72 V —
71812-22100-14 note Shield, Front Seat Cushion, LH
1988-10 → 1990-08 ended
RX72 LHD —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72010-22050 Adjuster Sub-assy, Front Seat, Outer RH
1988-10 → 1993-02 ended
RX72 LHD —
72010-22060 Adjuster Sub-assy, Front Seat, Outer RH
1988-10 → 1993-02 ended
RX72 RHD GEN —
72011A — Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
90506-20045 Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
1988-10 → 1993-02 ended
GX71,MX75,RX7#,YX72 —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72020-22040 Adjuster Sub-assy, Front Seat, Outer LH
1988-10 → 1993-02 ended
RX72 RHD GEN —
72020-22050 Adjuster Sub-assy, Front Seat, Outer LH
1988-10 → 1993-02 ended
RX72 LHD —
72130A — Track Assy, Front Seat, Inner RH
72130-22230 Track Assy, Front Seat, Inner RH
1988-10 → 1993-02 ended
RX72 LHD —
72130-22240 Track Assy, Front Seat, Inner RH
1988-10 → 1993-02 ended
RX72 RHD GEN —
72137B — Cover, Seat Track, RH
72137-22030-03 note Cover, Seat Track, RH
1988-12 → 1990-09 ended
GX71,MX75,RX7#,YX72 SA —
72137-22030-06 note Cover, Seat Track, RH
1988-12 → 1992-05 ended
GX71,MX75,RX7#,YX72 SA —
72137-22030-13 note Cover, Seat Track, RH
1990-09 → 1992-05 ended
GX71,MX75,RX7#,YX72 SA —
72137-22040-02 note Cover, Seat Track, RH
1990-08 → 1993-02 ended
RX72 GEN,V —
72137-22040-03 note Cover, Seat Track, RH
1990-08 → 1993-02 ended
RX72 GEN,V —
72137-22040-06 note Cover, Seat Track, RH
1988-10 → 1993-02 ended
RX72 GEN,V —
72137-22040-12 note Cover, Seat Track, RH
1988-10 → 1990-08 ended
RX72 GEN,V —
72137-22040-14 note Cover, Seat Track, RH
1988-10 → 1990-08 ended
RX72 GEN,V —
72138B — Cover, Seat Track, LH
72138-22030-03 note Cover, Seat Track, LH
1988-12 → 1990-09 ended
GX71,MX75,RX7#,YX72 SA —
72138-22030-06 note Cover, Seat Track, LH
1988-12 → 1992-05 ended
GX71,MX75,RX7#,YX72 SA —
72138-22030-23 note Cover, Seat Track, LH
1990-09 → 1992-05 ended
GX71,MX75,RX7#,YX72 SA —
72138-22040-02 note Cover, Seat Track, LH
1990-08 → 1993-02 ended
RX72 GEN,V —
72138-22040-03 note Cover, Seat Track, LH
1990-08 → 1993-02 ended
RX72 GEN,V —
72138-22040-06 note Cover, Seat Track, LH
1988-10 → 1993-02 ended
RX72 GEN,V —
72138-22040-12 note Cover, Seat Track, LH
1988-10 → 1990-08 ended
RX72 GEN,V —
72138-22040-14 note Cover, Seat Track, LH
1988-10 → 1990-08 ended
RX72 GEN,V —
72140A — Track Assy, Front Seat,Inner LH
72140-22190 Track Assy, Front Seat,Inner LH
1988-10 → 1993-02 ended
RX72 RHD GEN —
72140-22200 Track Assy, Front Seat,Inner LH
1988-10 → 1993-02 ended
RX72 LHD —
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-22110 Wire Sub-assy, Seat Track Equalizing, RH
1988-10 → 1993-02 ended
RX72 GEN,V —
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-22110 Wire Sub-assy, Seat Track Equalizing, LH
1988-10 → 1993-02 ended
RX72 GEN,V —
72457D — Knob, Vertical Seat Adjuster, LH
72457-22010-16 note Knob, Vertical Seat Adjuster, LH
1988-10 → 1993-02 ended
RX72 LHD —
72457-22010-22 note Knob, Vertical Seat Adjuster, LH
1988-10 → 1993-02 ended
RX72 LHD —
72457-22010-24 note Knob, Vertical Seat Adjuster, LH
1988-10 → 1990-08 ended
RX72 LHD —
72457-22010-B0 note Knob, Vertical Seat Adjuster, LH
1990-08 → 1993-02 ended
RX72 LHD —
72525A — Handle, Reclining Adjuster Release, RH
72525-12090-13 note Handle, Reclining Adjuster Release, RH
1988-12 → 1990-09 ended
GX71,MX75,RX7#,YX72 SA —
72525-12090-16 note Handle, Reclining Adjuster Release, RH
1988-10 → 1993-02 ended
GX71,MX75,RX7#,YX72 —
72525-12090-23 note Handle, Reclining Adjuster Release, RH
1990-08 → 1990-09 ended
RX72 GEN,V —
72525-12090-23 note Handle, Reclining Adjuster Release, RH
1990-09 → 1993-02 ended
GX71,MX75,RX7#,YX72 —
72525-12090-44 note Handle, Reclining Adjuster Release, RH
1988-10 → 1990-08 ended
RX72 GEN,V —
72525-12090-52 note Handle, Reclining Adjuster Release, RH
1988-12 → 1993-02 ended
RX72 GEN,V —
72526 — Handle, Reclining Adjuster Release, LH
72526-12030-13 note Handle, Reclining Adjuster Release, LH
1988-12 → 1990-09 ended
GX71,MX75,RX7#,YX72 SA —
72526-12030-16 note Handle, Reclining Adjuster Release, LH
1988-10 → 1993-02 ended
GX71,MX75,RX7#,YX72 —
72526-12030-23 note Handle, Reclining Adjuster Release, LH
1990-08 → 1990-09 ended
RX72 GEN,V —
72526-12030-23 note Handle, Reclining Adjuster Release, LH
1990-09 → 1993-02 ended
GX71,MX75,RX7#,YX72 —
72526-12030-44 note Handle, Reclining Adjuster Release, LH
1988-10 → 1990-08 ended
RX72 GEN,V —
72526-12030-52 note Handle, Reclining Adjuster Release, LH
1988-10 → 1993-02 ended
RX72 GEN,V —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
