Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03

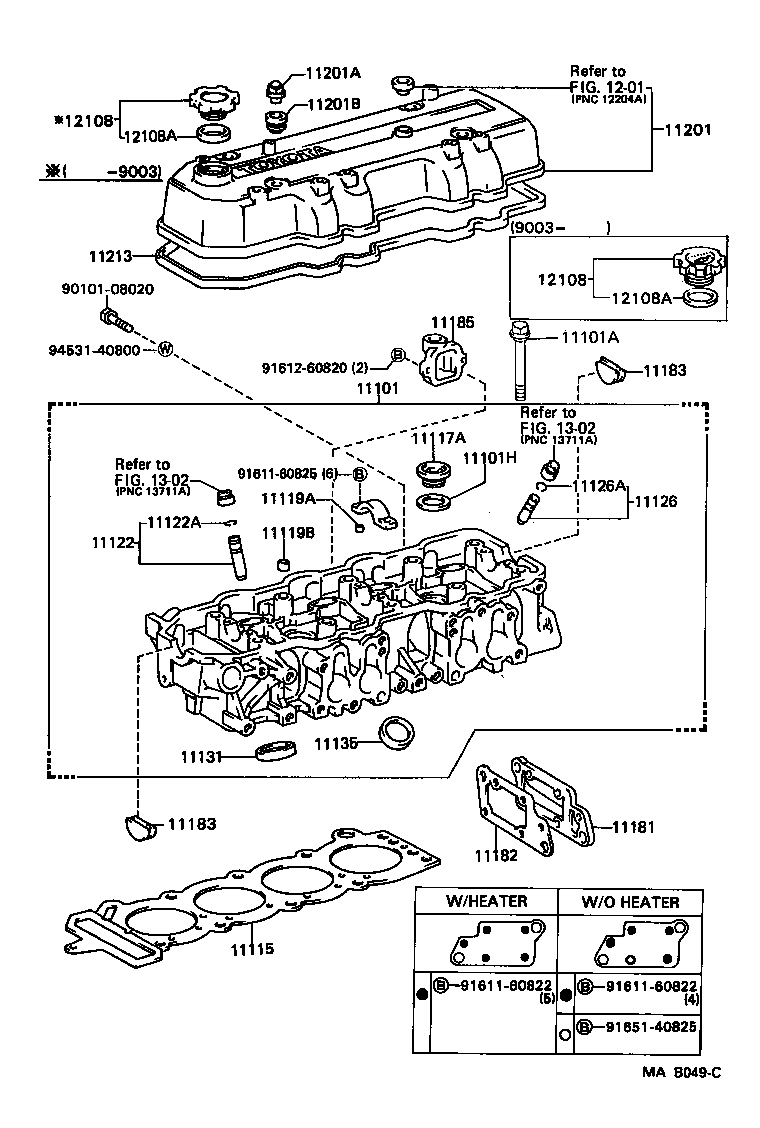

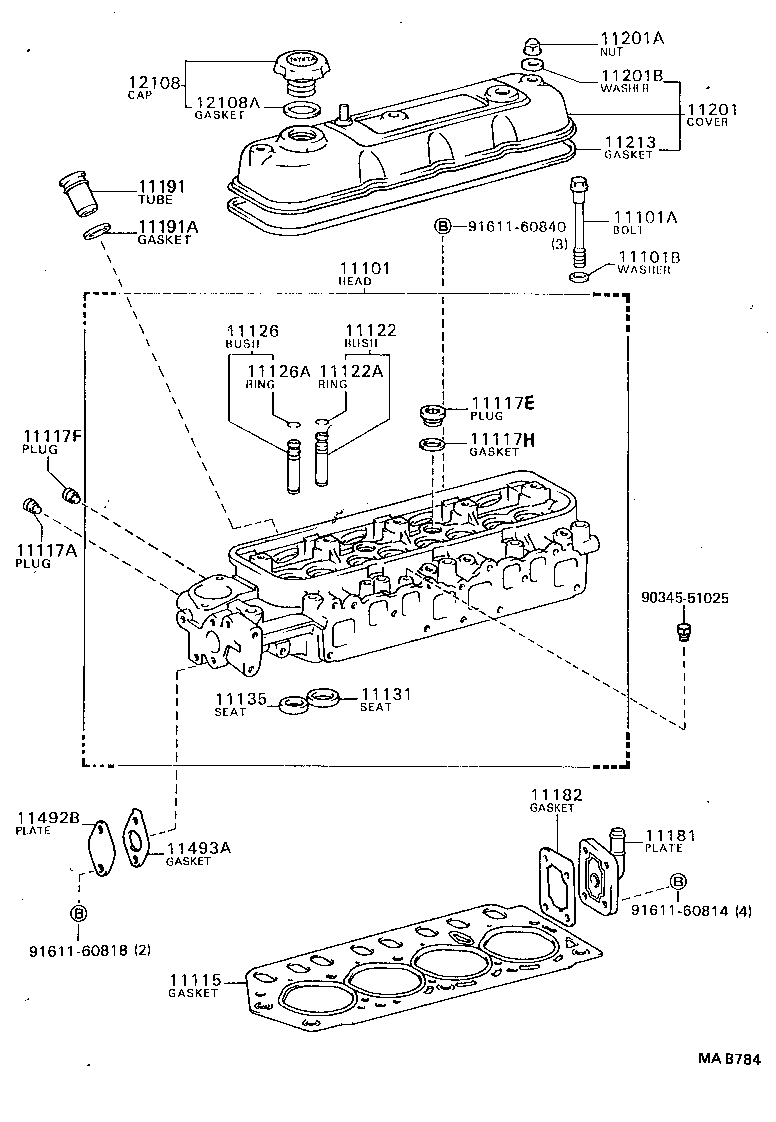

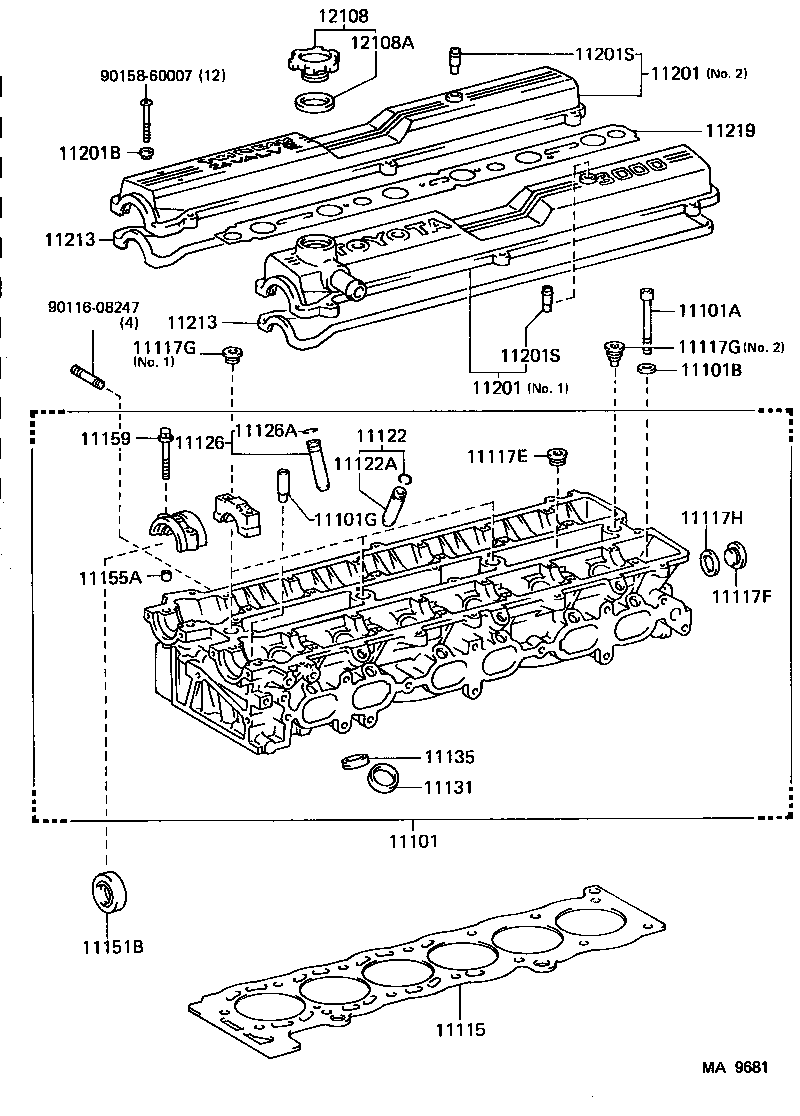

Cylinder Head

43 part groups · 4 illustrations

PNC	Description
11101	Head Sub-assy, Cylinder
11101A	Bolt(FOR CYLINDER HEAD SET)
11101B	Washer, Plate(FOR CYLINDER HEAD SET)
11101D	Bolt, Stud(FOR WATER OUTLET)
11101G	Union(FOR CYLINDER HEAD)
11101H	Gasket(FOR CYLINDER HEAD SCREW PLUG)
11115	Gasket, Cylinder Head
11116A	Plug, Tight, NO.1
11116B	Plug, Tight, NO.2
11117A	Plug, W/Head Taper Screw, NO.1
11117E	Plug, W/Head Straight Screw, NO.1
11117F	Plug, W/Head Straight Screw, NO.2
11117G	Plug, W/Head Straight Screw, NO.3
11117H	Gasket(FOR WATER HOLE)
11118A	Plug, Straight, NO.1
11119A	Pin, Straight, NO.1
11119B	Pin, Straight, NO.2
11122	Bush, Intake Valve Guide
11122A	Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126	Bush, Exhaust Valve Guide
11126A	Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131	Seat, Intake Valve
11135	Seat, Exhaust Valve
11151B	Seal, Oil(FOR CAMSHAFT SETTING)
11155A	Pin, Ring W/Head
11159	Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11159A	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181	Plate, Cylinder Head, Rear
11182	Gasket, Cylinder Head Rear Plate
11183	Plug, Semicircular
11185	Cover, Cylinder Head Side
11191	Tube, Spark Plug
11191A	Gasket(FOR SPARK PLUG TUBE)
11201	Cover Sub-assy, Cylinder Head
11201A	Nut, Cap(FOR CYLINDER HEAD COVER)
11201B	Washer, Seal(FOR CYLINDER HEAD COVER)
11201S	Tube, Air
11213	Gasket, Cylinder Head Cover
11219	Cover, Cylinder Head, NO.3
11492B	Plate, Water Seal
11493A	Gasket, Water Seal Plate
12108	Cap Sub-assy, Oil Filler
12108A	Gasket(FOR OIL FILLER CAP)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
