Toyota Cressida Wagon
1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe
Discontinued model
Data version 1995-03

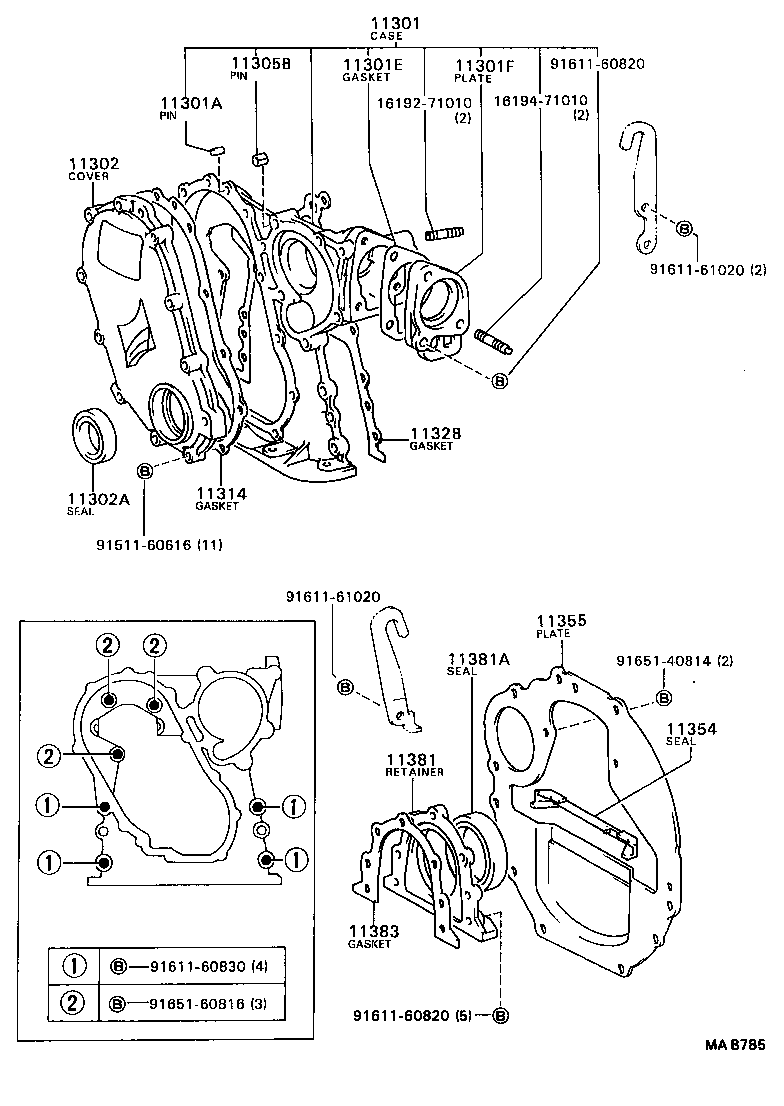

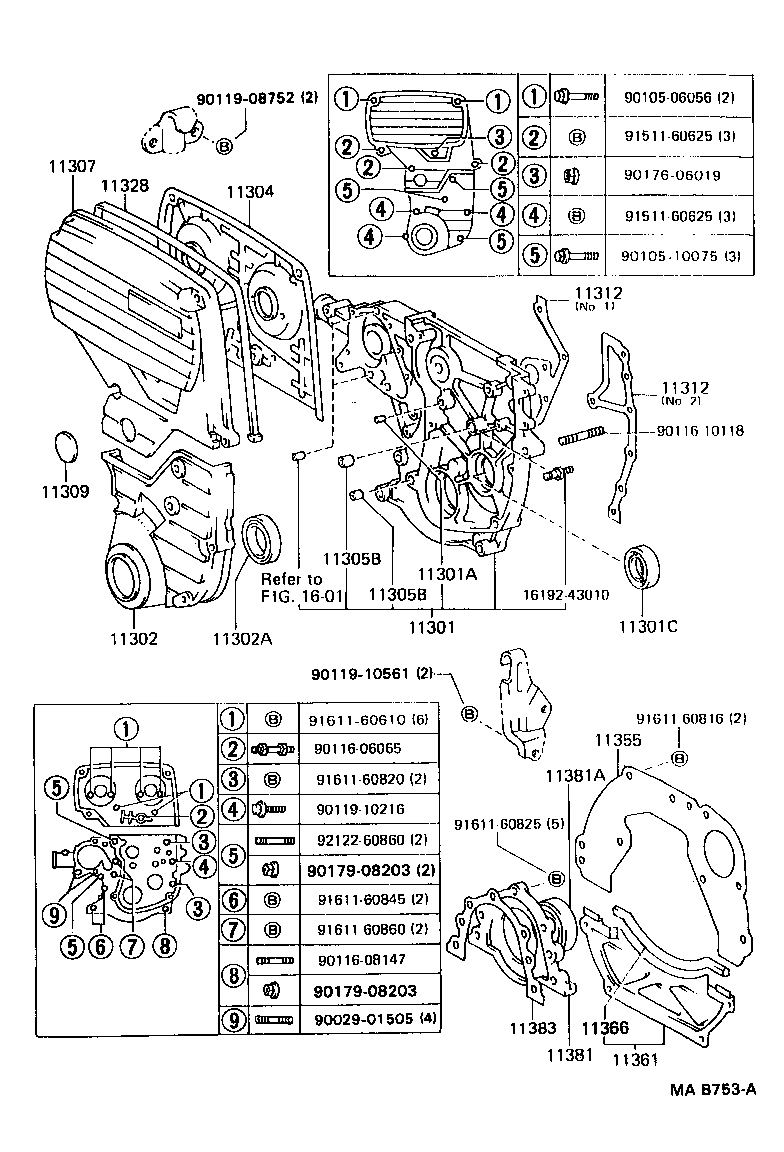

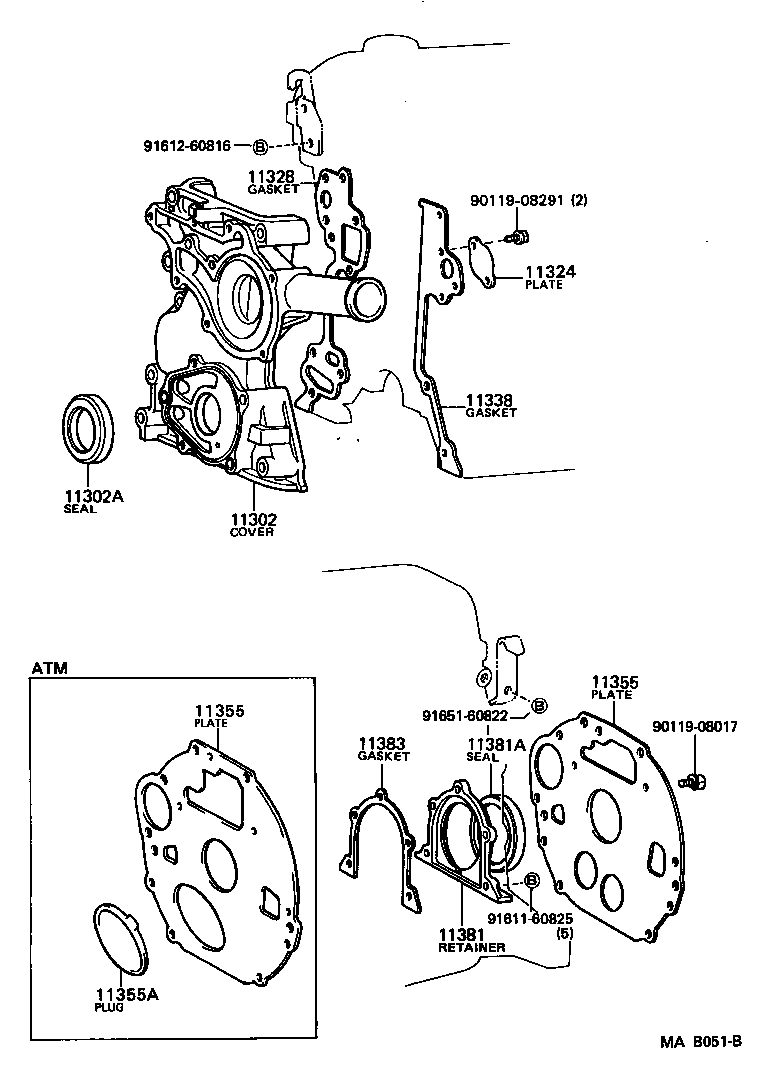

Timing Gear Cover & Rear End Plate
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301 | Case Sub-assy, Timing Gear |
| 11301A | Pin, Straight(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301E | Gasket, Thermostat Guide |
| 11301F | Plate, Water Pump Thermostat Guide |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11303 | Cover Sub-assy, Crankshaft Gear OR Pulley |
| 11304 | Cover, Timing Chain OR Belt, NO.2 |
| 11305B | Pin, Ring(FOR OIL SEAL RETAINER, NO.2) |
| 11307 | Cover, Sub-assy, Timing Belt, NO.3 |
| 11309 | Cover Sub-assy, Timing Belt, NO.4 |
| 11312 | Gasket, Front End Plate |
| 11314 | Gasket, Timing Chain NO.2 Cover |
| 11322A | Cover, Timing Belt, NO.1 |
| 11324 | Plate, Timing Chain Cover |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11338 | Gasket, Timing Chain Cover, NO.2 |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11355A | Plug, Hole(FOR REAR END PLATE) |
| 11361 | Cover, Flywheel Housing Under |
| 11366 | Seal, Flywheel Housing Under Cover Dust |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 11385A | Seal, Oil(FOR CAMSHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
