Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 4 illustrations

Illustrations

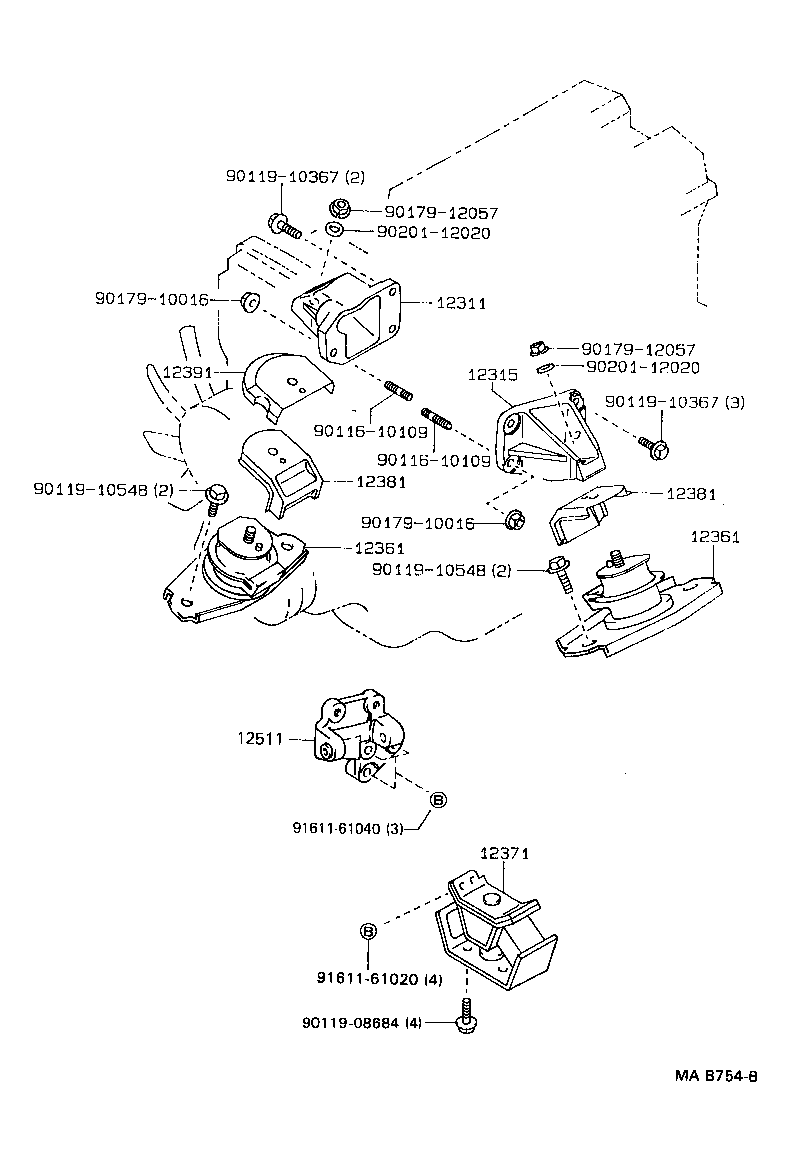

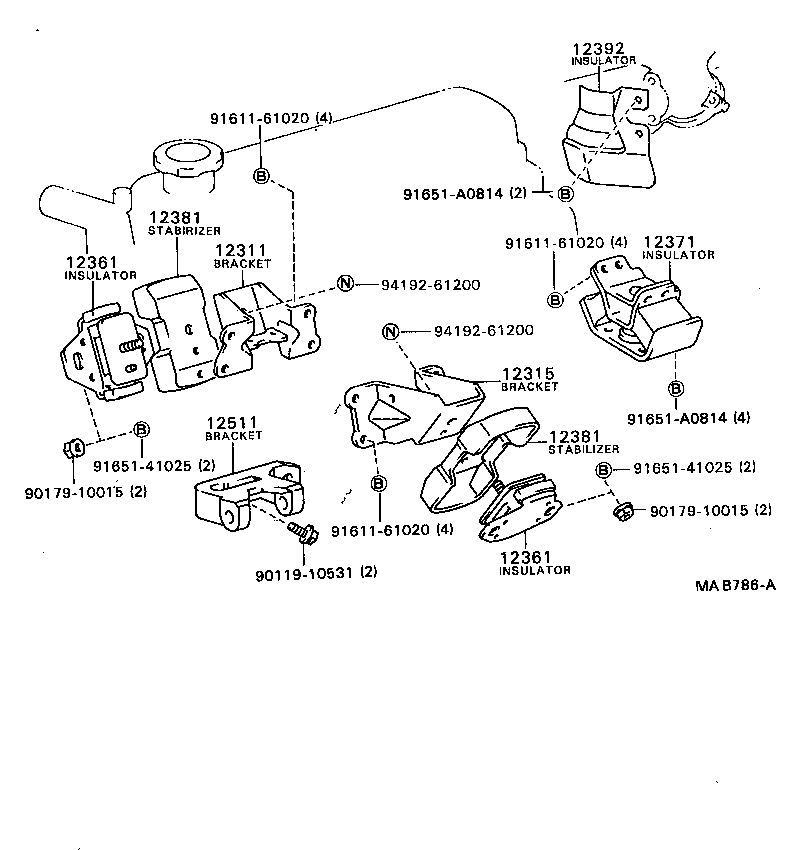

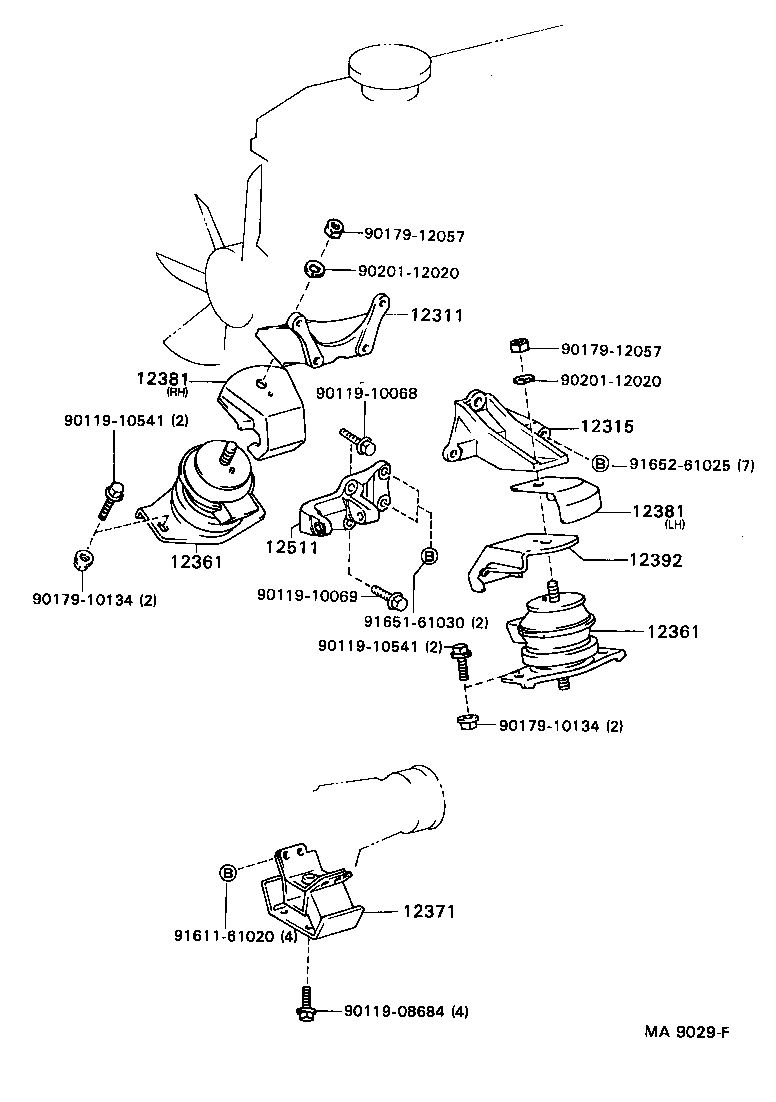

Figure MAB680A MAB680A 1988-12 → 1992-05 Figure MAB754B MAB754B 1988-12 → 1992-05 Figure MA9029F MA9029F 1988-10 → 1993-02 Figure MAB786A MAB786A 1988-12 → 1993-02

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
