Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

31 part groups · 4 illustrations

Illustrations

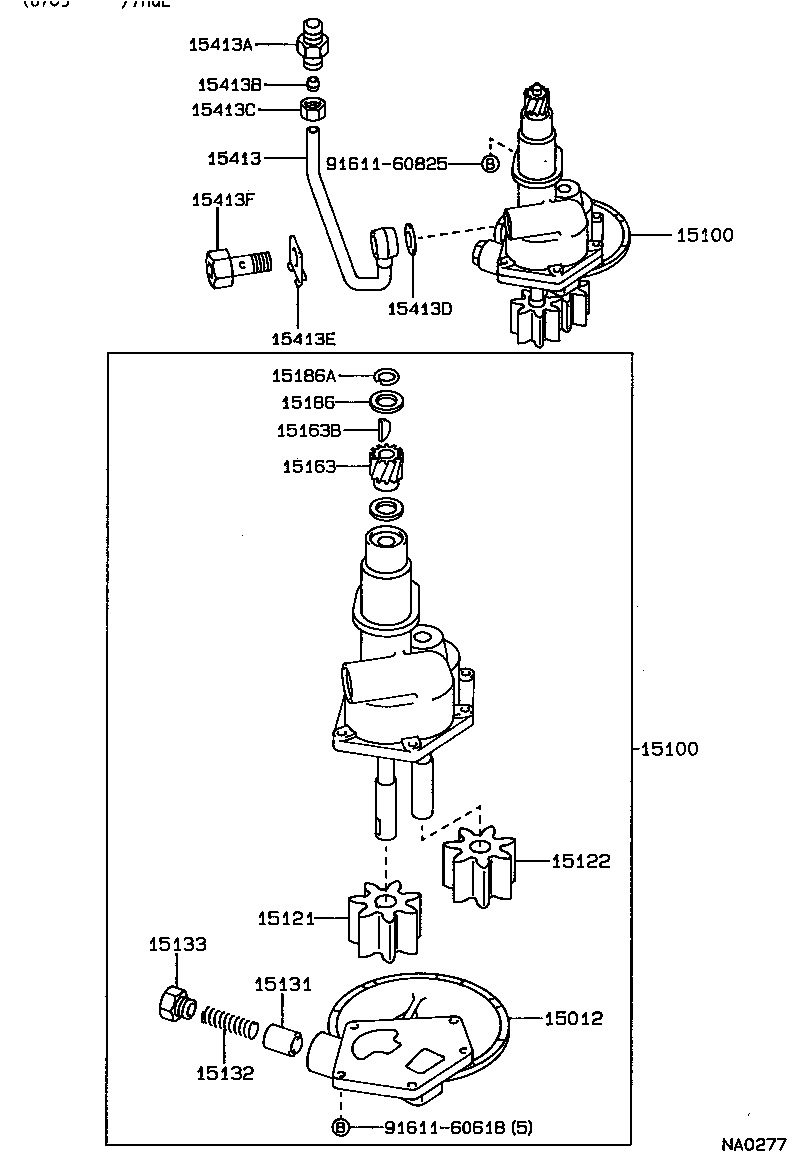

Figure MAB681A MAB681A 1988-12 → 1992-05 Figure NA0277 NA0277 1988-12 → 1992-05 Figure MA7722B MA7722B 1988-10 → 1993-02 Figure MA6181A MA6181A 1988-12 → 1992-05

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100D Pin(FOR OIL PUMP SET)
15100E Pin, Straight (FOR OIL PUMP SET)
15100F Bush (FOR OIL PUMP)
15100H Bolt, Seal
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15115 Cover, Oil Pump
15115A Ring, O(FOR OIL PUMP COVER)
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163 Gear, Oil Pump Drive Shaft
15163B Key, Woodruff(FOR OIL PUMP DRIVE SHAFT GEAR)
15186 Spacer(FOR OIL PUMP DRIVE SHAFT GEAR)
15186A Ring, Shaft Snap(FOR OIL PUMP DRIVE SHAFT GEAR)
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
15413D Gasket(FOR OIL PUMP OUTLET PIPE)
15413E Washer, Lock(FOR OIL PUMP OUTLET PIPE)
15413F Bolt, Union(FOR OIL PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
