Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

11 part groups · 4 illustrations

Illustrations

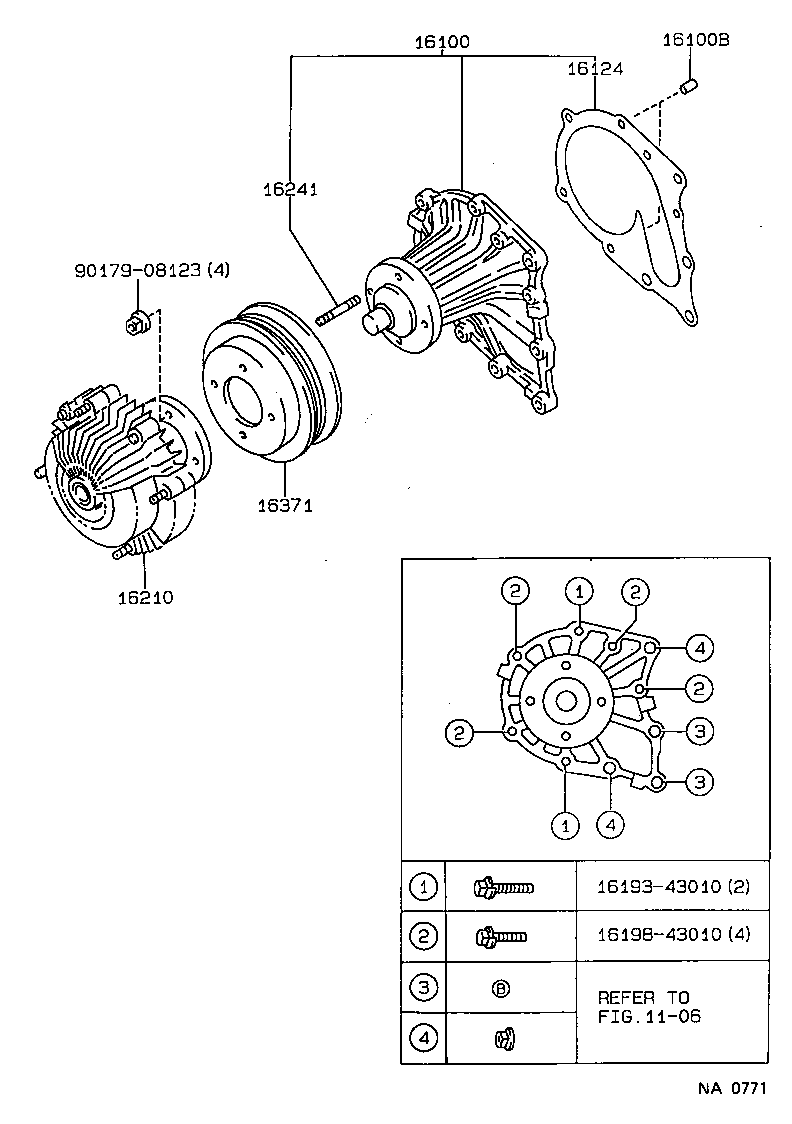

Figure MAB682 MAB682 1988-12 → 1992-05 Figure NA0771 NA0771 1988-12 → 1992-05 Figure MA7723E MA7723E 1988-10 → 1993-02 Figure MA6183B MA6183B 1988-12 → 1992-05

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100G Bolt, Stud(FOR WATER PUMP SET)
16124 Gasket, Water Pump Cover
16171 Seat, Water Pump Pulley
16193 Bolt, Stud(FOR WATER PUMP COVER)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16258 Gasket(FOR HEATER RETURN)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
