Toyota Cressida Wagon
1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe
Discontinued model
Data version 1995-03
Radiator & Water Outlet

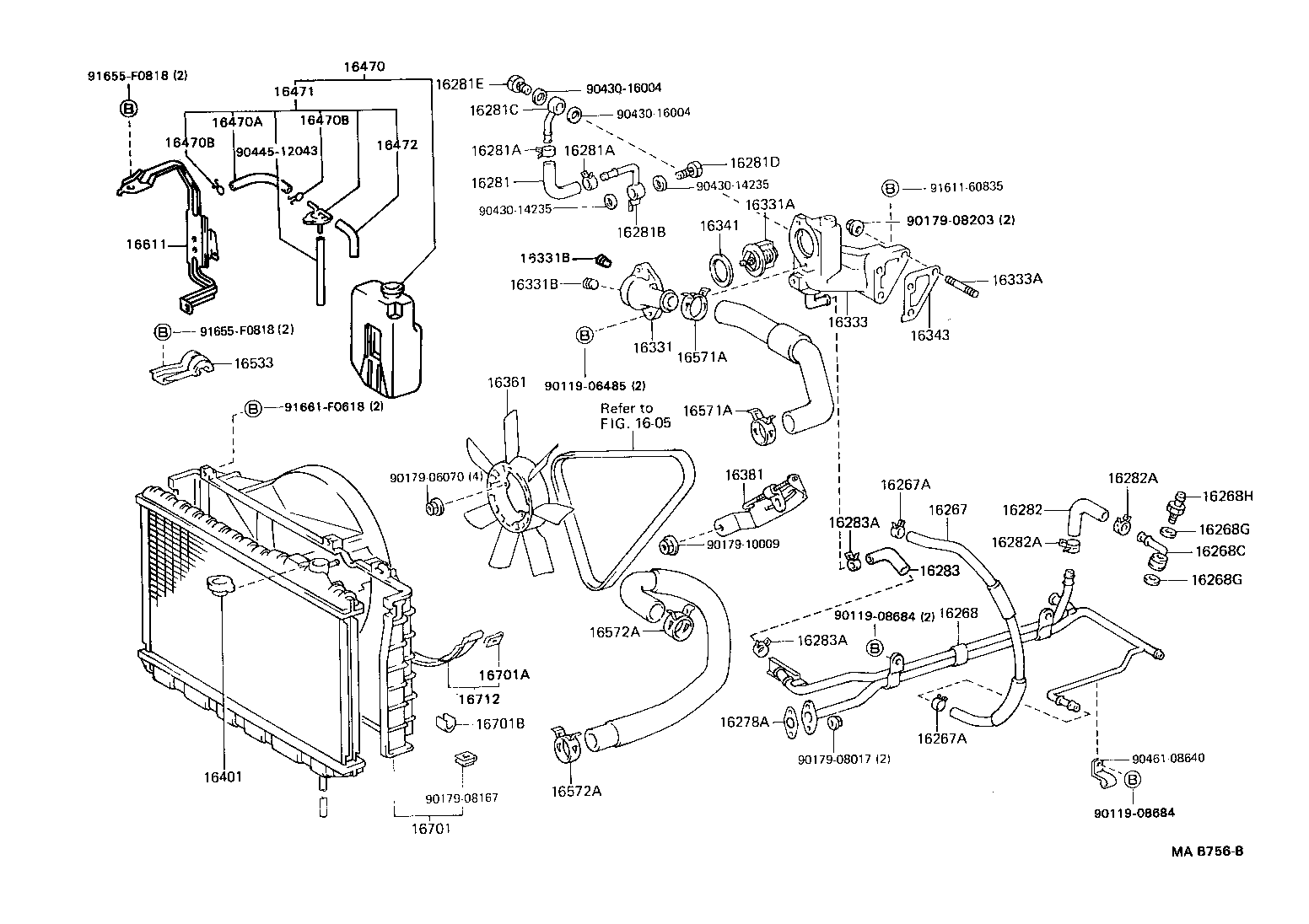

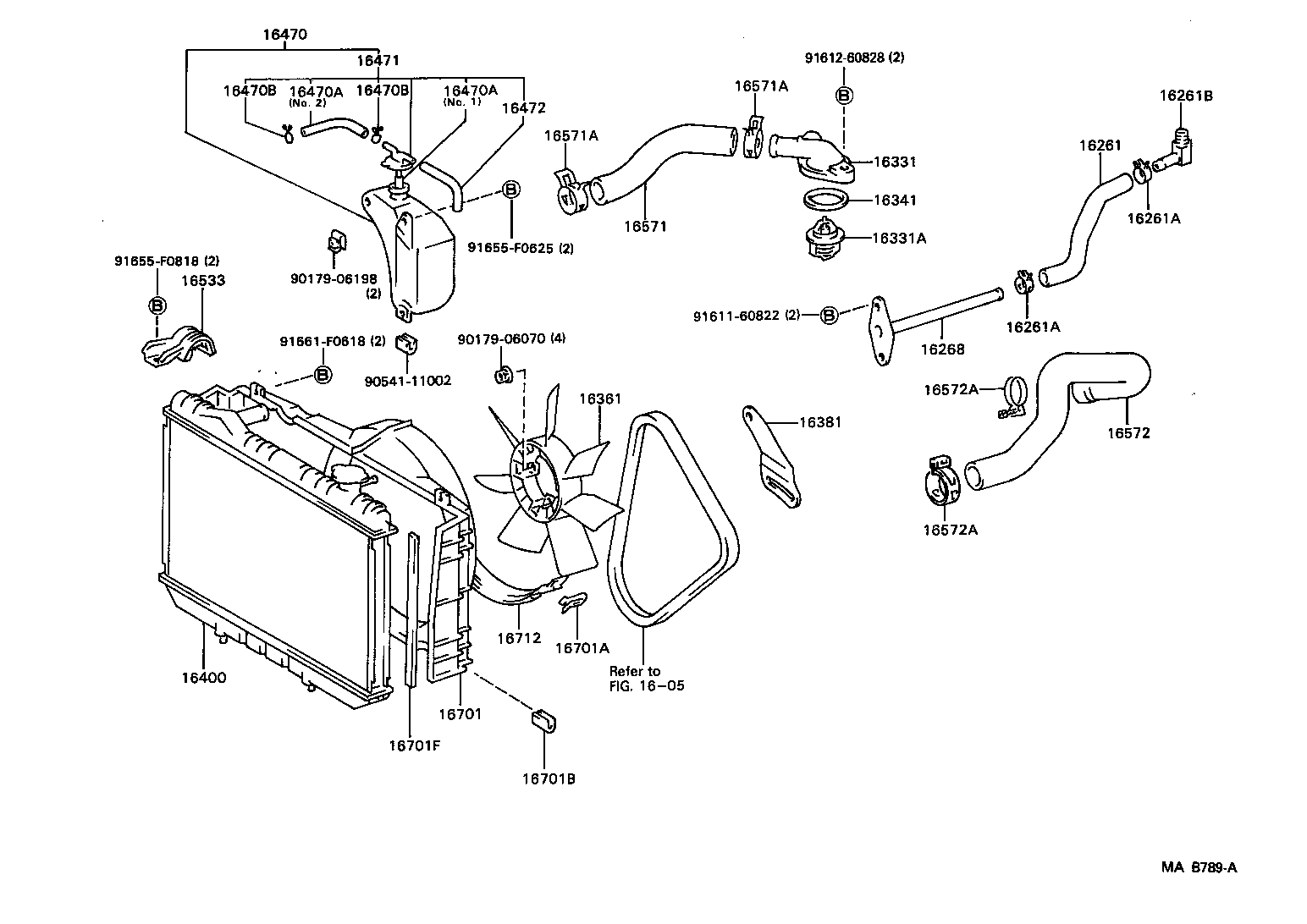

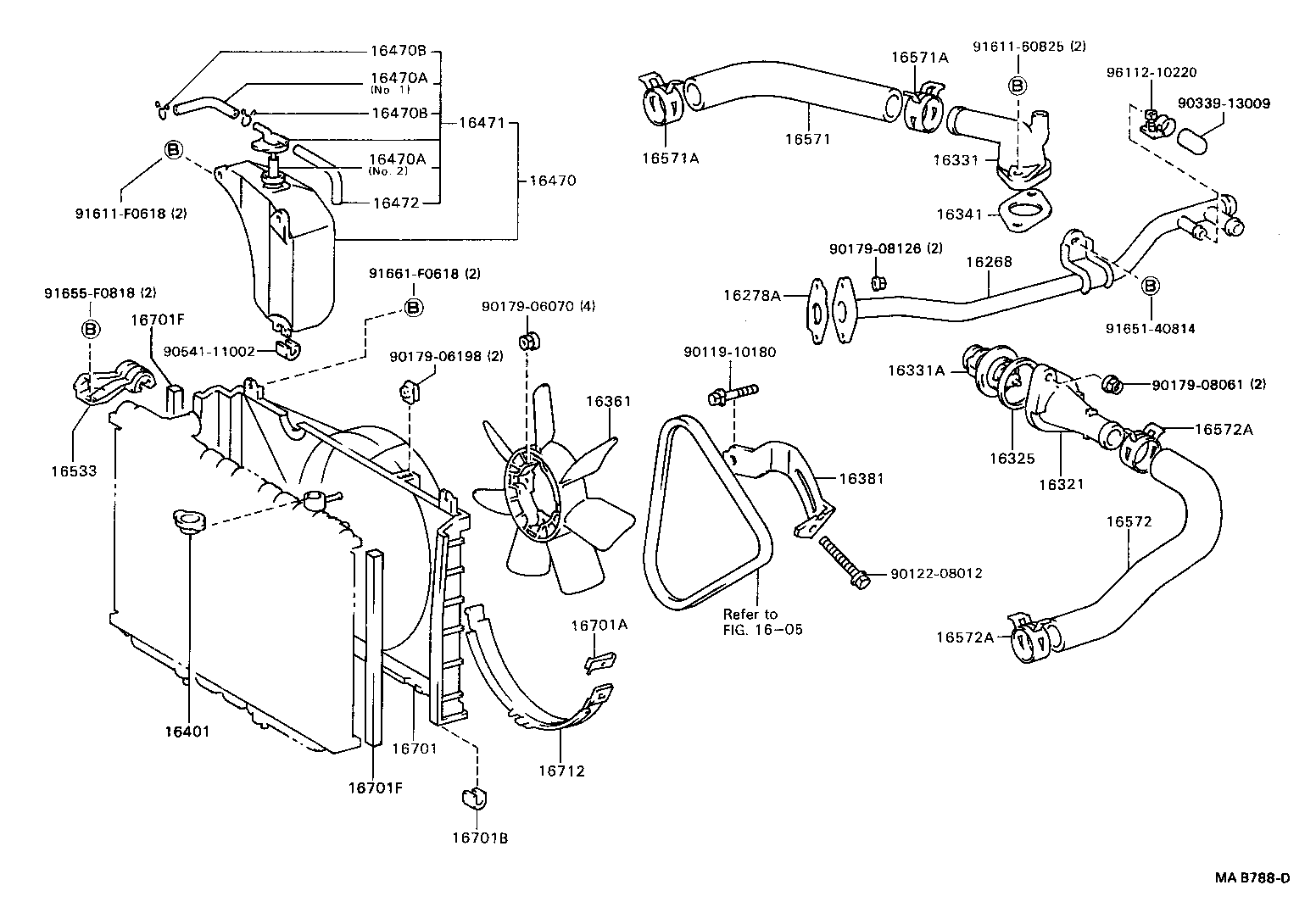

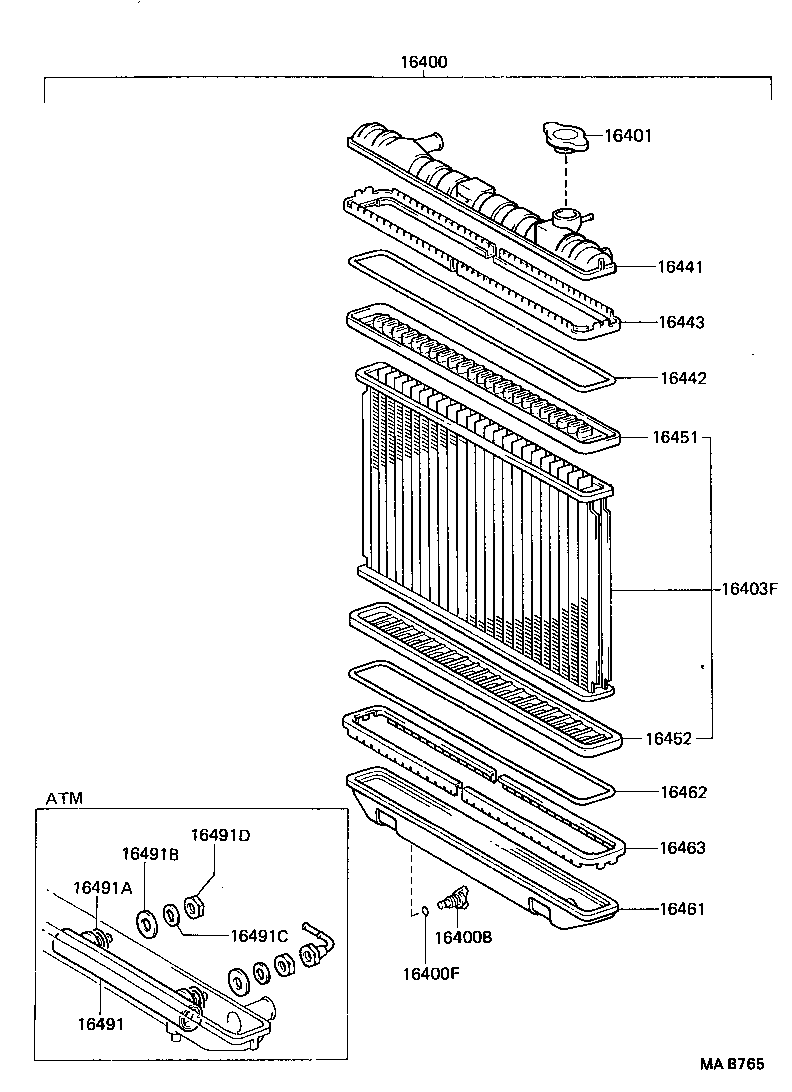

75 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268C | Union, Water By-pass Pipe |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16268H | Bolt, Union(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278A | Gasket, Water By-pass |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281B | Union, Water By-pass Pipe, NO.2 |
| 16281C | Union, Water By-pass Pipe, NO.3 |
| 16281D | Bolt, Union(FOR WATER BY-PASS PIPE UNION NO.2) |
| 16281E | Bolt, Union(FOR WATER BY-PASS PIPE UNION NO.3) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16321 | Inlet, Water |
| 16321D | Bolt, Stud(FOR WATER INLET) |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331B | Plug(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16333A | Bolt, Stud(FOR WATER OUTLET HOUSING) |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16347D | Gasket, Water By-pass |
| 16351 | Outlet, Water By-pass |
| 16361 | Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16403F | Core Sub-assy, Radiator |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16443 | Plate, Radiator Tank, Lock, Upper |
| 16451 | Plate, Radiator Core, Upper |
| 16452 | Plate, Radiator Core, Lower |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16463 | Plate, Radiator Tank, Lock, Lower |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470C | Bracket(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16491 | Cooler, Oil(FOR ATM) |
| 16491A | Ring, O(FOR ATM OIL COOLER) |
| 16491B | Washer, Plate(FOR ATM OIL COOLER) |
| 16491C | Washer, Spring(FOR ATM OIL COOLER) |
| 16491D | Nut(FOR ATM OIL COOLER) |
| 16533 | Support, Radiator, Upper |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16611 | Bracket, Radiator Reserve Tank |
| 16701 | Shroud Sub-assy, Fan |
| 16701A | Clip(FOR FAN SHROUD) |
| 16701B | Cushion, Fan Shroud |
| 16701F | Seal(FOR FAN SHROUD) |
| 16712 | Shroud, Fan, NO.2 |
| 16832 | Seal, Fan Shroud |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
