Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

23 part groups · 14 illustrations

Illustrations

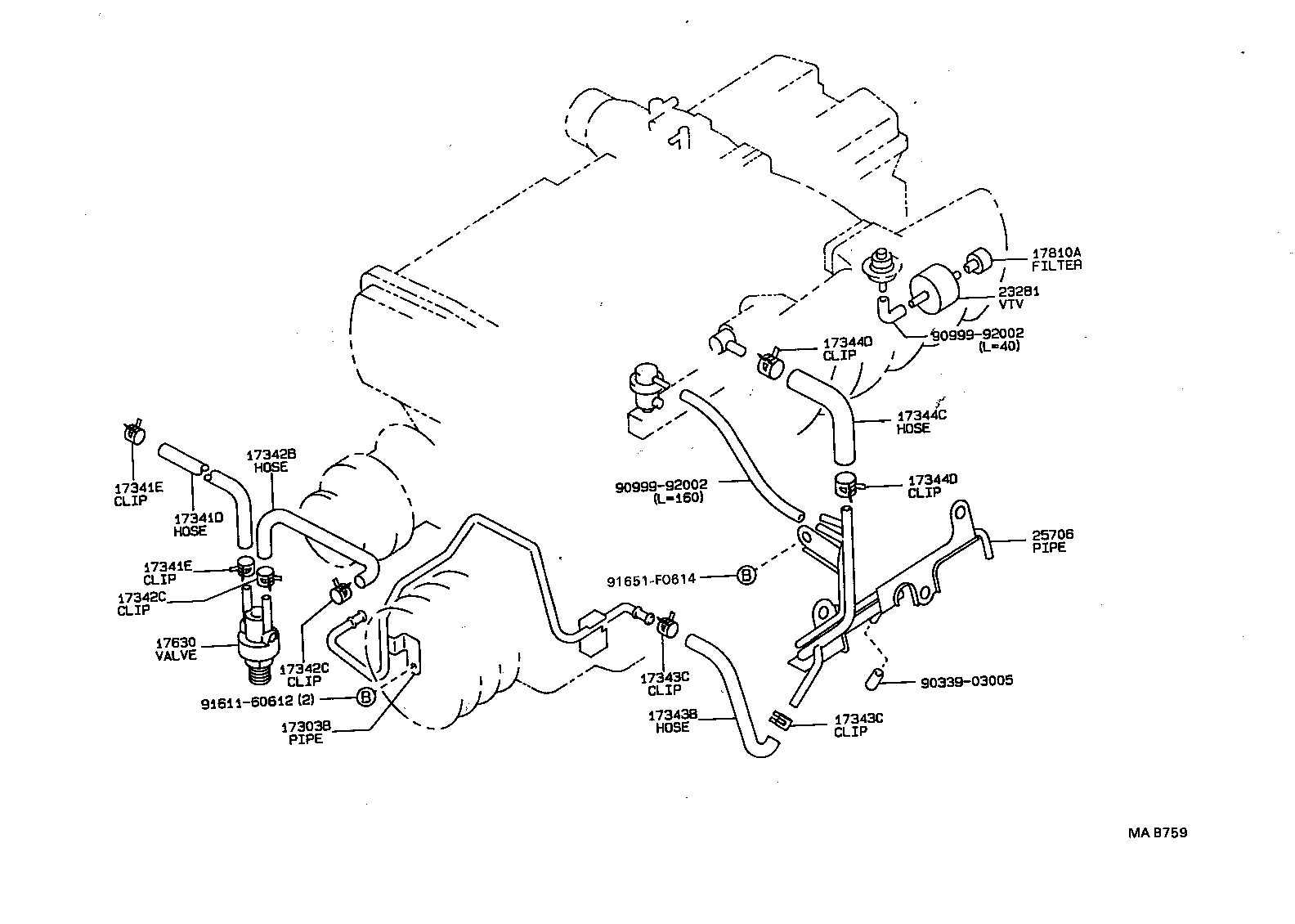

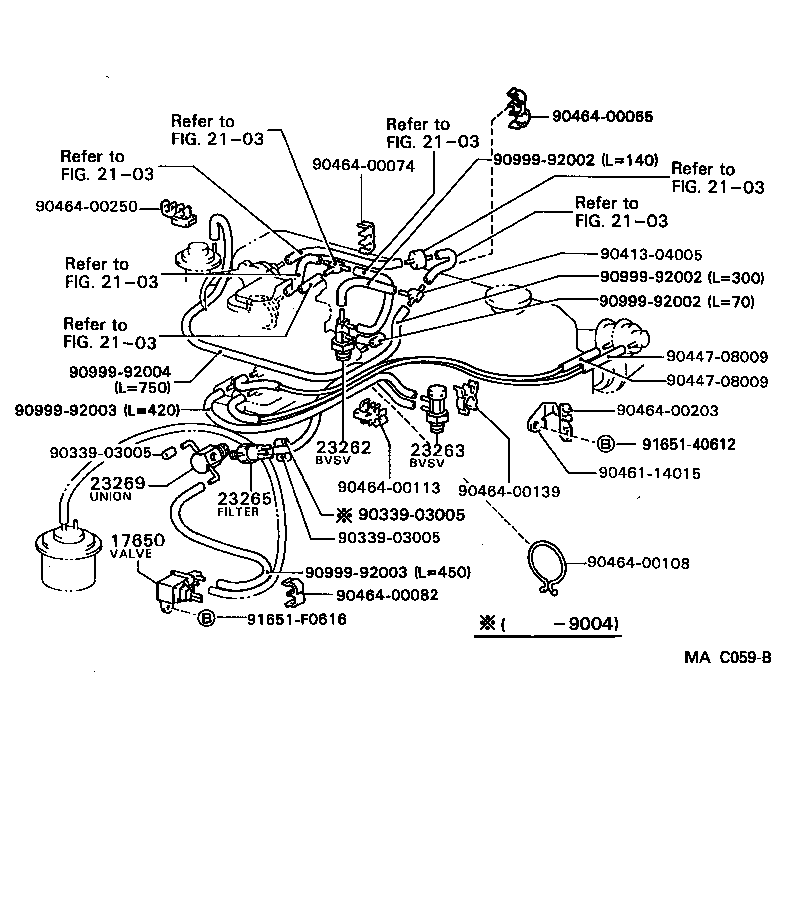

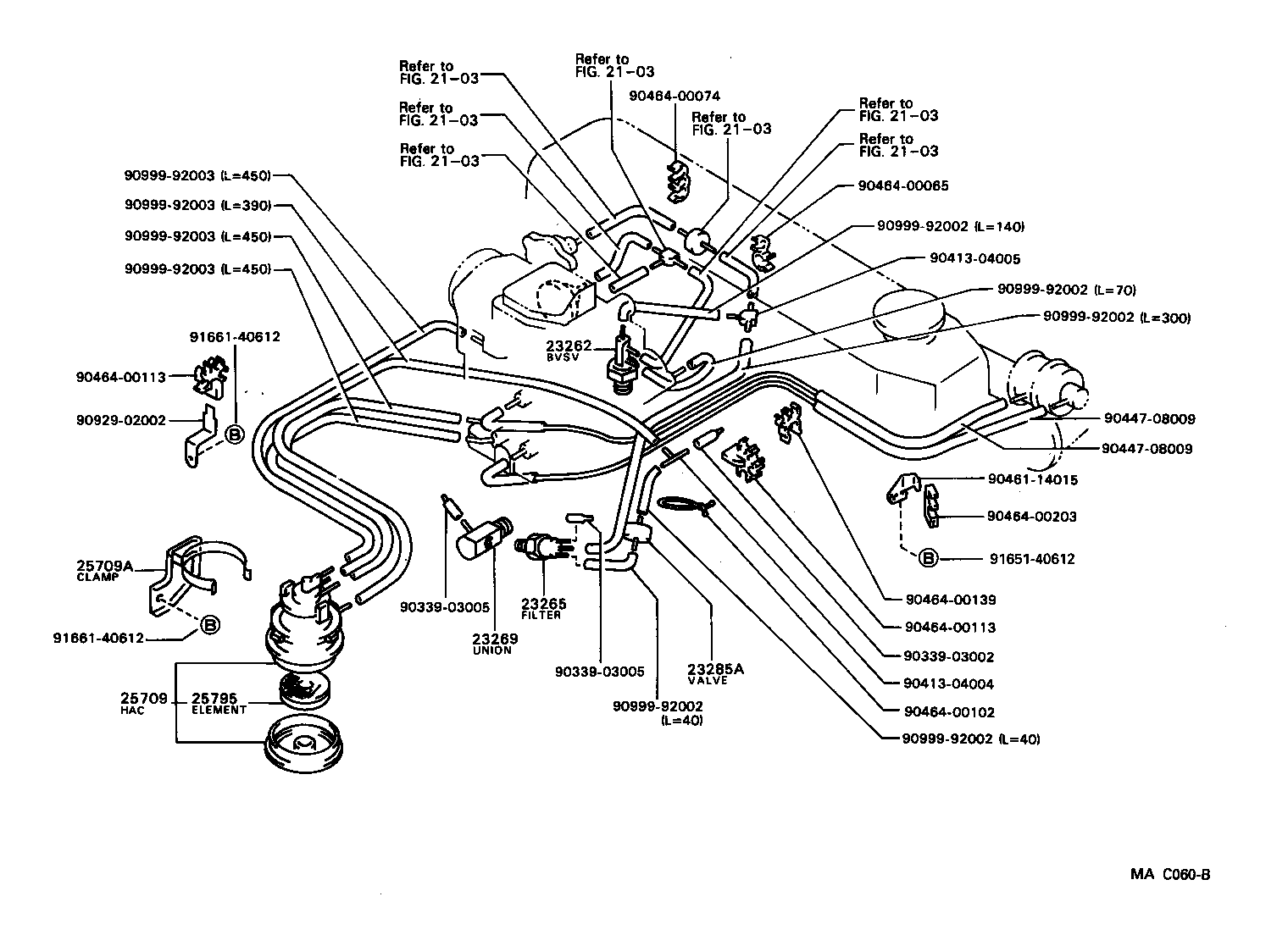

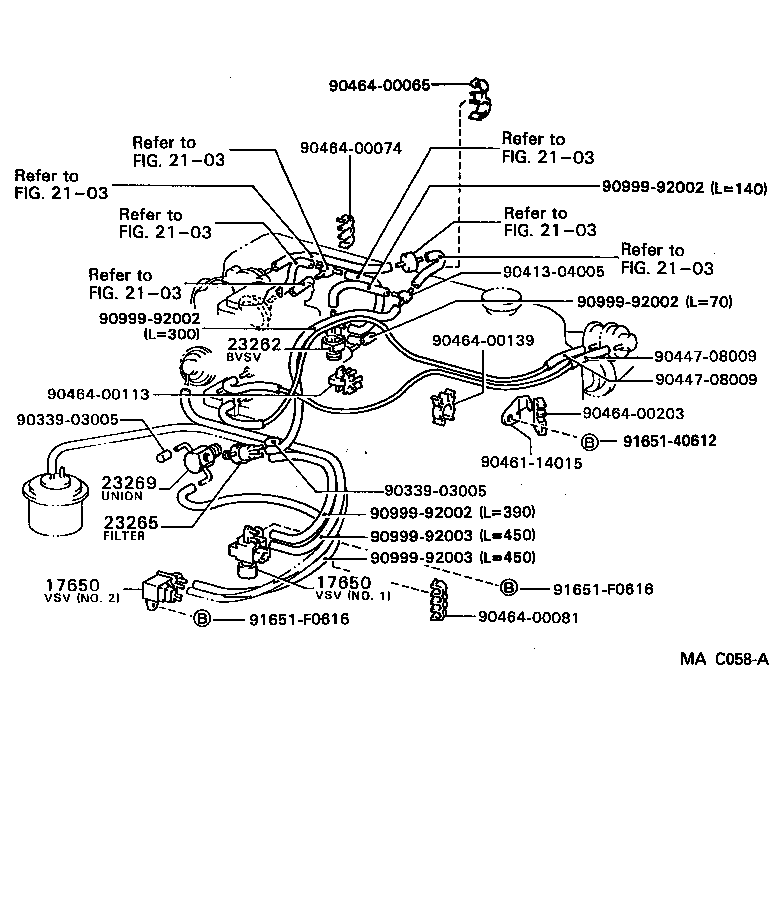

Figure MA9504B MA9504B 1988-10 → 1993-02 Figure MAB695 MAB695 1988-12 → 1992-05 Figure MA9504B MA9504B 1988-10 → 1993-02 Figure MAB759 MAB759 1988-12 → 1992-05 Figure MA9504B MA9504B 1988-10 → 1993-02 Figure MAC058A MAC058A 1988-10 → 1988-12 Figure MAC058A MAC058A 1988-10 → 1989-06 Figure MAC058A MAC058A 1988-12 → 1989-06 Figure MAC059B MAC059B 1988-10 → 1989-06 Figure MAC059B MAC059B 1989-06 → 1993-02 Figure MAC060B MAC060B 1988-12 → 1992-05 Figure MA9504B MA9504B 1988-10 → 1993-02 Figure MA8152B MA8152B 1988-12 → 1990-08 Figure MAE132 MAE132 1990-08 → 1992-05

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25795 Element, Altitude Compensator Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
