Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

20 part groups · 3 illustrations

Illustrations

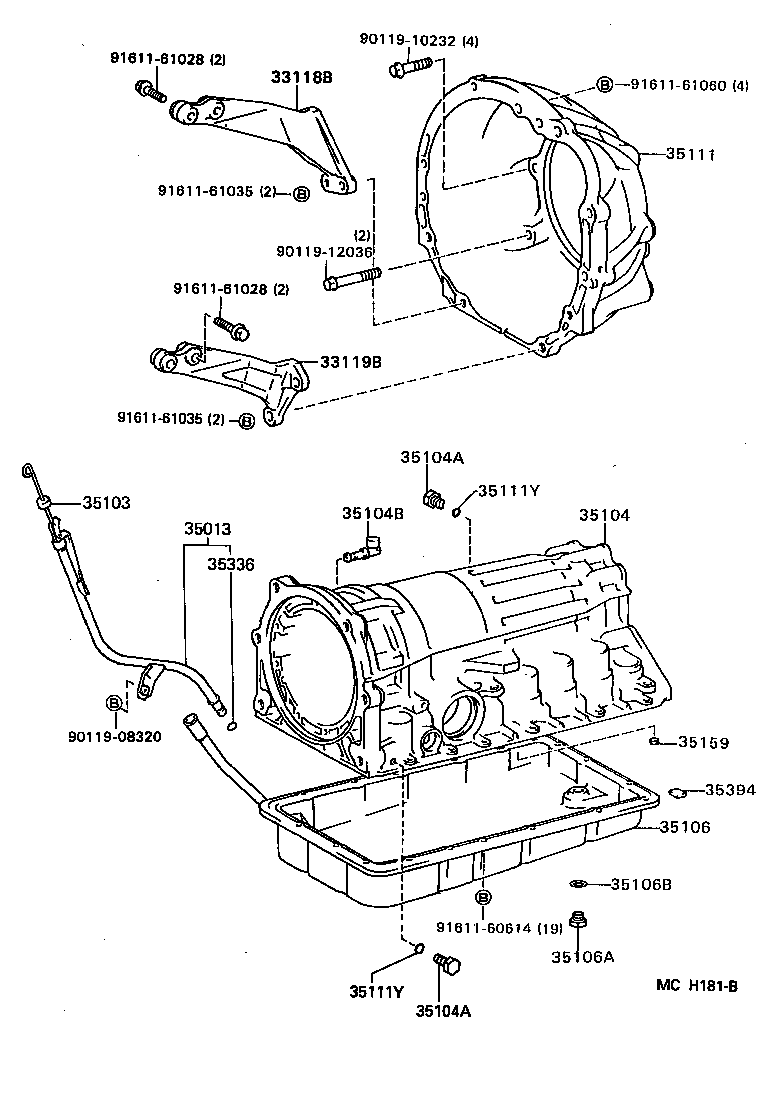

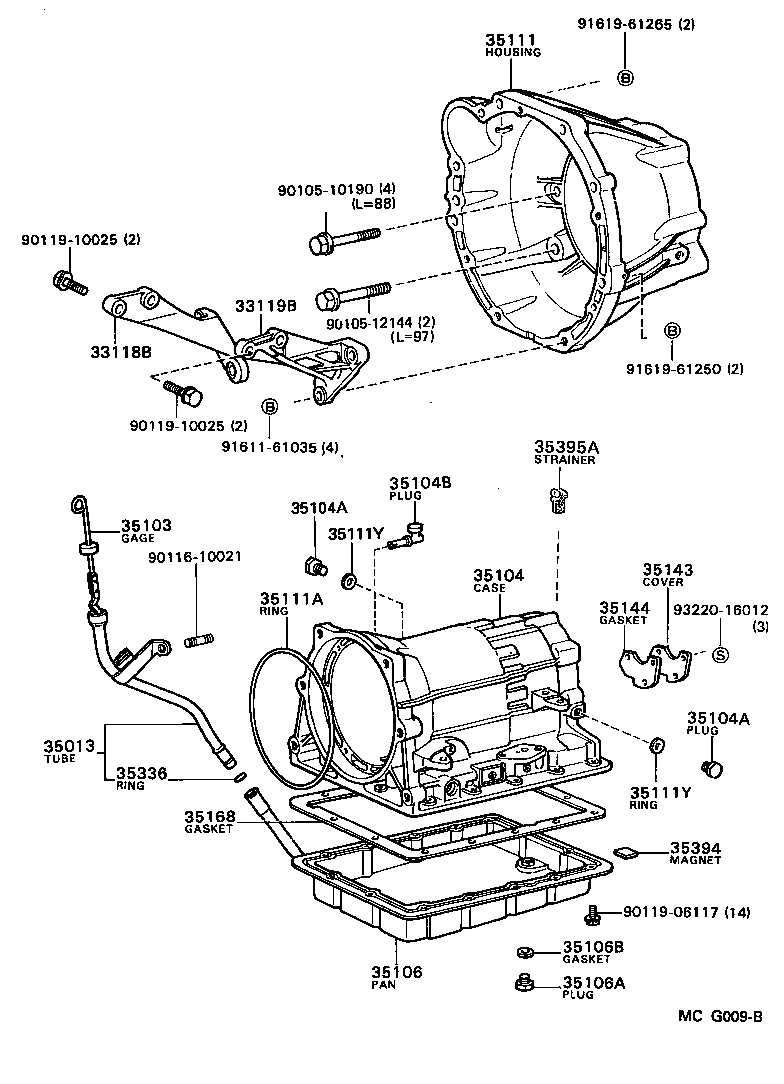

Figure MCJ944A MCJ944A 1988-12 → — Figure MCH181B MCH181B 1988-12 → — Figure MCG009B MCG009B 1988-10 → —

Part groups

PNCDescription
33118B Plate, Stiffener, RH(ATM)
33119B Plate, Stiffener, LH(ATM)
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35111 Housing, Automatic Transmission
35111A Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35143 Cover, Transmission Case, Rear
35144 Gasket, Transmission Case Rear Cover
35159 Gasket, Brake Drum
35168 Gasket, Automatic Transmission Oil Pan
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35395A Strainer, Governor Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
