Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03

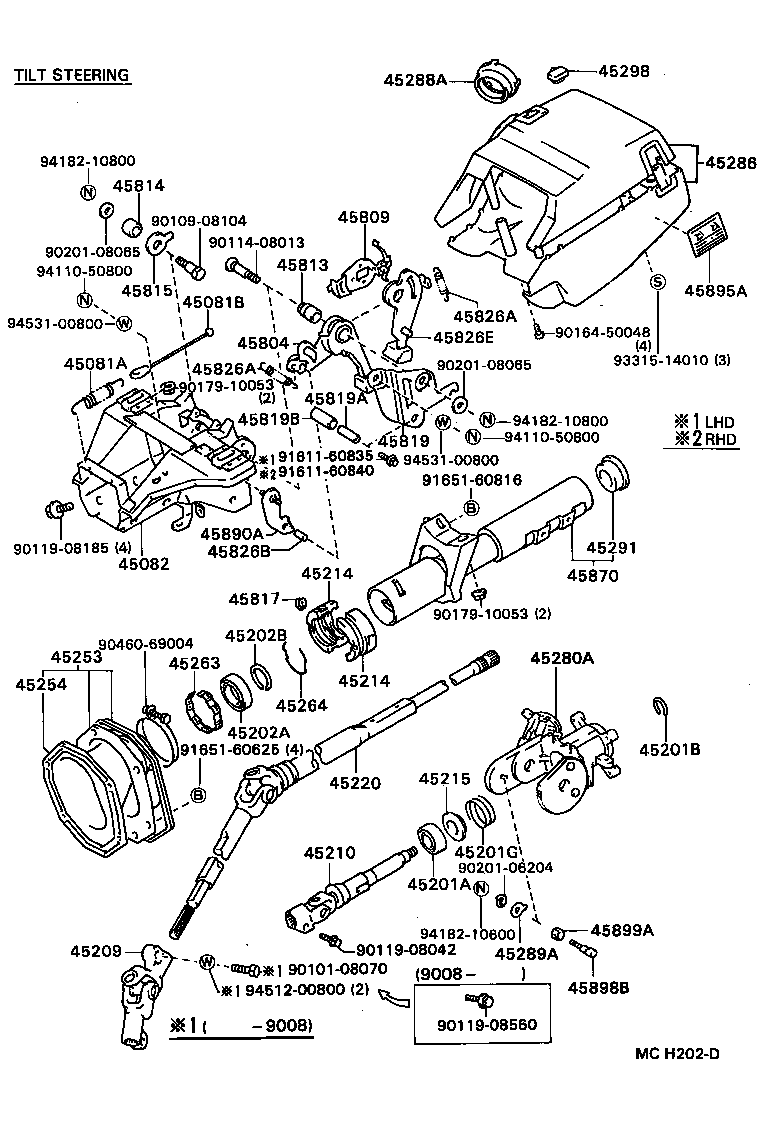

Steering Column & Shaft

40 part groups · 2 illustrations

PNC	Description
45081A	Spring, Tension(FOR TILT STEERING)
45081B	Cord(FOR TILT STEERING)
45082	Bracket Sub-assy, Break Away W/Capsule
45201A	Bearing(FOR STEERING MAIN SHAFT)
45201B	Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G	Spring, Compression(FOR STEERING MAIN SHAFT)
45202A	Bearing, Radial Ball(FOR STEERING INTERMEDIATE SHAFT)
45202B	Ring, Shaft Snap(FOR STEERING INTERMEDIATE SHAFT)
45209	Yoke Sub-assy, Steering Sliding
45210	Shaft Assy, Steering Main
45214	Retainer, Main Shaft Spring
45215	Collar, Main Shaft Bearing Thrust
45220	Shaft Assy, Steering Intermediate
45253	Cover, Steering Column Hole
45254	Shield, Steering Column Hole
45263	Ring, Steering Column, NO.1
45264	Ring, Steering Column, NO.2
45280A	Bracket Assy, Steering Column, Upper
45286	Cover, Steering Column
45288A	Spacer, Column Cover
45289A	Support, Steering Column Cover
45291	Seal, Main Shaft Upper Dust
45298	Plug, Steering Column Cover
45804	Lever Sub-assy, Steering Tilt
45809	Cover Sub-assy, Adjuster Memory
45813	Collar, Tilt Steering Support, NO.1
45814	Collar, Tilt Steering Support, NO.2
45815	Shim, Tilt Steering Support
45817	Stopper, Steering Shaft Thrust
45819	Retainer, Tilt Lever
45819A	Collar(FOR TILT LEVER RETAINER)
45819B	Cushion(FOR TILT LEVER RETAINER)
45826A	Spring, Tension(FOR STEERING TILT LEVER)
45826B	Pin(FOR STEERING TILT LEVER)
45826E	Lever, Steering Tilt(FOR TILT ADJUST)
45870	Tube Assy, Steering Column
45890A	Pawl Assy, Tilt Steering
45895A	Plate, Tilt Steering Caution
45898B	Bolt, Tilt Steering Support Stopper
45899A	Cover, Tilt Steering Support Stopper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
