Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

21 part groups · 2 illustrations

Illustrations

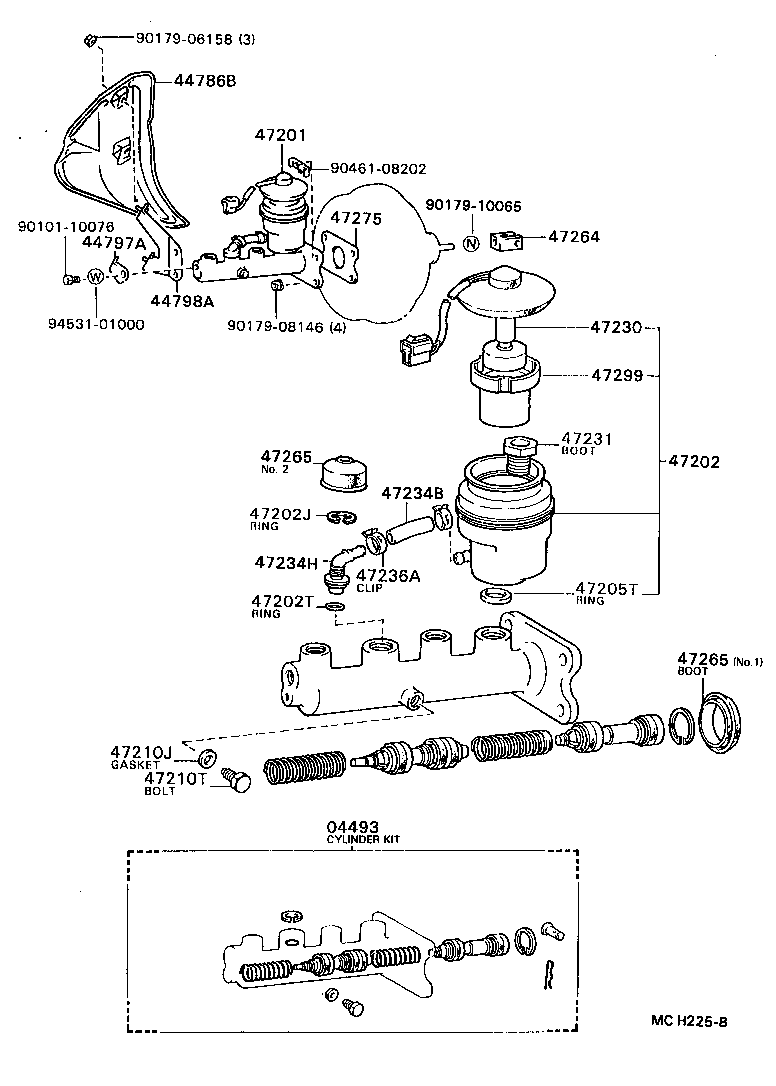

Figure MCH224B MCH224B 1988-10 → — Figure MCH225B MCH225B 1988-10 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
44786B Insulator, Brake Master Cylinder Heat
44797A Bracket, Heat Insulator, NO.2
44798A Bracket, Heat Insulator(FOR BRAKE MASTER CYLINDER)
47201 Cylinder Sub-assy, Brake Master
47202 Reservoir Sub-assy, Brake Master Cylinder
47202J Ring, Snap(FOR BRAKE MASTER CYLINDER SIDE)
47202T Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
47205T Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47231 Bolt, Brake Master Cylinder Reservoir Set
47232 Washer, Brake Reservoir Set Bolt
47234B Tube, Reservoir, NO.1
47234H Elbow(FOR RESERVOIR TUBE)
47236A Clip(FOR RESERVOIR TUBE)
47264 Clevis, Master Cylinder Push Rod
47265 Boot, Master Cylinder
47275 Gasket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
