Toyota Cressida Wagon
1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe
Discontinued model
Data version 1995-03

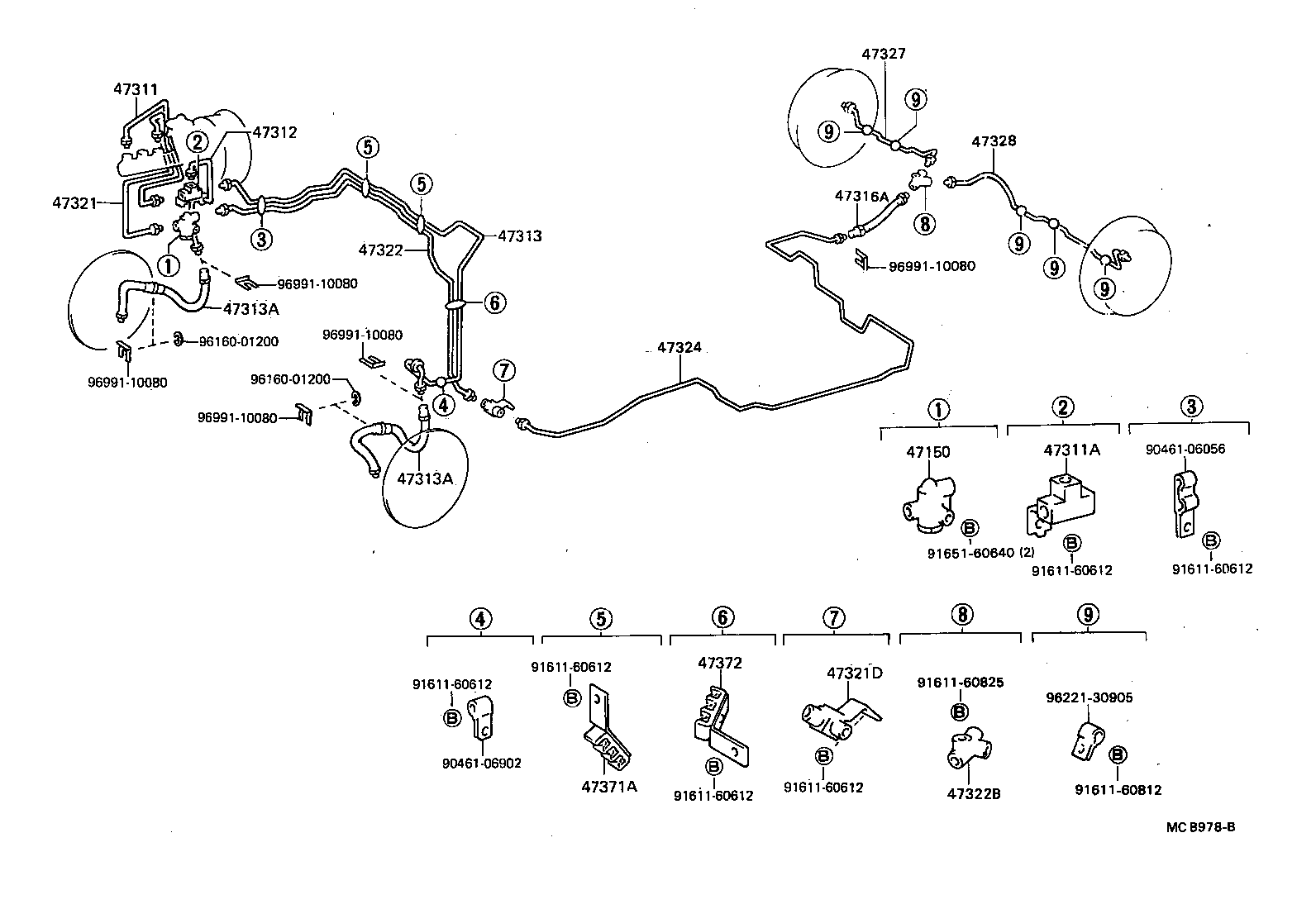

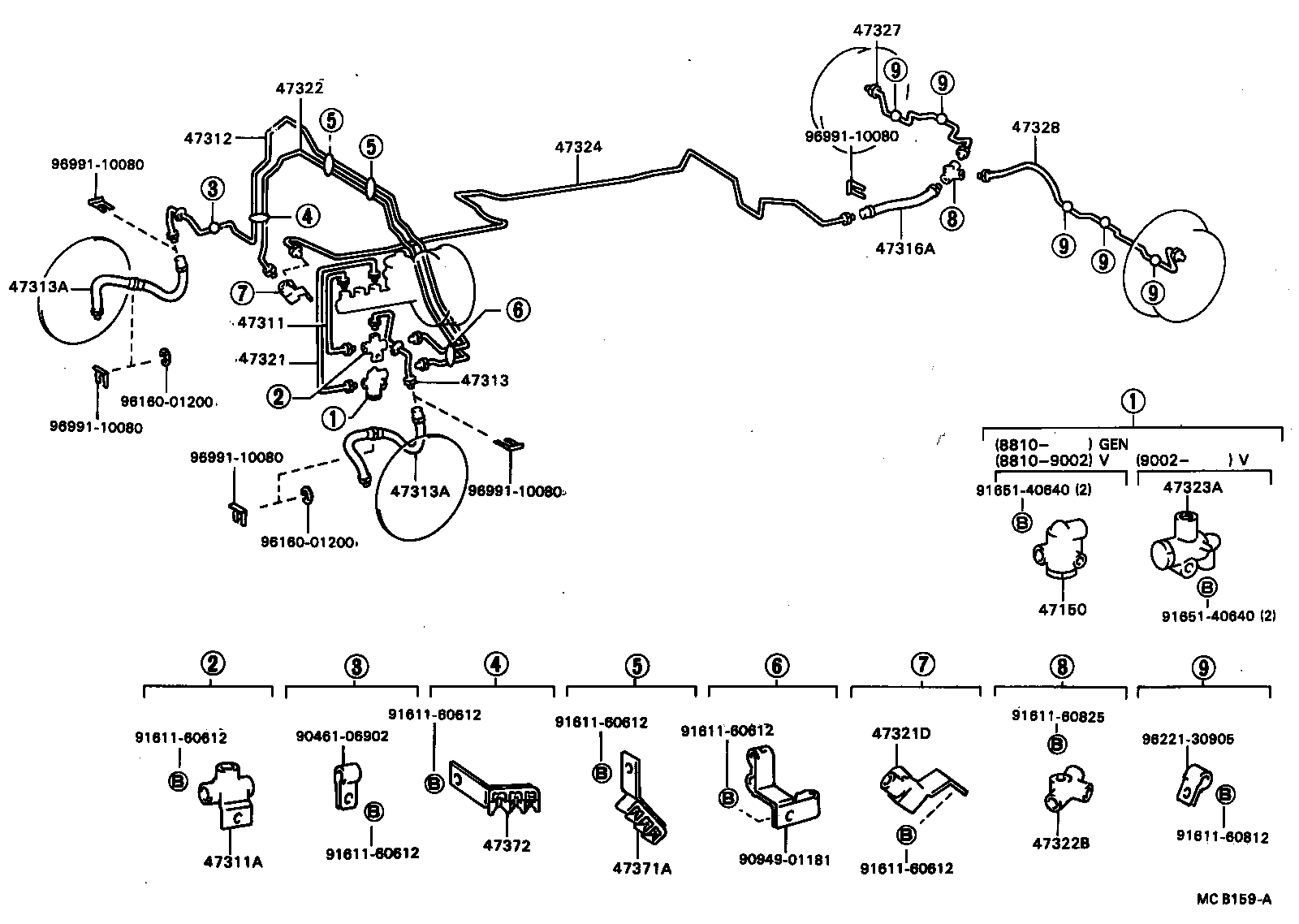

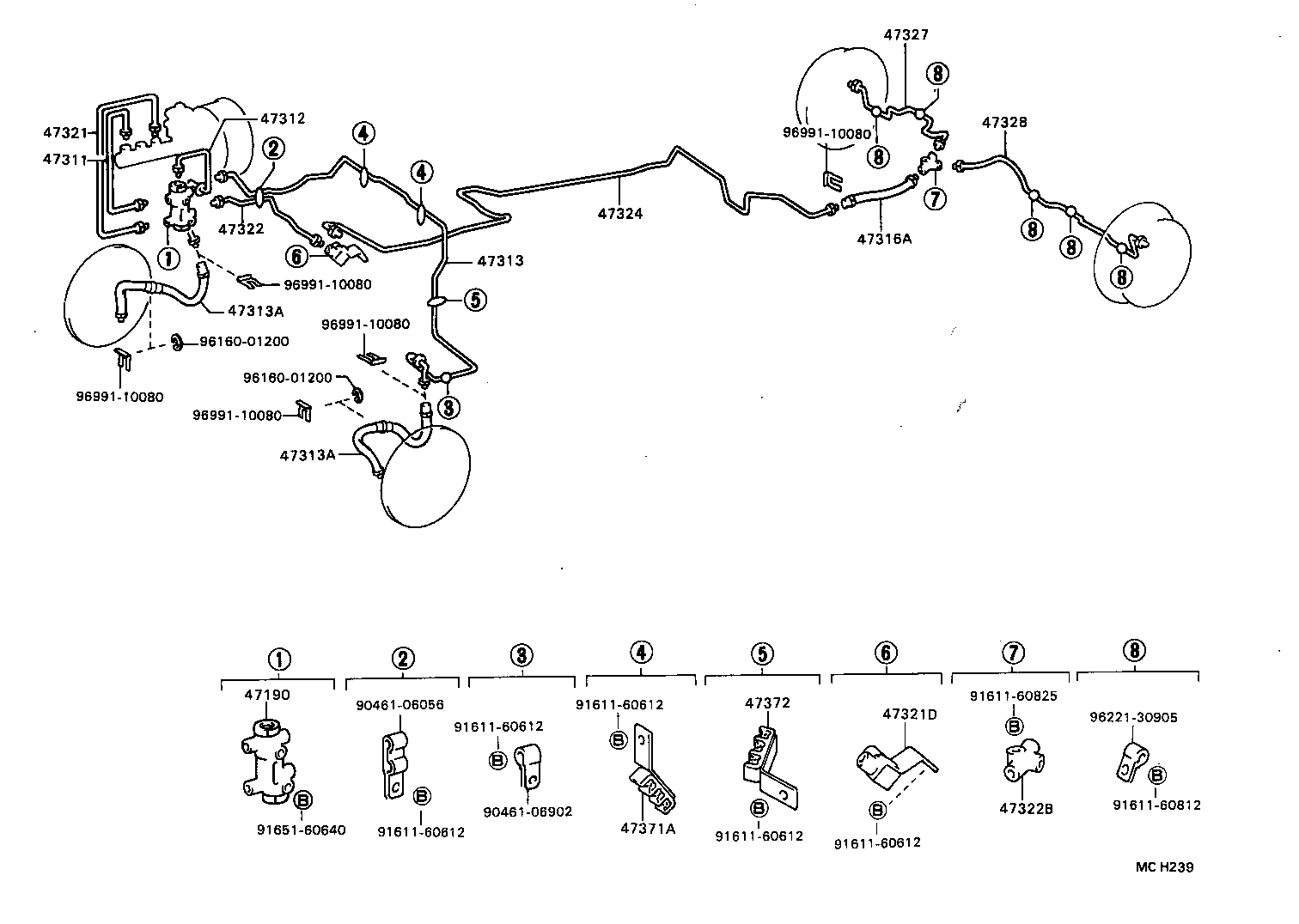

Brake Tube & Clamp
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47150 | Valve Assy, Proportioning |
| 47190 | Valve Assy, Proportioning & By-pass |
| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323A | Way, NO.3(FOR REAR BRAKE TUBE) |
| 47324 | Tube, Rear Brake, NO.4 |
| 47324B | Hose, Flexible(FOR REAR BRAKE TUBE, NO.2) |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47328 | Tube, Rear Brake, NO.8 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
