Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

38 part groups · 2 illustrations

Illustrations

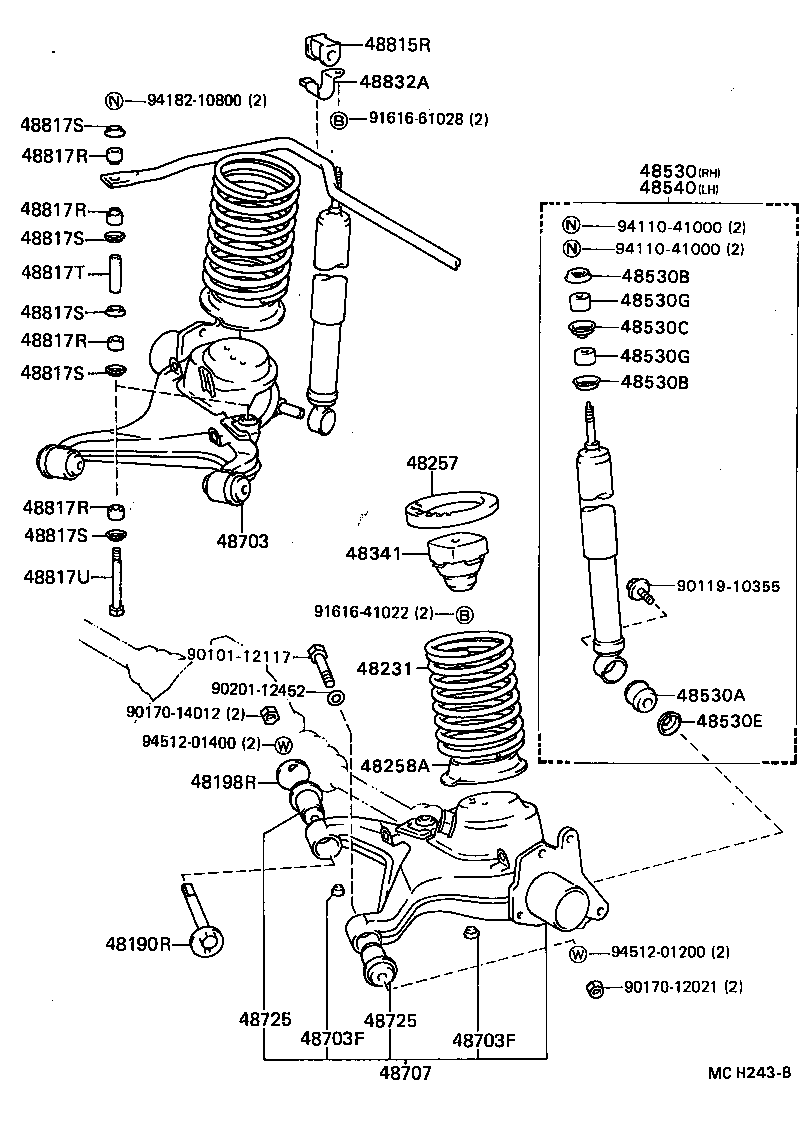

Figure MCH242D MCH242D 1988-10 → — Figure MCH243B MCH243B 1988-12 → —

Part groups

PNCDescription
48190R Cam Assy, Camber Adjust
48198R Cam, Rear Suspension Camber Adjust, NO.2
48231 Spring, Coil, Rear
48257 Insulator, Rear Coil Spring
48258A Insulator, Rear Coil Spring, Lower
48341 Bumper, Rear Spring
48351 Bumper, Differential Carrier
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530G Cushion, Rear Shock Absorber, NO.1
48540 Absorber Assy, Shock, Rear LH
48703 Arm Sub-assy, Rear Suspension, RH
48703F Plug, Hole(FOR REAR SUSPENSION ARM)
48706C Bush Sub-assy, Lateral Control Rod
48707 Arm Sub-assy, Rear Suspension, LH
48710 Arm Assy, Upper Control
48715A Bolt, Hexagon(FOR UPPER CONTROL ARM)
48720 Arm Assy, Lower Control, RH
48725 Bush, Lower Control Arm
48725A Bolt(FOR LOWER CONTROL ARM)
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48745 Bush, Lateral Control Rod
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817T Collar(FOR STABILIZER REAR BAR)
48817U Bolt(FOR REAR STABILIZER)
48824R Bracket, Stabilizer(FOR REAR)
48832A Bracket, Rear Stabilizer Bar, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
