Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

20 part groups · 2 illustrations

Illustrations

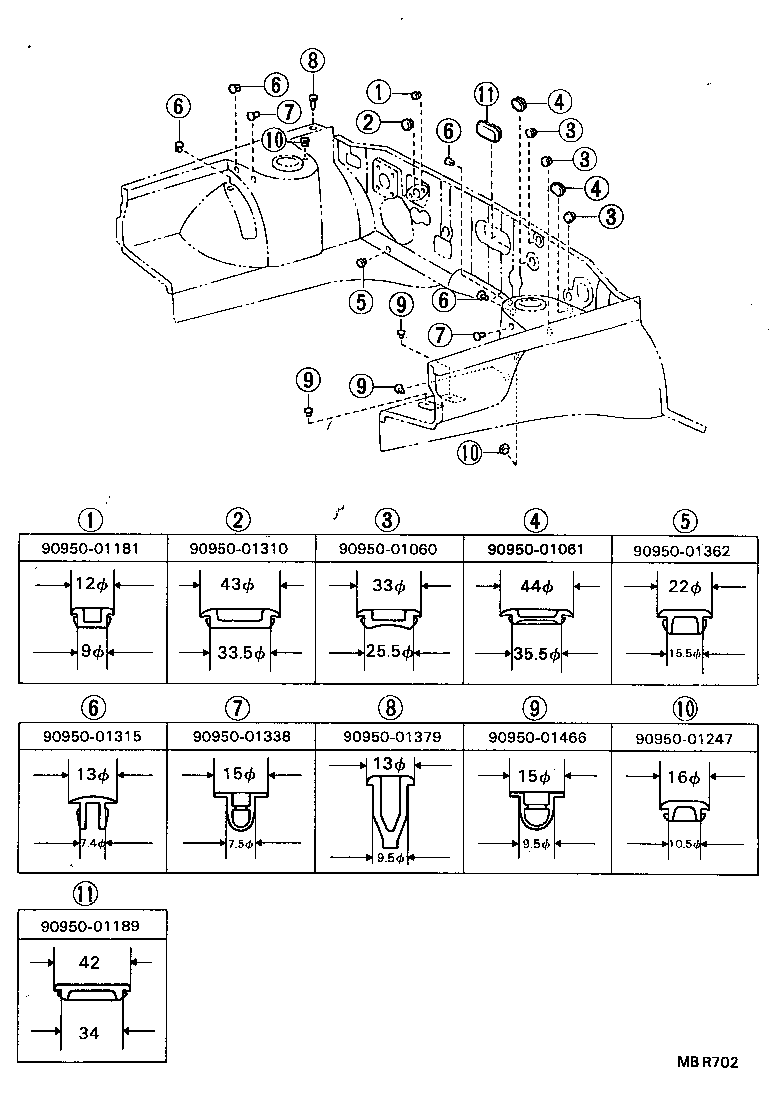

Figure MBR701B MBR701B 1988-10 → — Figure MBR702 MBR702 1988-10 → —

Part groups

PNCDescription
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53211 Support, Radiator, RH
53212 Support, Radiator, LH
53285D Cover, Front Bumper Arm Hole
53396 Seal, Radiator Support TO Headlamp
53633 Shield, Hood Lock Control Cable
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53711B Apron, Front Fender, Front RH
53712B Apron, Front Fender, Front LH
53733C Patch, Front Fender Apron
53769 Plate, Ignition Coil Mounting, LH
53791 Cover, Cool Air Intake Hole
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55220 Insulator Assy, Dash Panel, NO.2
55223A Insulator, Dash Panel, Outer
55250 Door Assy, Cowl Side Ventilator, RH
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
