Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

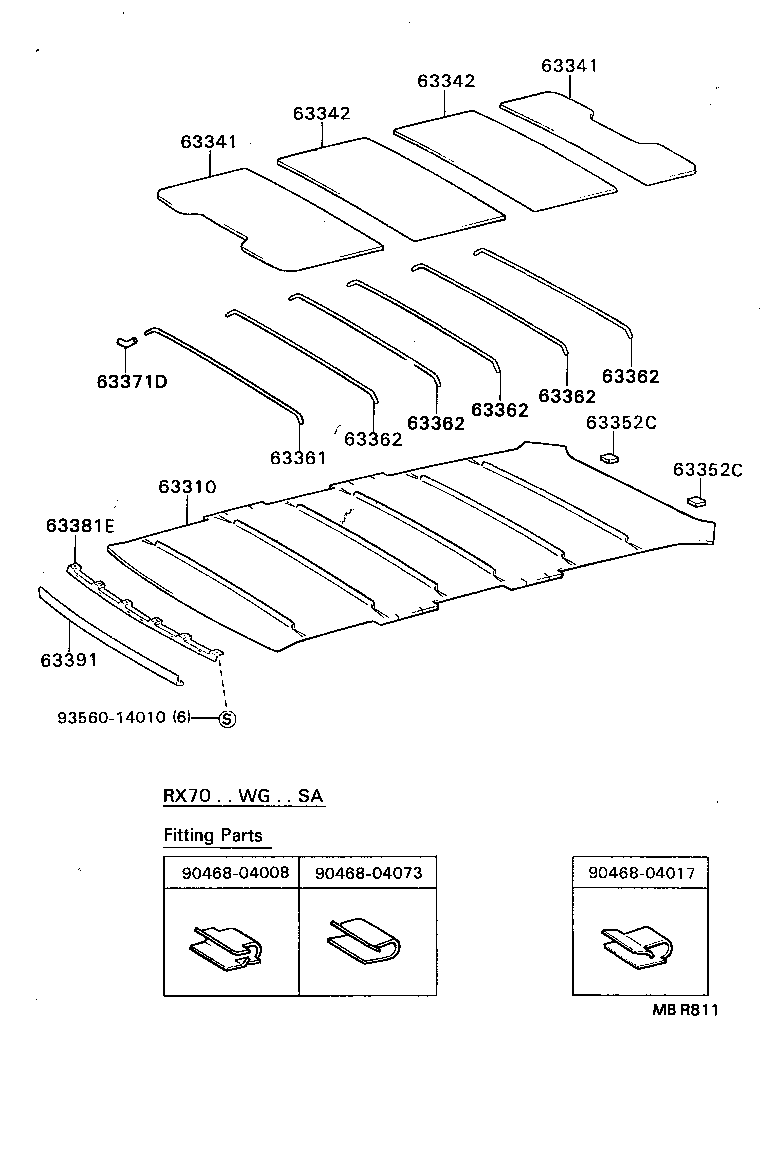

Figure MBR810 MBR810 1988-12 → — Figure MBR811 MBR811 1988-10 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63352C Pad, Roof Headlining, End
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63371D Retainer, Roof Headlining Support
63381E Retainer, Roof Headlining Trim, Front
63385A Retainer, Roof Headlining Trim Side, RH
63386A Retainer, Roof Headlining Trim Side, LH
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
