Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

10 part groups · 2 illustrations

Illustrations

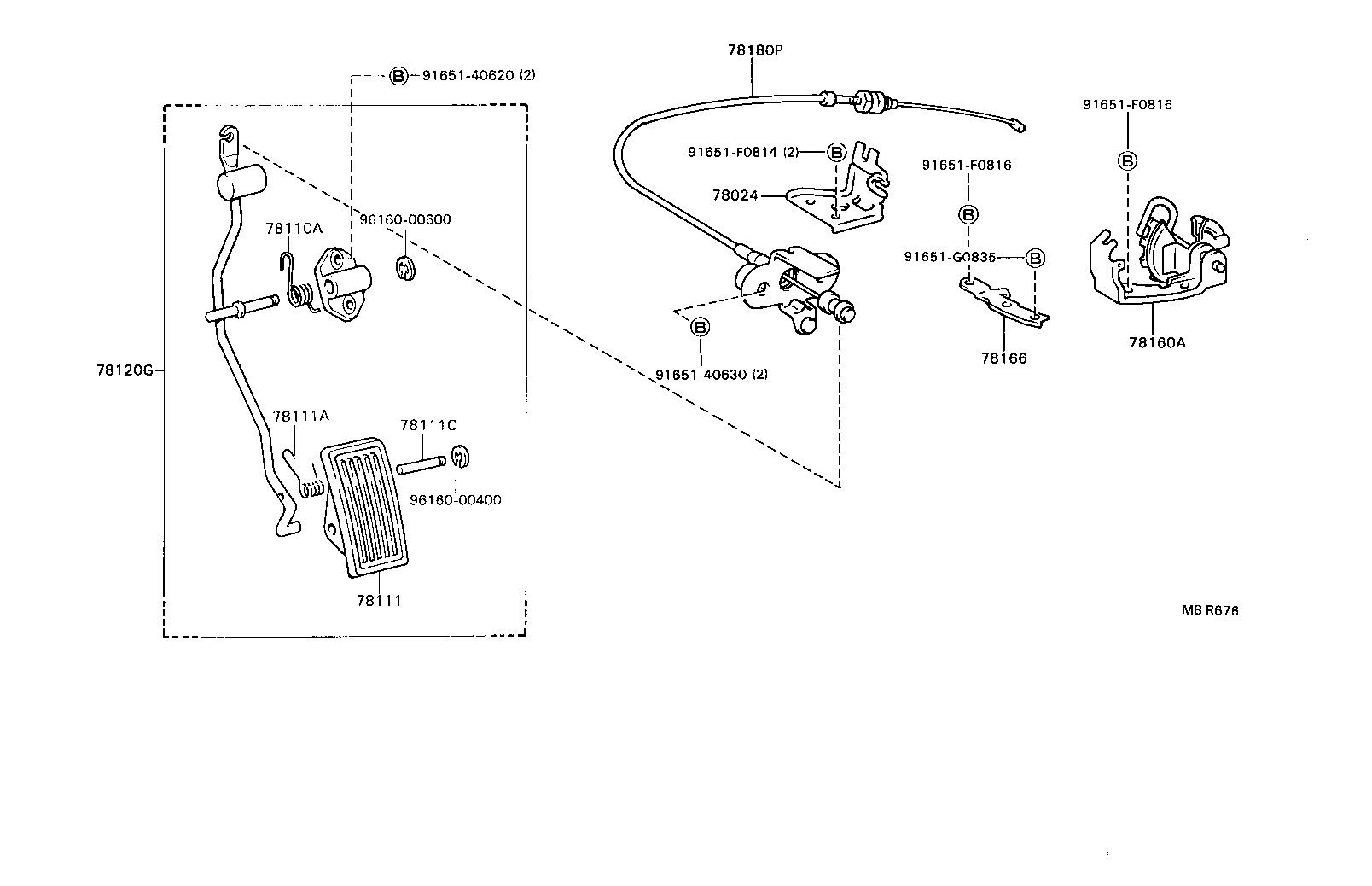

Figure MBR675A MBR675A 1988-10 → — Figure MBR676 MBR676 1988-10 → 1993-02

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78160A Bellcrank Assy, Accel Control W/Bracket
78166 Bracket, Accel Control NO.2 Bellcrank
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
