Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 10 illustrations

Illustrations

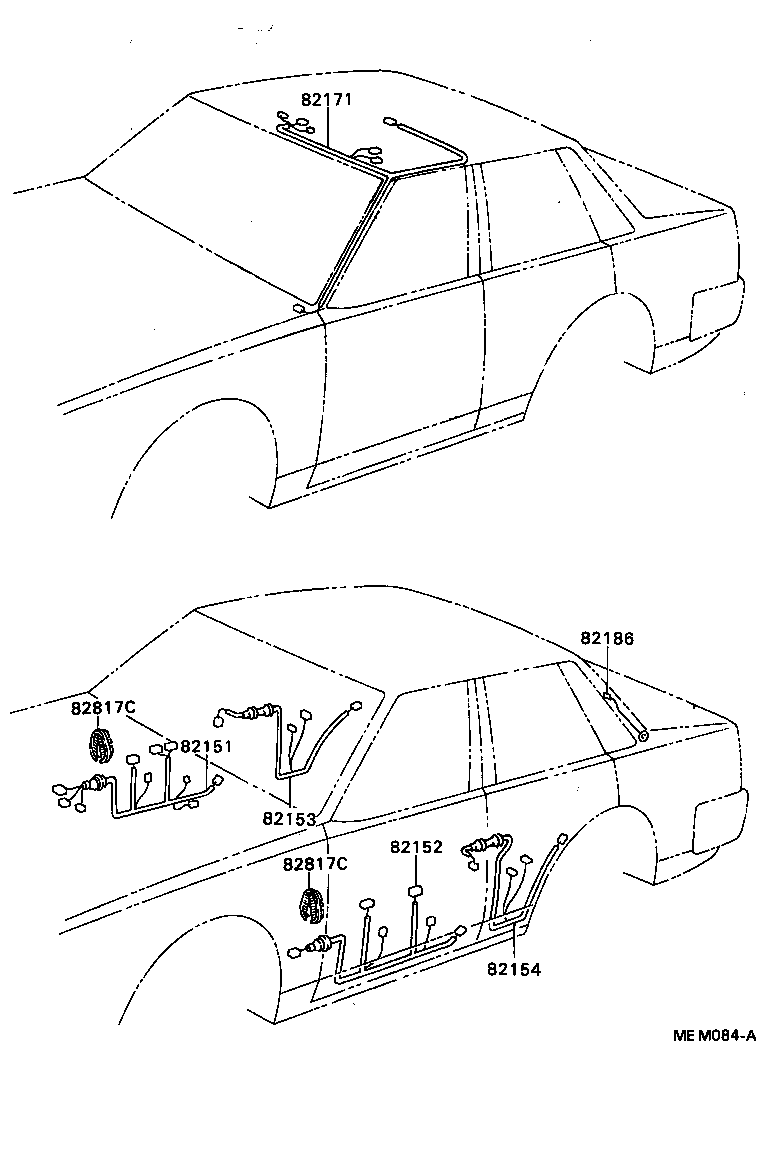

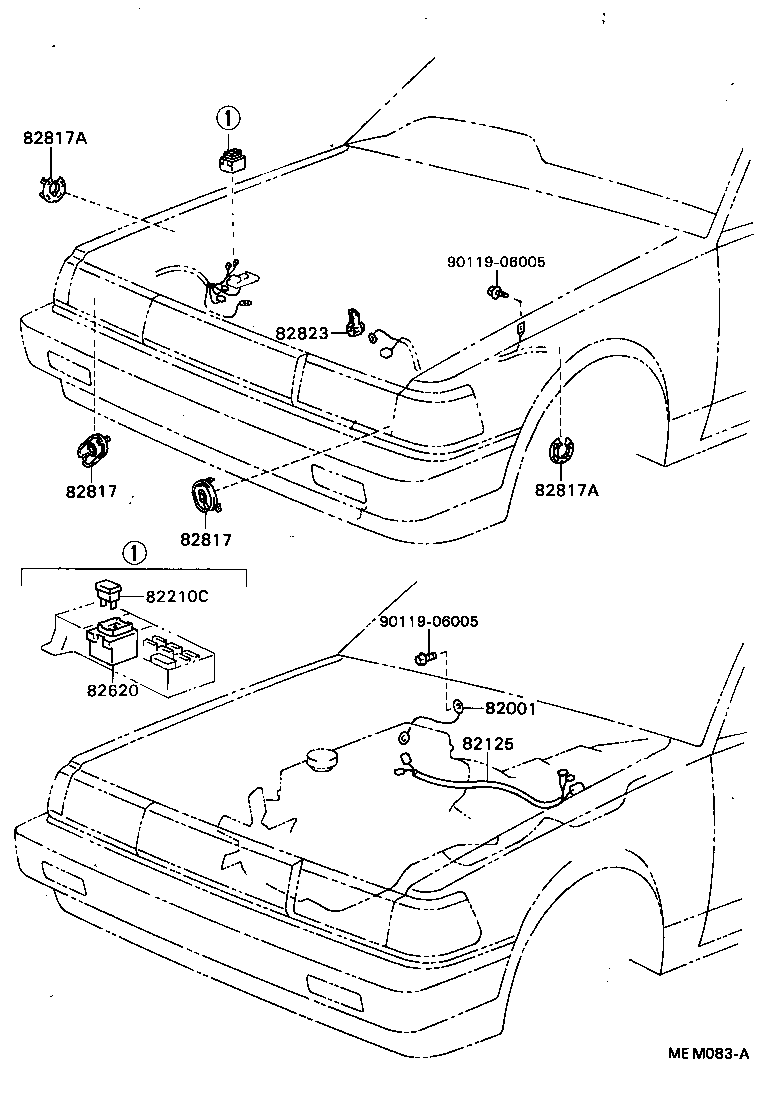

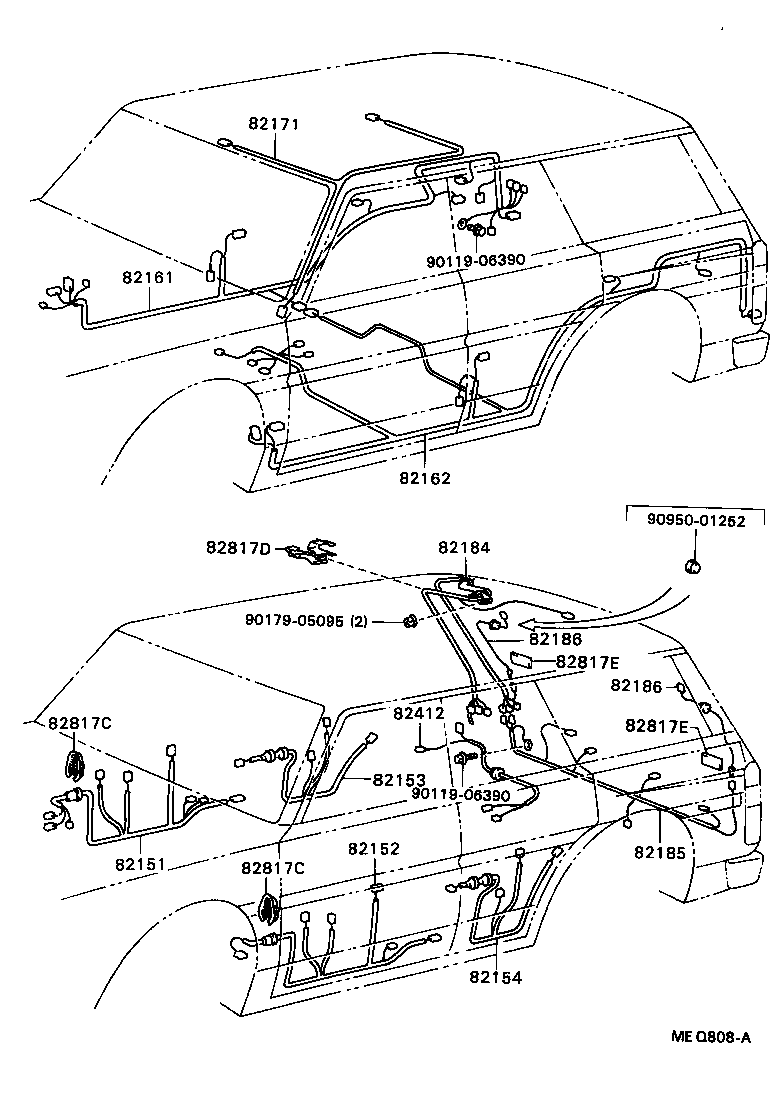

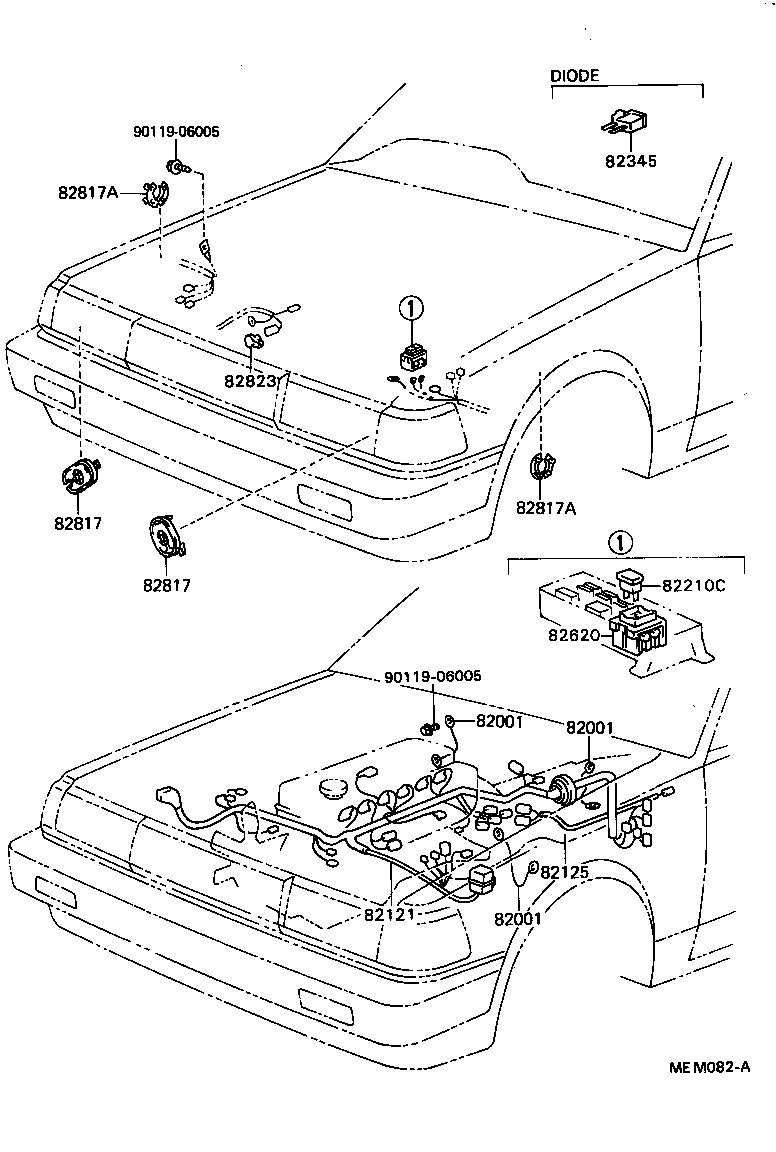

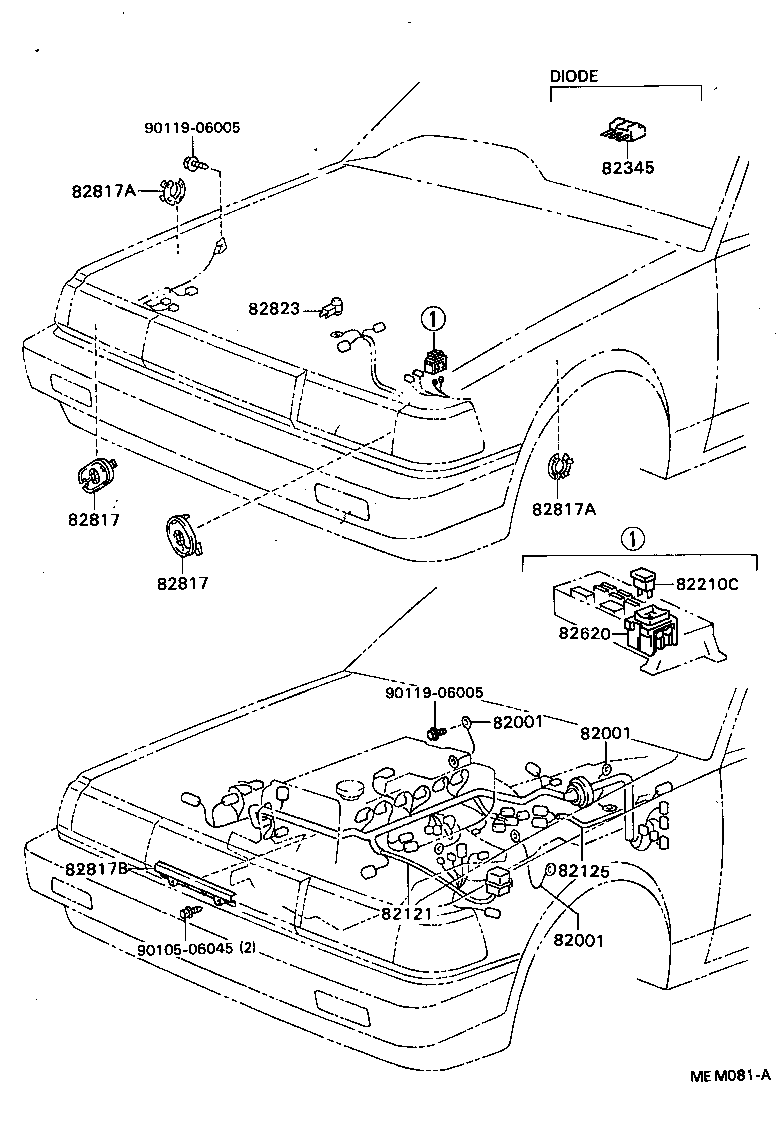

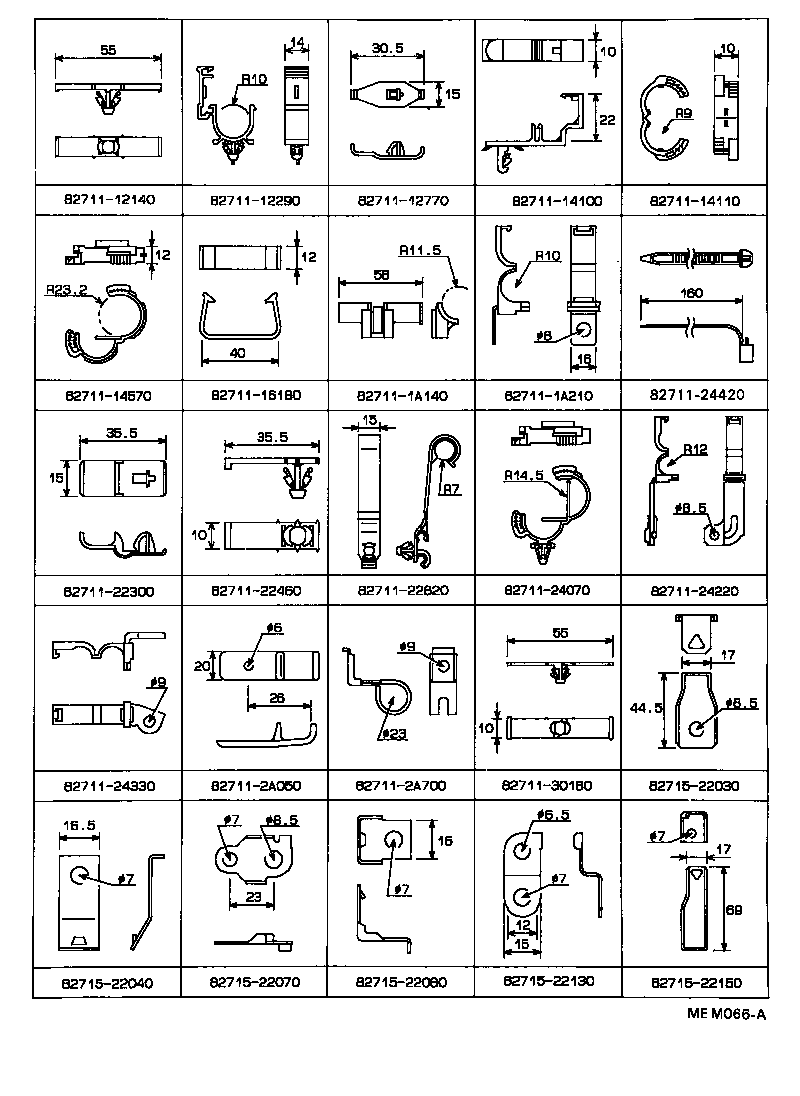

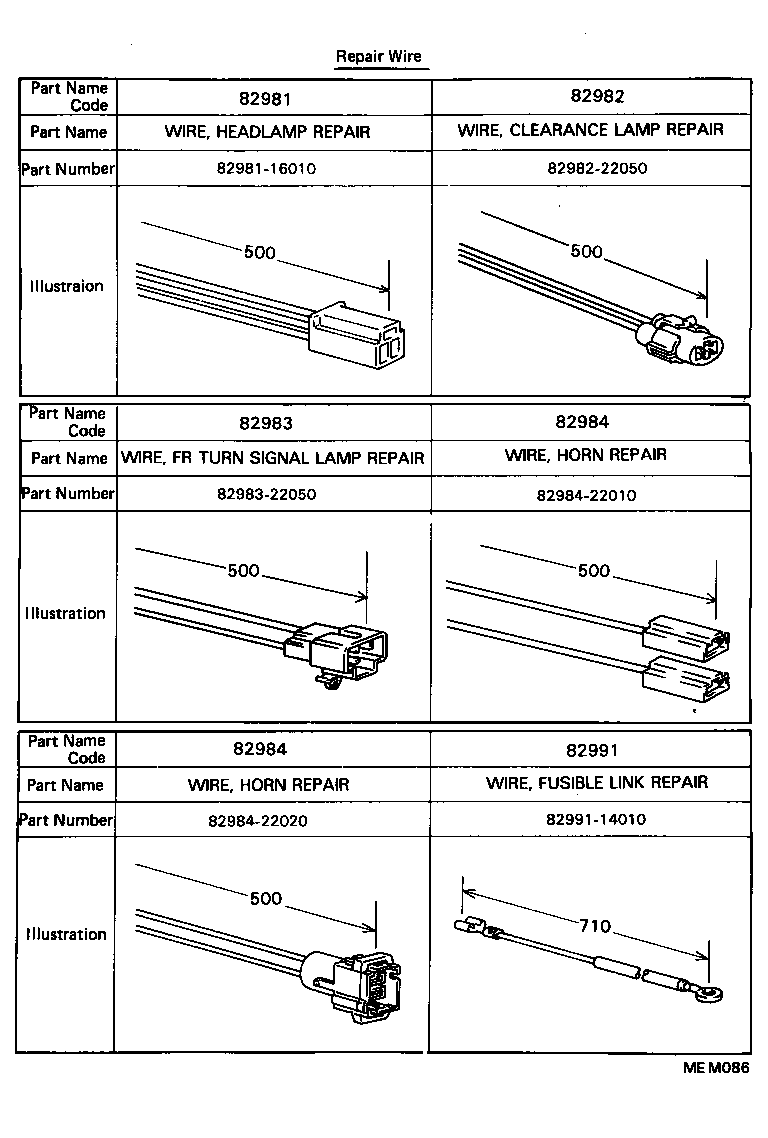

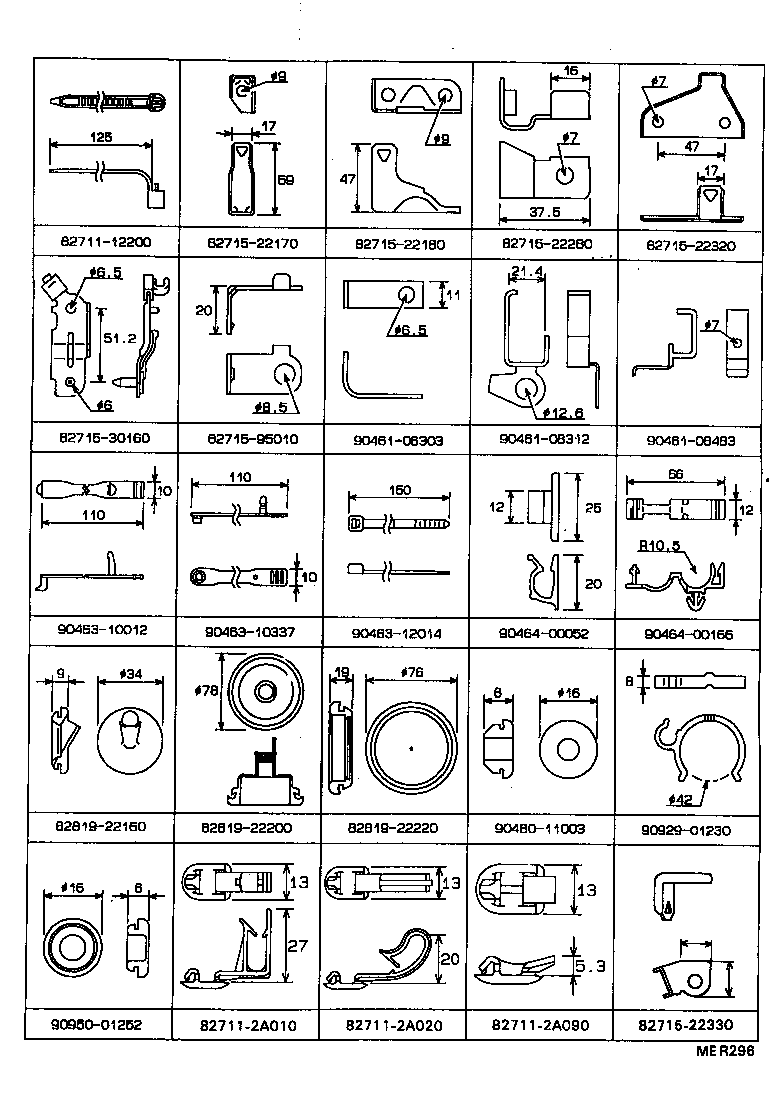

Figure MEM080D MEM080D 1988-10 → 1993-02 Figure MEM081A MEM081A 1988-12 → 1992-05 Figure MEM082A MEM082A 1988-12 → 1992-05 Figure MEM083A MEM083A 1988-12 → 1992-05 Figure MEM084A MEM084A 1988-10 → 1992-05 Figure MEQ808A MEQ808A 1988-12 → 1993-02 Figure MEM086 MEM086 1988-10 → 1993-02 Figure MEM066A MEM066A 1988-10 → 1993-02 Figure MER296 MER296 1988-10 → 1993-02 Figure MER297 MER297 1988-10 → 1993-02

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82345 Diode
82412 Wire, Fuel Gage
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
