Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

79 part groups · 9 illustrations

Illustrations

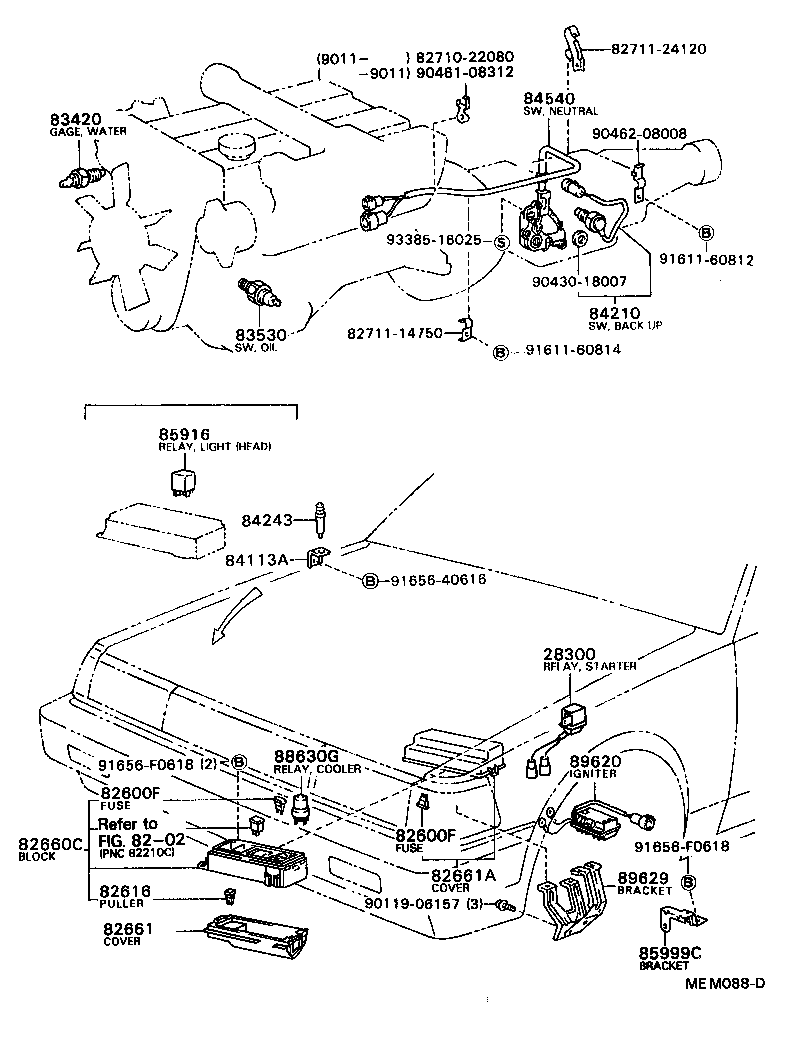

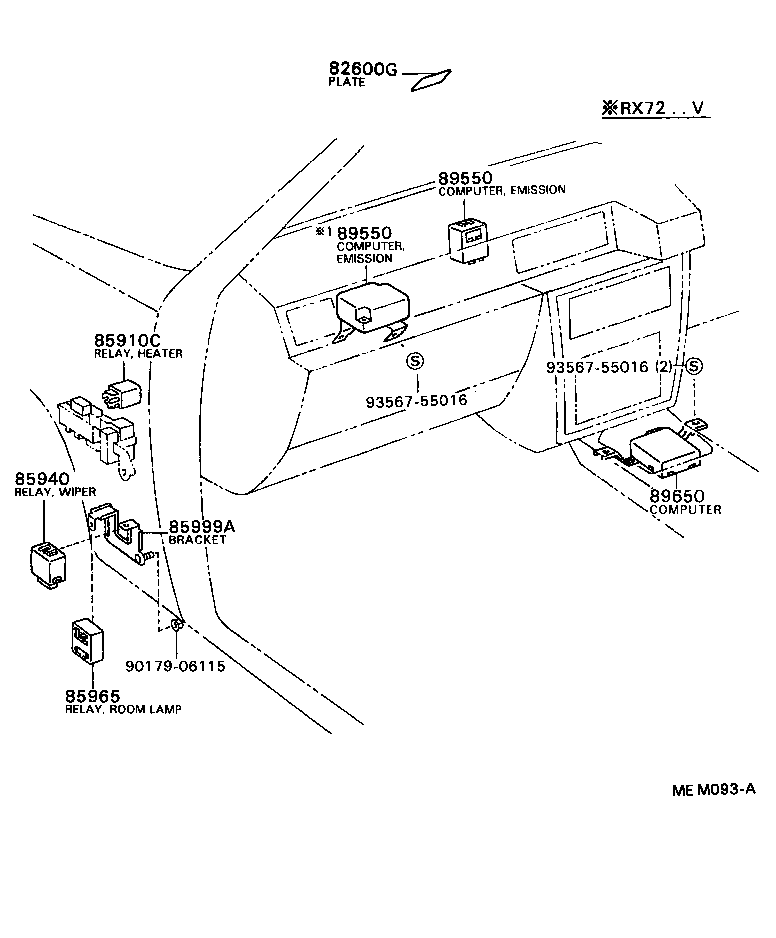

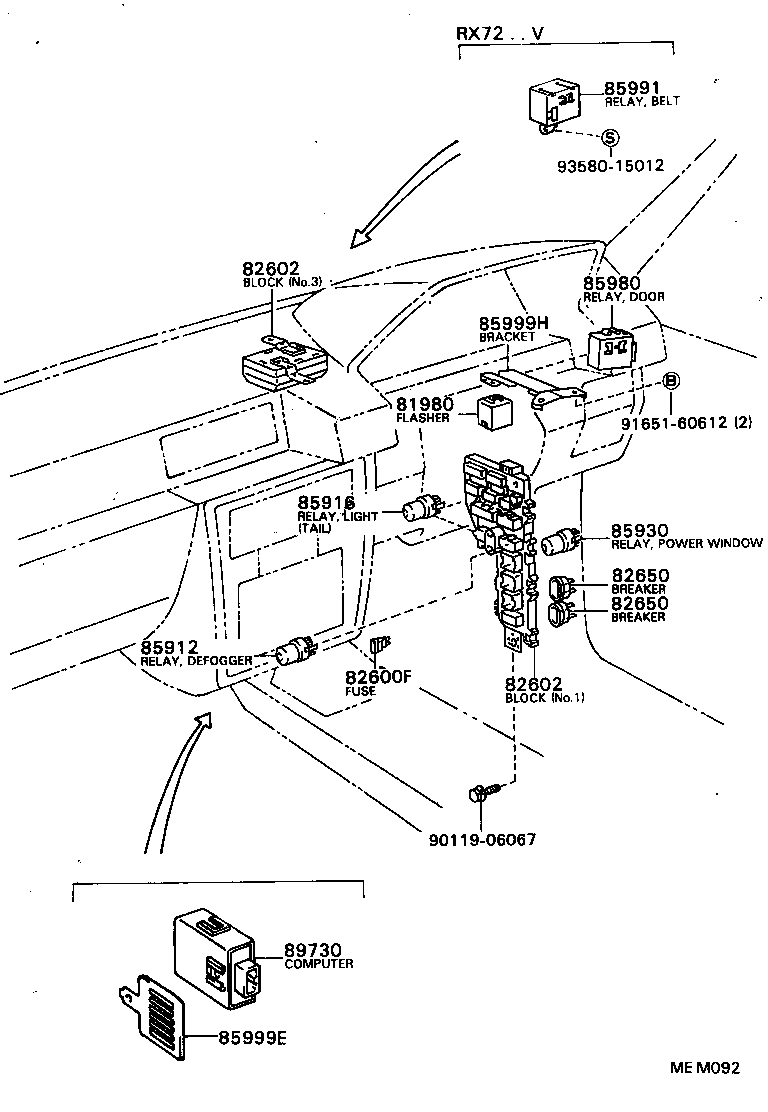

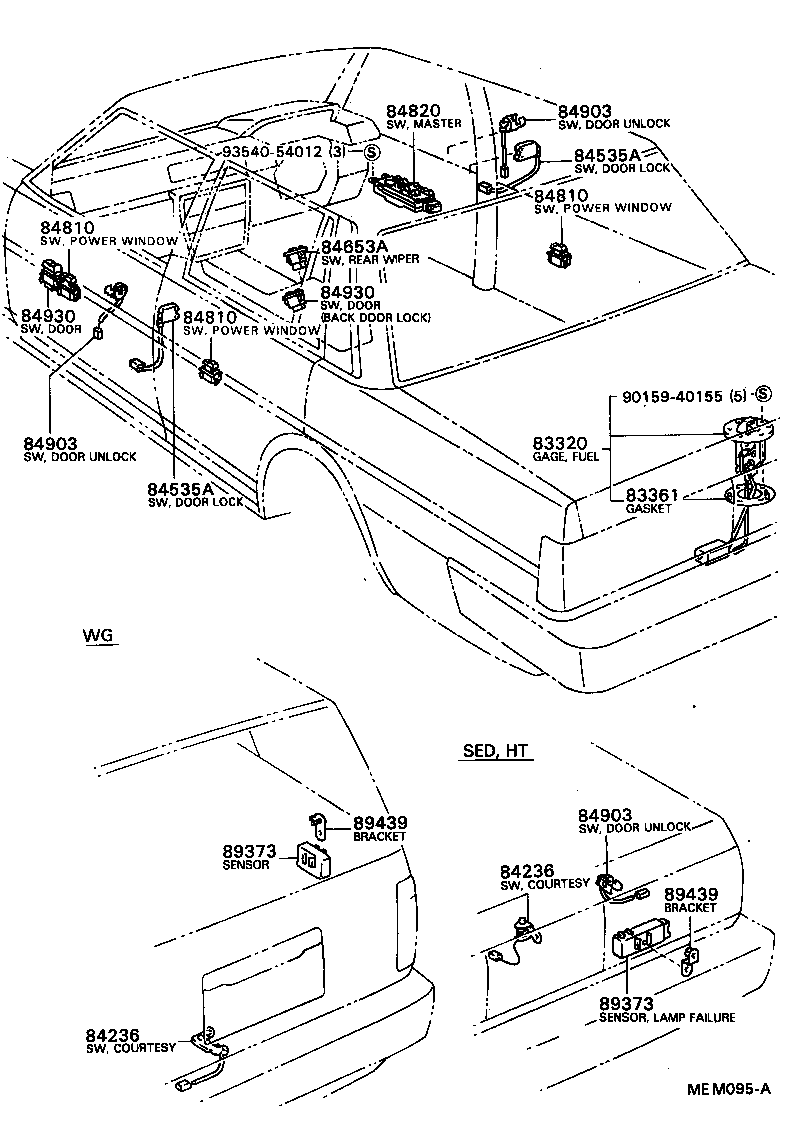

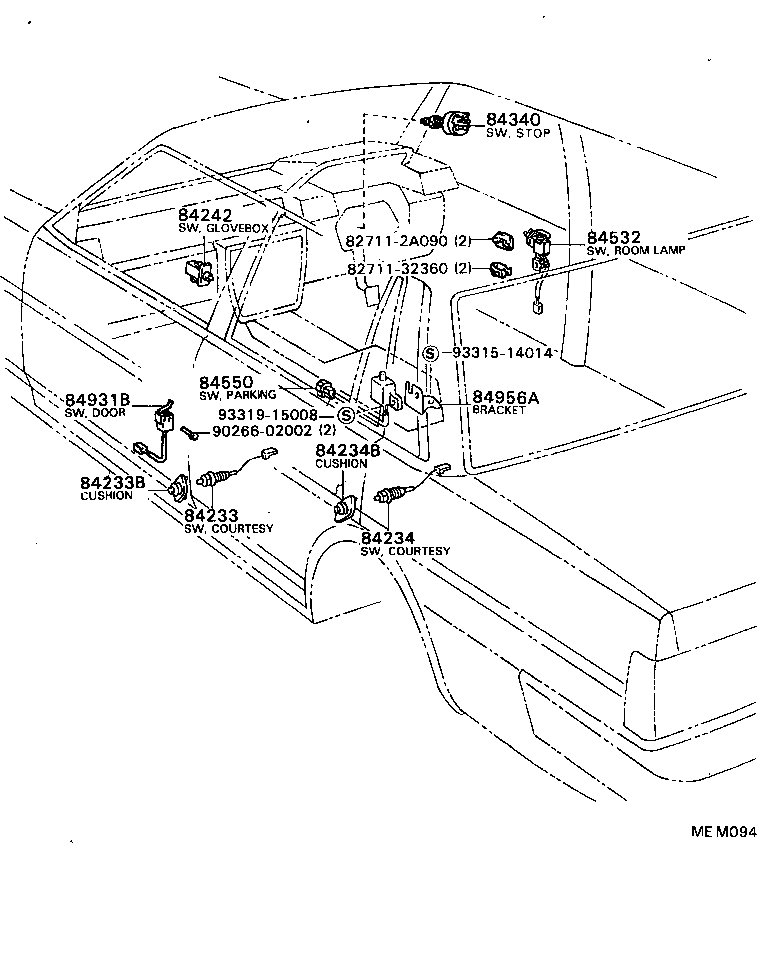

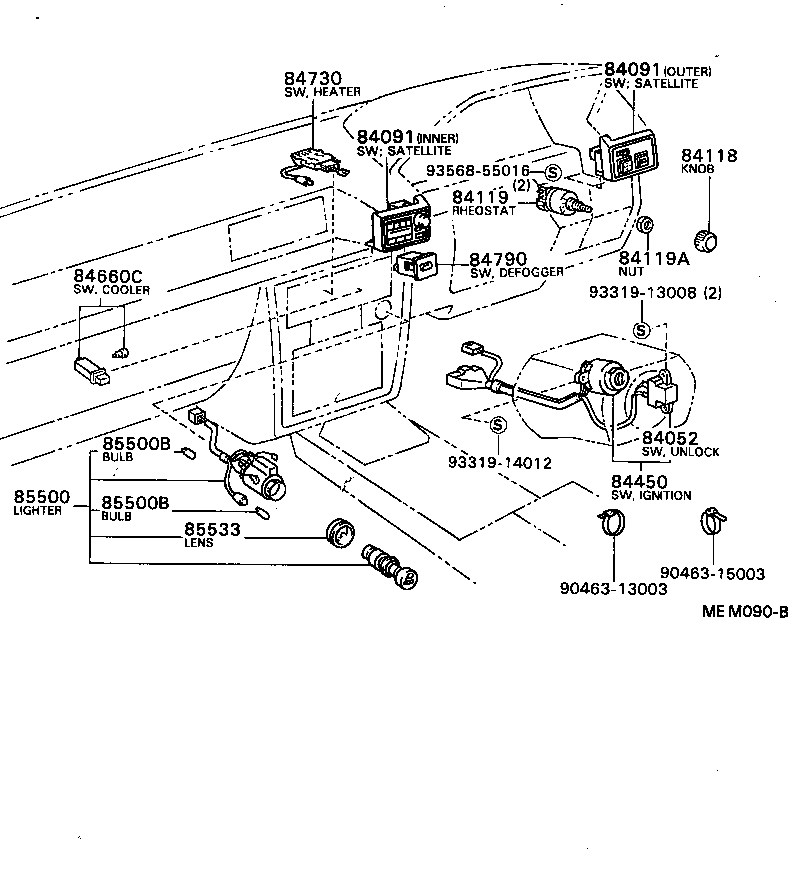

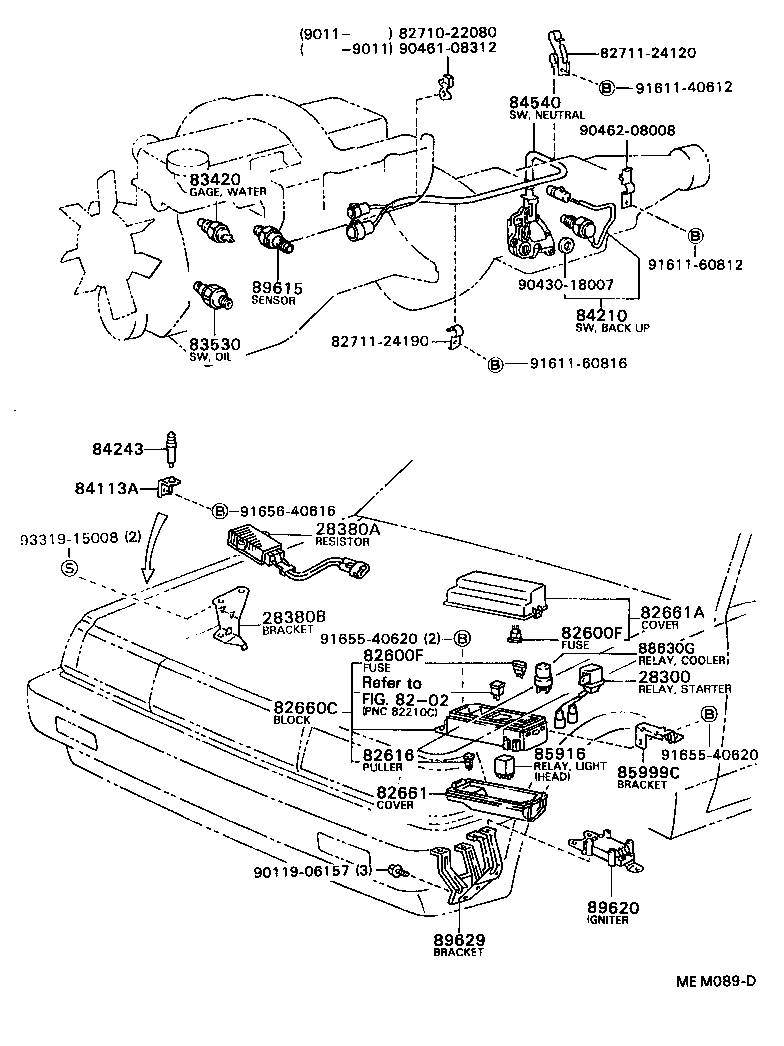

Figure MEM087E MEM087E 1988-10 → 1993-02 Figure MEM088D MEM088D 1988-12 → 1992-05 Figure MEM089D MEM089D 1988-12 → 1992-05 Figure MEM090B MEM090B 1988-10 → 1993-02 Figure MEM091A MEM091A 1988-10 → 1993-02 Figure MEM092 MEM092 1988-10 → 1993-02 Figure MEM093A MEM093A 1988-10 → 1993-02 Figure MEM094 MEM094 1988-10 → 1993-02 Figure MEM095A MEM095A 1988-10 → 1993-02

Part groups

PNCDescription
28300 Relay Assy, Starter
28380A Resister, Fuel Pump
28380B Bracket, Fuel Pump Resister
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82602 Block Sub-assy, Relay
82616 Puller, Fuse
82650 Breaker Assy, Wiring Circuit, NO.1
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84091 Switch Set, Satellite
84110 Switch Assy, Light Control, NO.1
84113A Bracket, Switch, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84119A Bolt OR Nut, Rheostat Control Set
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B Cushion, Courtesy Switch (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84242 Switch, Glove Box Lamp
84243 Switch, Engine Hood
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84532 Switch, Room Lamp Retainer
84535A Switch, Door Lock
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84653A Switch, Rear Wiper
84660C Switch, Cooler
84730 Switch Assy, Heater Blower
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84903 Switch Sub-assy, Door Un-lock
84930 Switch Assy, Door Control
84931B Switch, Door Control
84956A Bracket, Hand Brake Signal Switch
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916 Relay, Light Control
85930 Relay Assy, Power Window
85940 Relay Assy, Windshield Wiper
85965 Relay, Room Lamp Control
85980 Relay Assy, Door Control
85991 Relay, Seat Belt Warning
85999A Bracket, Relay, NO.2
85999C Bracket, Relay, NO.3
85999D Bracket, Relay, NO.4
85999E Bracket, Relay, NO.5
85999H Bracket, Relay
88630G Relay Assy, Cooler
89373 Sensor, Lamp Failure Indicator
89428 Switch, Temperature Detect, NO.2
89439 Bracket, Sensor
89550 Computer Assy, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89650 Computer Assy, Power Steering
89730 Computer Assy, Security Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
