Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 6 illustrations

Illustrations

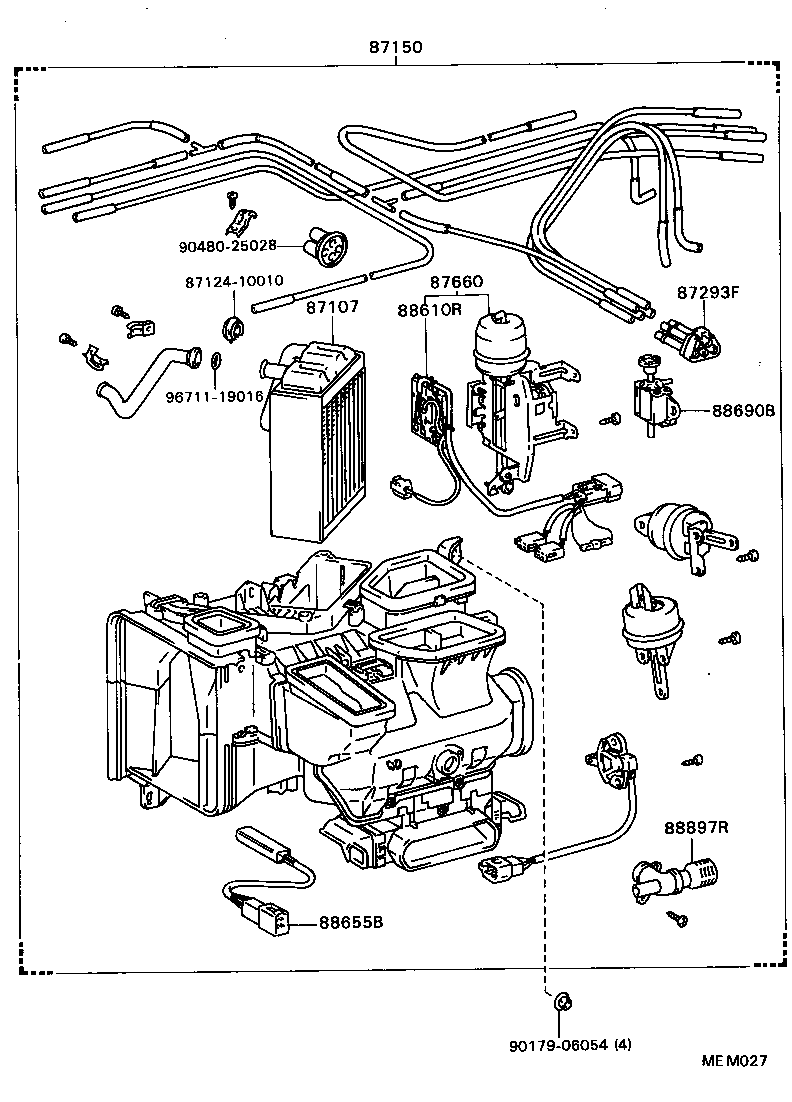

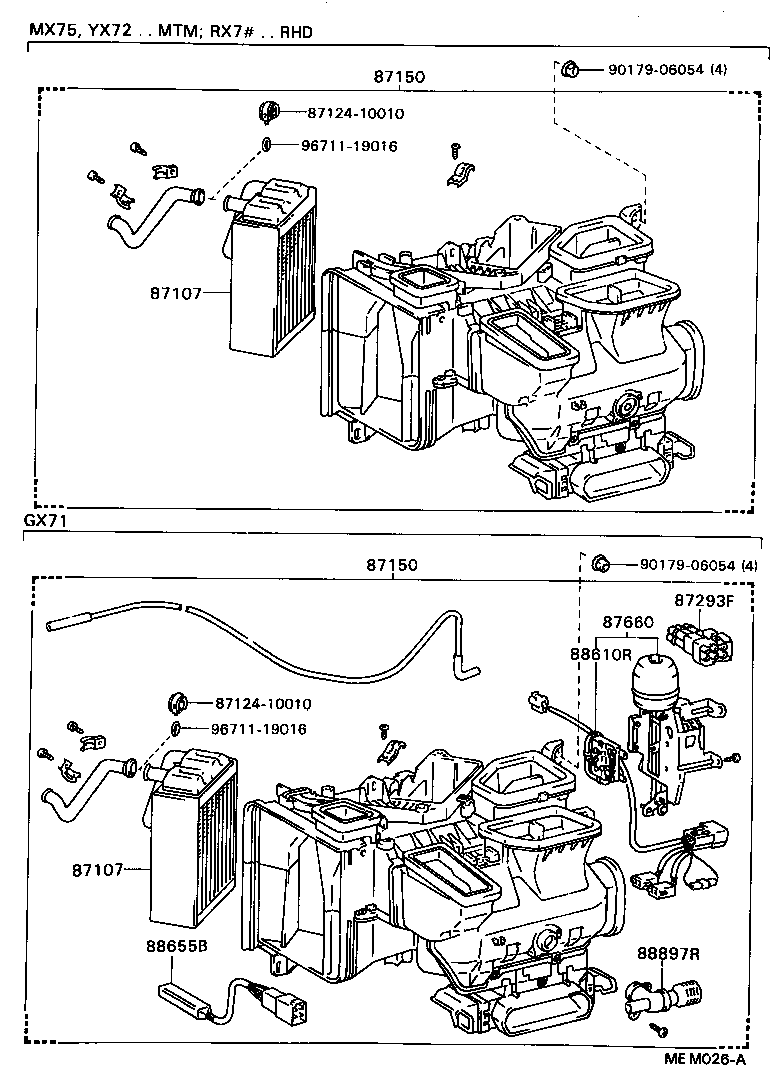

Figure MEM025 MEM025 1988-10 → 1993-02 Figure MEM026A MEM026A 1988-10 → 1993-02 Figure MEM026A MEM026A 1988-12 → 1992-05 Figure MEM027 MEM027 1988-12 → 1992-05 Figure MEM028A MEM028A 1988-10 → 1993-02 Figure MEM029A MEM029A 1988-10 → 1993-02

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87293F Connector, Vacuum
87660 Servo Assy, Air Conditioner
88610R Switch Assy, Control
88655B Switch, Water Temperature
88690B Valve Assy, Cooler Magnet
88897R Aspirator
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
