Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

14 part groups · 3 illustrations

Illustrations

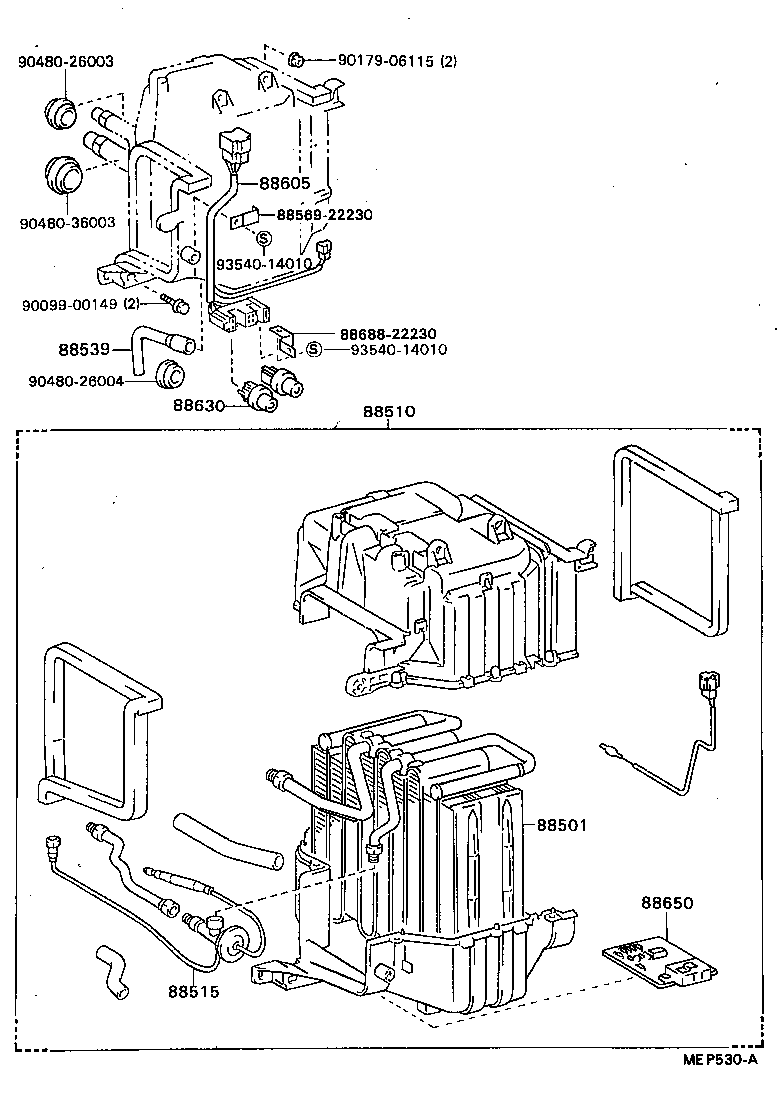

Figure MEM030 MEM030 1988-10 → 1993-02 Figure MEP530A MEP530A 1988-10 → 1993-02 Figure MEM031A MEM031A 1988-10 → 1993-02

Part groups

PNCDescription
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88520 Box Assy, Cooling
88522 Door, Cooling Unit
88539 Hose, Cooler Unit Drain, NO.1
88566 Duct, Cooler Air, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88688C Bracket, Cooler Duct
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
