Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 8 illustrations

Illustrations

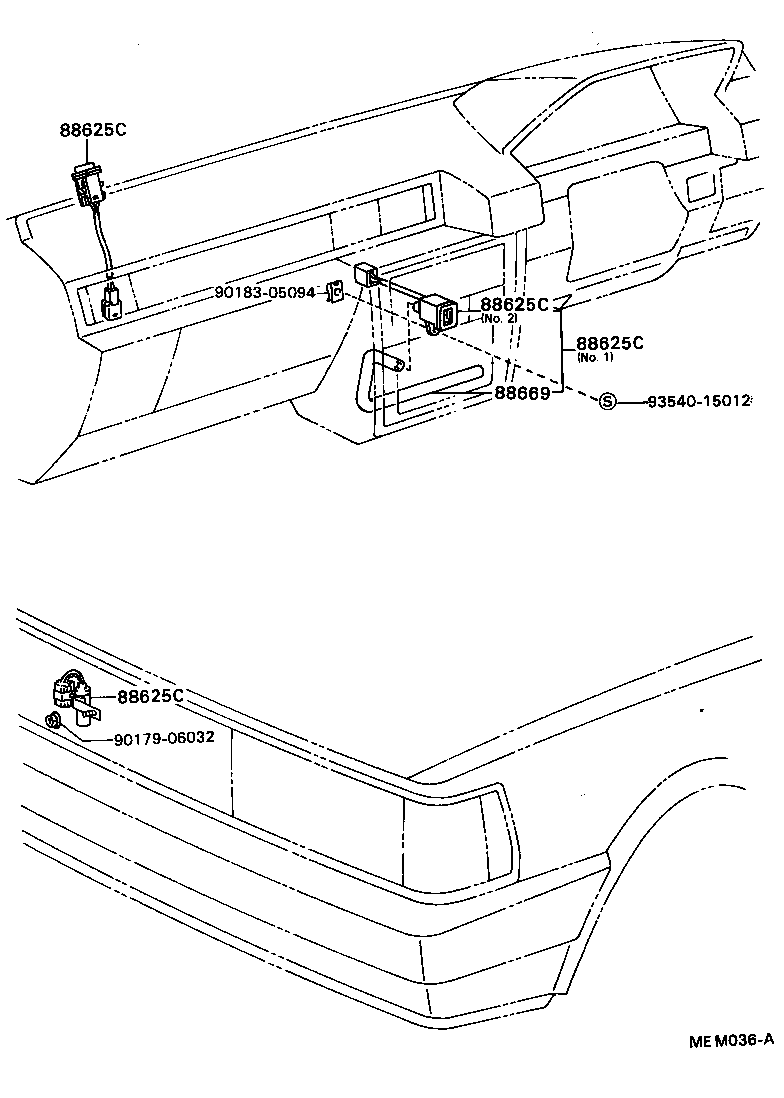

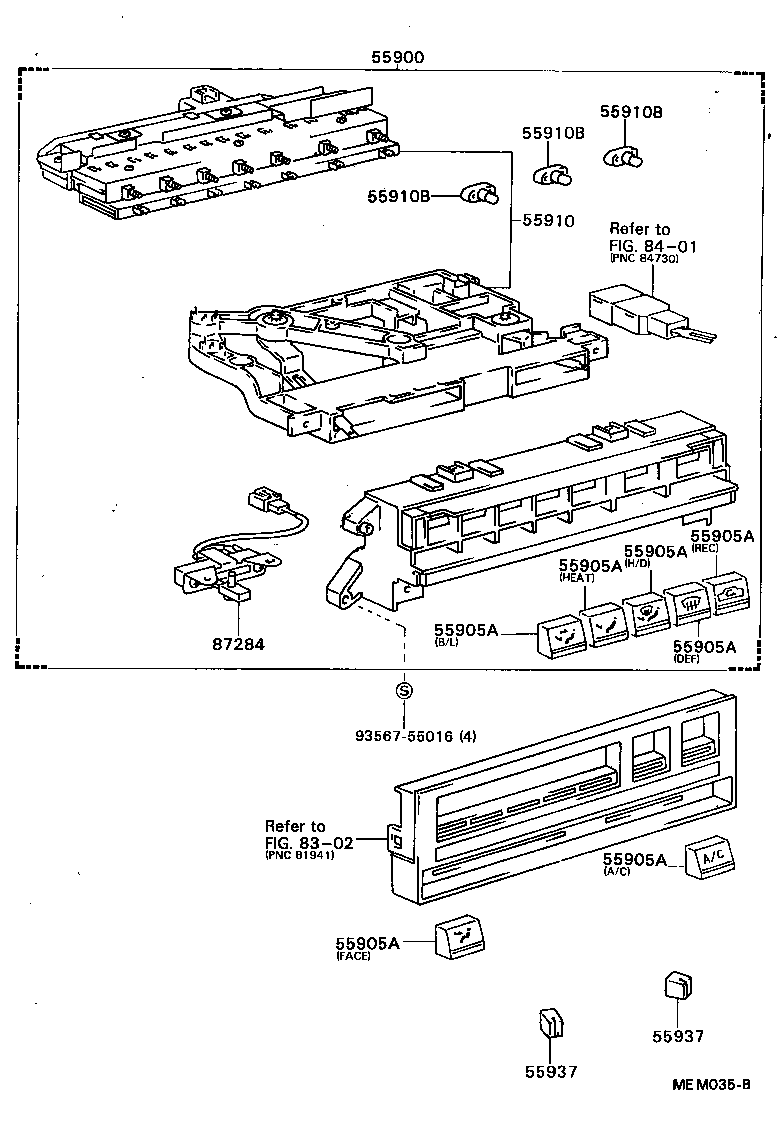

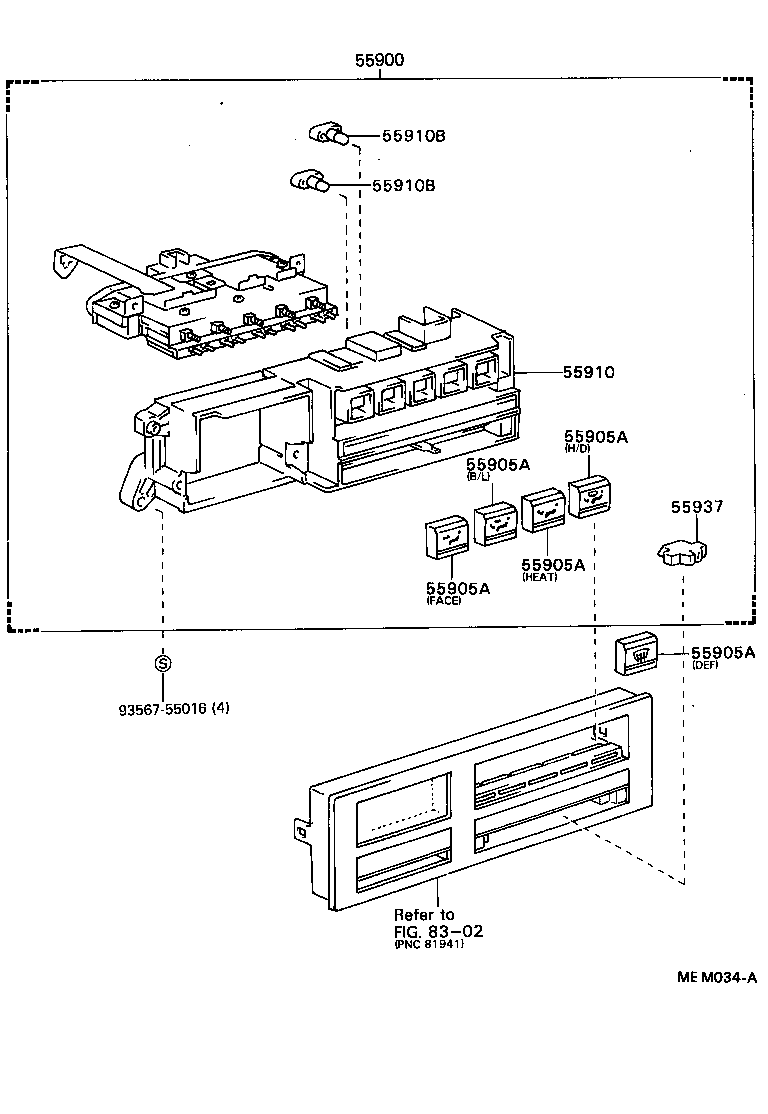

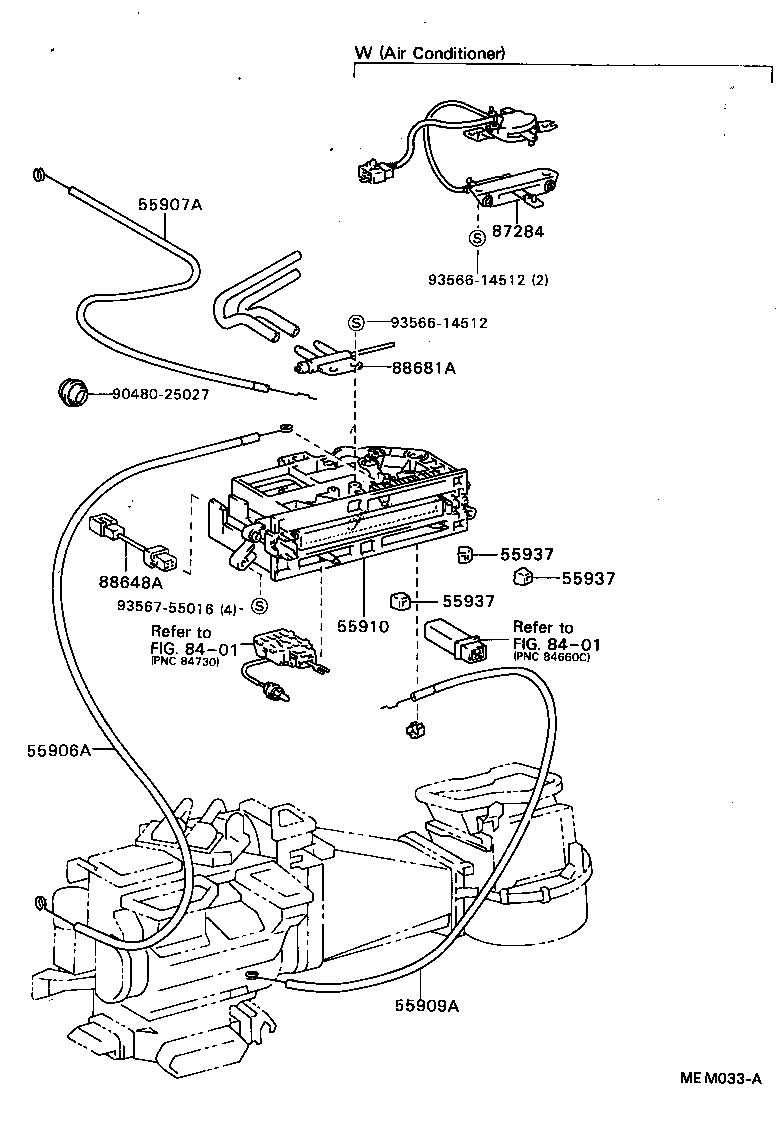

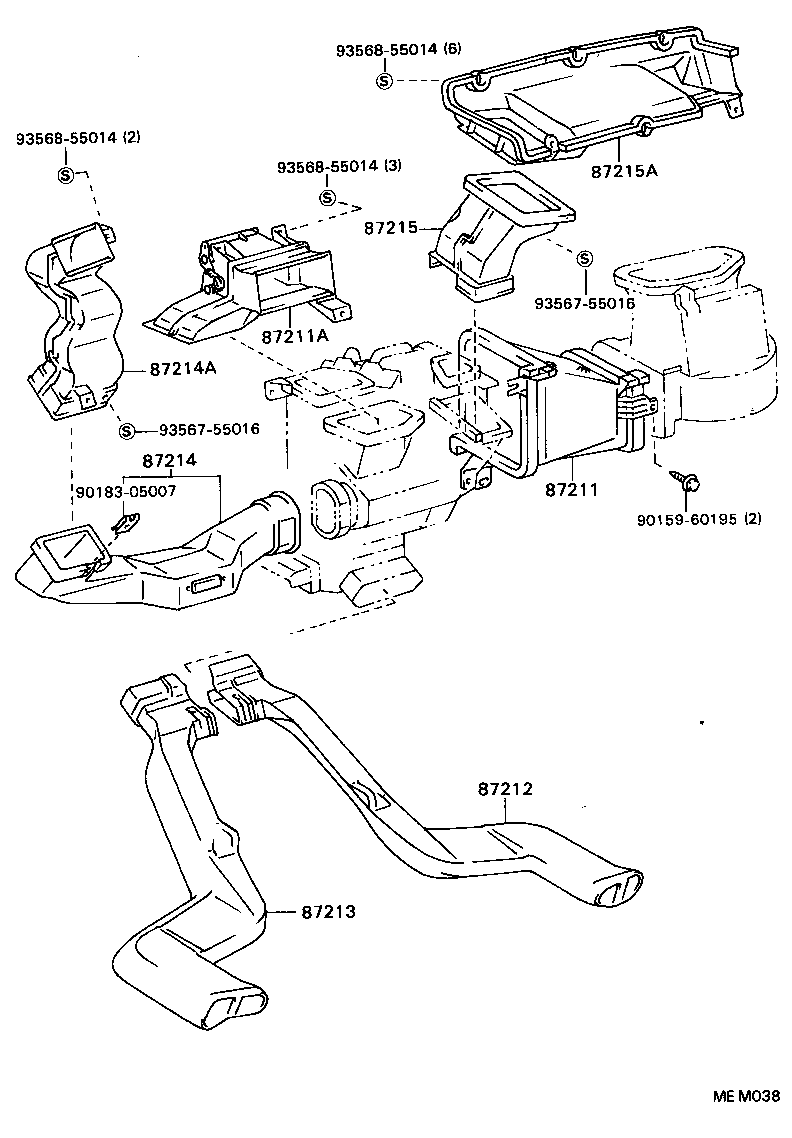

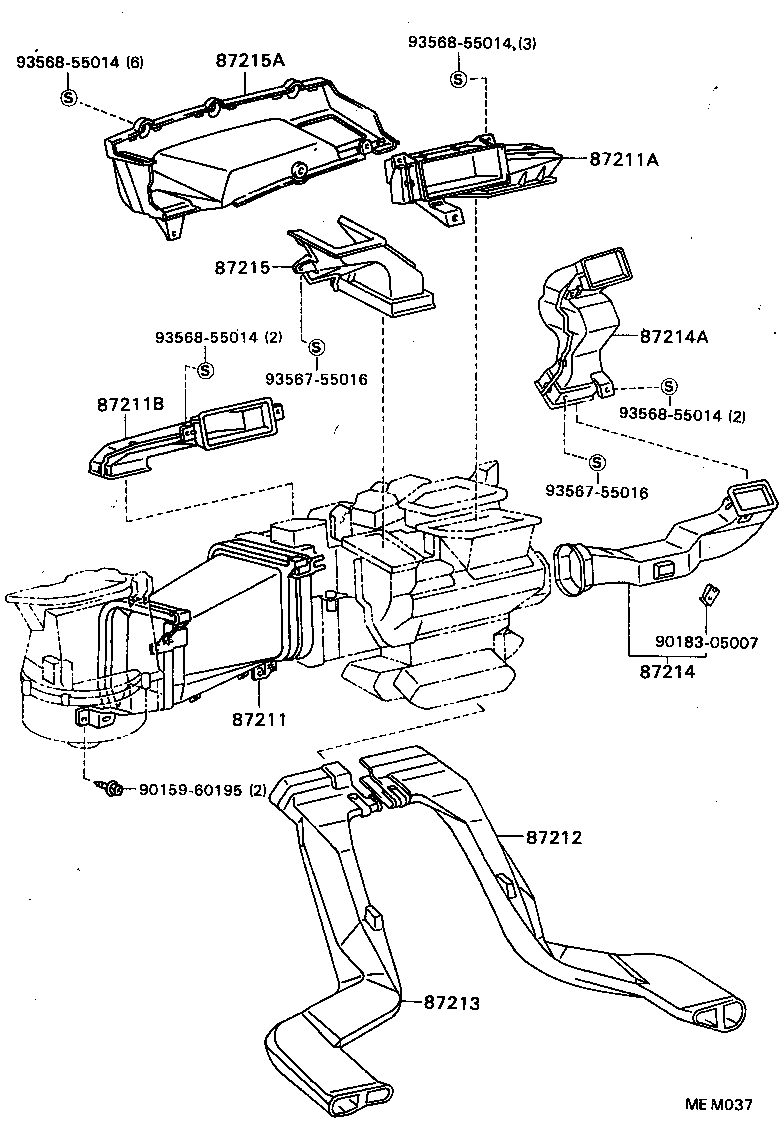

Figure MEM032A MEM032A 1988-10 → 1993-02 Figure MEM032A MEM032A 1988-12 → 1992-05 Figure MEM033A MEM033A 1988-10 → 1993-02 Figure MEM034A MEM034A 1988-12 → 1992-05 Figure MEM035B MEM035B 1988-12 → 1992-05 Figure MEM036A MEM036A 1988-10 → 1992-05 Figure MEM037 MEM037 1988-10 → 1993-02 Figure MEM038 MEM038 1988-10 → 1993-02

Part groups

PNCDescription
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55917A Lever, Temperature Damper Control
55937 Knob, Heater Control Lever
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88648A Wiring, Cooler
88669 Hose, Cooler Air
88681A Switch, Heater Control Vacuum, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
