Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 4 illustrations

Illustrations

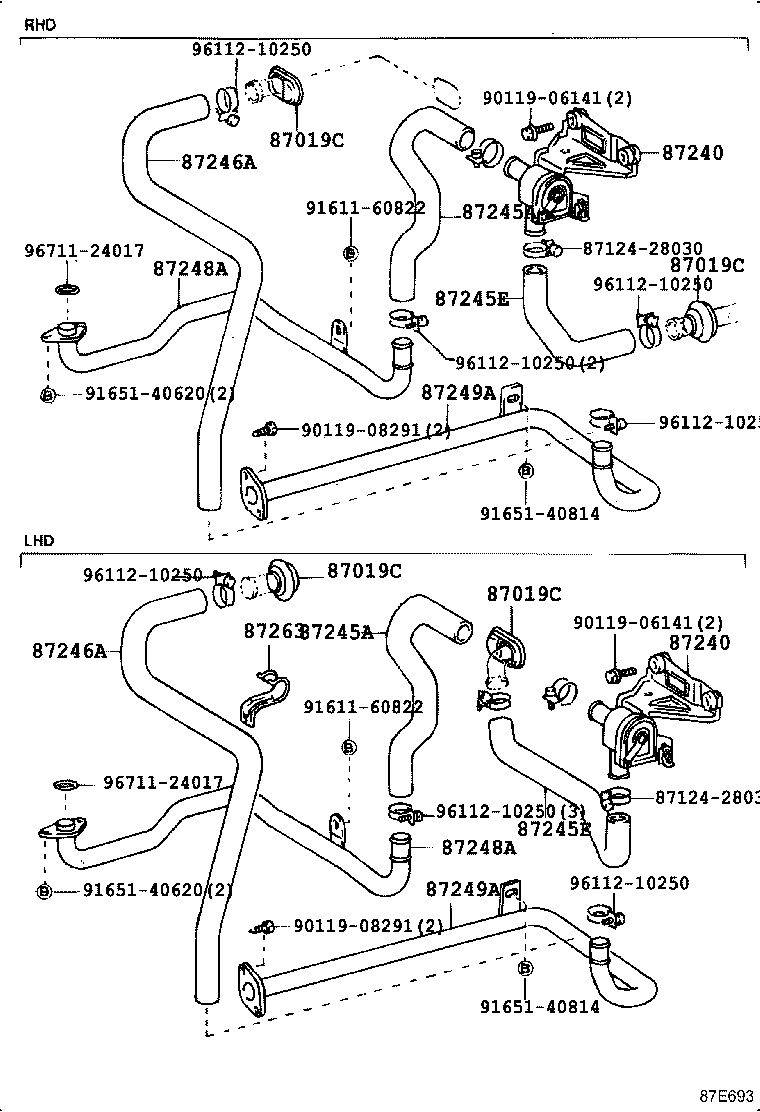

Figure 87E691 87E691 1988-12 → 1992-05 Figure 87E693 87E693 1988-10 → 1993-02 Figure 87E694 87E694 1988-12 → 1992-05 Figure 87E695 87E695 1988-12 → 1992-05

Part groups

PNCDescription
87019C Grommet, Heater Hose
87208 Pipe Sub-assy, Heater Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
