Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

12 part groups · 5 illustrations

Illustrations

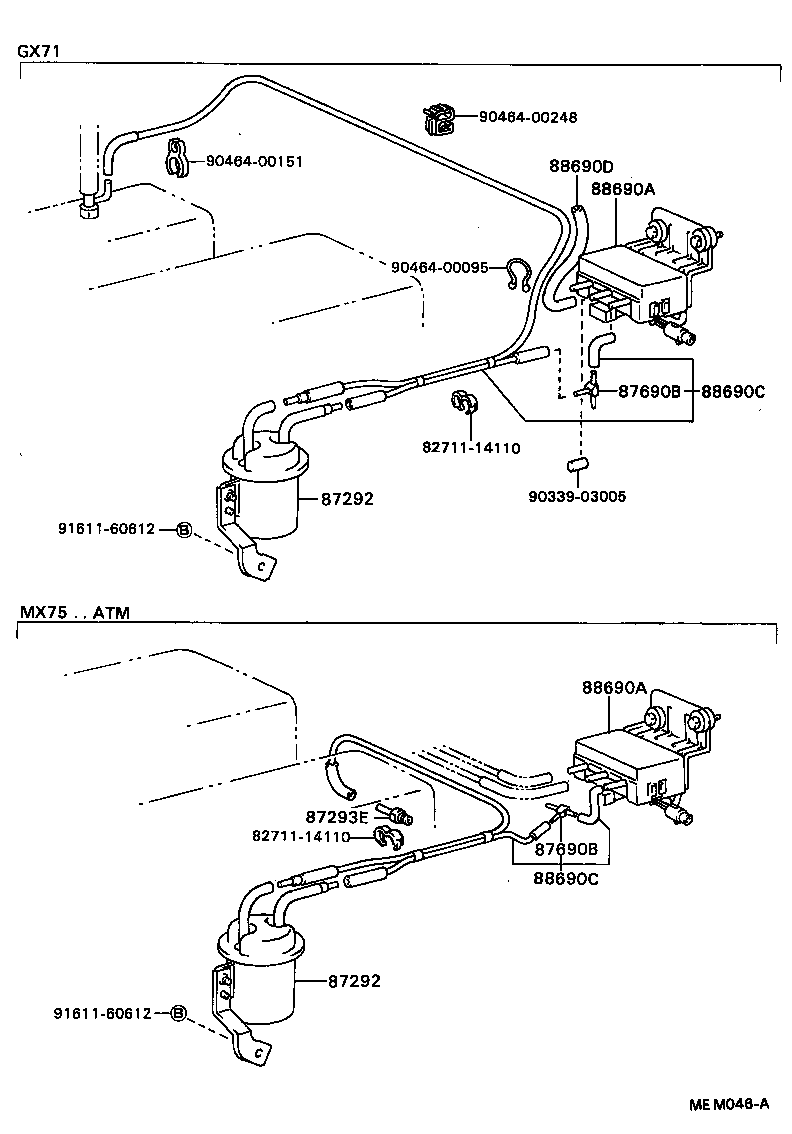

Figure MEM044B MEM044B 1988-10 → 1993-02 Figure MEM044B MEM044B 1988-12 → 1992-05 Figure MEM045A MEM045A 1988-12 → 1992-05 Figure MEM046A MEM046A 1988-12 → 1992-05 Figure MEM047 MEM047 1988-10 → 1993-02

Part groups

PNCDescription
87292 Tank, Vacuum
87292A Hose, Vacuum Tank
87292D Connector, Vacuum Pipe
87293E Union, Hose
87690B Way, 3
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88690A Valve Assy, Combination
88690C Hose, Vacuum, NO.1 (FOR HEATER OR AIR CONDITIONER)
88690D Hose, Vacuum, NO.2 (FOR HEATER OR AIR CONDITIONER)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
