Toyota Cressida Wagon

1988-10 → 1993-02 · chassis GX71,MX75,YX72,RX7# · catalogue 351210 · Europe

Discontinued model Data version 1995-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 11 illustrations

Illustrations

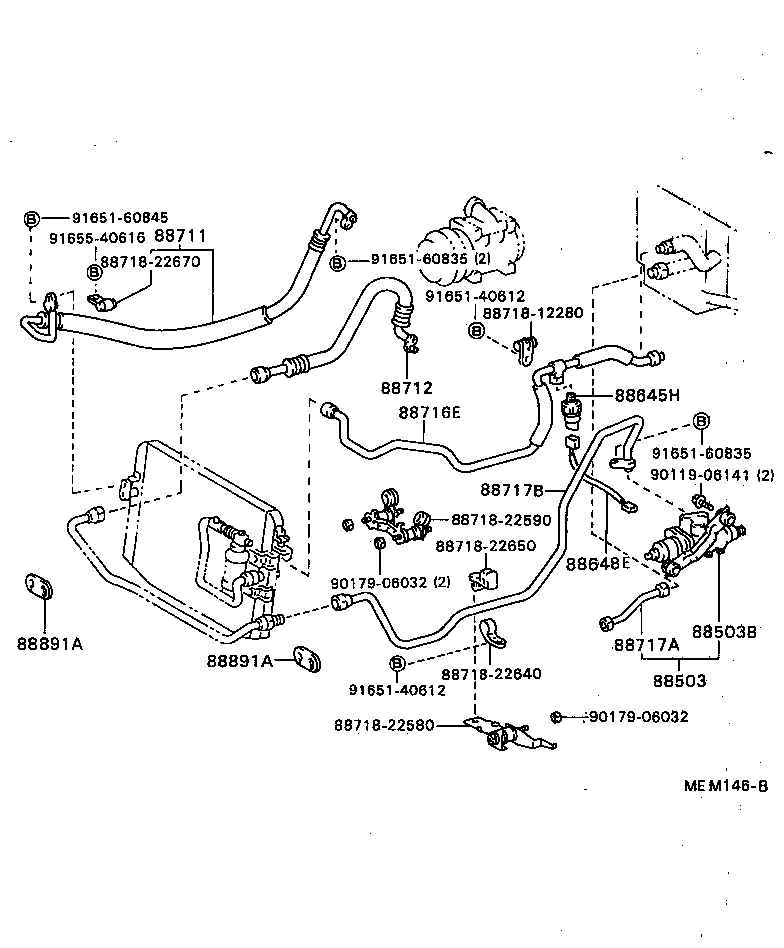

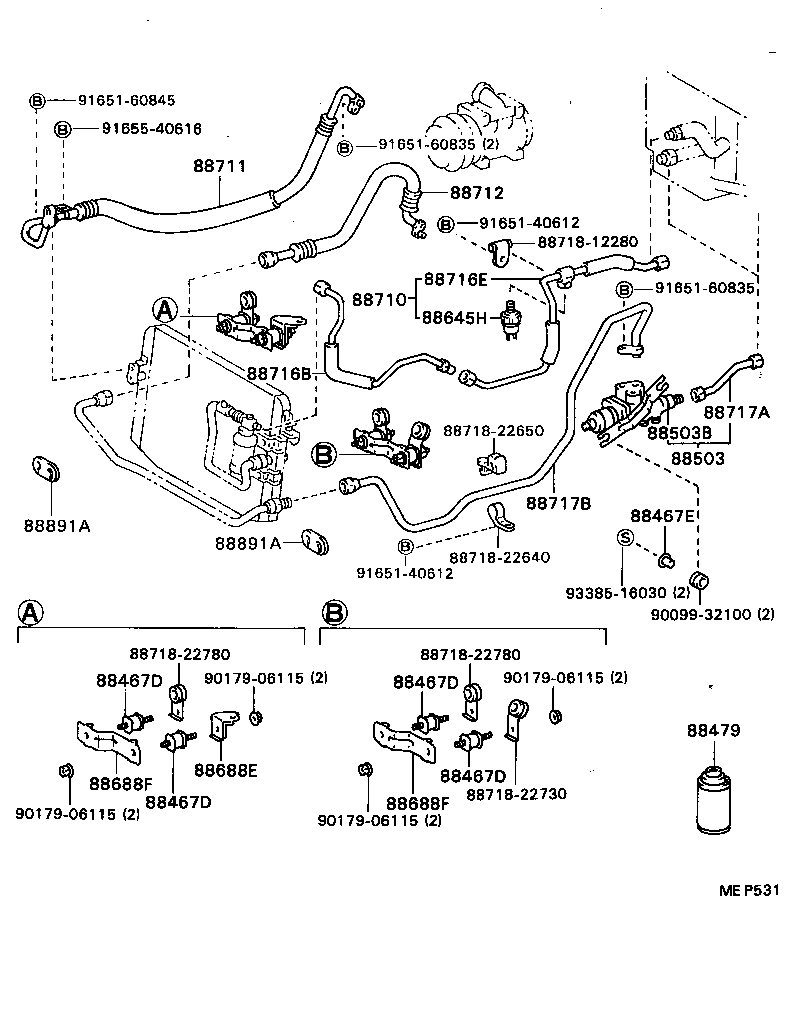

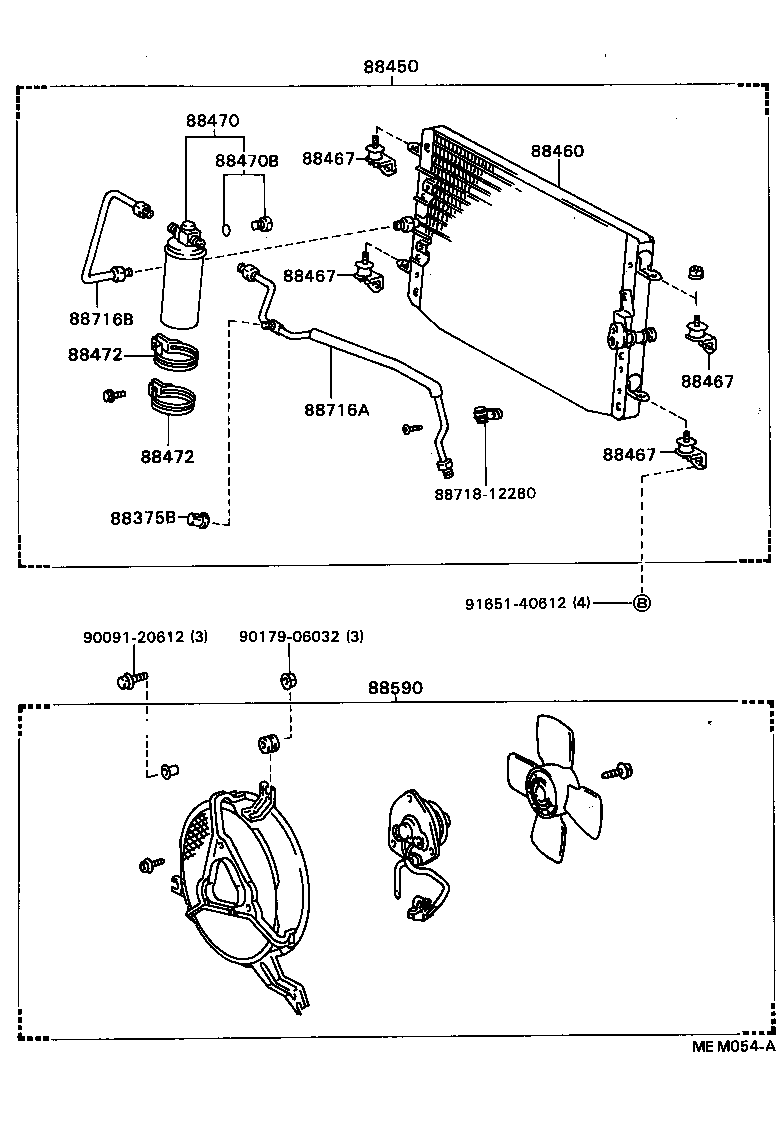

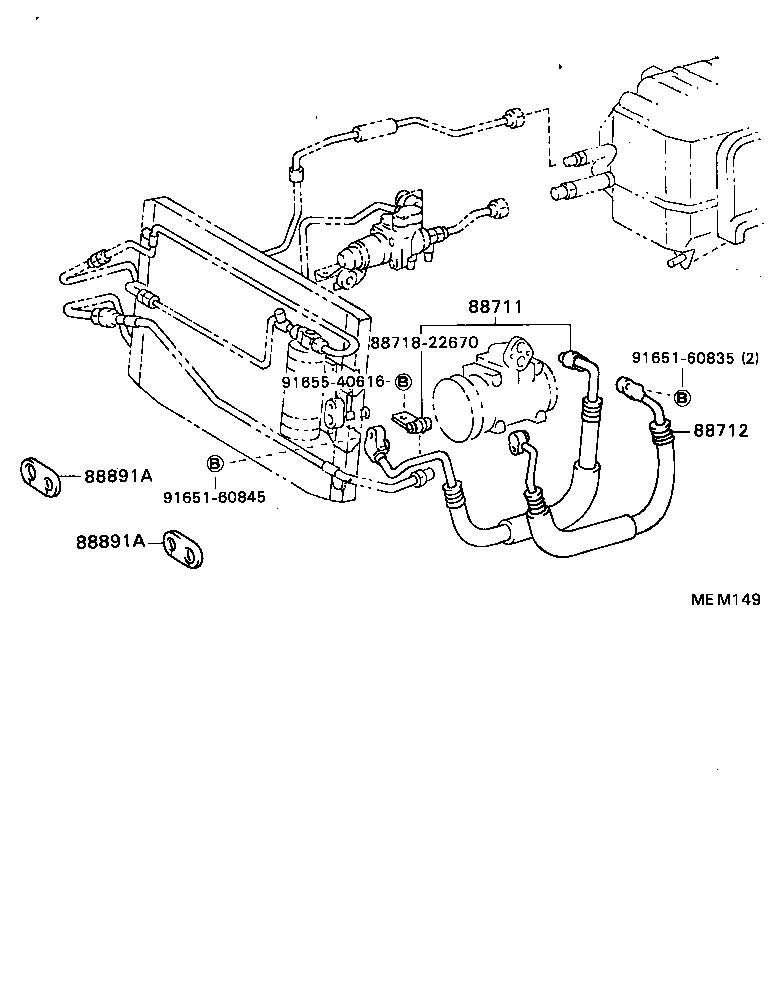

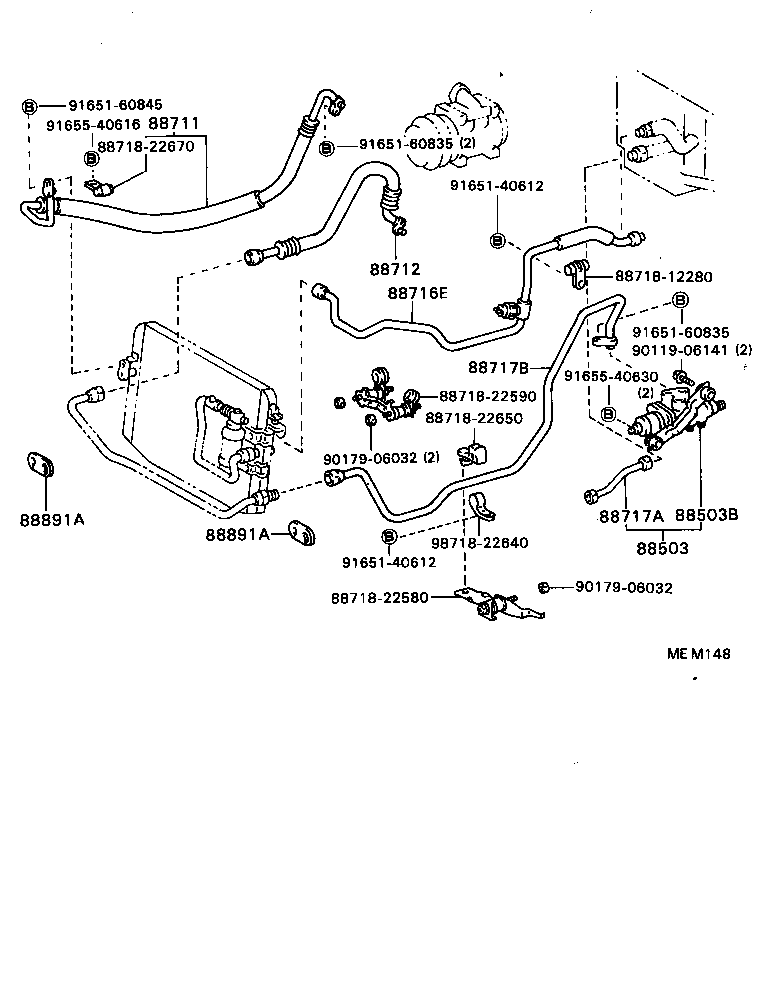

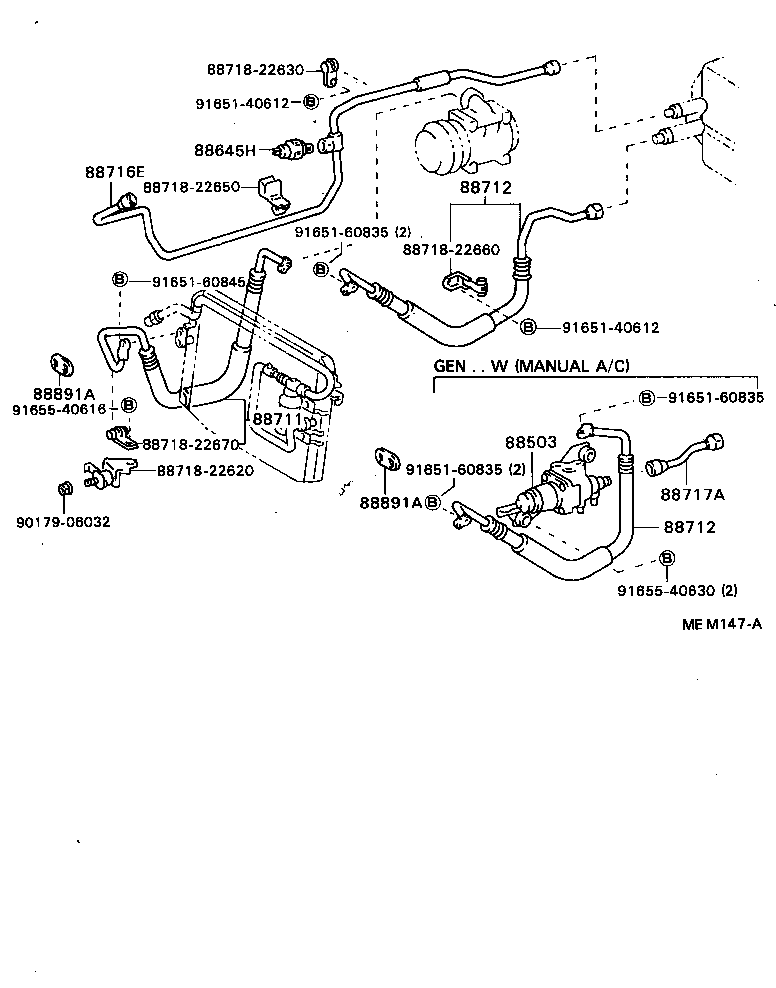

Figure MEM050A MEM050A 1988-10 → 1993-02 Figure MEM051B MEM051B 1988-10 → 1993-02 Figure MEM052A MEM052A 1988-12 → 1992-05 Figure MEM053A MEM053A 1988-12 → 1992-05 Figure MEM054A MEM054A 1988-12 → 1992-05 Figure MEM146B MEM146B 1988-10 → 1993-02 Figure MEP531 MEP531 1988-10 → 1993-02 Figure MEM147A MEM147A 1988-10 → 1993-02 Figure MEM148 MEM148 1988-12 → 1992-05 Figure MEM149 MEM149 1988-12 → 1992-05 Figure MEM055 MEM055 1988-12 → 1992-05

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467D Cushion, Cooler Refrigerant Pipe Clamp
88467E Cushion, Pressure Regulator
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88503B Regulator Sub-assy, Pressure
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717E Pipe, Cooler Refrigerant Suction, E
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
