Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05

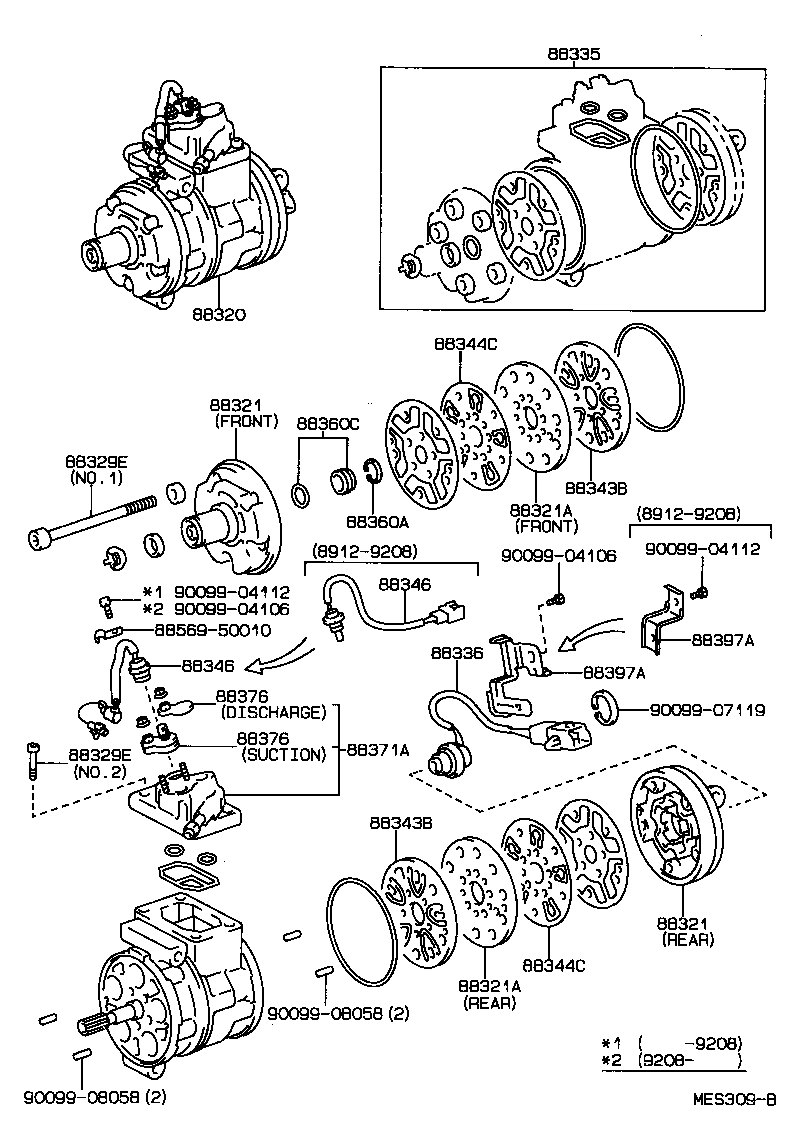

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88320 — Compressor Assy, Cooler | ||||
| 88320-50010 |
Compressor Assy, Cooler
1989-12 → 1991-10
ended
|
UCF10 ARL,EUR,GEN | — | |
| 88320-50020 |
Compressor Assy, Cooler
1989-12 → 1992-08
ended
|
UCF10 V | — | |
| 88320-50030 |
Compressor Assy, Cooler
1991-10 → 1992-08
ended
|
UCF10 ARL,EUR,GEN | — | |
| 88320-50040 |
Compressor Assy, Cooler
1992-08 → 1994-10
ended
|
UCF10 ARL,EUR,GEN | — | |
| 88320-50050 |
Compressor Assy, Cooler
1992-08 → 1994-10
ended
|
UCF10 V | — | |
| 88320-50050 note |
Compressor Assy, Cooler
1993-08 → 1994-10
ended
|
UCF10 LHD EUR | — | |
| 88321 — Head, Cooler Compressor Cylinder | ||||
| 88321-30310 note |
Head, Cooler Compressor Cylinder
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88321-60020 note |
Head, Cooler Compressor Cylinder
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88322-50010 note |
Head, Cooler Compressor Cylinder
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88322-50020 note |
Head, Cooler Compressor Cylinder
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88321A — Plate Sub-assy, Valve | ||||
| 88341-30010 note |
Plate Sub-assy, Valve
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88341-30040 note |
Plate Sub-assy, Valve
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88342-30010 note |
Plate Sub-assy, Valve
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88342-30270 note |
Plate Sub-assy, Valve
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88329E — Bolt, Compressor, NO.1 | ||||
| 88329-30010 note |
Bolt, Compressor, NO.1
1989-12 → 1994-10
ended
|
UCF10 | — | |
| 88329-50010 note |
Bolt, Compressor, NO.1
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 90099-04107 note |
Bolt, Compressor, NO.1
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88335 — Gasket Kit, Overhaul | ||||
| 88335-50010 |
Gasket Kit, Overhaul
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88335-50020 |
Gasket Kit, Overhaul
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88336 — Sensor, Compressor | ||||
| 88336-50010 |
Sensor, Compressor
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88336-50020 |
Sensor, Compressor
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88343B — Reed, Suction Valve | ||||
| 88343-30280 |
Reed, Suction Valve
1989-12 → 1994-10
ended
|
UCF10 | — | |
| 88344C — Reed, Discharge Valve | ||||
| 88344-30010 |
Reed, Discharge Valve
1989-12 → 1994-10
ended
|
UCF10 | — | |
| 88346 — Sensor,Compressor | ||||
| 88336-50030 |
Sensor,Compressor
1992-08 → 1993-12
ended
|
UCF10 V | — | |
| 88336-50030 note |
Sensor,Compressor
1993-08 → 1993-12
ended
|
UCF10 LHD EUR | — | |
| 88346-50020 |
Sensor,Compressor
1989-12 → 1992-08
ended
|
UCF10 V | — | |
| 88346-50020 |
Sensor,Compressor
1993-12 → 1994-10
ended
|
UCF10 V | — | |
| 88346-50020 note |
Sensor,Compressor
1993-12 → 1994-10
ended
|
UCF10 LHD EUR | — | |
| 88360A — Ring, Compressor Seal Plate Snap | ||||
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1989-12 → 1994-10
ended
|
UCF10 | — | |
| 88360C — Seal Assy, Shaft | ||||
| 88360-14030 |
Seal Assy, Shaft
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88360-2B010 |
Seal Assy, Shaft
1992-08 → 1994-10
ended
|
UCF10 | — | |
| 88371A — Valve, Suction | ||||
| 88371-50010 |
Valve, Suction
1989-12 → 1992-08
ended
|
UCF10 ARL,EUR,GEN | — | |
| 88371-50020 |
Valve, Suction
1989-12 → 1992-08
ended
|
UCF10 V | — | |
| 88371-50030 |
Valve, Suction
1992-08 → 1994-10
ended
|
UCF10 V | — | |
| 88371-50030 note |
Valve, Suction
1993-08 → 1994-10
ended
|
UCF10 LHD EUR | — | |
| 88371-50040 |
Valve, Suction
1992-08 → 1994-10
ended
|
UCF10 ARL,EUR,GEN | — | |
| 88376 — Cap, Blind | ||||
| 88376-17020 note |
Cap, Blind
1989-12 → 1992-08
ended
|
UCF10 ARL,EUR,GEN | — | |
| 88376-17020 note |
Cap, Blind
1989-12 → 1992-08
ended
|
UCF10 V | — | |
| 88376-22020 note |
Cap, Blind
1989-12 → 1992-08
ended
|
UCF10 ARL,EUR,GEN | — | |
| 88376-22020 note |
Cap, Blind
1989-12 → 1992-08
ended
|
UCF10 V | — | |
| 88397A — Clip, Compressor | ||||
| 88397-50010 |
Clip, Compressor
1989-12 → 1992-08
ended
|
UCF10 | — | |
| 88688-50110 |
Clip, Compressor
1992-08 → 1994-10
ended
|
UCF10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
