Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 7 illustrations

Illustrations

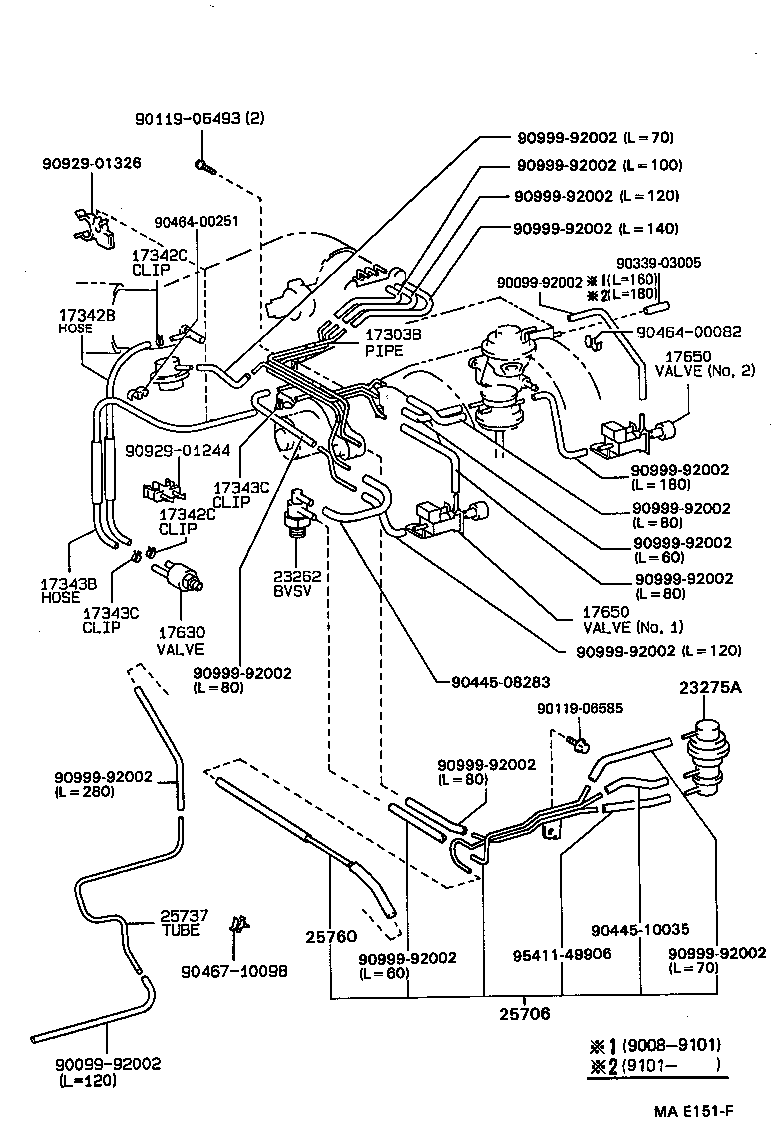

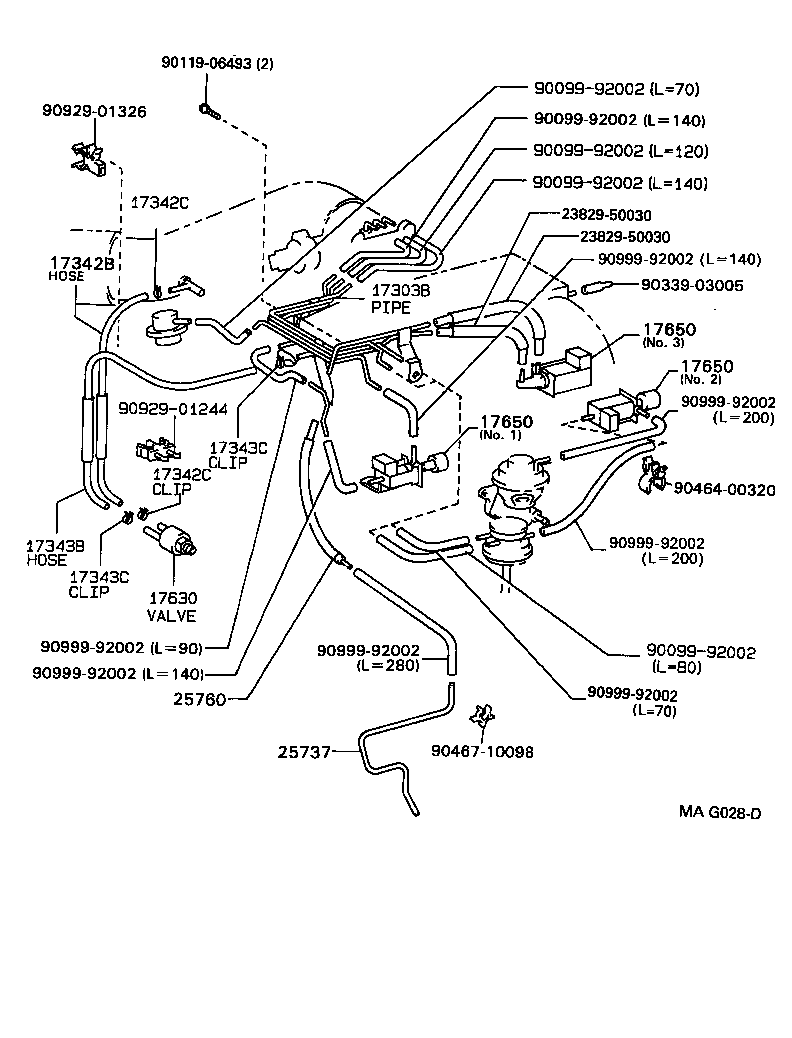

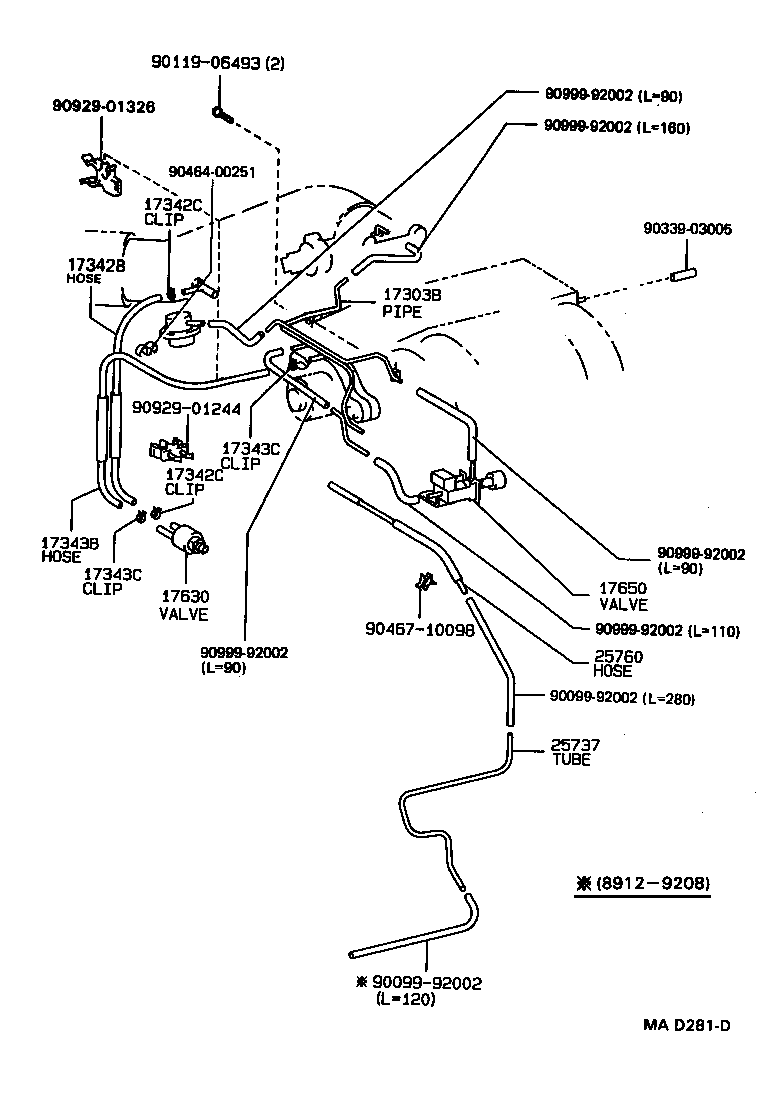

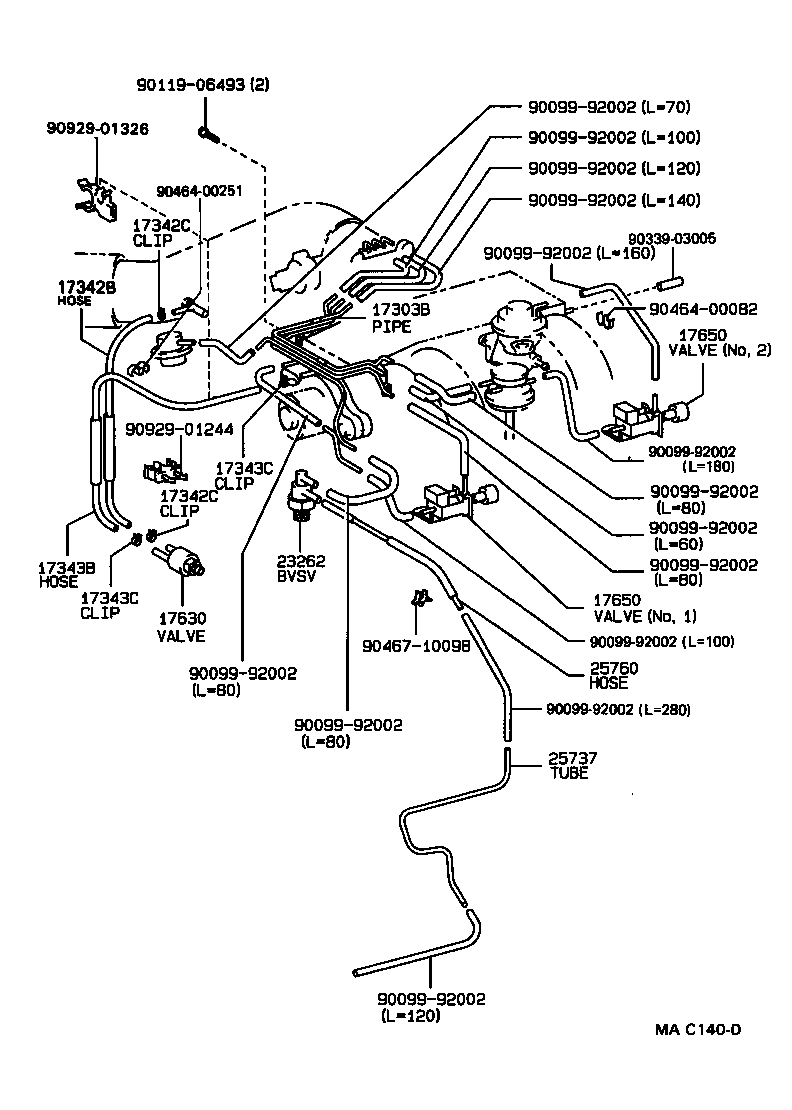

Figure MA9504B MA9504B 1989-12 → — Figure MAC140D MAC140D 1989-12 → 1990-08 Figure MAE151F MAE151F 1990-08 → — Figure MAE151F MAE151F 1991-08 → 1992-08 Figure MAD281D MAD281D 1989-12 → — Figure MAD281D MAD281D 1992-08 → — Figure MAG028D MAG028D 1992-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23275A Valve, Vacuum Control
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25737 Tube, NO.1
25760 Hose Assy, Vacuum Transmitting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
