Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05

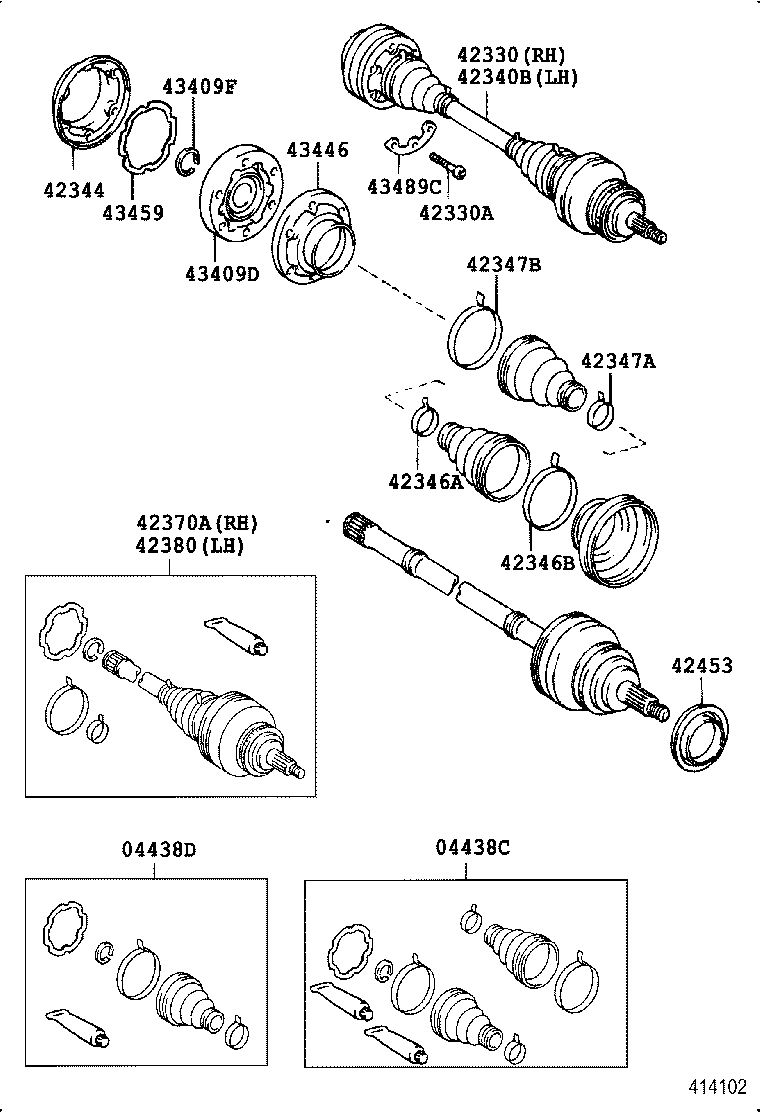

Rear Axle Shaft & Hub
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04438C | Boot Kit, Rear Drive Shaft |
| 04438D | Boot Kit, Rear Drive Shaft Inboard Joint |
| 42311A | Seal, Oil(FOR REAR AXLE SHAFT) |
| 42311C | Bearing(FOR REAR AXLE SHAFT) |
| 42311D | Ring, Snap(FOR REAR AXLE SHAFT) |
| 42311G | Nut(FOR REAR AXLE SHAFT) |
| 42330 | Shaft Assy, Rear Drive, RH |
| 42330A | Bolt(FOR REAR DRIVE SHAFT) |
| 42340B | Shaft Assy, Rear Drive, LH |
| 42344 | Cover, Rear Axle Inboard Joint End |
| 42346A | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42346B | Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42347A | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42347B | Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42370A | Shaft Assy, Rear Drive Outboard Joint, RH |
| 42380 | Shaft Assy, Rear Drive Outboard Joint, LH |
| 42420C | Shaft & Disc Assy, Rear Axle |
| 42428 | Plate, Rear Axle Lock Nut |
| 42431 | Disc, Rear |
| 42431A | Screw (FOR REAR DISC) |
| 42451 | Deflector, Rear Wheel Bearing Dust, NO.1 |
| 42453 | Deflector, Rear Wheel Bearing Dust, NO.3 |
| 42491 | Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) |
| 42611E | Bolt, Hub (FOR REAR AXLE) |
| 43409D | Joint Sub-assy, Rear Drive Shaft Cross Groove |
| 43409F | Ring, Snap (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) |
| 43446 | Cover, Rear Axle Inboard Joint |
| 43459 | Gasket, Rear Axle Inboard Joint End Cover |
| 43489C | Washer, Rear Drive Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
