Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

9 part groups · 2 illustrations

Illustrations

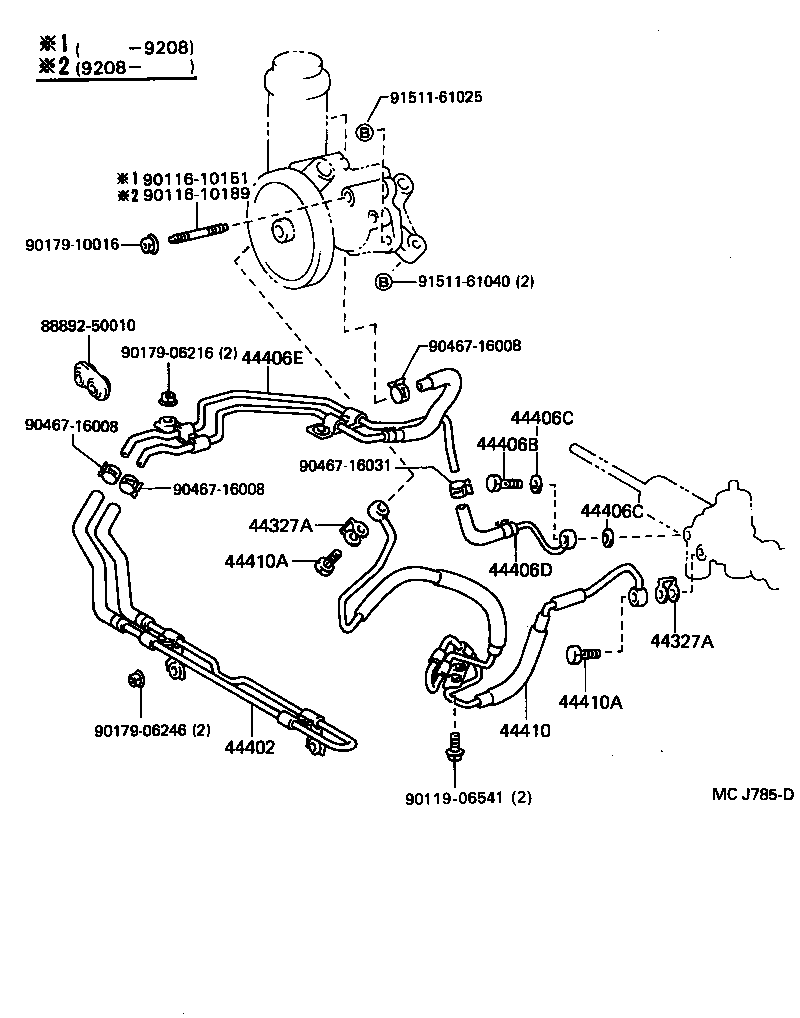

Figure MCJ787C MCJ787C 1989-12 → — Figure MCJ785D MCJ785D 1989-12 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44406F Tube Sub-assy, Return, NO.3
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
