Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

87 part groups · 14 illustrations

Illustrations

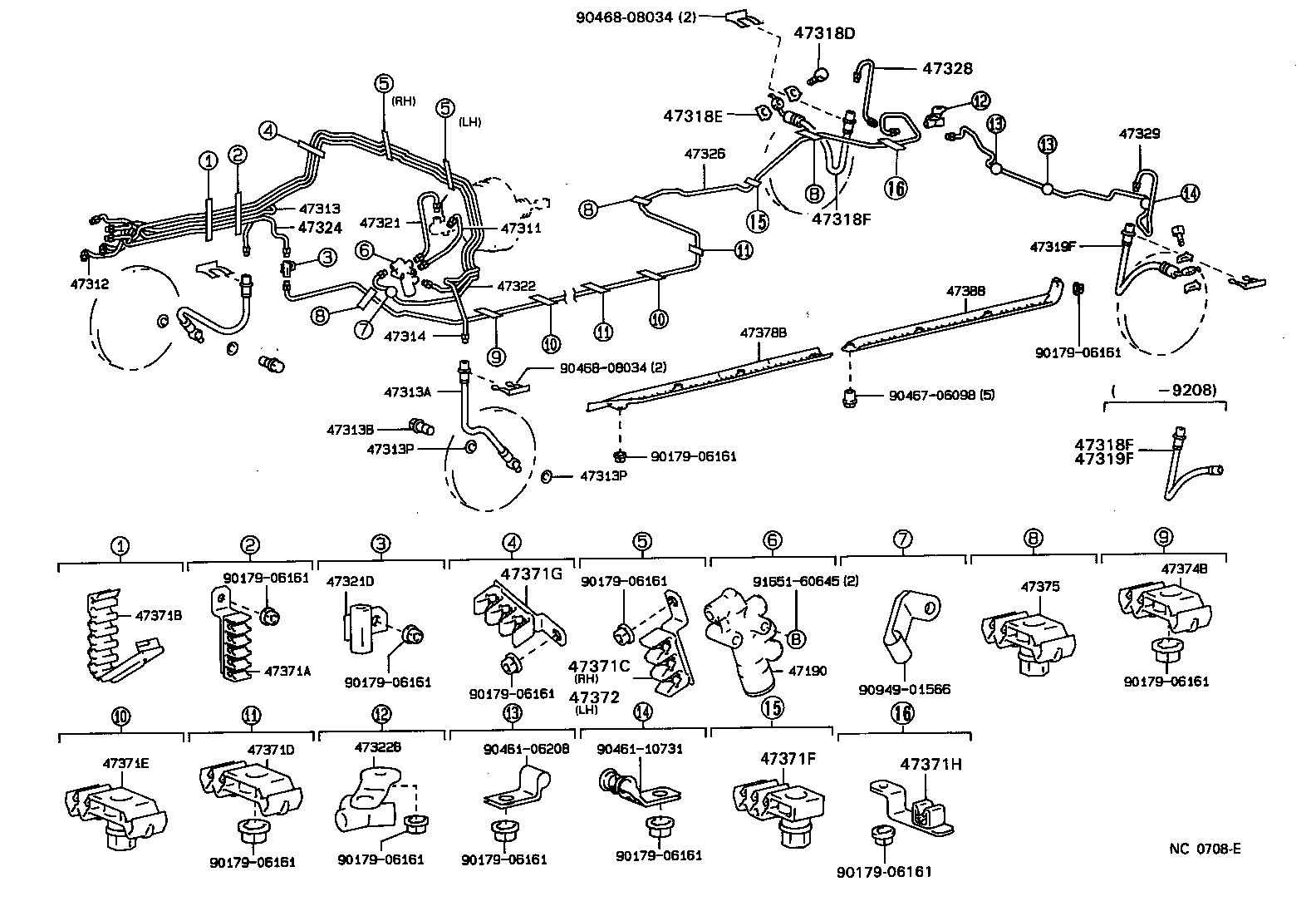

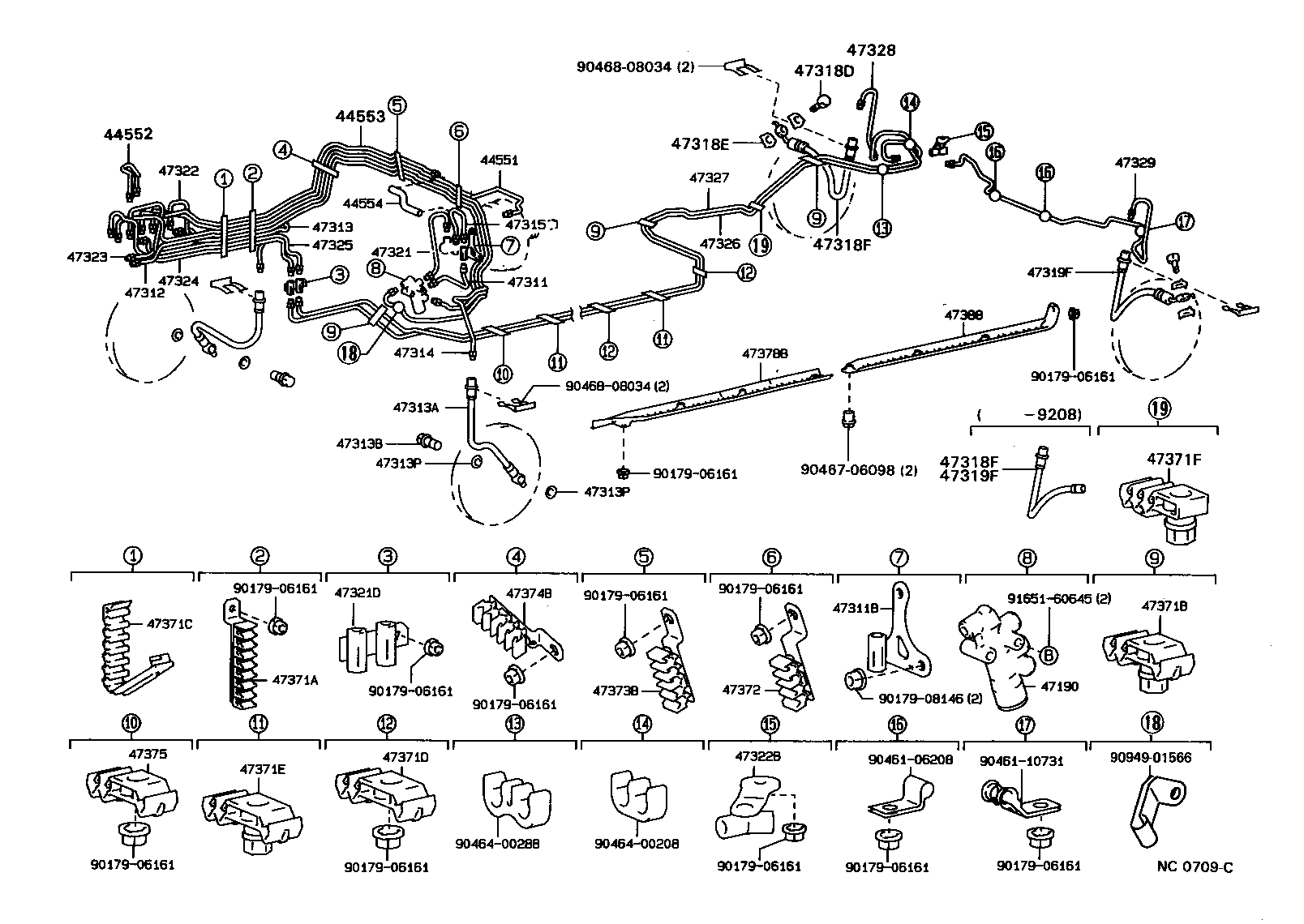

NC0713A 1989-12 → 1992-08

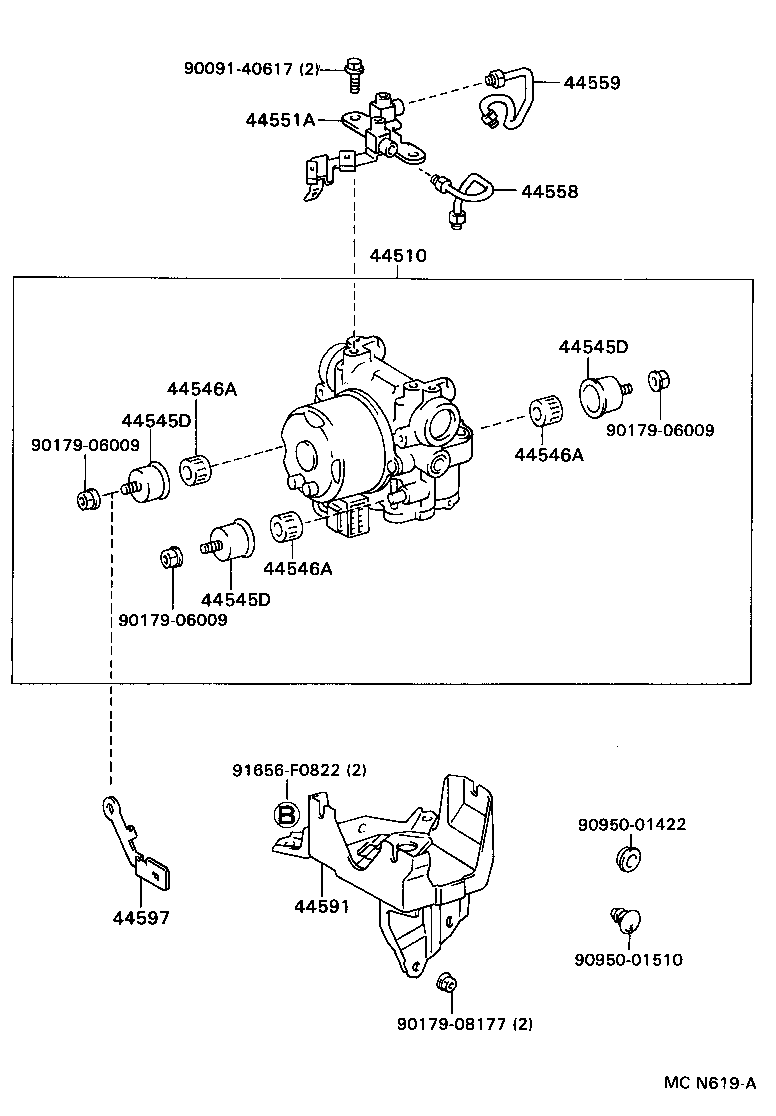

MCN619A 1992-08 → —

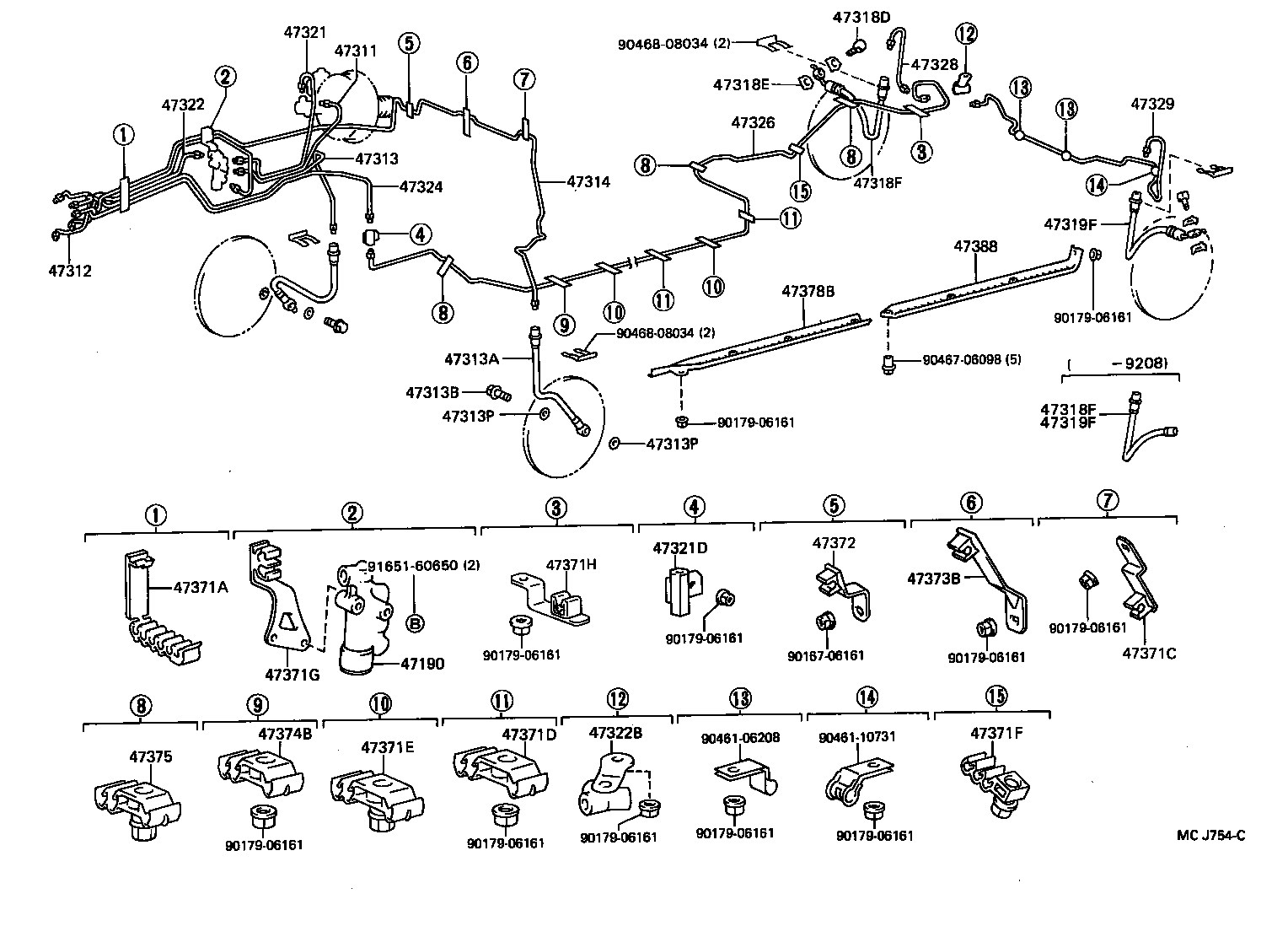

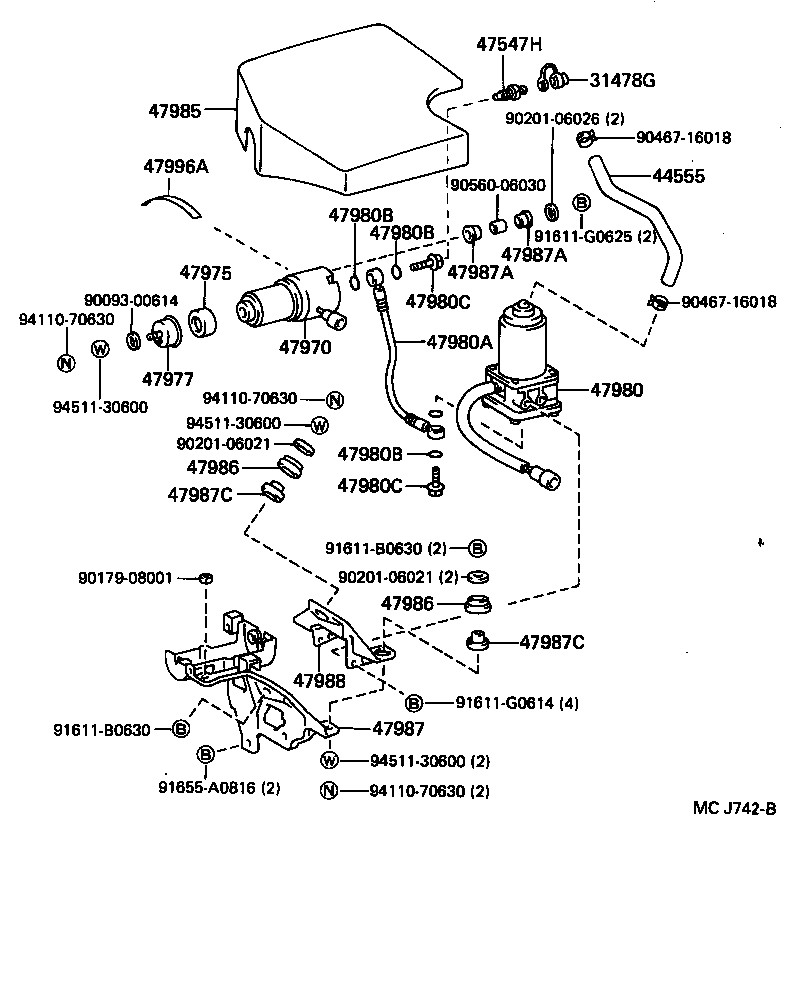

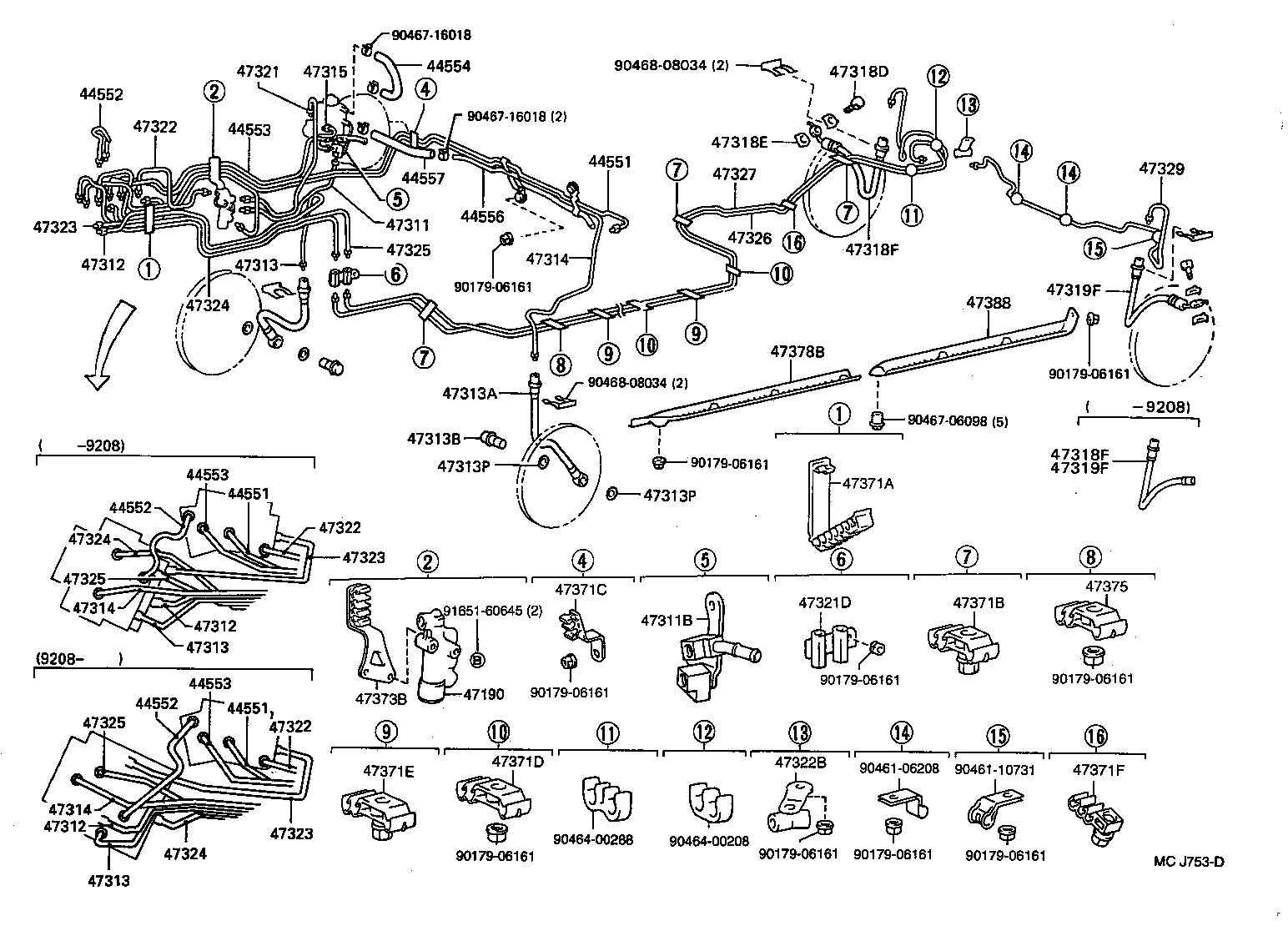

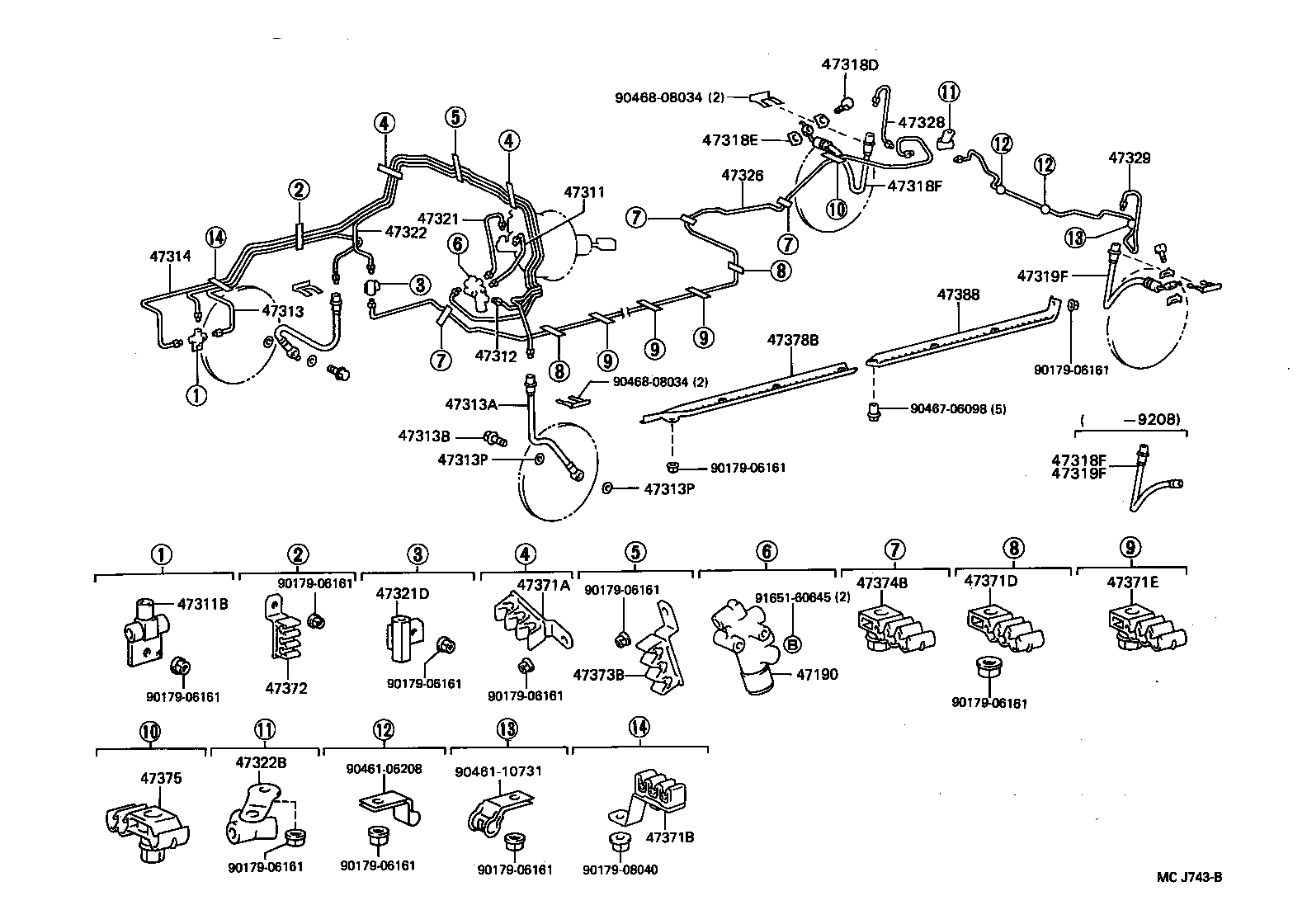

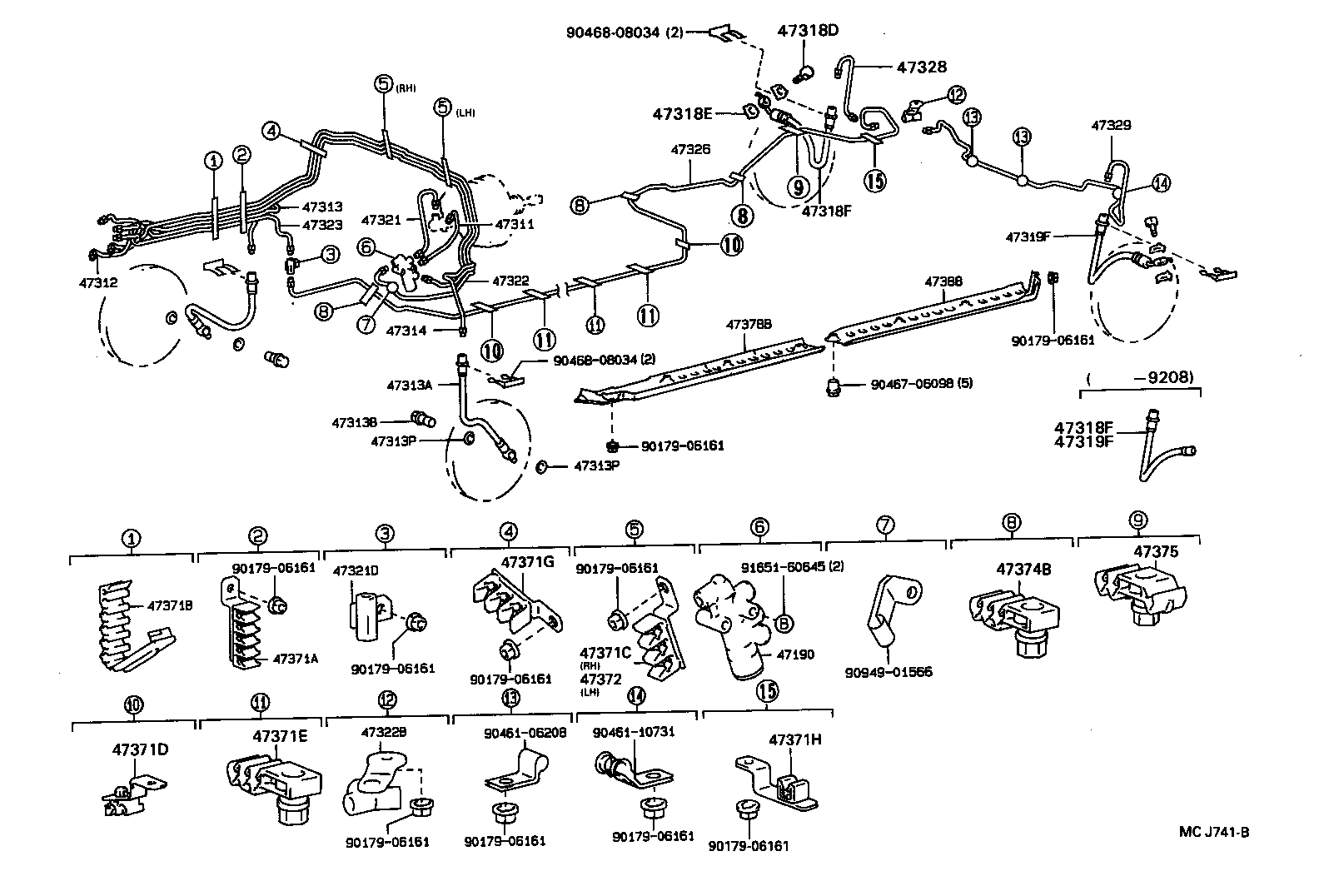

MCJ742B 1989-12 → —

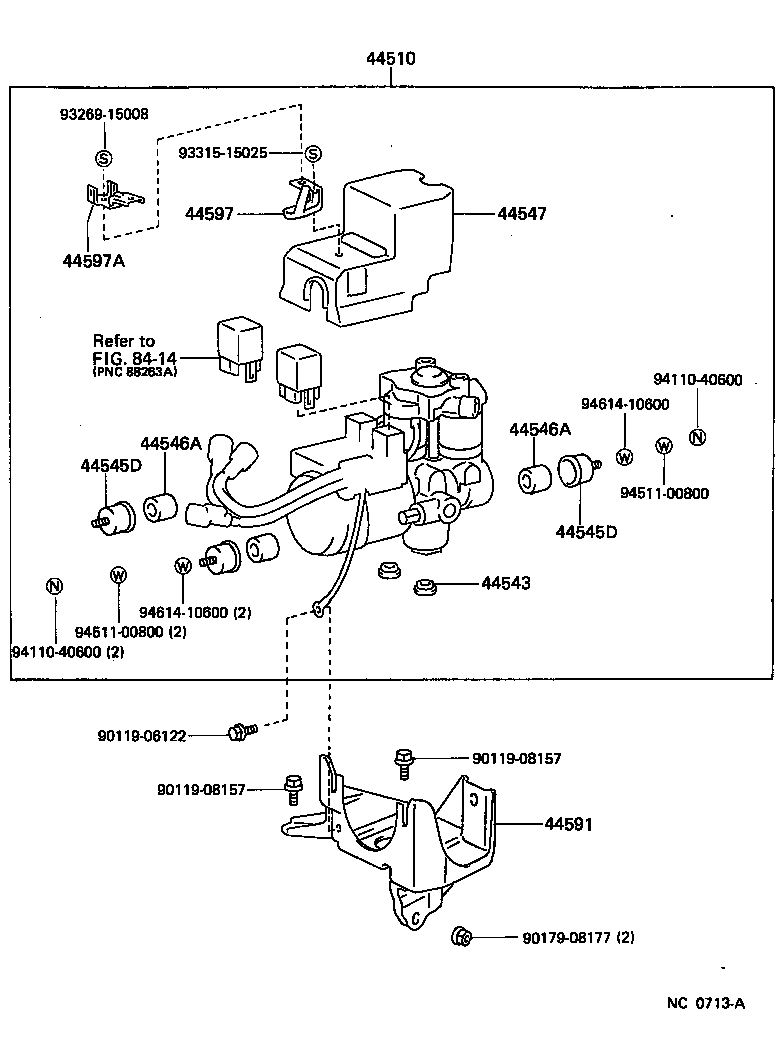

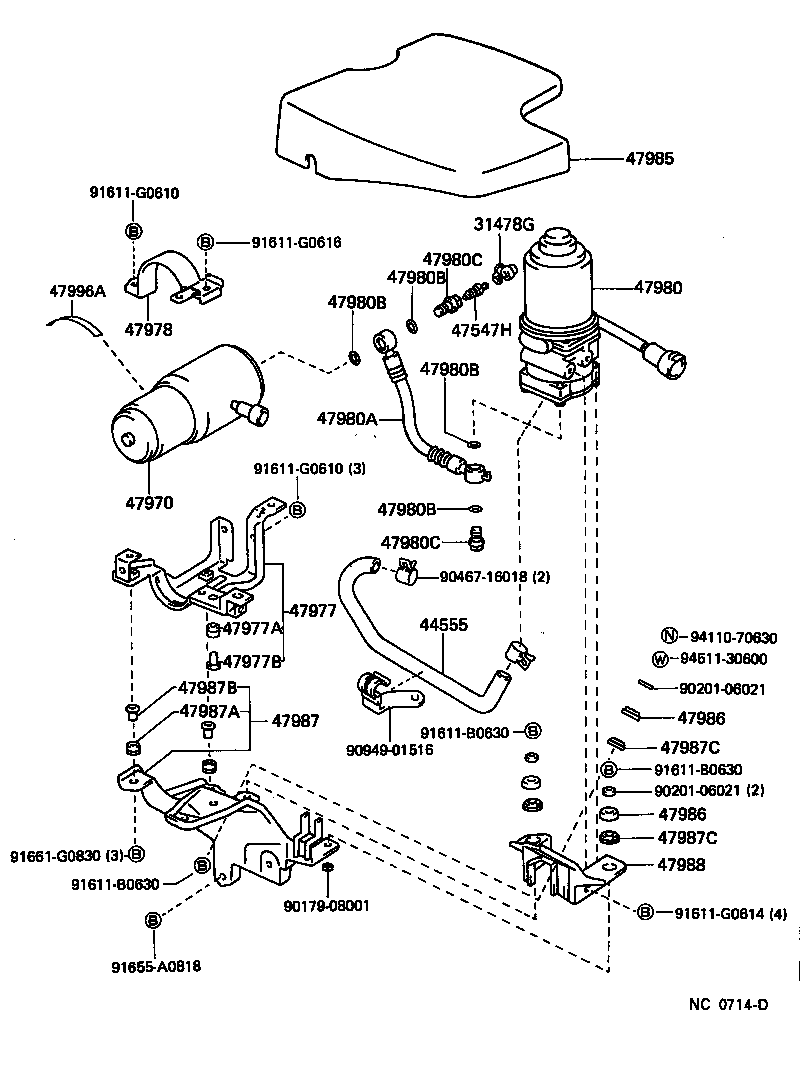

NC0714D 1989-12 → 1992-08

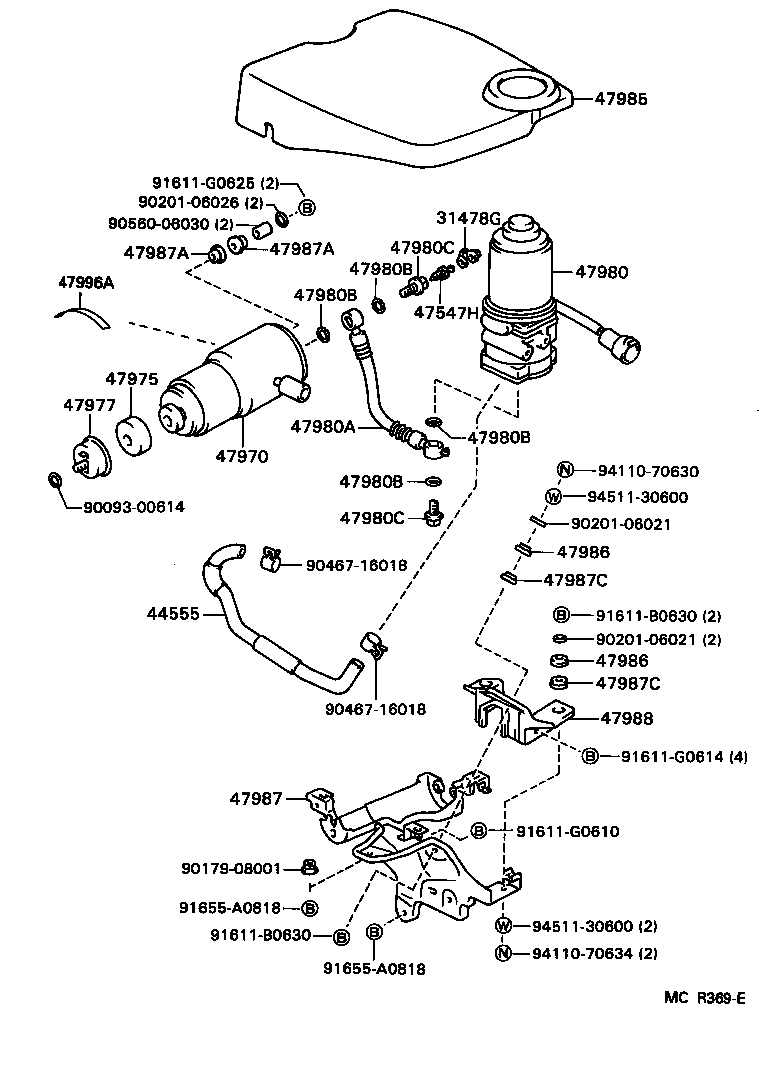

MCR369E 1992-08 → —

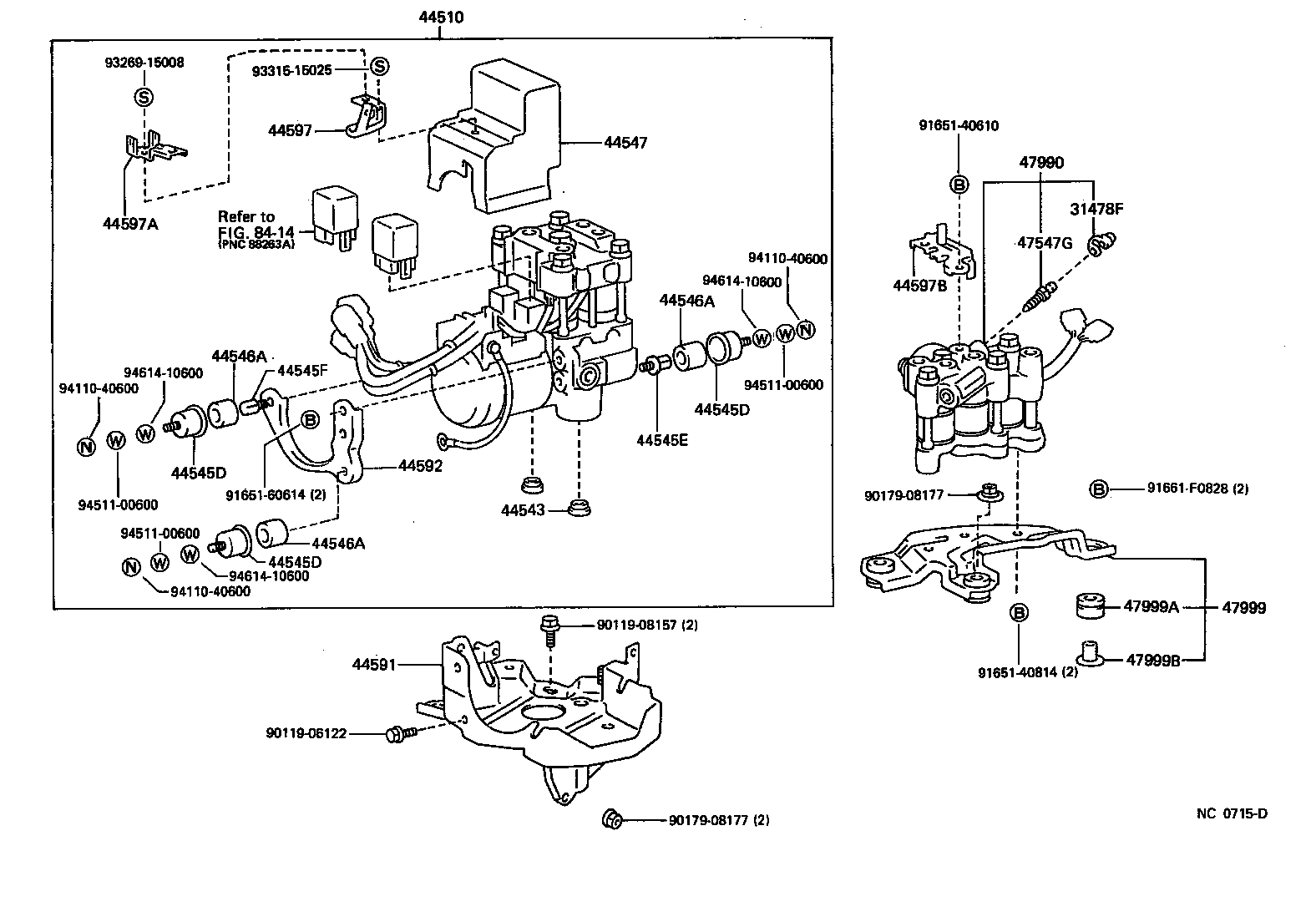

NC0715D 1989-12 → 1992-08

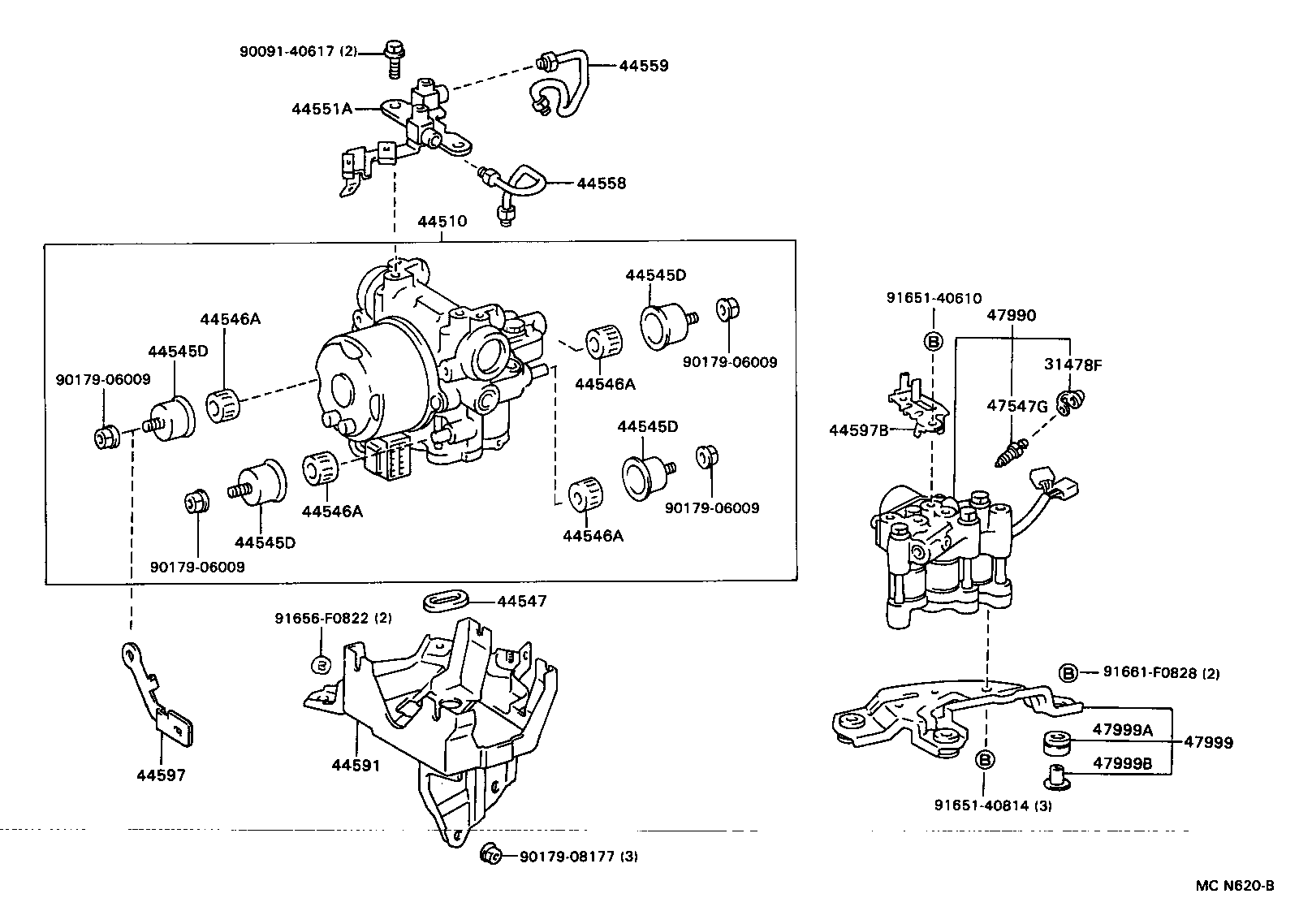

MCN620B 1992-08 → —

Part groups

PNC	Description
31478F	Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
31478G	Cap, Bleeder Plug(FOR BRAKE TRACTION ACCUMULATOR)
44510	Actuator Assy, Brake
44543	Cap, Rubber
44545D	Holder, Brake Actuator Bolt
44545E	Bolt, Cushion, NO.1(FOR BRAKE ACTUATOR)
44545F	Bolt, Cushion, NO.2(FOR BRAKE ACTUATOR)
44546A	Cushion, Brake Actuator Bolt
44547	Case, Relay(FOR BRAKE ACTUATOR)
44551	Tube, Brake Actuator, NO.1
44551A	Way, NO.1(FOR BRAKE ACTUATOR)
44552	Tube, Brake Actuator, NO.2
44553	Tube, Brake Actuator, NO.3
44554	Tube, Brake Actuator, NO.4
44555	Tube, Brake Actuator, NO.5
44556	Tube, Brake Actuator, NO.6
44557	Tube, Brake Actuator, NO.7
44558	Tube, Brake Actuator, NO.8
44559	Tube, Brake Actuator, NO.9
44591	Bracket, Brake Actuator, NO.1
44592	Bracket, Brake Actuator, NO.2
44597	Clamp, Brake Actuator Connector, NO.1
44597A	Clamp, Brake Actuator Connector, NO.2
44597B	Clamp, Brake Traction Actuator Connector
47190	Valve Assy, Proportioning & By-pass
47311	Tube, Front Brake, NO.1
47311B	Way, NO.1(FOR FRONT BRAKE TUBE)
47312	Tube, Front Brake, NO.2
47313	Tube, Front Brake, NO.3
47313A	Hose, Flexible, NO.1(FOR FRONT)
47313B	Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P	Gasket(FOR FRONT FLEXIBLE HOSE)
47314	Tube, Front Brake, NO.4
47315	Tube, Front Brake, NO.5
47318D	Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E	Gasket(FOR REAR FLEXIBLE HOSE)
47318F	Hose, Flexible(FOR REAR RH)
47319F	Hose, Flexible(FOR REAR LH)
47321	Tube, Rear Brake, NO.1
47321D	Way, NO.1(FOR REAR BRAKE TUBE)
47322	Tube, Rear Brake, NO.2
47322B	Way, NO.2(FOR REAR BRAKE TUBE)
47323	Tube, Rear Brake, NO.3
47324	Tube, Rear Brake, NO.4
47325	Tube, Rear Brake, NO.5
47326	Tube, Rear Brake, NO.6
47327	Tube, Rear Brake, NO.7
47328	Tube, Rear Brake, NO.8
47329	Tube, Rear Brake, NO.9
47371A	Clamp, Brake Tube, NO.1
47371B	Clamp, Brake Tube, NO.6
47371C	Clamp, Brake Tube, NO.7
47371D	Clamp, Brake Tube, NO.8
47371E	Clamp, Brake Tube, NO.9
47371F	Clamp, Brake Tube, NO.10
47371G	Clamp, Brake Tube, NO.11
47371H	Clamp, Brake Tube, NO.12
47372	Clamp, Brake Tube, NO.2
47373B	Clamp, Brake Tube, NO.3
47374B	Clamp, Brake Tube, NO.4
47375	Clamp, Brake Tube, NO.5
47378B	Protector, Tube, Upper
47388	Protector, Brake Tube, Lower
47547G	Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
47547H	Plug, Bleeder(FOR BRAKE TRACTION ACCUMULATOR)
47970	Accumulator Assy, Brake Traction
47975	Bush, Brake Traction Accumulator
47977	Bracket, Brake Traction Accumulator, NO.1
47977A	Bush(FOR BRAKE TRACTION ACCUMULATOR BRACKET)
47977B	Spacer(FOR BRAKE TRACTION ACCUMULATOR BRACKET)
47978	Bracket, Brake Traction Accumulator , NO.2
47980	Pump Assy, Brake Traction
47980A	Hose, Pressure(FOR BRAKE TRACTION PUMP)
47980B	Ring, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47980C	Bolt, Union(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47985	Cover, Brake Traction Pump, NO.1
47986	Cover, Brake Traction Pump, NO.2
47987	Bracket, Brake Traction Pump, NO.1
47987A	Bush, NO.1(FOR BRAKE TRACTION PUMP BRACKET)
47987B	Spacer(FOR BRAKE TRACTION PUMP BRACKET)
47987C	Bush, NO.2(FOR BRAKE TRACTION PUMP BRACKET)
47988	Bracket, Brake Traction Pump, NO.2
47990	Actuator Assy, Brake Traction
47996A	Label, Brake Bleed Notice
47999	Bracket, Brake Traction Actuator, NO.2
47999A	Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
47999B	Spacer(FOR BRAKE TRACTION ACTUATOR BRACKET)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
