Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 2 illustrations

Illustrations

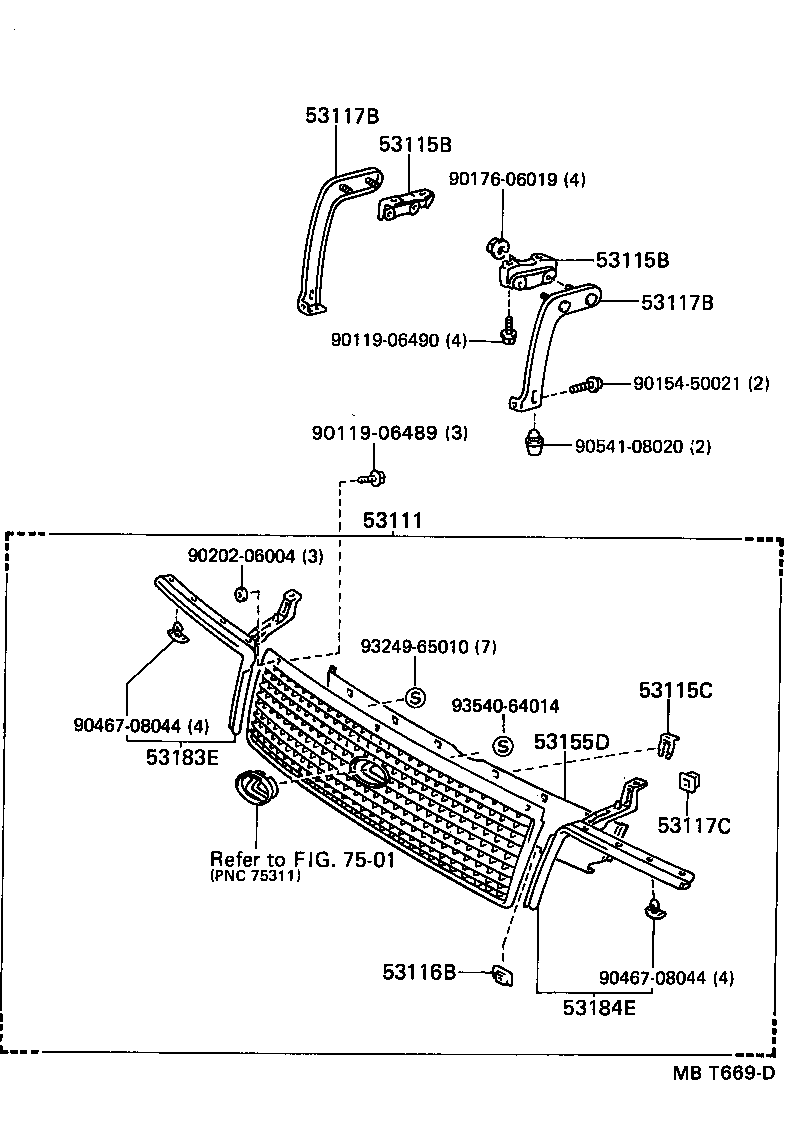

Figure MBS441E MBS441E 1989-12 → — Figure MBT669D MBT669D 1989-12 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53115C Bracket, Radiator Grille, NO.1
53116B Bracket, Radiator Grille, NO.2
53117B Bracket, Radiator Grille, Lower
53117C Retainer, Radiator Grille, NO.1
53155D Seal, Radiator Grille, NO.1
53183E Seal, Headlamp Cover, RH
53184E Seal, Headlamp Cover, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
