Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05

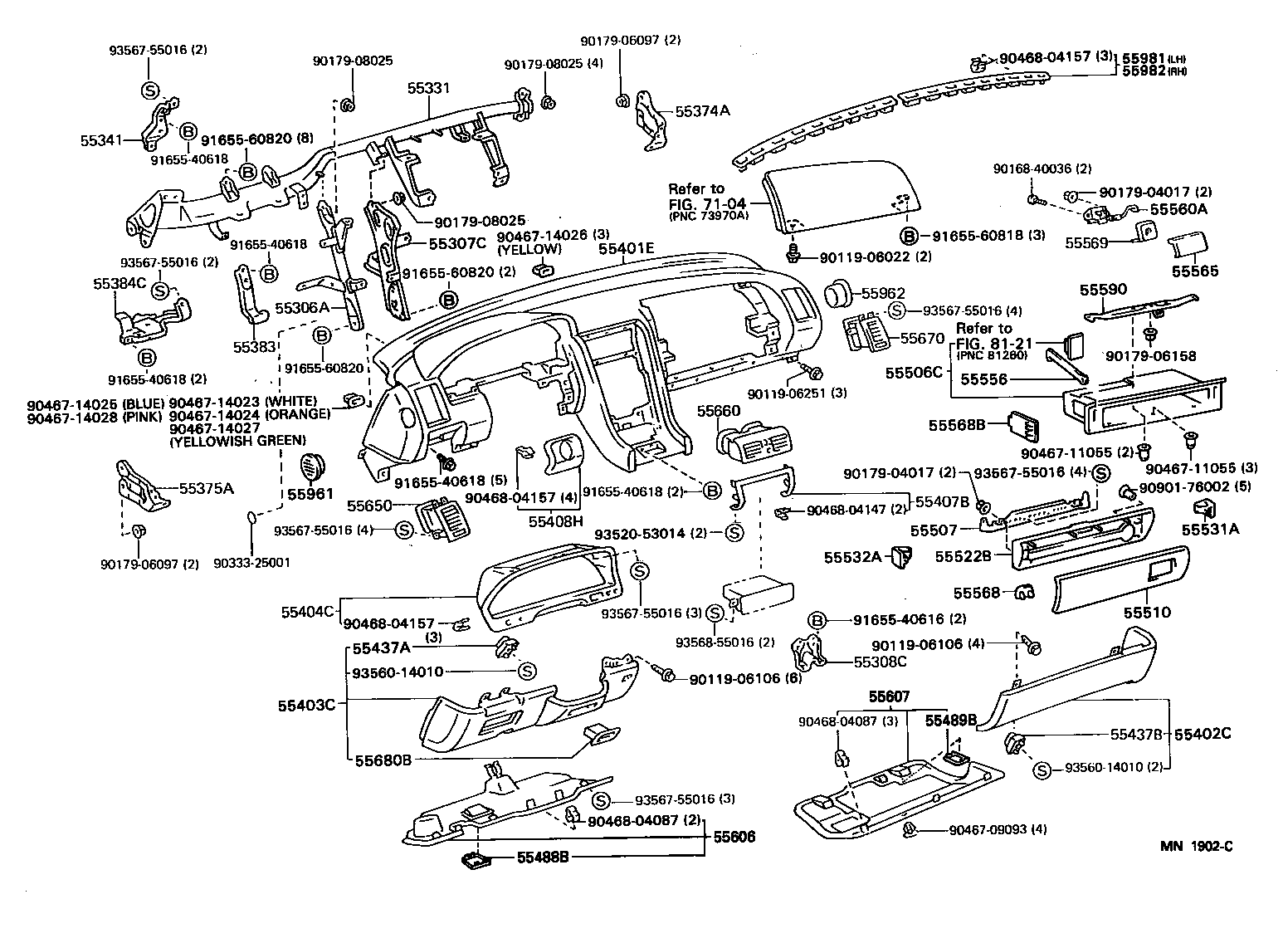

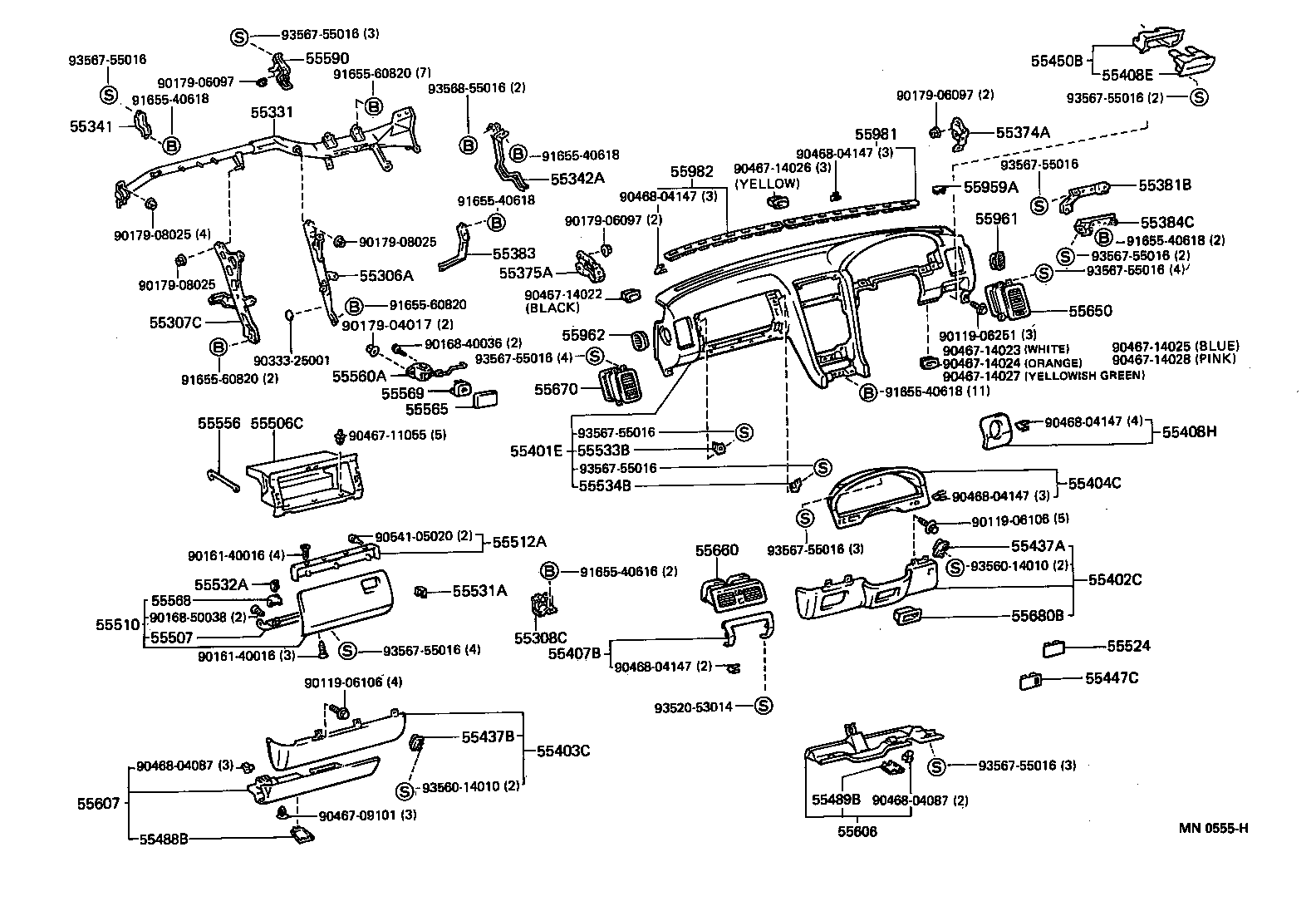

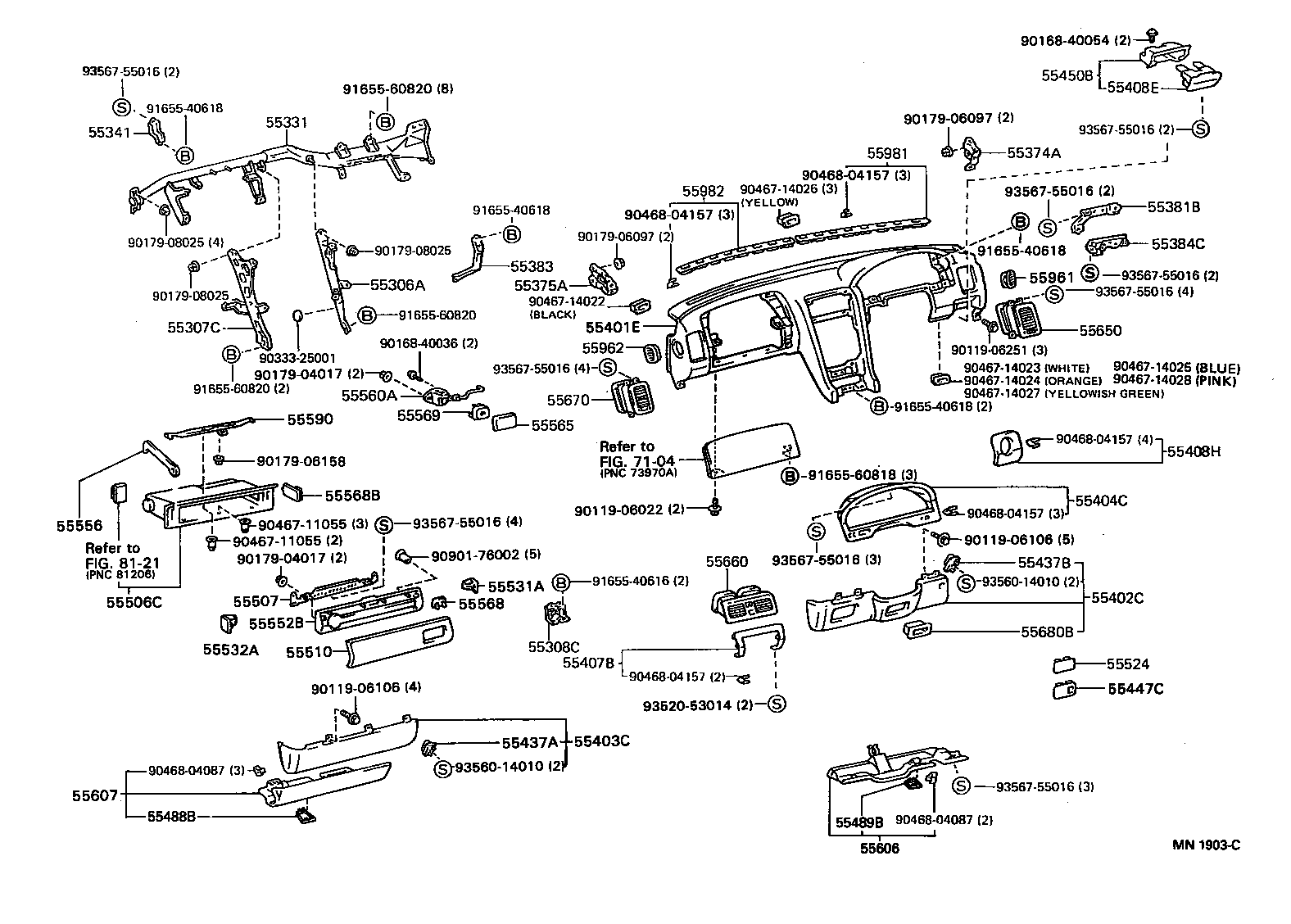

Instrument Panel & Glove Compartment
54 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55331 | Reinforcement, Instrument Panel |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55383 | Bracket, Finish Panel Mounting, NO.3 |
| 55384C | Bracket, Finish Panel Mounting, NO.4 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55402C | Pad Sub-assy, Instrument Panel, Lower RH |
| 55403C | Pad Sub-assy, Instrument Panel, Lower LH |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55407B | Base Sub-assy, Switch Hole |
| 55408E | Box Sub-assy, Instrument Panel Coin |
| 55408H | Pad Sub-assy, Instrument Panel Cylinder |
| 55437A | Retainer, Instrument Panel Finish Panel, NO.1 |
| 55437B | Retainer, Instr Panel Finish Panel, NO.2 |
| 55447C | Base, Switch Hole, NO.2 |
| 55450B | Box Assy, Coin |
| 55488B | Lens, Front Foot Lamp, NO.1 |
| 55489B | Lens, Front Foot Lamp, NO.2 |
| 55506C | Compartment Sub-assy, Glove |
| 55507 | Hinge Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55512A | Plate, Glove Compartment |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55531A | Panel, Glove Compartment, NO.1 |
| 55532A | Panel, Glove Compartment, NO.2 |
| 55533B | Panel, Glove Compartment Side, RH |
| 55534B | Panel, Glove Compartment Side, LH |
| 55552B | Door, Glove Compartment, Inner |
| 55556 | Arm, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568 | Plate, Glove Compartment Door Pad |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680B | Register Assy, Instrument Panel, Lower NO.1 |
| 55959A | Cover, Defroster Nozzle Opening, NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
