Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05

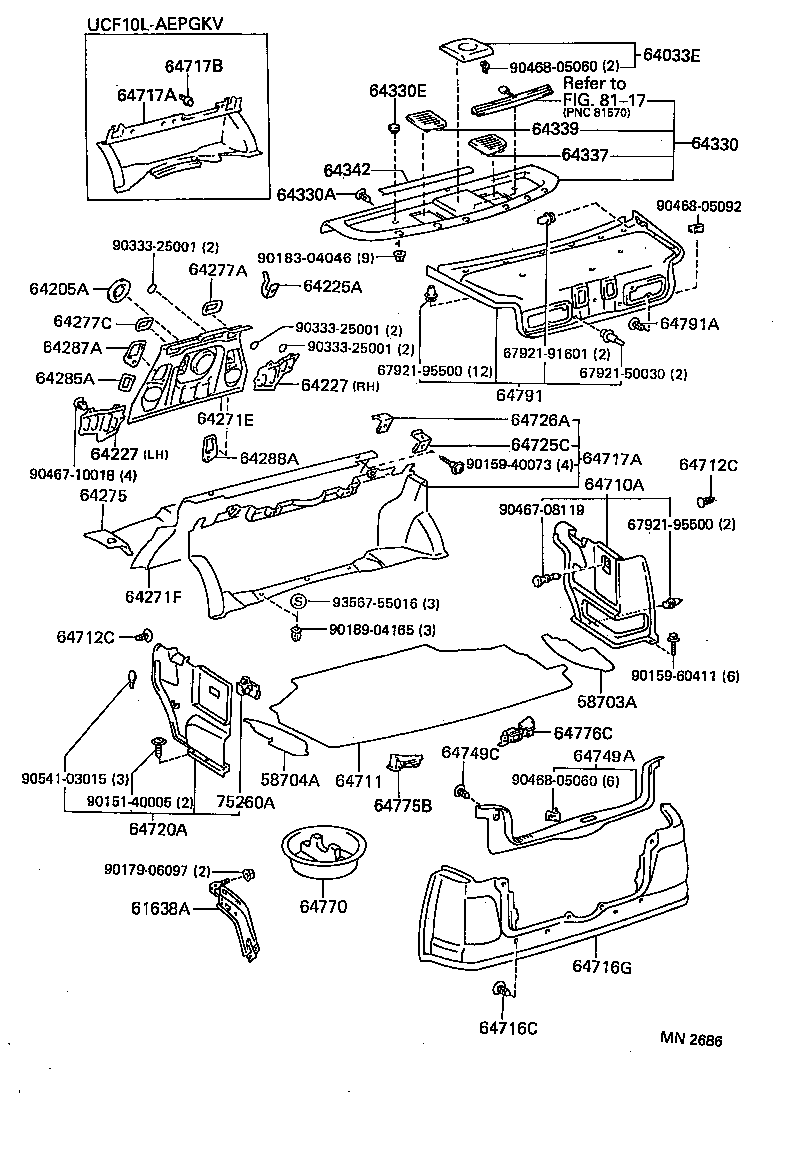

Package Tray Panel & Luggage Compartment Mat

40 part groups · 2 illustrations

PNC	Description
58703A	Cover Sub-assy, Luggage Compartment Side, RH
58704A	Cover Sub-assy, Luggage Compartment Side, LH
61638A	Brace, Quarter Panel, LH
64033E	Grille Sub-assy, Rear Speaker
64205A	Cover Sub-assy, Room Partition
64225A	Hanger, Rear Seat Cushion Support
64227	Extension, Center Floor TO Brace
64271E	Panel, Room Partition
64271F	Trim, Room Partition
64275	Pad, Room Partition Trim, NO.2
64277A	Moulding, Room Partition Trim
64277C	Cover, Room Partition, NO.2
64285A	Cover, Room Partition, NO.3
64287A	Cover, Room Partition, NO.4 RH
64288A	Cover, Room Partition, NO.4 LH
64330	Panel Assy, Package Tray Trim
64330A	Clip(FOR PACKAGE TRAY TRIM PANEL)
64330E	Plug(FOR PACKAGE TRAY TRIM PANEL)
64337	Garnish, Package Tray Trim, RH
64339	Garnish, Package Tray Trim, LH
64342	Cover, Package Tray Trim, Under
64710A	Cover Assy, Luggage Compartment Trim, RH
64711	Mat, Luggage Compartment Floor
64712C	Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
64716C	Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716G	Cover, Luggage Compartment Trim, Rear
64717A	Cover, Luggage Compartment Trim, Front
64717B	Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64720A	Cover Assy, Luggage Compartment Trim, LH
64725C	Retainer, Luggage Compartment Cover
64726A	Clip, Luggage Trim, Rear
64749A	Cover, Luggage Compartment Door Striker
64749C	Clip(FOR LUGGAGE DOOR STRIKER COVER)
64770	Cover Assy, Spare Wheel
64775B	Guard, Spare Wheel
64776C	Guard, Spare Wheel, NO.2
64779A	Stopper, Spare Wheel Cover
64791	Cover, Back Door Trim
64791A	Clip(FOR BACK DOOR TRIM)
75260A	Lock Assy, Tool Box

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
