Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05

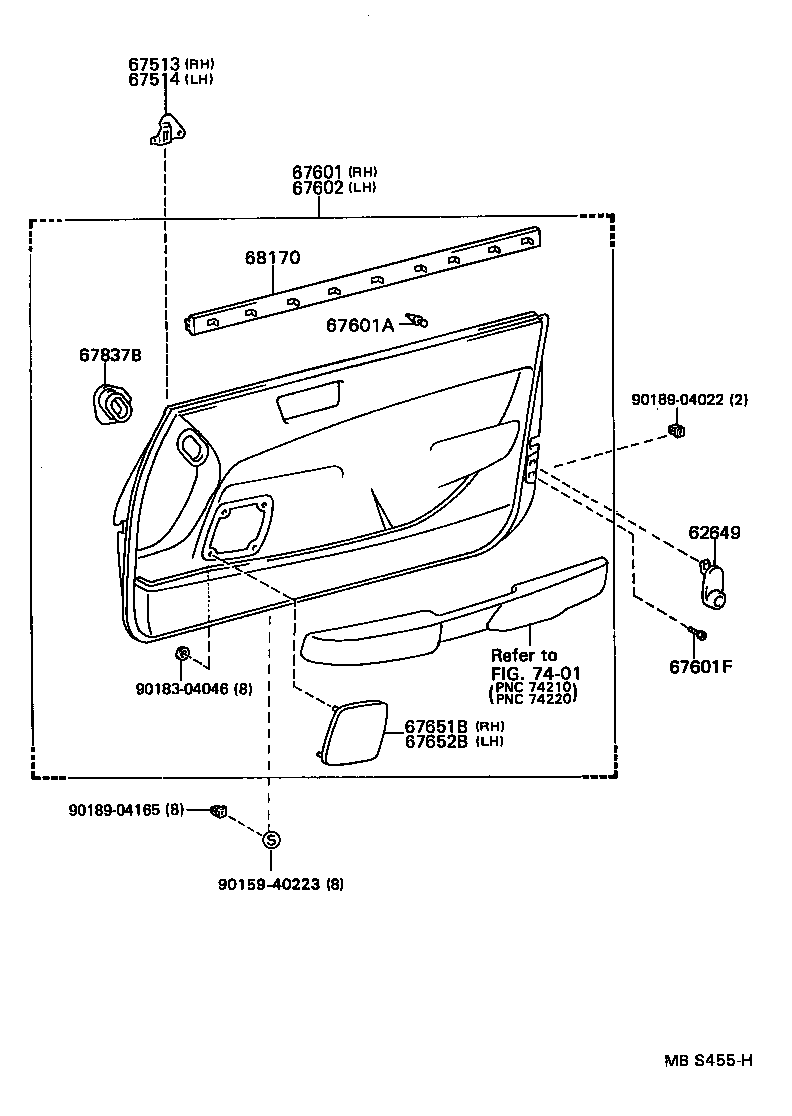

Front Door Panel & Glass
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62649 | Bracket, Side Trim |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67431 | Guide, Front Door Window, Front RH |
| 67432 | Guide, Front Door Window, Front LH |
| 67433A | Guide, Front Door Window, Rear RH |
| 67434A | Guide, Front Door Window, Rear LH |
| 67485F | Weatherstrip, Front Door Glass Guide, NO.1 |
| 67486C | Weatherstrip, Front Door Glass Guide, NO.2 |
| 67487D | Weatherstrip, Front Door Glass Guide, NO.3 |
| 67491B | Garnish, Front Door Window Upper Bracket, RH |
| 67492B | Garnish, Front Door Window Upper Bracket, LH |
| 67513 | Bracket, Front Door Mirror, RH |
| 67514 | Bracket, Front Door Mirror, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601F | Screw(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67651B | Grille, Speaker Door, RH |
| 67652B | Grille, Speaker Door, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837B | Seal, Front Door Dust Proof |
| 67837F | Seal, Door Dust Proof |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68192C | Seal, Front Door Belt, Front RH |
| 68193C | Seal, Front Door Belt, Front LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
| 68621 | Seal, Door Check |
| 68621A | Cover, Front Door Check, RH |
| 68622 | Cover, Front Door Check, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
