Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05

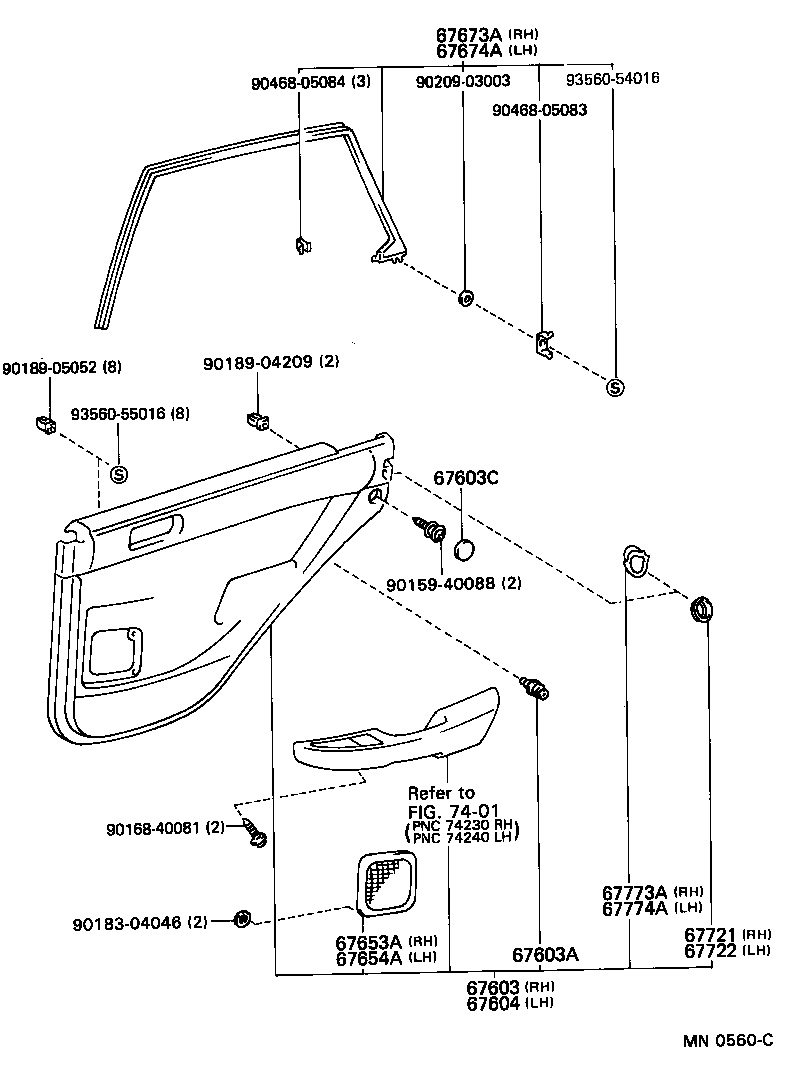

Rear Door Panel & Glass
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67435A | Guide, Rear Door Window, Front RH |
| 67436C | Guide, Rear Door Window, Front LH |
| 67488D | Weatherstrip, Rear Door Glass Guide, NO.4 |
| 67489C | Weatherstrip, Rear Door Glass Guide, NO.5 |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603C | Cap(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67653A | Grille, Speaker Rear Door, RH |
| 67654A | Grille, Speaker Rear Door, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67721 | Cover, Rear Door Trim, RH |
| 67722 | Cover, Rear Door Trim, LH |
| 67773A | Clip, Rear Door Trim Upper Retainer, NO.1 |
| 67774A | Clip, Rear Door Trim Upper Retainer, NO.2 |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68617A | Pin, Rear Door Check |
| 68621B | Seal, Door Check |
| 68623 | Cover, Door Check, RH |
| 68624 | Cover, Door Check, LH |
| 68630 | Check Assy, Rear Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
