Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

78 part groups · 5 illustrations

Illustrations

MN0564E 1989-12 → —

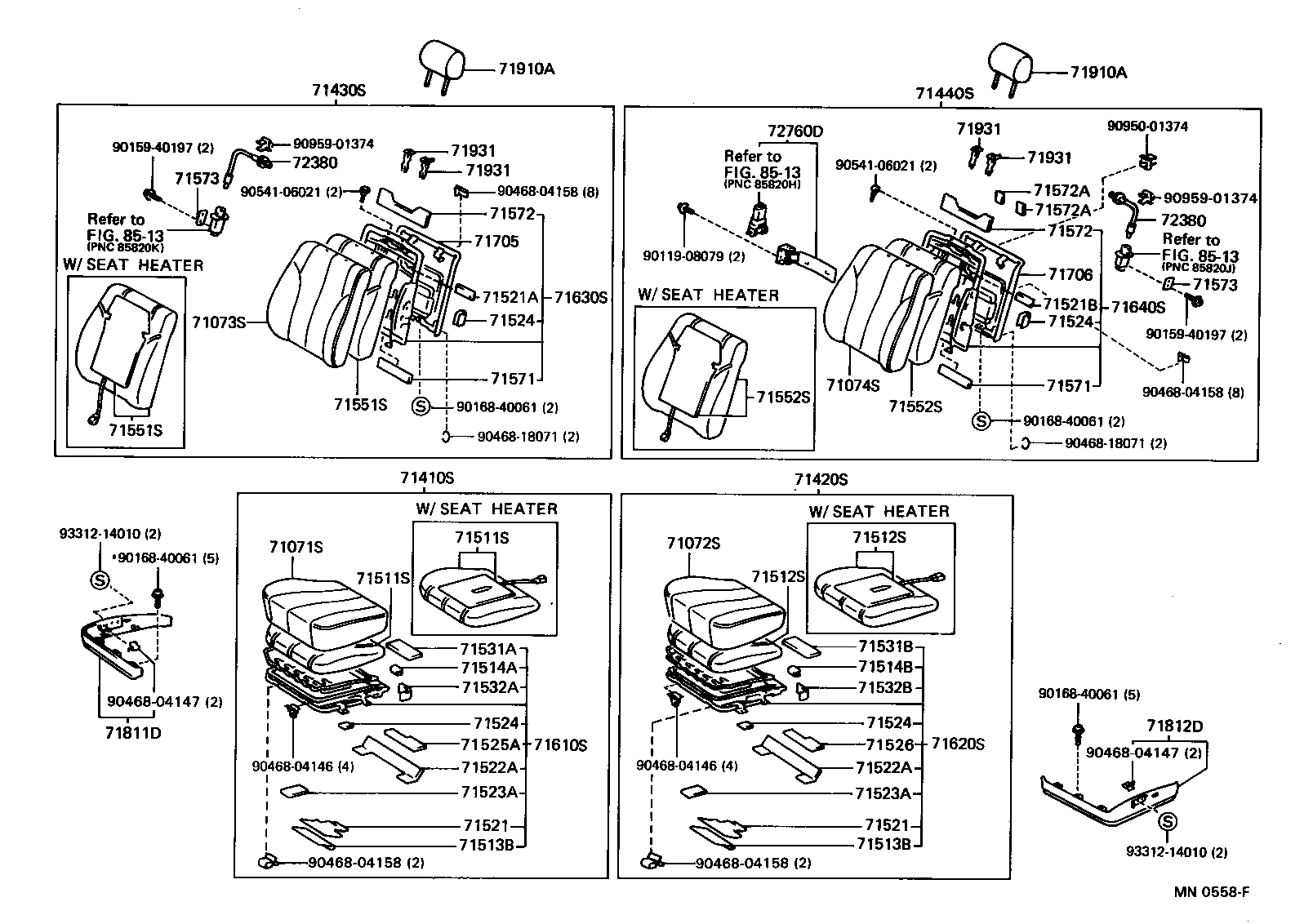

MN0558F 1989-12 → —

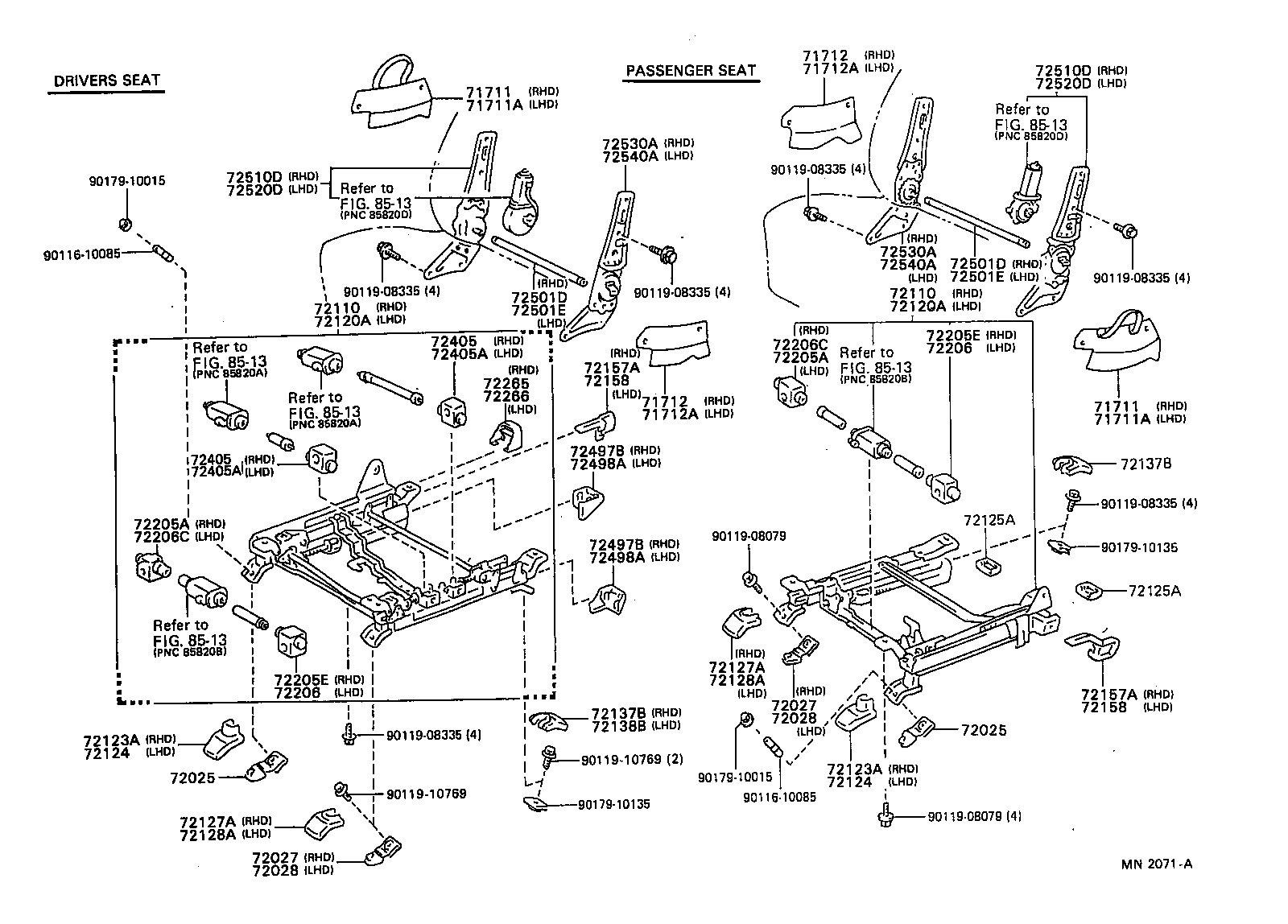

MN2071A 1989-12 → 1992-08

MN0559G 1992-08 → —

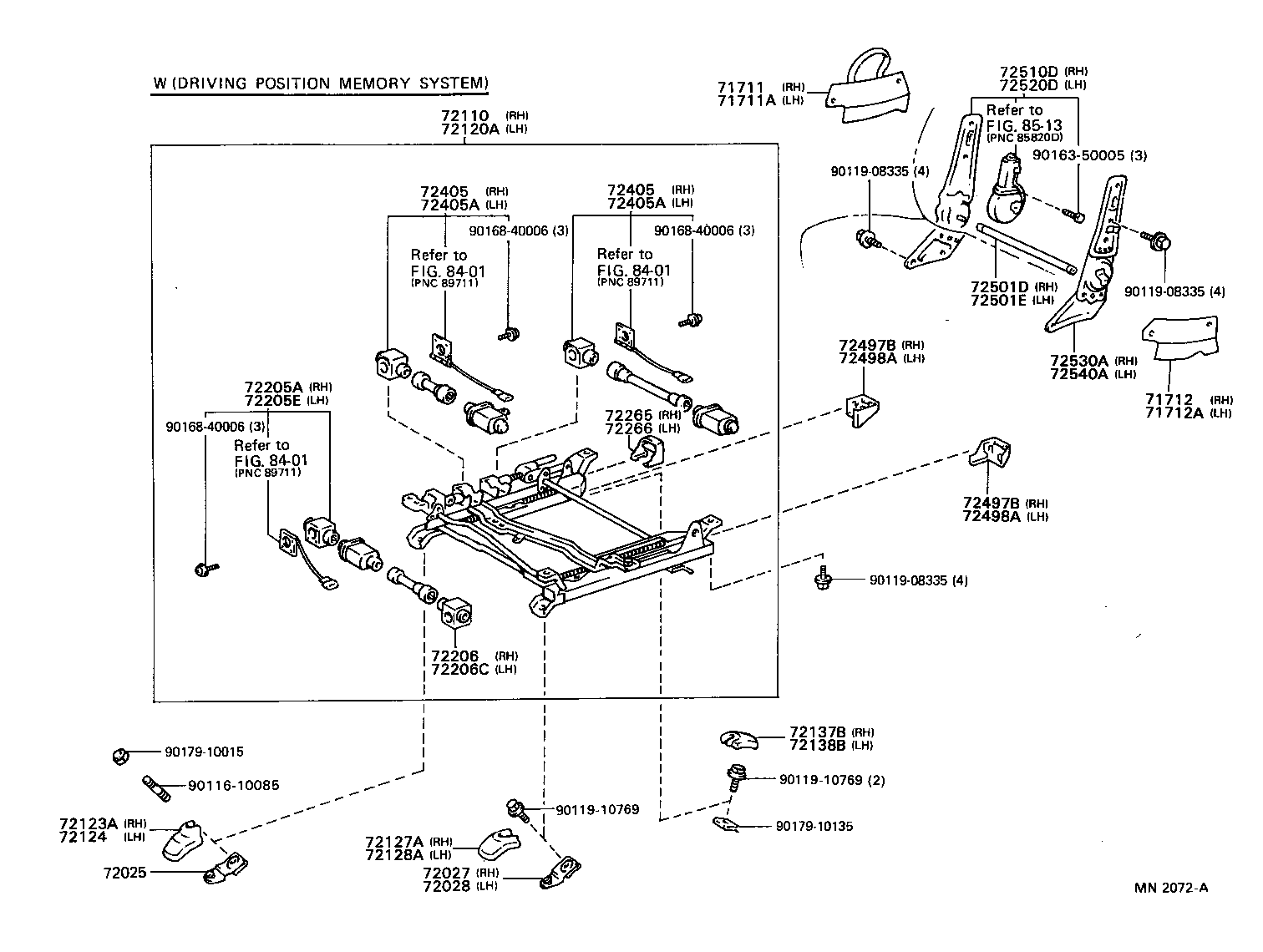

MN2072A 1989-12 → —

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71513B	Pad, Front Seat Cushion, B
71514A	Pad, Front Seat Cushion, C RH
71514B	Pad, Front Seat Cushion, C LH
71521	Pad, Front Seat Cushion Silencer, A
71521A	Pad,Front Seat Cushion Silencer
71521B	Pad,Front Seat Cushion Silencer
71522A	Pad, Front Seat Cushion Silencer, B
71523A	Pad, Front Seat Cushion Silencer, C
71524	Pad, Front Seat Cushion Silencer, D
71525A	Pad, Front Seat Cushion Cover, Center RH
71526	Pad,Front Seat Cushion Cover,Center LH
71531A	Pad, Front Seat Cushion Corner, A RH
71531B	Pad, Front Seat Cushion Corner, A LH
71532A	Pad, Front Seat Cushion Corner, B RH
71532B	Pad, Front Seat Cushion Corner, B LH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71571	Pad, Front Seatback Silencer, A
71572	Pad, Front Seatback Silencer, B
71572A	Pad, Front Seatback Silencer, B
71573	Pad, Front Seatback Silencer, C
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71711	Leather, For Seat, A RH
71711A	Leather, For Seat, A LH
71712	Leather, For Seat, B RH
71712A	Leather, For Seat, B LH
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72025	Nut Sub-assy, Front Seat Anchor, Outer Front
72027	Nut Sub-assy, Front Seat Anchor, Inner Front RH
72028	Nut Sub-assy, Front Seat Anchor, Inner Front LH
72110	Regulator Assy, Power Seat, RH
72120A	Regulator Assy, Power Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72205A	Housing Sub-assy, Power Seat, NO.1
72205E	Housing Sub-assy, Power Seat, NO.1
72206	Housing Sub-assy, Power Seat, NO.2
72206C	Housing Sub-assy, Power Seat, NO.2
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72380	Cable Assy, Seat Adjuster Control, NO.2
72405	Housing Sub-assy, Front Seat Vertical
72405A	Housing Sub-assy, Front Seat Vertical
72497B	Cover, Vertical Adjuster Bracket, RH
72498A	Cover, Vertical Adjuster Bracket, LH
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72510D	Adjuster Assy, Reclining Seat, Outer RH
72520D	Adjuster Assy, Reclining Seat, Outer LH
72530A	Adjuster Assy, Reclining Seat, Inner RH
72540A	Adjuster Assy, Reclining Seat, Inner LH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
