Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

84 part groups · 3 illustrations

Illustrations

MBV062F 1989-12 → 1992-08

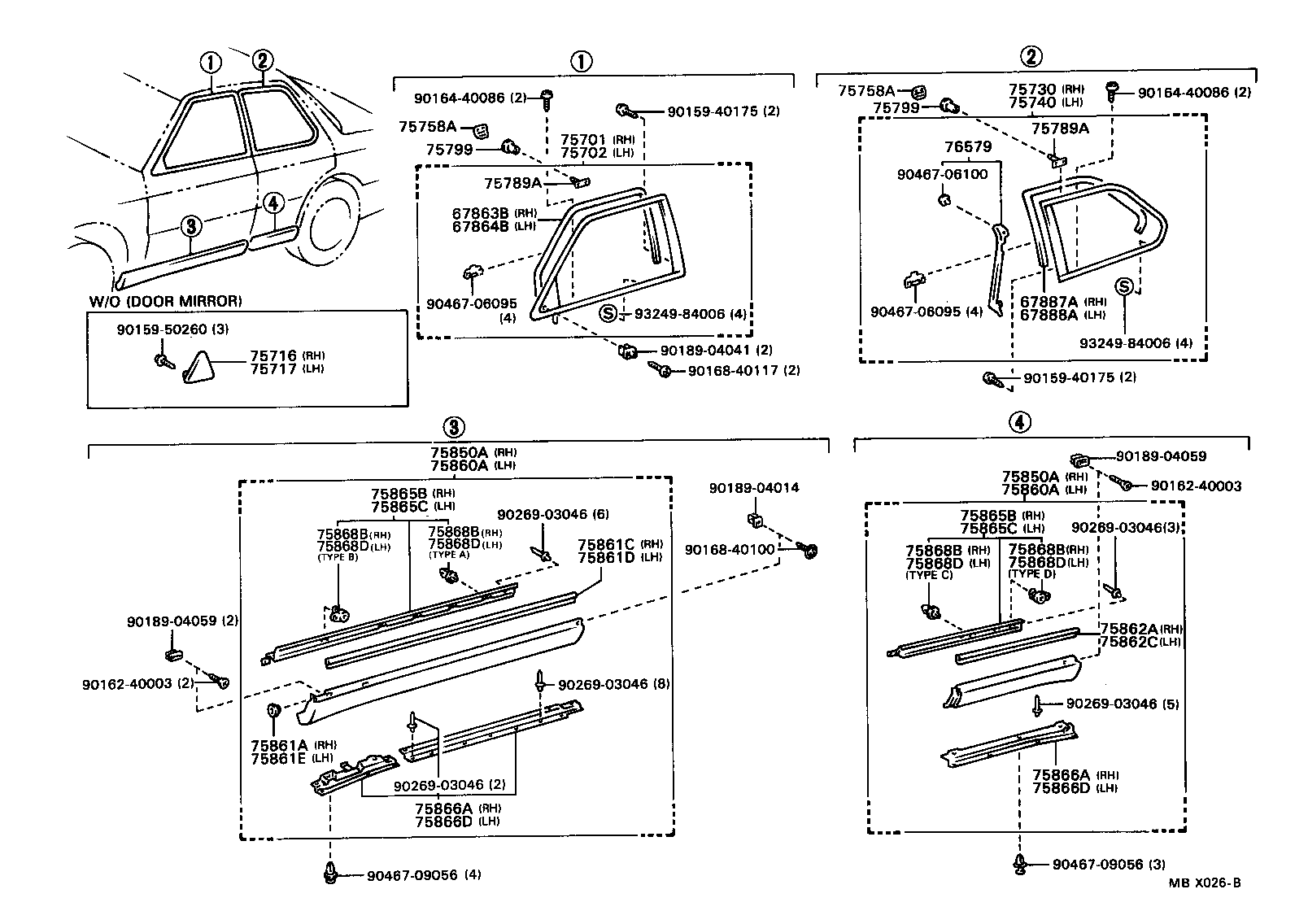

MBX026B 1992-08 → —

MBX033D 1992-08 → —

Part groups

PNC	Description
67863B	Weatherstrip, Front Door, NO.2 RH
67864B	Weatherstrip, Front Door, NO.2 LH
67887A	Weatherstrip, Rear Door, NO.2 RH
67888A	Weatherstrip, Rear Door, NO.2 LH
67897E	Cushion, Rear Door, RH
67897F	Cushion, Rear Door, LH
75071A	Moulding Sub-assy, Front Door, Outside RH
75072A	Moulding Sub-assy, Front Door, Outside LH
75075	Moulding Sub-assy, Rear Door, Outside RH
75076	Moulding Sub-assy, Rear Door, Outside LH
75392A	Retainer, Outside Moulding, NO.1
75396	Clip, Outside Moulding, NO.2
75397A	Clip, Outside Moulding, NO.3
75397D	Clip, Outside Moulding, NO.3
75398	Clip, Outside Moulding, NO.5
75398A	Clip, Outside Moulding, NO.5
75399A	Holder, Outside Moulding Seal
75491	Clip, Outside Moulding, NO.6
75491B	Clip, Outside Moulding, NO.6
75492	Retainer, Outside Moulding, NO.5
75493	Retainer, Outside Moulding, NO.4
75493A	Retainer, Outside Moulding, NO.4 (RH)
75493B	Retainer, Outside Moulding, NO.4 (LH)
75494	Clip, Outside Moulding, NO.3
75494A	Clip, Outside Moulding, NO.3
75498	Clip, Quarter Garnish, NO.1
75498D	Clip, Quarter Garnish, NO.1
75601A	Moulding Sub-assy, Front Fender, RH
75602A	Moulding Sub-assy, Front Fender, LH
75605A	Moulding Sub-assy, Quarter Outside, RH
75606A	Moulding Sub-assy, Quarter Outside, LH
75611B	Moulding, Side Panel, NO.1 RH
75612E	Pin
75613C	Moulding, Front Fender, Outside NO.2 RH
75614C	Moulding, Front Fender, Outside NO.2 LH
75617C	Moulding, Front Fender, Lower Rear RH
75618C	Moulding, Front Fender, Lower Rear LH
75653B	Moulding, Quarter Outside, RH NO.3
75654B	Moulding, Quarter, Outside NO.4
75657A	Moulding, Quarter Panel, Lower Rear RH
75658A	Moulding, Quarter Panel, Lower Rear LH
75696	Pad, Body Outside Moulding, NO.1
75698	Pad, Quarter Belt Moulding
75698A	Pad, Body Outside Moulding, NO.3
75698B	Pad, Body Outside Moulding, NO.3
75698C	Pad, Body Outside Moulding, NO.3
75698D	Pad, Body Outside Moulding, NO.3
75698E	Pad, Body Outside Moulding, NO.3
75701	Moulding Sub-assy, Front Door Belt, RH
75702	Moulding Sub-assy, Front Door Belt, LH
75716	Cover, Front Door Belt Moulding End, Front RH
75717	Cover, Front Door Belt Moulding End, Front LH
75730	Moulding Assy, Rear Door Belt, RH
75733B	Moulding, Front Door, Outside Upper Rear RH
75734B	Moulding, Front Door, Outside Upper Rear LH
75735A	Moulding, Front Door Outside, Lower RH
75736A	Moulding, Front Door Outside, Lower LH
75740	Moulding Assy, Rear Door Belt, LH
75743A	Moulding, Rear Door, Outside Upper Rear RH
75744	Moulding, Rear Door, Outside Upper Rear LH
75745	Moulding, Rear Door Outside, Lower RH
75746	Moulding, Rear Door Outside, Lower LH
75758A	Cover, Front Door Window Frame Moulding Joint, Front
75789A	Bolt, Door Belt Moulding
75799	Nut, Door Belt Moulding
75850A	Moulding Assy, Body Rocker Panel, RH
75860A	Moulding Assy, Body Rocker Panel, LH
75861A	Protector, Rocker Panel Moulding, NO.1
75861C	Pad, Rocker Panel Moulding
75861D	Protector, Rocker Panel Moulding, NO.1
75861E	Pad, Rocker Panel Moulding
75862A	Protector, Rocker Panel Moulding, NO.2
75862C	Protector, Rocker Panel Moulding, NO.2
75865B	Retainer, Rocker Panel Moulding, NO.2
75865C	Protector, Rocker Panel Moulding, NO.5
75866A	Retainer, Rocker Panel Moulding
75866D	Retainer, Rocker Panel Moulding
75868B	Clip, Rocker Panel Moulding, NO.2
75868D	Clip, Rocker Panel Moulding, NO.2
75871	Moulding, Front Fender Wheel Opening, RH
75872	Moulding, Front Fender Wheel Opening, LH
75873	Moulding, Quarter Panel Wheel Opening, RH
75874	Moulding, Quarter Panel Wheel Opening, LH
76579	Seal, Center Pillar Moulding

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
