Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

21 part groups · 4 illustrations

Illustrations

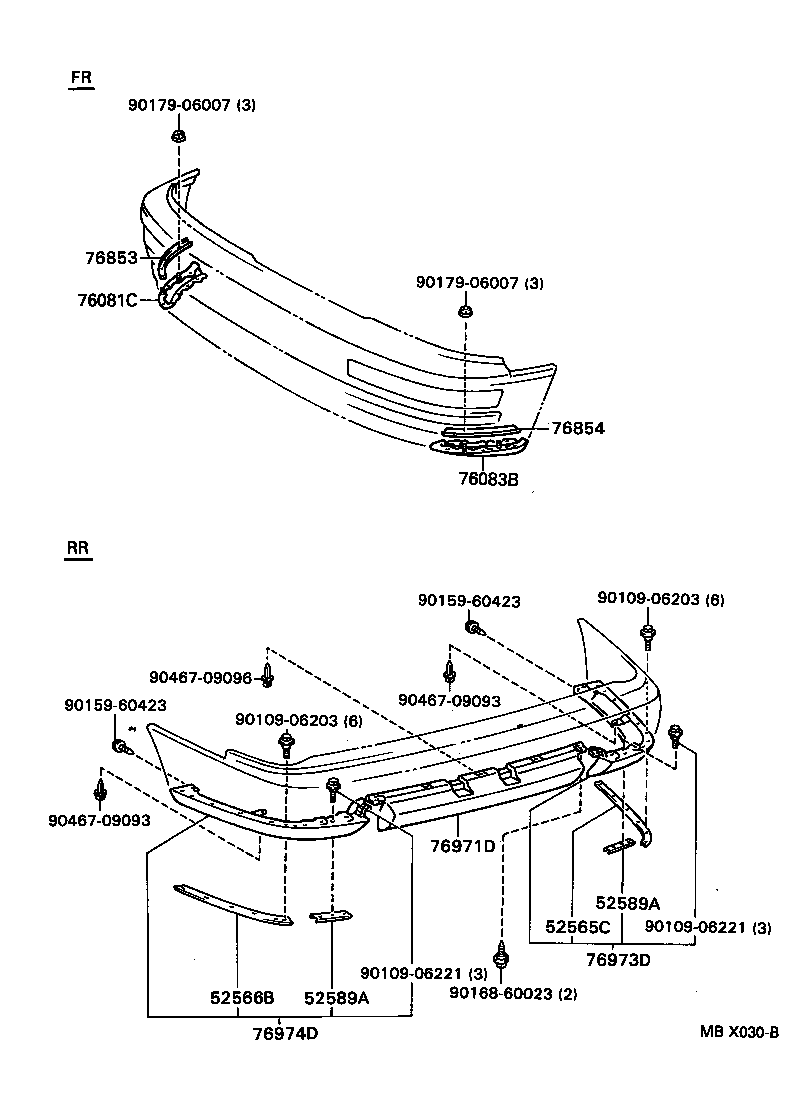

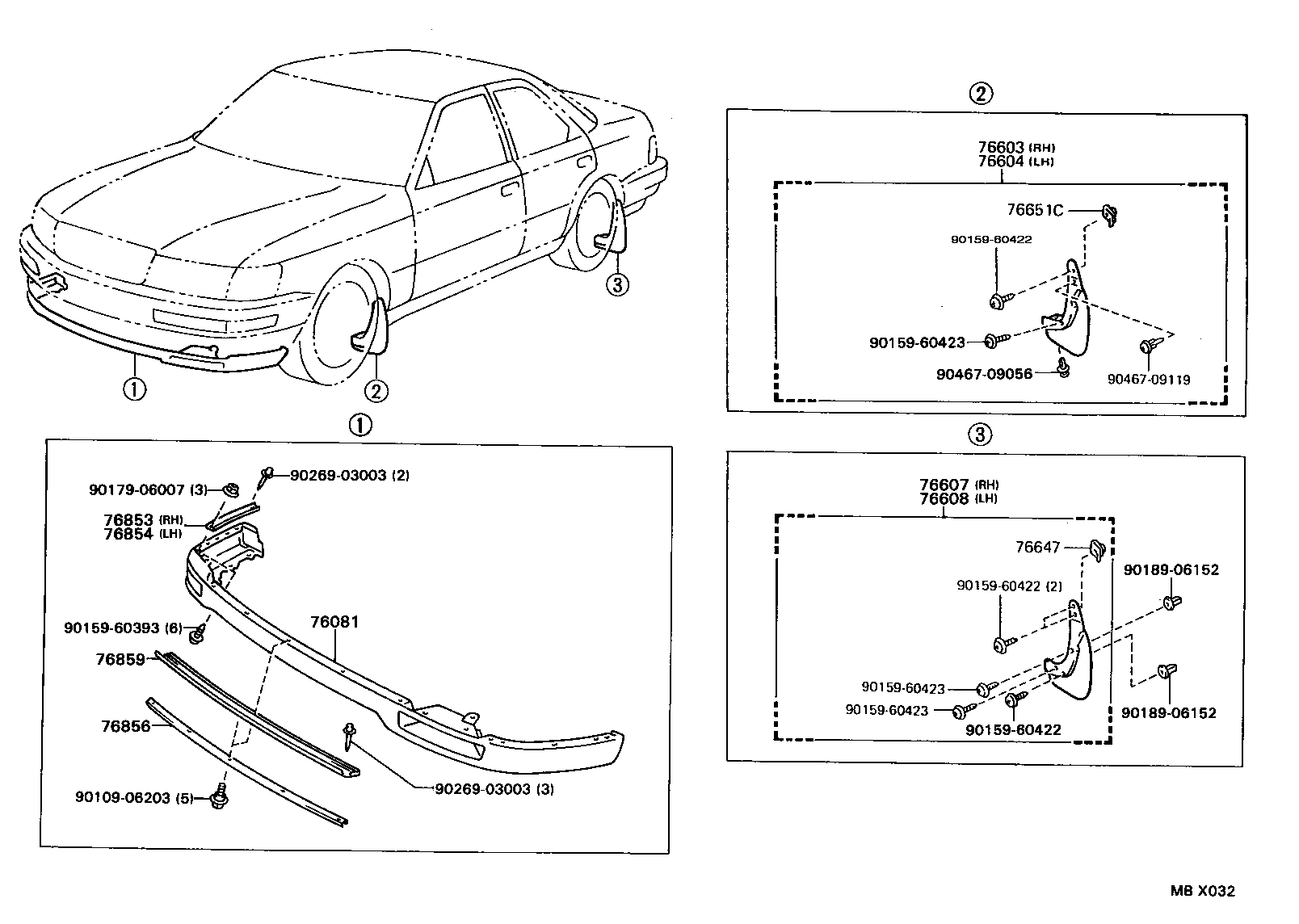

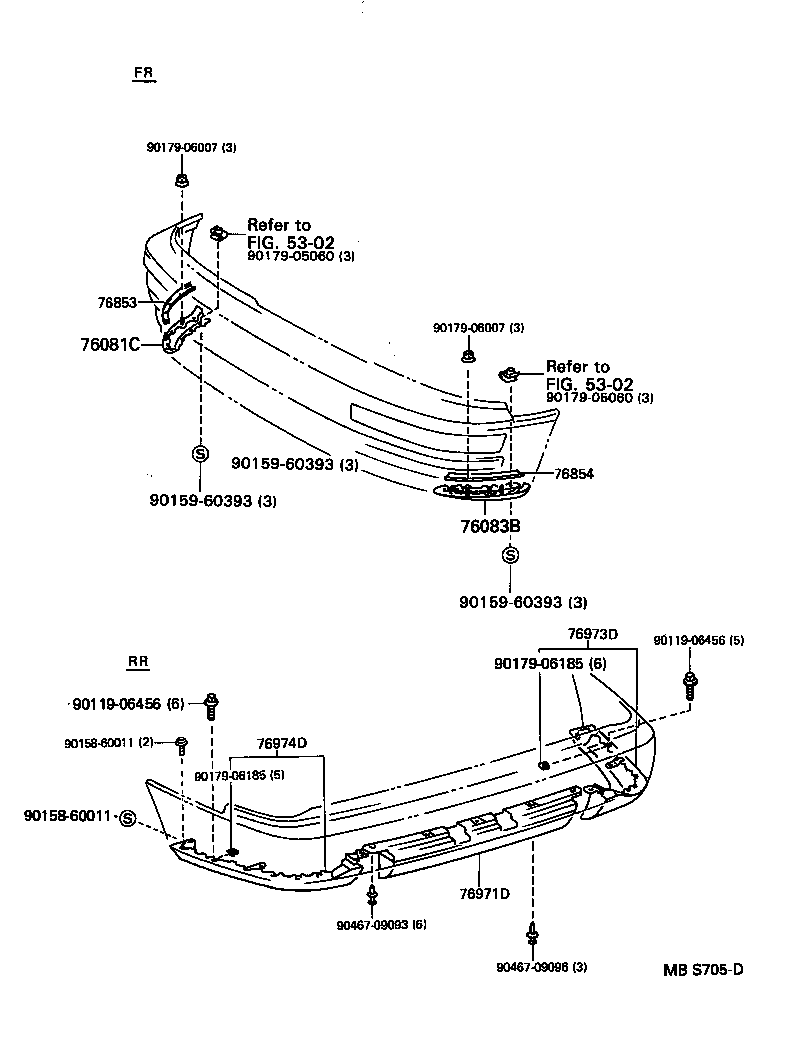

Figure MBT677B MBT677B 1989-12 → 1992-08 Figure MBX032 MBX032 1992-08 → — Figure MBS705D MBS705D 1989-12 → 1992-08 Figure MBX030B MBX030B 1992-08 → —

Part groups

PNCDescription
52565C Retainer, Rear Bumper, Lower RH
52566B Retainer, Rear Bumper, Lower LH
52589A Retainer, Rear Bumper End, NO.2
76081 Spoiler Sub-assy, Front
76081C Spoiler, Front Side RH
76083B Spoiler, Front Side LH
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76647 Retainer, Quarter Panel Rear Mudguard
76651C Retainer, Front Mudguard
76853 Retainer, Front Spoiler, Upper RH
76854 Retainer, Front Spoiler, Upper LH
76855 Retainer, Front Spoiler, Lower NO.1 Center
76856 Retainer, Front Spoiler, Lower NO.2 Center
76859 Retainer, Front Spoiler, Upper NO.3
76861 Retainer, Front Spoiler, Lower NO.1
76971D Cover, Rear Under
76973D Cover, Rear Under Side, RH
76974D Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
