Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05

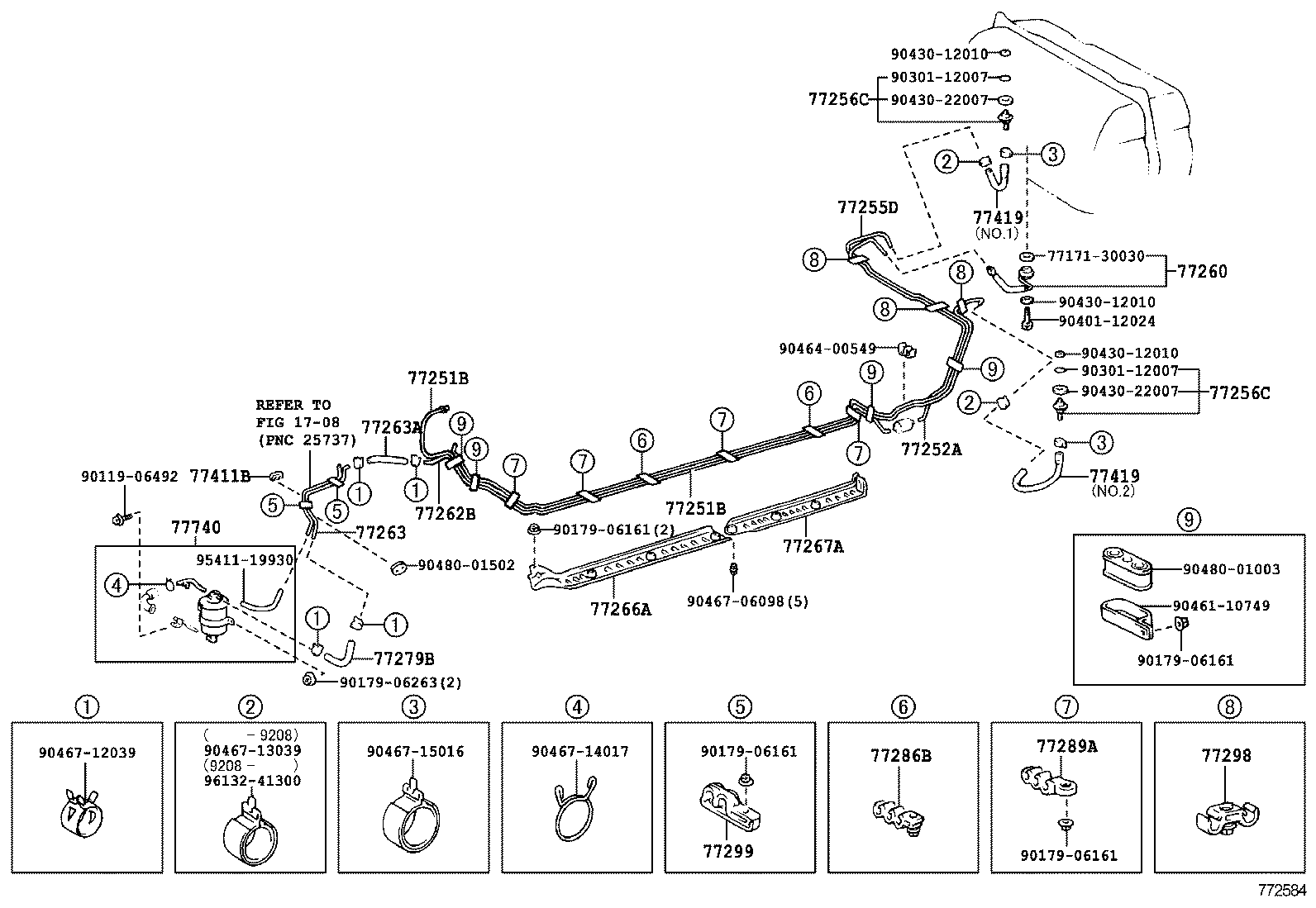

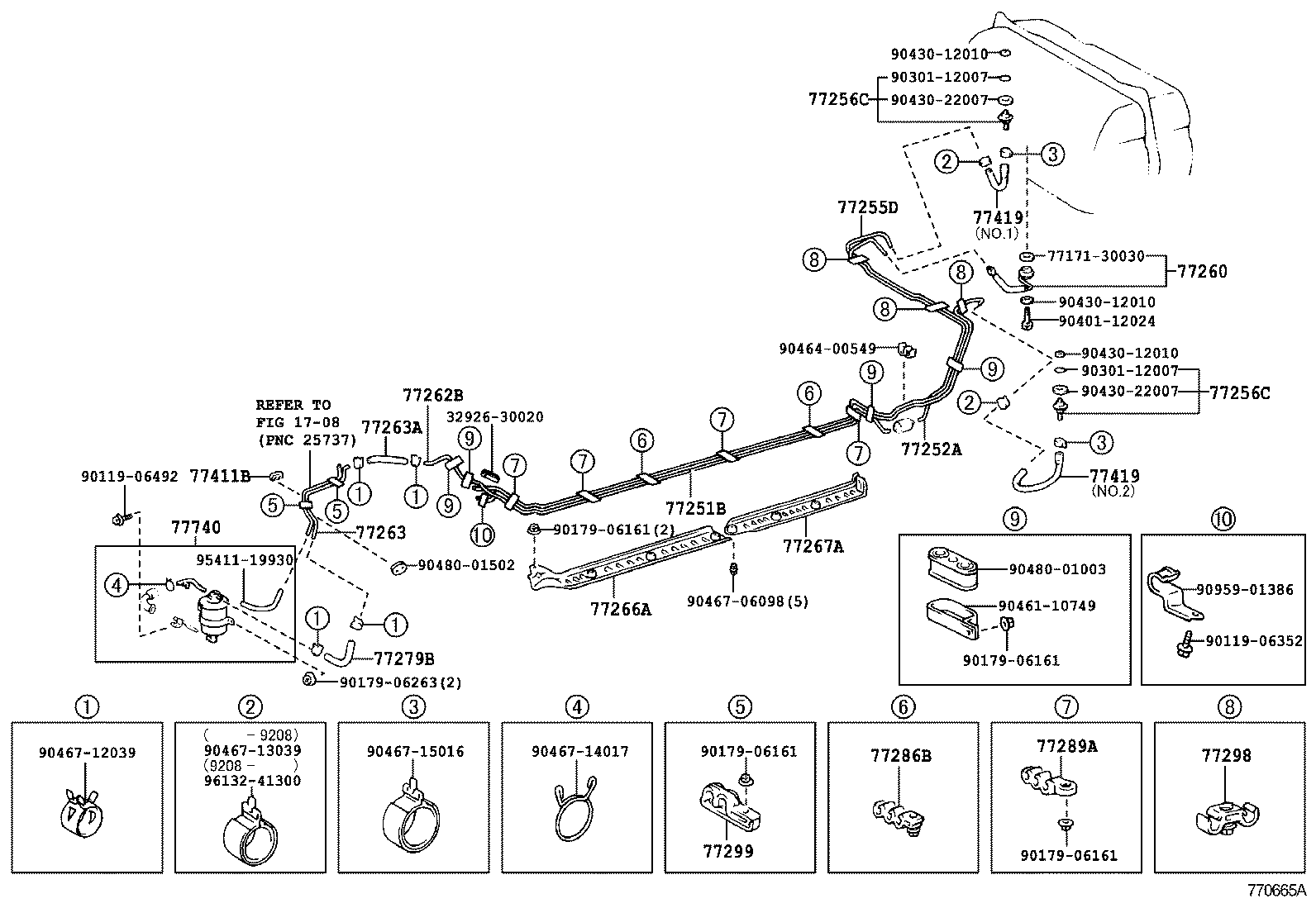

Fuel Tank & Tube

42 part groups · 3 illustrations

PNC	Description
77081	Retainer Sub-assy, Fuel Cut Off Valve
77100	Tank Assy, Fuel
77100A	Plug(FOR FUEL TANK)
77100B	Gasket(FOR FUEL TANK)
77169A	Gasket, Fuel Suction Tube Set
77178	Gasket, Fuel Tank Filler Pipe, Lower
77178A	Gasket, Fuel Tank Filler Pipe, Lower
77201	Pipe Sub-assy, Fuel Tank Inlet
77251B	Tube, Fuel Main
77252A	Tube, Fuel Main, NO.2
77255D	Tube, Fuel Return
77256C	Tube, Fuel Return, NO.2
77259D	Hose, Fuel, NO.1
77260	Hose Assy, Fuel Main
77262B	Tube, Fuel Tank TO Canister, NO.2
77263	Tube, Fuel Tank TO Canister, NO.3
77263A	Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
77266A	Protector, Fuel Tube, NO.1
77267A	Protector, Fuel Tube, NO.2
77279B	Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.3)
77286B	Clamp, Fuel Tube W/Grommet, NO.2
77289A	Clamp, Fuel Tube W/Grommet, NO.3
77293A	Shield, Fuel Tank Filler Pipe, NO.3
77295C	Grommet, Fuel Tube
77298	Clamp, Fuel Tube W/Grommet, NO.4
77299	Clamp, Fuel Tube W/Grommet, NO.5
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77380	Valve Assy, Fuel Cut Off
77391	Ring, Fuel Inlet Box
77399A	Cover, Fuel Filler Opening Lid
77411B	Support, Fuel Tube Grommet, NO.1
77419	Hose, Fuel, NO.3
77466	Protector, Fuel Tube, NO.4
77467	Protector, Fuel Tube, NO.5
77606F	Case Sub-assy, Fuel Tank Cover Vent
77607	Case Sub-assy, Fuel Tank Cover Vent, LH
77651A	Cushion, Fuel Tank, NO.1
77652A	Cushion, Fuel Tank, NO.2
77740	Canister Assy, Charcoal

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
